Hi

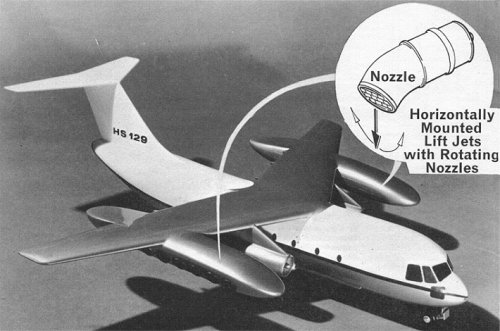

Whilst looking through some issues of Air Pictorial there was a picture that caught my eye in a Paris Special from 1965(? not too hand so not sure on the exact issue). The picture was a selection of European military Transport model, one was the Dornier Do28 another was a rather tasty swept composite wing Handley Page project HP135 in RAF transport command colours.
The other photo however was of the Hawker Siddley HS-129 which appeared to be a smaller brother of the HS-681 being a twin engined version with the slipper type VTOL engine pods associated with the VTOL 681.(photo to follow once i work out how).

Has anybody ever seen any details or references to the HS-129 before ?

Cheers

G


Attachments

  • HS129.jpg
    147.3 KB · Views: 1,418

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
860
Reaction score
206

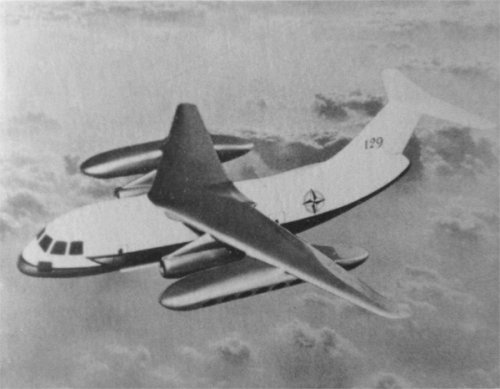

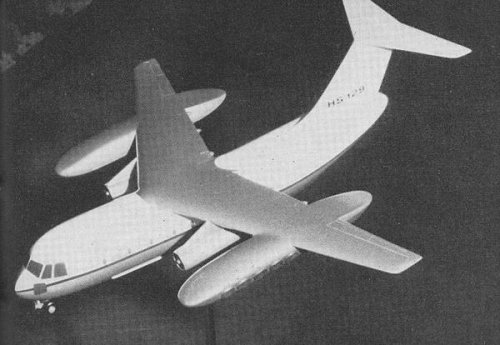

Sorry, no details for the moment, but another view to the model from Coplin's "VTOL Aircraft" (page 23).


Attachments

  • Hawker Siddeley H.S.129.jpg
    Hawker Siddeley H.S.129.jpg
    253.6 KB · Views: 1,355

Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
652
Reaction score
167
Cheers for that

It certainly looks like the HS-681 little brother and if done a STOL without the VTOL would have made a rather tasty small military freighter.

Cheers

Geoff


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
I'm more interested in the HP135!

475,000lb MTOW?


Wow?

HP135?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
may be this aircraft was essentially De Havilland DH-129.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,152

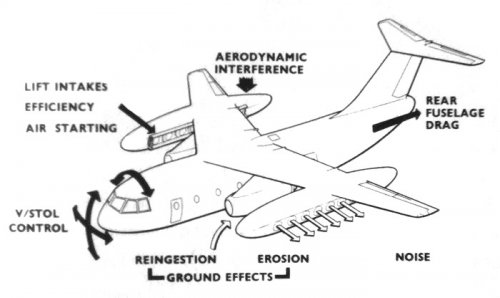

DH129

(From DoHS-1 Dornier/Hawker Siddeley V/STOL brochure)


Attachments

  • DH129.jpg
    63 KB · Views: 1,121

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,152

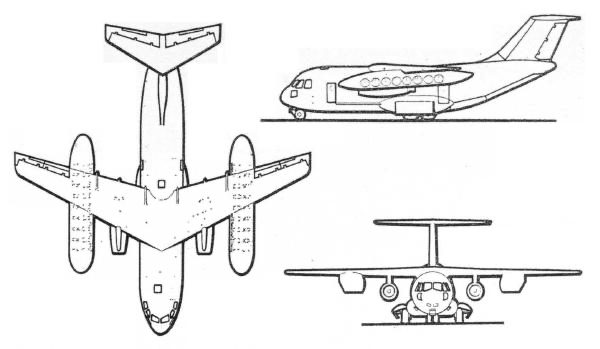

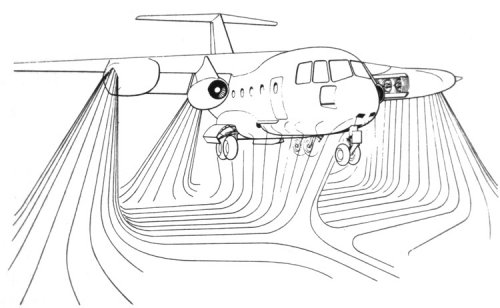

This drawing is unlabelled but appears to be DH/HS129


Attachments

  • DH129-1.jpg
    49.7 KB · Views: 1,048

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
"I'm more interested in the HP135!"

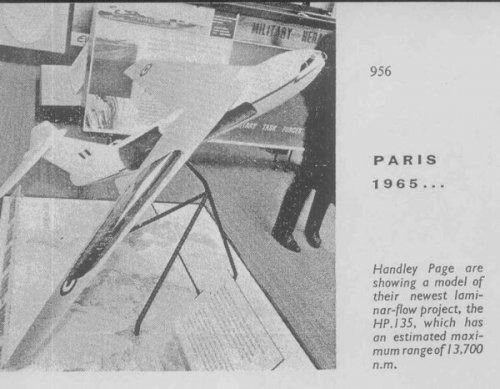

from FLIGHT INTERNATIONAL 1965


Attachments

  • HP-135.JPG
    49.7 KB · Views: 296

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,152
This 1965 proposal was for an ultra-long-range laminar flow transport. This four jet-engined aircraft would carry 200 passengers for 10,450 nautical miles, cruising at Mach 0.875. All-up weight 475,000 lb.

http://www.handleypage.com/Aircraft_hp135.html


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168
Not very good copy but haven't seen this pic before.


Attachments

  • scan0002a.jpg
    11.3 KB · Views: 1,529

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503

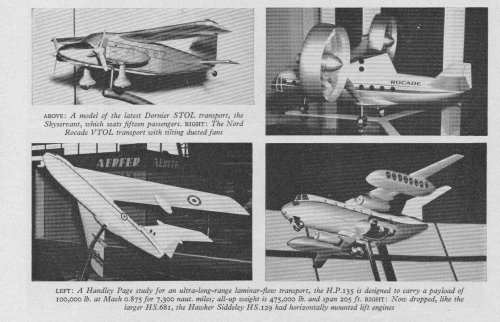

Another picture, from FLIGHT INTERNATIONAL 1965 :


Attachments

  • Hawker Siddeley H.S.129.jpg
    Hawker Siddeley H.S.129.jpg
    43.3 KB · Views: 152

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168

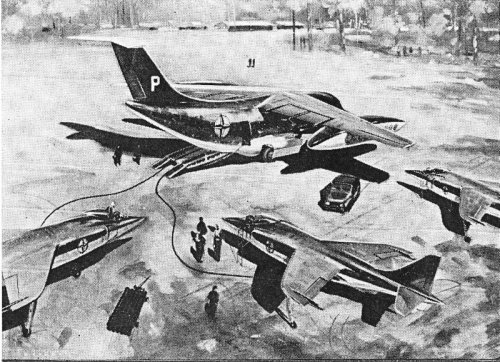

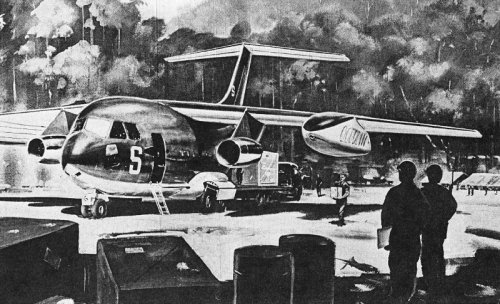

From a brochure.


Attachments

  • IMG.jpg
    189.4 KB · Views: 155
  • IMG_0001.jpg
    290.2 KB · Views: 153
  • IMG_0002.jpg
    267.1 KB · Views: 178

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,568
Reaction score
2,457
Barrington Bond

Thank you indeed for sharing the brochure pics. Is the brochure yours? Have you more info from
it?

The artwork seems to show the transporter servicing a NATO marked P1154. It must have been done in the early 60s when the 1154 won the NATO competition.

This scene fits beautifully into the UK 75 RAF as an Andover replacement servicing the 1154 in its
UKMF support role (like the Jaguar).

UK 75


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,087
Reaction score
264
I've seen the same brochure - it shows the P.1154 to NBMR.3 and DH.129 to NBMR.4.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,568
Reaction score
2,457
Stargazer 2006

The drawing is interesting because as Harrier (the expert on this plane) comments it is the
version of 1154 offered to the NATO competition in the early 60s.

The RAF intended to have this plane in service in the early 70s as the Harrier, but it was cancelled in 1964 by the Labour Government because of the desperate financial situation, and the RAF was allowed to order the 1127 (RAF) instead, starting off what we now know as the Harrier. So, 1154 was actually the original Harrier.

The DH 129 and its German equivalents (Dornier 131 and later 231) were intended to support aircraft in the field in Germany or on the NATO flanks.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168
The brochure is at the National Aerospace Library, Farnborough (a recent donation). It's not that large about landscape A5 and those were the only pages I was allowed to have copied due to copyright rules they were enforcing. However quite a few I think appeared in the likes of Flight. There was one cutaway in it I hadn't seen but it was rather tiny in size so I didn't bother with that and also the cover was a colour painting (silver and blue paint scheme with NATO markings I think) but didn't look as good as the interior b/w's.

Regards,
Barry


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168

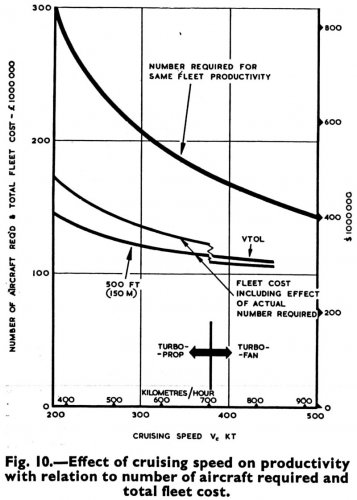

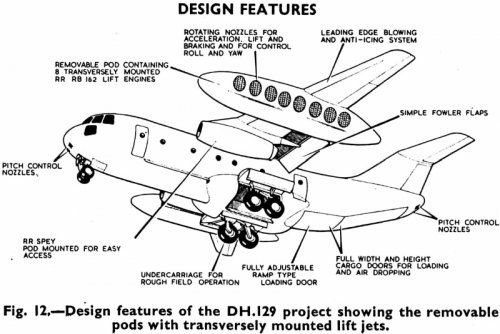

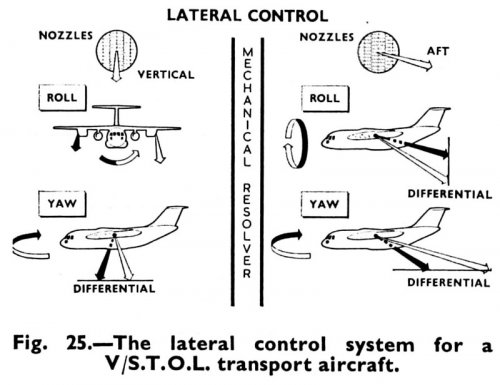

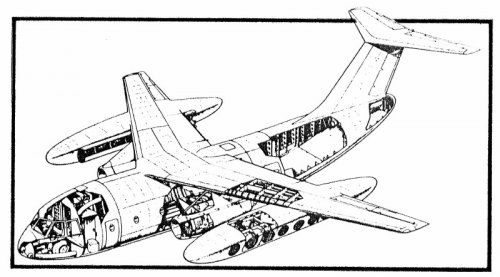

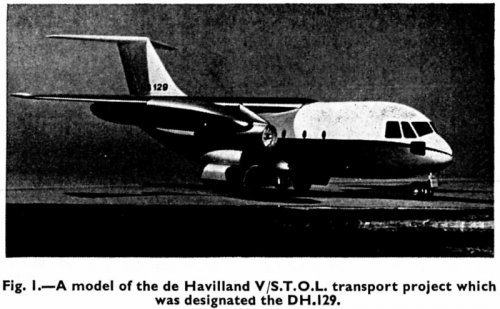

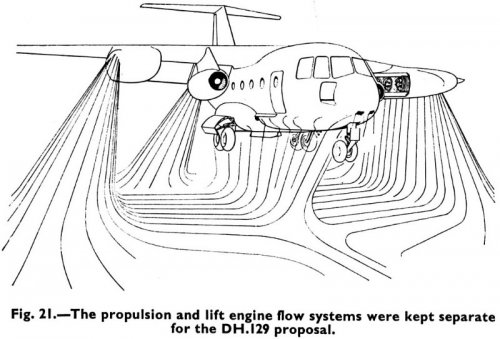

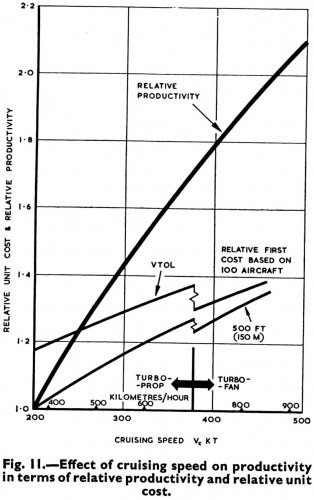

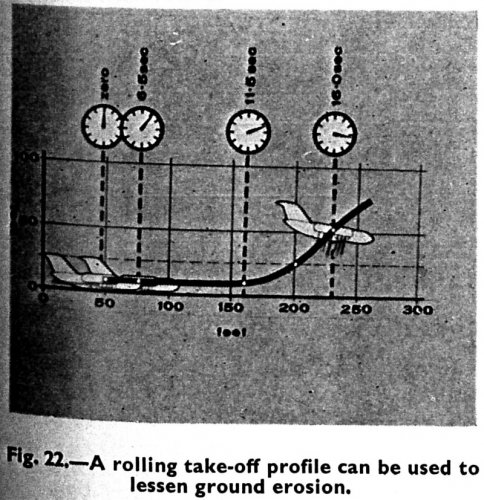

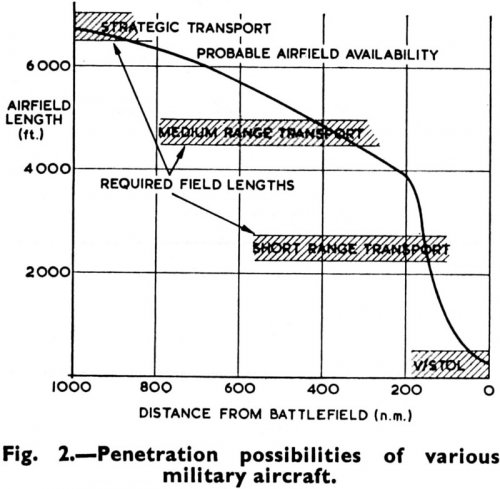

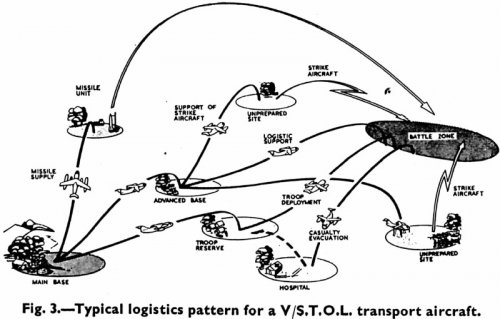

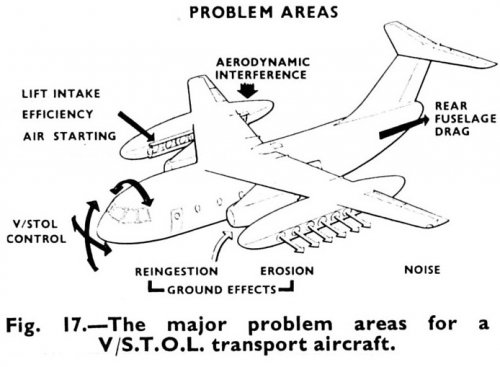

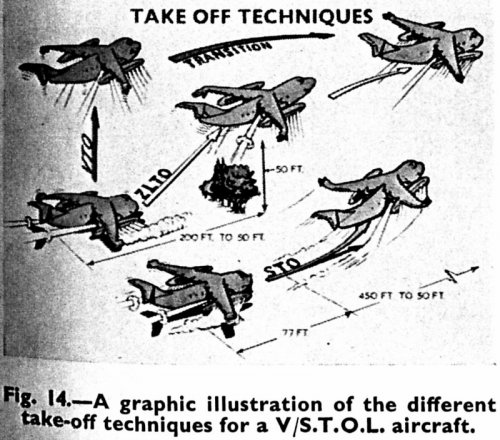

These are from Aircraft Engineering May 1966.


Attachments

  • NMBR_0004La.jpg
    116.6 KB · Views: 139
  • NMBR_0003Lc.jpg
    156 KB · Views: 82
  • NMBR_0003Lb.jpg
    142.9 KB · Views: 659
  • NMBR_0003La.jpg
    116.2 KB · Views: 697
  • NMBR_0001Lb.jpg
    122.1 KB · Views: 713
  • NMBR_0001La.jpg
    94.6 KB · Views: 758
  • NMBR.jpg
    108.8 KB · Views: 786

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168
ditto.


Attachments

  • NMBR_0004Lb.jpg
    185.4 KB · Views: 113
  • NMBR_0004Lc.jpg
    95 KB · Views: 99
  • NMBR_0004Ld.jpg
    127.7 KB · Views: 70
  • NMBR_0005.jpg
    80.3 KB · Views: 86
  • NMBR_0006La.jpg
    259.1 KB · Views: 75
  • NMBR_0007La.jpg
    94.2 KB · Views: 84

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,568
Reaction score
2,457
Barry

Thank you for taking so much trouble and giving us all easy access to this material.

The 129 is very much a vstol Andover and would have fitted into the proposed mobile
UK force structure for the late 60s: TSR 2s for long range strike 1154 Harriers for Close
Support HS 681 for Intra Theatre lift The 129 would have enabled the 681s to do without
the expensive vstol pods. Apparently "Project Prodigal" was going to give the Army the
same sort of hyper modern kit for this force: ultra light tank destroyers, jumping jeeps and
the Scorpion CVR() family. Sadly only the latter became reality.

We now know that all these systems were too complicated and had serious flaws. But the excitement of the possibilities in the early 60s is hard to shake off and are the stuff of What-if!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807
Cover of brochure for the de Havilland DH.129 V/STOL medium range transport.
RAeS (NAL) photo from The Aerospace Professional, September 2011


Attachments

  • DH.129 artwork.jpg
    DH.129 artwork.jpg
    41.5 KB · Views: 137

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,116
Reaction score
660
uk 75 said:
Stargazer 2006

The DH 129 and its German equivalents (Dornier 131 and later 231) were intended to support aircraft in the field in Germany or on the NATO flanks.

I think its a great pity that NATO could not work more uniformly on such a warranted project, instead of competing in an individual nationalistic-type competition, which would have delivered a workable and operational aircraft of this type and requirement!!
The Hawker Siddeley H.S.129 & Dornier Do 131 looks so similar in design and concept!

Regards
Pioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
Hi,


a more HS-129.

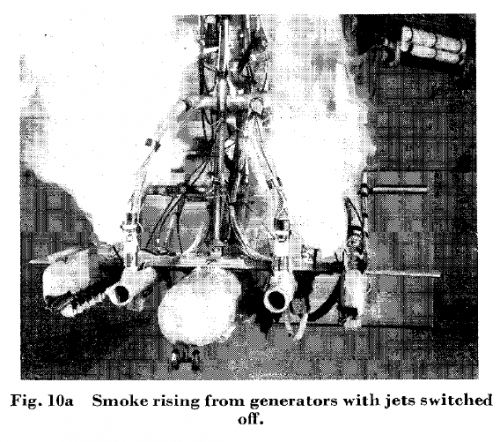

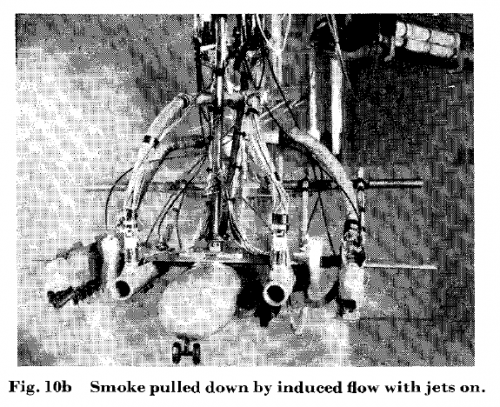

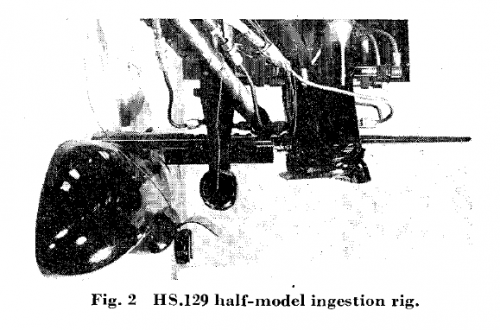

http://arc.aiaa.org/doi/abs/10.2514/3.44015?journalCode=ja

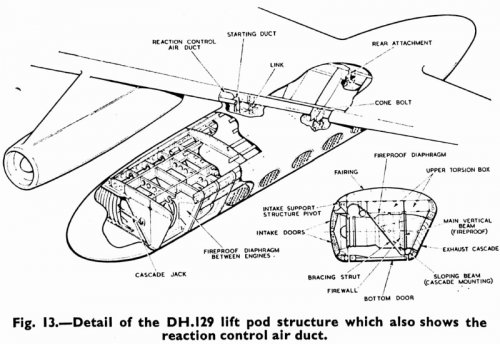

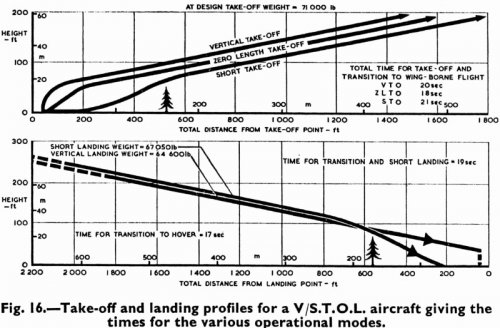

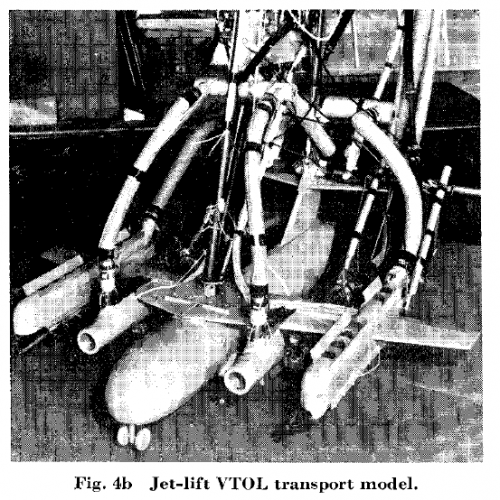

Attachments

  • 129-1.png
    94.6 KB · Views: 55
  • 129-2.png
    73.7 KB · Views: 47
  • 129-3.png
    91.4 KB · Views: 42
  • 129-4.png
    38.4 KB · Views: 57

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168
:)


Attachments

  • DH129- - Copy.jpg
    DH129- - Copy.jpg
    68.7 KB · Views: 89
  • DH129-_0001 - Copy.jpg
    DH129-_0001 - Copy.jpg
    97.2 KB · Views: 110
  • DH129-_0002 - Copy.jpg
    DH129-_0002 - Copy.jpg
    96.1 KB · Views: 129
