Hi all,

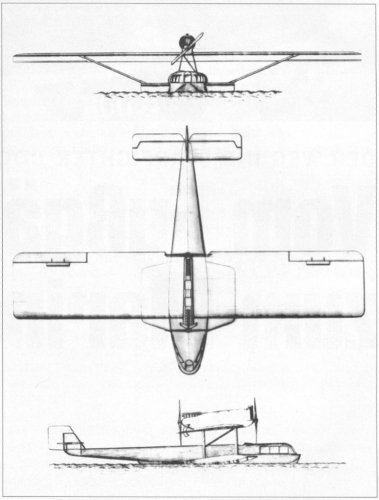

this Dornier flying boat project from the begin of the 1920 is a modification of the Gs.I, but I´ve no type number or specifications.

Servus Maveric


Attachments

  • dornier.jpg
    183.4 KB · Views: 822

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
46

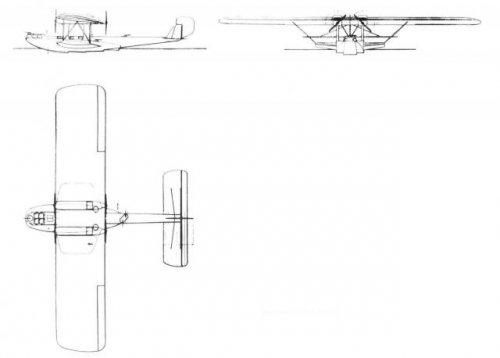

I have seen this 3 views identified as the Dornier Gs ii Wal (1919 )


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
The tail is already very similar to the Do J "Wal", but the bow
is different from the later "Verkehrswal", the civil version of the
Do Wal. Of the Do Gs II only a mock-up was built, as construction
was prohibited by the allies (According to Gütschow "Die Deutschen
Glugboote"). I've found no photo of the civil Wal version, which match
this 3-view, so I think, Richard is right.
By the way, as we are speaking about the Dornier Wal, in the last Flieger
Revue extra, apart from Deinos fantastic article, there's another one about
the development and rise of the german airforce between the wars, saying
that the often read designation Do 15 for the Dornier Wal is wrong and was
never used by Dornier or the RLM .


Gannet

ACCESS: Restricted
Joined
Mar 18, 2008
Messages
41
Reaction score
5
According to Jane's Encyclopedia of Aviation; Cresent Books; Avenel, NJ; 1993 Edition; p328

There is a picture of the Italian Dornier Do J Wal I with the bow very similar to the bow shown in the three view drawing above

The Wal all metal flying boat was a directed development of the Gs I of 1919 (which was broken up) and the uncompleted Gs II. The protoype flew on 6 November 1922. Because of the Allied ban on German construction of this class of aeroplane, production was undertaken by CMASA in Italy with the first aircraft completed in 1923. Wals were also produced by Piaggio and in Japan, the Netherlands and Spain and later in Germany.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Here is two Dornier flying boat projects of 1918.


Attachments

  • Do flying boat 1918  1.JPG
    Do flying boat 1918 1.JPG
    15 KB · Views: 527
  • Do flying boat 1918  2.JPG
    Do flying boat 1918 2.JPG
    20.4 KB · Views: 520

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
706

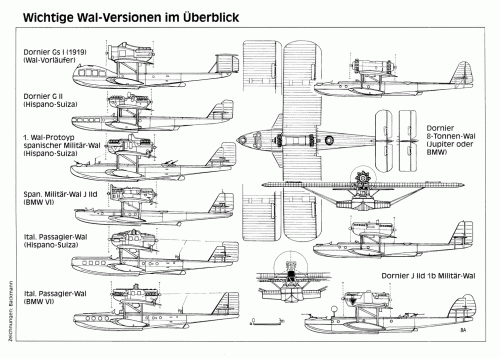

Here is a beautiful 2009 document from Klassiker der Luftfahrt showing the main versions of the Dornier Wal in profile:


Attachments

  • Wal versions.gif
    Wal versions.gif
    406.5 KB · Views: 436

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253

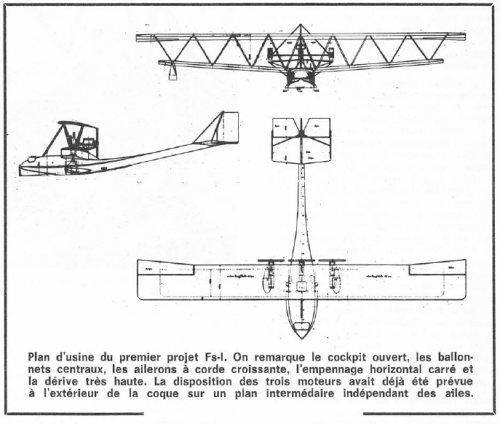

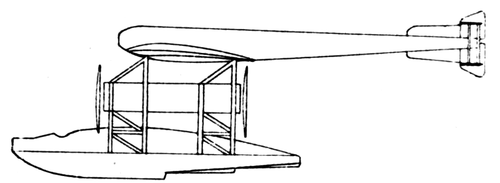

From Le Fana No.17;

the early Dornier Fs.I,there was also Fs.II,but I never heard about this design before,maybe later
redesigned as Rs.I and Rs.II ?.


Attachments

  • 1.png
    196.1 KB · Views: 238
  • 2.png
    276.2 KB · Views: 89

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315

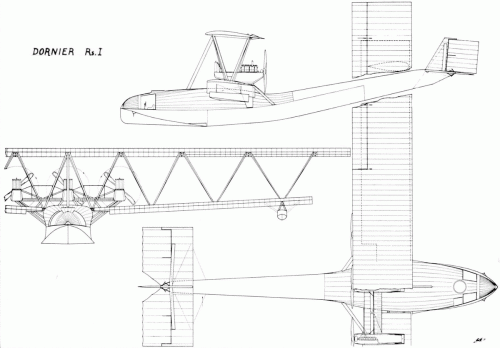

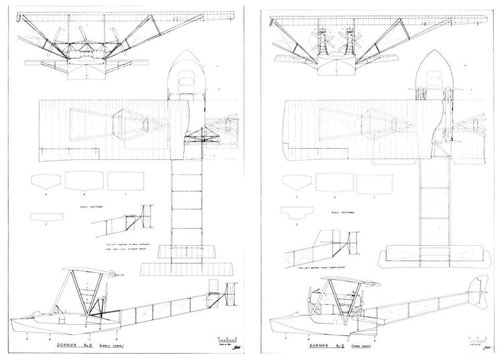

I really regret, that I didn't take my French lessons at school really seriously, but I think,
this text says something like "those designs were called "Flugschiffe" [Fs] (flying ships) at first,
later changed to the standard term "Riesenflugzeuge" [Rs] later". And this drawing actually bears
a striking resemblance to the Rs.I .
(drawing via http://www.airwar.ru/image/idop/flyboat/rs1/rs1-1.gif)


Attachments

  • Dornier_Rs-1.gif
    245.6 KB · Views: 94

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Thank you my dear Jemiba,

and those designations are new for me.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
906
Reaction score
461
It's not only you, Jens: The text in French is really hard, with over-compounded sentences for "litterary" style. This guy would benefit from learning to complete one idea before starting the next.

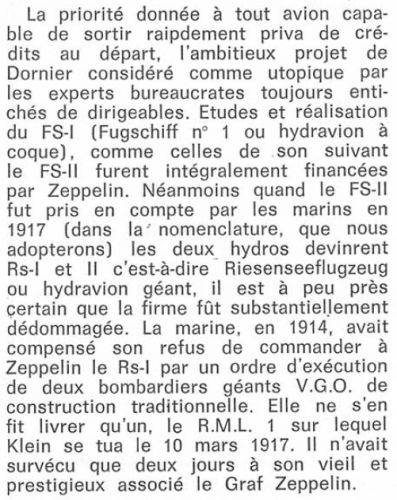

It says:

The priority given to any plane that could be produced quick, initially deprived
of all financing the ambitious project of Dornier, which was regarded as utopist by
the bureaucrat experts still enamored with dirigibles.

Studies and development of FS-I (Flugschiff 1 or Flying boat), like those for
its follower the FS II were integrally financed by Zeppelin. However, when the
FS-II was adopted by the Navy in 1917, the 2 hydros became Rs-I and II,
Riesenseeflugzeug ie giant sea plane (naming system that we will adopt), it is
almost certain that the company was substantially compensated.

The Navy, in 1914, had compensated its refusal to order from Zeppelin the Rs-I
by an order for 2 traditional-construction VGO giant bombers. The Navy only took
delivery of one, the RML 1, on which Klein killed himself on 10-03-1917. He had
survived by only 2 days his old and famous associate the Graf Zeppelin.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
Thanks dan !
Must admit, that I not even recognised that text as being more difficult, than usual.
But good to know, that I got this point right. If only my old French teacher would know !

About the point "... were integrally financed by Zeppelin." : At this time "Dornier" aircraft
actually still were Zeppelin products, built by the "Zeppelin Werk Lindau " (Zeppelin plant Lindau),
which in 1917 became a society on its own (Zeppelin Werk Lindau GmbH (ZWL)), but still owned
by the parent company Zeppelin. Claude Dornier only was chief executive then, he became "owner",
or better shareholder in 1922.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,874
Reaction score
3,703

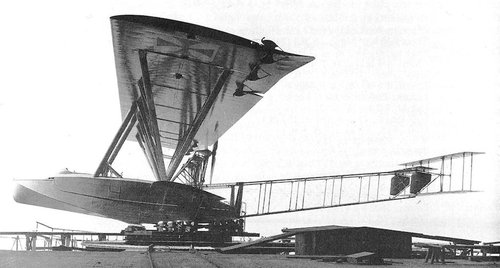

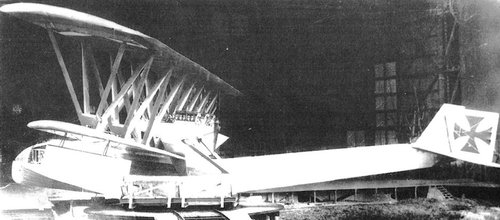

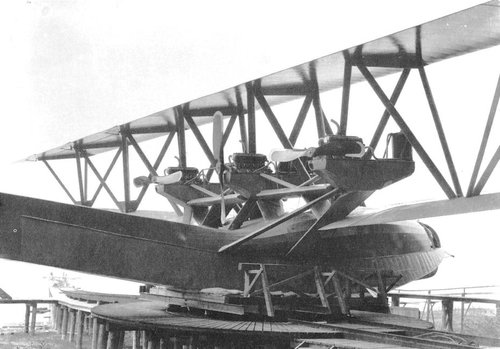

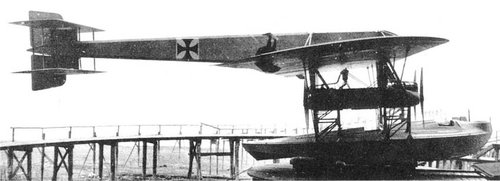

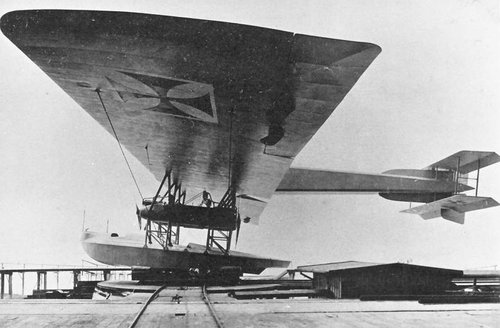

Hi! Dornier Rs.Ⅰ
Patrol flying boat in 1915, destroyed by the storm in trial run test period. Only one built.
  • Crew: at least 7
  • Length: 29 m (95 ft 2 in)
  • Wingspan: 43.5 m (142 ft 9 in)
  • Height: 7.2 m (23 ft 7 in)
  • Wing area: 328.8 m2 (3,539 sq ft)
  • Empty weight: 7,500 kg (16,535 lb)
  • Gross weight: 4,763 kg (10,500 lb)
  • Powerplant: 3 × Maybach HS (Mb.IV) , 179 kW (240 hp) each
58-3.jpg 60-2.jpg

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Well known aircraft,what's new ?,we want a little known Prototypes or a Projects.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,874
Reaction score
3,703

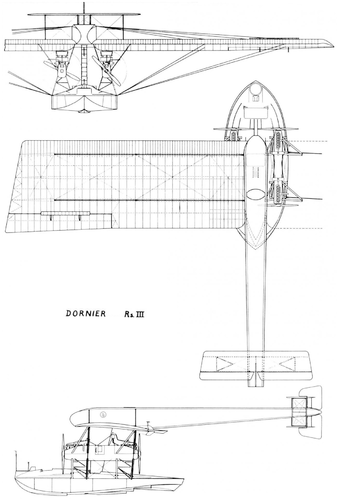

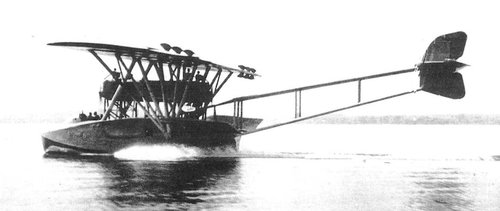

The Zeppelin-Lindau Rs.III (Dornier Rs.III) was a large four-engined monoplane patrol flying boat designed by Claudius Dornier and built during 1917 on the German side of Lake Constance at the Zeppelin-Lindau works.

The Rs.III differed in appearance from its predecessors, it was the result of the experience gained from building and flying the Rs.I and Rs.II.
Constructed of steel longerons riveted to Duralumin frames and covered with Duralumin sheet over the forward portion and fabric aft it supported the tail unit which consisted of a biplane tail cellule with elevators and a large central rudder, initially with a long central fin, but later with two smaller fixed fins in the tail cellule. At approximately the mid-wing chord position the fuselage had a cockpit with provision for two machine guns and also housed a sound-proof wireless cabin in the nose.

Flight testing of the Rs.III carried from November 1917, at the Lake Constance factory, with good results. Flying characteristics were generally good, the aircraft proving easy to fly, taxi on water, and capable of taking off in moderate seas. With only minor modifications, the Rs.III was ready for its delivery flight by the end of January 1918.

In 19 February Rs.III performed 7-hour non-stop delivery flight to Norderney.

Operational testing at Norderney cleared the giant Rs.III for service with the Imperial German Navy on 13 June 1918 and it was turned over to the SYK on 27 August 1918 for further Navy tests. After the Armistice the Rs.III was not destroyed immediately but continued flying with the German Navy Air Service on mine clearing duties until the Allied Control Commission finally ordered its scrapping in July 1921.

The Rs.III had proved easy to fly (but with some minor quirks), easy to manoeuvre on the water and durable, due to its metal construction.

Wingspan : 37.00m, Length : 22.75m, Height : 8.2m,
Wing area : 226.00 square meter
Mass empty : 7865kg, Maximum take-off : 10670kg, fuel : 2260kg
Engine Type : 4 DD Maybach HS, Power : 4 x 240hp
Top speed : 135km/h, Cruise speed : 112km/h
Practical range : 1380km, Flight time : 10hour
Practical ceiling : 2700m,
Crew, attendees : 3
Armament: (planned) one machine gun in the nose and two in the fuselage



Attachments

  • rs3-1.gif
    522.8 KB · Views: 43
  • Zeppelin-Lindau_Rs_III_profile_drawing_L'Aerophile_August,1921.png
    19.2 KB · Views: 37
Last edited:

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,416
Reaction score
837
Dornier 18 flying boat model plans.


Attachments

  • SKM_C300i20091305000dor171.pdf
    150.5 KB · Views: 33
  • SKM_C300i20091305010dor172.pdf
    127.1 KB · Views: 21
  • SKM_C300i20091305030dor173.pdf
    116.5 KB · Views: 19
  • SKM_C300i20091305040dor174.pdf
    129.5 KB · Views: 19
Last edited:

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,002
Reaction score
402
Thx for sharing riggerrob,
bur this is NOT Modele 17/Do.17, this is the Dornier Do.18.
;)
