Dornier Do 30 STOL transport from 1959

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823

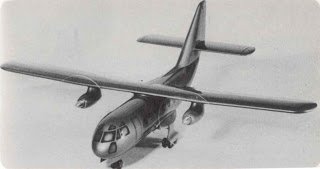

Pretty little plane

Source:
Dornier: Die Chronik des altesten deutshen Flugzeugwerks (Dornier 1983)


Attachments

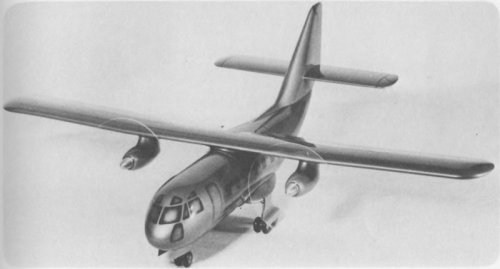

  • Do-30.jpg
    34.2 KB · Views: 1,226
  • Do30text.jpg
    63.1 KB · Views: 1,128

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
853
Reaction score
176
This picture shows ALL parts of the landing gear ;) .

We (vstol, jemiba and I) have found it in the Baubeschreibung Nr. 230/7 of the Do 30 folder at Dornier archive in Immenstaad.


Attachments

  • Blatt 023 unten.jpg
    Blatt 023 unten.jpg
    15.6 KB · Views: 1,106

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
235
If I'm reading the description correctly, the cross-shafting between the engines has to be something of a design problem with the location of the engines. Not an insurmountable one but one that's definitely something of a challenge.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
586
Reaction score
255

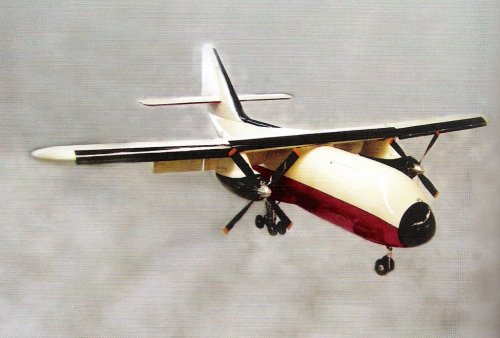

Dornier colour photograph of a Do 30 model (not as detailed as the earlier images).


Attachments

  • Dornier_Do30_Model.jpg
    467.8 KB · Views: 953

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Hi,

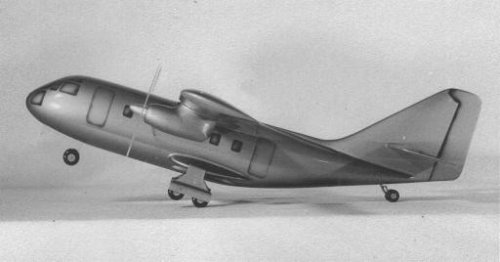

here is anther view to Dornier Do.30 Model.


Attachments

  • Do.30  1.JPG
    Do.30 1.JPG
    39.1 KB · Views: 663

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972

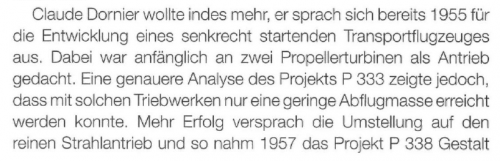

From Flieger Revue Extra,


the Dornier P.333 was STOL experimental aircraft project of 1955,powered bu two turbine
engines,and the P.338 was also a STOL experimental aircraft project of 1957,developed
from P.333 with jet engines,all those proposals led to designed the Do.30.


Flieger Revue Extra


Attachments

  • 1-2.png
    167.6 KB · Views: 43
  • 1-1.png
    158.1 KB · Views: 44

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
362
Reaction score
656
Re: Various Dornier projects

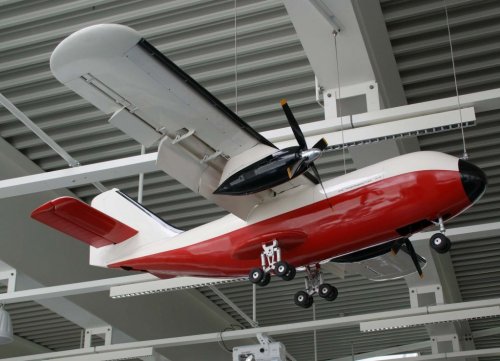

Following the earlier post, here's a picture taken at the Dornier Museum of the same model of the type which is now at Friedrichschafen.


Attachments

  • dornier do 30.jpg
    dornier do 30.jpg
    126.1 KB · Views: 128

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
362
Reaction score
656
Re: Re: Various Dornier projects

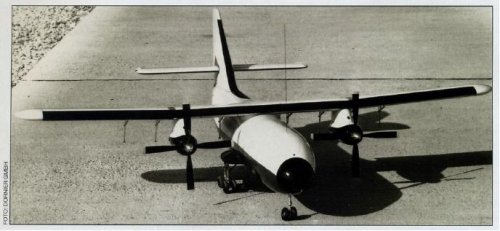

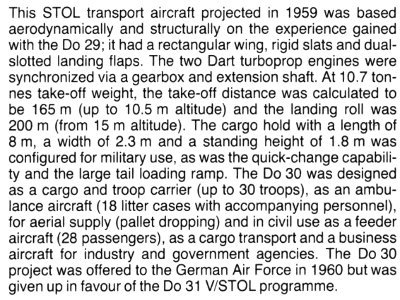

A further picture of a model of the Do 30. According to 'Dornier. A brief History of the Dornier Company' , published in 1983, it said that, "This STOL transport aircraft projected in 1959 was based aerodynamically and structurally on the experience gained with the Do 29; it had rectangular wing, rigid slats and dual-slotted landing flaps. The two Dart turboprop engines were synchronized via gearbox and extension shaft. At 10.7 tonnes take-off weight, the take-off distance was calculated to be 165 m (up to 10.5 m altitude) and the landing roll was 200 m (from 15 m altitude). The cargo hold with a length of 8 m, a width of 2.3 m and a standing height of 1.8 m was configured for military use, as was the quick-change capability and the large tail loading ramp.

The Do 30 was designed as a cargo and troop carrier (up to 30 troops), as an ambulance aircraft (18 litter cases with accompanying personnel), for aerial supply (pallet dropping) and in civil use as a feeder aircraft (28 passengers), as a cargo transport and a business aircraft for industry and government agencies.

The Do 30 project was offered to the German Air Force in 1960 but was given up in favour of the Do 31 V/STOL programme.

Technical Data
Length: 17'5 m.
Height: 7'6 m.
Span: 22'0 m.
Wing area: 65'0 m2.
Take-off weight: 10'8 t.
Payload: 3'5 t.
Propulsion:
- 2 x Rolls Royce DART Mk 529 each 1938 PSW/SPH"
Source: http://blogdepasm.blogspot.co.uk/2009/04/, which also lists other Dornier projects including some of its UAV programs


Attachments

  • dornier do 30_2.jpg
    dornier do 30_2.jpg
    9.2 KB · Views: 116

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376
The Do 30 appears to have a Fiat/Aeritalia G.222 feel to it!!

Regards
Pioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
PaulMM (Overscan) said:
Pretty little plane

Source:
Dornier: Die Chronik des altesten deutshen Flugzeugwerks (Dornier 1983)

From the same source,the data.


Attachments

  • 1.png
    92.1 KB · Views: 37

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
There is a chapter about the Dornier Do 30 STOL in the book "Dornier Do 31" published by Peter Kielhorn, Motor Buch Verlag on 25th. Oktober 2018.

Link (German): www.motorbuch-versand.de/product_info.php/info/p11073_Dornier-Do-31.html

Other projects like the the Do 29, Do P 333/1, Do P 333/2, Do P 333/8 and Do P 333/48 , which then finally led to the Do 31, are also mentioned.
I haven't bought or lend out this book so far, so I can't give a summary or post low-quality screenshots as an appetizer. ;) :)
