Dornier 1931 Schneider Trophy Racer Projects

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
33,003
Reaction score
12,520

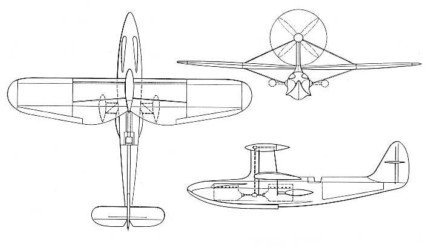

Hi,

http://histaviation.com/Dornier_Schneider_Trophy_Projects.html
http://www.flightglobal.com/pdfarchive/view/1929/1929%20-%200407.html
http://www.flightglobal.com/pdfarchive/view/1929/1929%20-%200409.html


Attachments

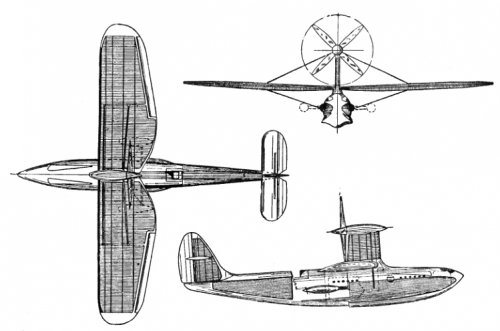

  • 1931_Dornier_Schneider_Trophy_3-view_441x250.jpg
    16.6 KB · Views: 1,322
Re: Dornier 1931 Schneider Trophy racer flying boat

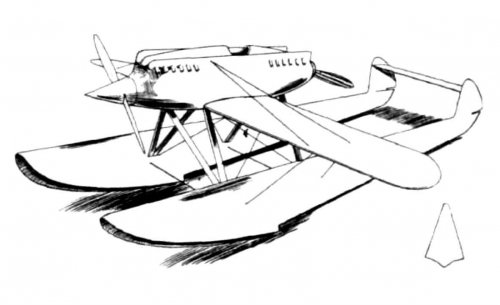

Although Dornier never actually built a racer, there were several designs, as for
example the S.4, which was designed for the italian Societa die Construzioni Mecchaniche
di PISA (SCMP) in 1923, or another design for the Coupe Schneider in 1927, already with
the wellknown push-pull engine configuration. Additionally I've attached an artits's impression
of the aircraft shown by Hesham, Dorniers last design for the Schneider Trophy, the flying
boat from 1931 with a shaft driven prop .
(from Jet & Prop 1/1993)


Attachments

  • Dornier_Rekordflugzeuge_01.jpg
    17.2 KB · Views: 1,211
  • Dornier_Rekordflugzeuge_02.jpg
    25.9 KB · Views: 1,233
  • Dornier_Rekordflugzeuge_03.jpg
    28.1 KB · Views: 1,212
Re: Dornier 1931 Schneider Trophy racer flying boat

It makes no sense to me why Dornier would even consider a flying boat design for the 1931 race. Considering their design evolution from 1924 through 1929 were twin floatplane designs and last time a flying boat design won was in the 1921 race the Macchi M.7. The power loading had to be lower than the 1929 contenders such as Supermarine S.6 with a Rolls-Royce R 1900 hp and Macchi M.67 with an Isotta-Fraschini 1800 hp.

Maybe it was disinformation being let out in 1929

Re: Dornier 1931 Schneider Trophy racer flying boat

"It makes no sense to me why Dornier would even consider a flying boat design for the 1931 race."

Just a guess: Because of the lower frontal area ? The hull of a flying boat would have had about
the same frontal area, than the fuselage of a floatplane, the auxiliary floats less, than the main
floats. In the design from Flight, of course (Good find again, Hesham !), there would have been
additionally the drag of the engines. But at least the design with the z-shaft driven prop, should
have been competitive with regards to the frontal area, I think .

Re: Dornier 1931 Schneider Trophy racer flying boat

in the post above, here, http://www.secretprojects.co.uk/forum/index.php/topic,4969.msg39476.html#msg39476

the middle image shows the 1924 dornier project, Greif?

the bottom image shows the 1929 dornier project.

from Putnam's 'schneider trophy aircraft, 1913-31', derek n. james,

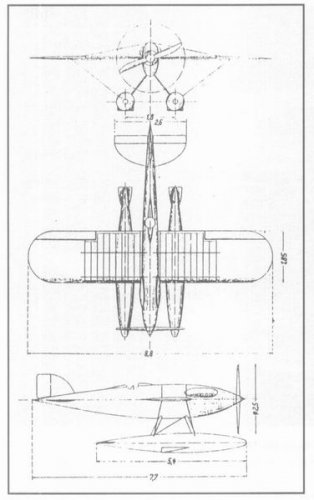

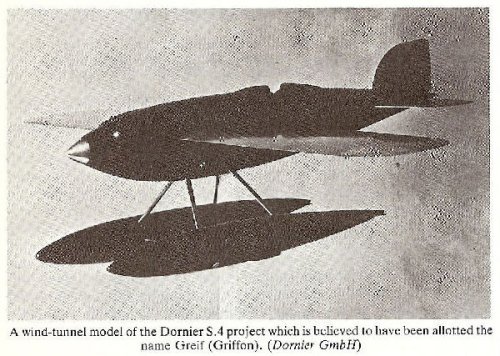

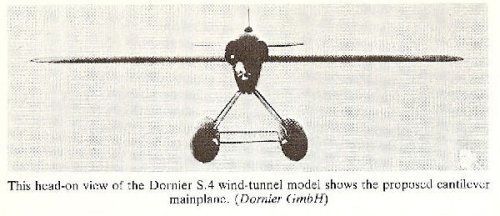

"Dornier S.4 Greif (Griffon)
in 1924 the dornier company at Pisa Marina in Italy revealed some brief details and illustrations of the wind tunnel model of a twin-float project for that year's contest.
Designated S.4 and powered by an undisclosed water cooled vee engine of about 500hp, it was a mid-wing cantilever monoplane with cantilever tailplane...
each of the single step floats was carried on a pair of slim struts with spreader bars between them... presumably ...wire braced an d some illustrations appear to indicate...Forlannini type floats...span 8.8m; length 7.7m, no other information has survived."

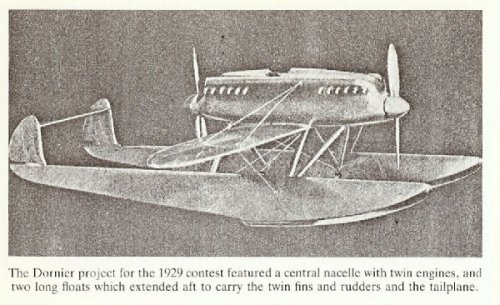

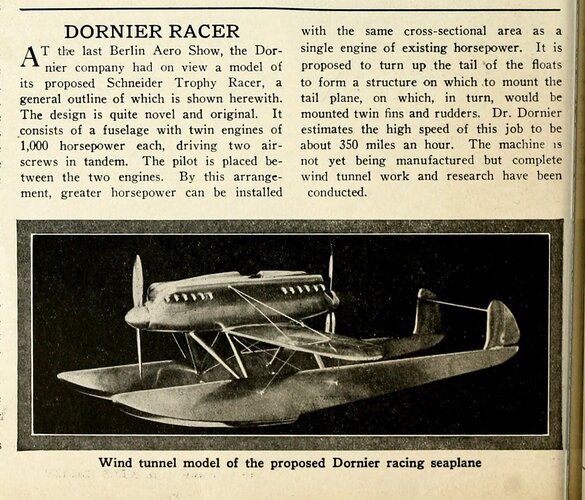

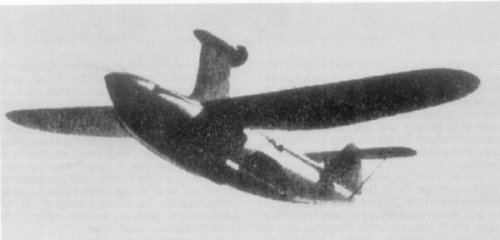

"1929 Dornier

for the 1929 contest, dornier again produced designs and models of an unconventional project. similar to the italian [savoia] S.65...no dimensions, weights or performance details are available for this design..."

cheers,
Robin.


Attachments

  • 1929 dornier project.jpg
    1929 dornier project.jpg
    77.6 KB · Views: 256
  • dornier S.4#3.jpg
    dornier S.4#3.jpg
    103.5 KB · Views: 216
  • dornier S.4#2.jpg
    dornier S.4#2.jpg
    46.7 KB · Views: 223
Re: Dornier 1931 Schneider Trophy racer flying boat

From Jemiba "Just a guess: Because of the lower frontal area ? The hull of a flying boat would have had about the same frontal area, than the fuselage of a floatplane, the auxiliary floats less, than the main floats."

The article in flight (on page 409) indicated that there was penalty in weight and parasitic drag. It is my opinion that parasitic drag which is critical in pylon type racing would have been alot higher with this design considering it has a wing area sized for the heavier weight, draggy flying boat hull, and separate nacelle not embedded in the streamline fuselage which was typical of the twin floatplanes at that time.

I read the benefits they were claiming for this approach in this article, but it seems to me they do not offset the penalties.

I guess we will never know what was going through designer's head.

Re: Dornier 1931 Schneider Trophy racer flying boat

It makes no sense to me why Dornier would even consider a flying boat design for the 1931 race

it's NOT a dornier flying boat! :eek:

see my post, here:-

http://www.secretprojects.co.uk/forum/index.php/topic,5008.msg39663.html#msg39663

cheers,
Robin.

Edit.. don't think i made myself quite clear here, i meant the image posted by hesham, the one posted at the top of the thread _is_ a dornier project.

Re: Dornier 1931 Schneider Trophy racer flying boat

A better scan of the unbuilt Dornier racer for the 1931 Schneider trophy, from Air Enthusiast, Dec. 72:


Attachments

  • Dornier Schneider Trophy project.gif
    Dornier Schneider Trophy project.gif
    588 KB · Views: 314
Re: Dornier 1931 Schneider Trophy racer flying boat

Jemiba said:
(from Jet & Prop 1/1993)

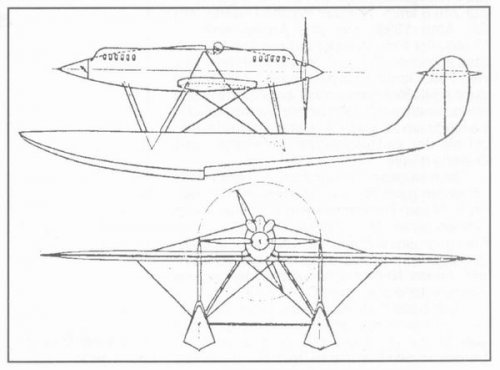

Also from the same source,


anther drawing to Dornier SCMP project.


Attachments

  • Dornier.png
    527 KB · Views: 183
Re: Dornier 1931 Schneider Trophy racer flying boat

Correct me if I'm wrong (I'm no expert on the optima for floatplanes vs. seaplanes), but: Wouldn't reduced interference and skin friction begin to be larger issues at 650 km/h?

The switch to a single body rather than three interconnected bodies will improve these areas (Even if structural weight ends up being higher).

Re: Dornier 1931 Schneider Trophy racer flying boat

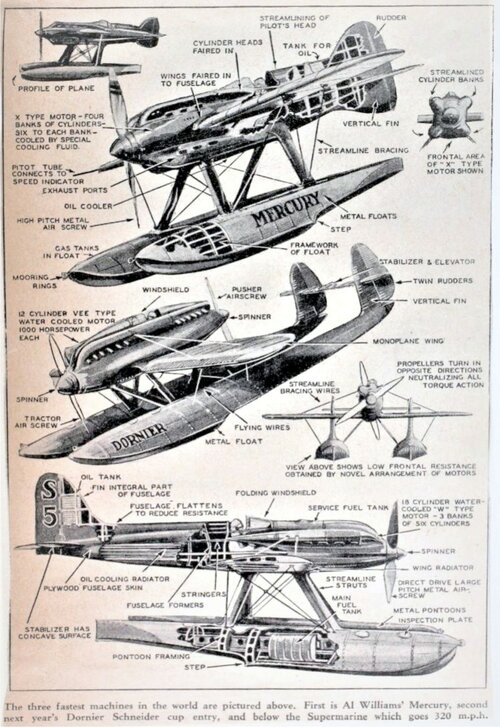

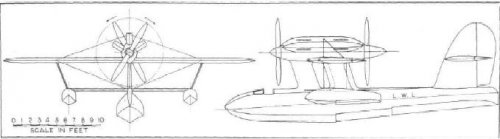

Another sketch, from Flight


Attachments

  • 1928 sketch.jpg
    1928 sketch.jpg
    49.7 KB · Views: 177
Re: Dornier 1931 Schneider Trophy racer flying boat

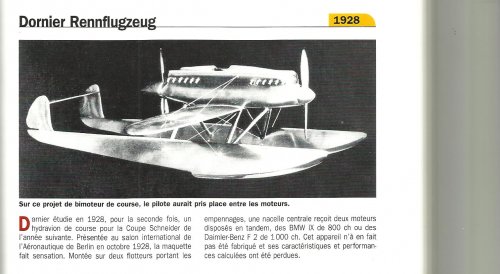

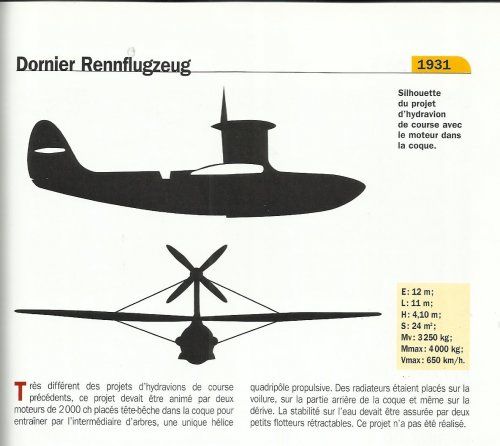

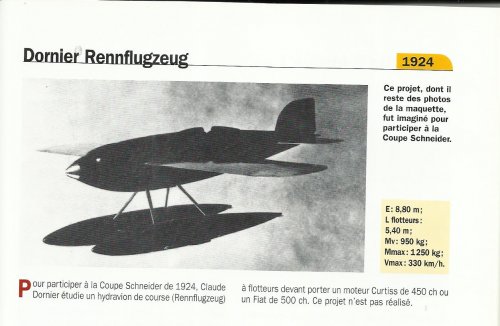

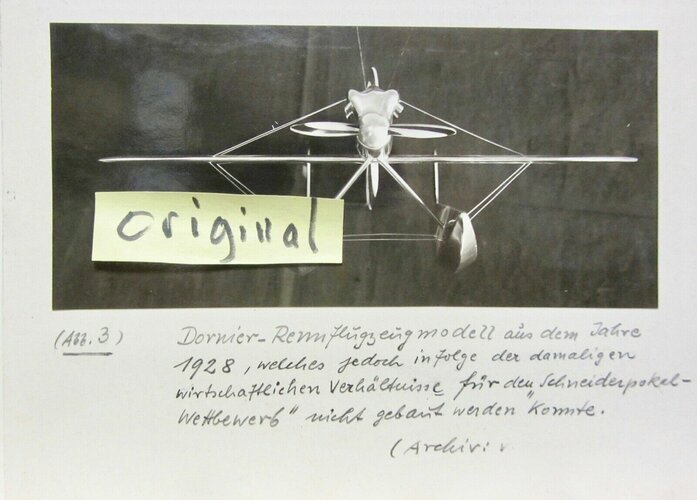

The same in "docavia"


Attachments

  • test.jpg
    129.3 KB · Views: 173
  • test.2jpg.jpg
    186.1 KB · Views: 175
  • test.3jpg.jpg
    111.8 KB · Views: 215
Re: Dornier 1931 Schneider Trophy racer flying boat

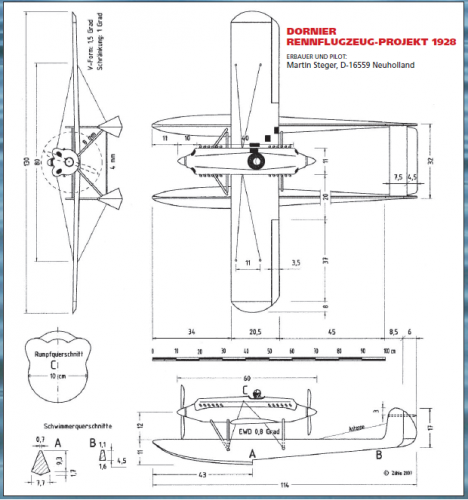

From Wasser Fliegen,


here is a complete 3-view drawing to Dornier 1928 racer project.


Attachments

  • Dornier.png
    163.4 KB · Views: 251
Re: Dornier 1931 Schneider Trophy racer flying boat

Haven't checked the outlines, but careful at least with the dimensions. It's a plan
for a model ! ;)

Re: Dornier 1931 Schneider Trophy racer flying boat

OK my dear Jemiba.

Re: Dornier 1931 Schneider Trophy racer flying boat

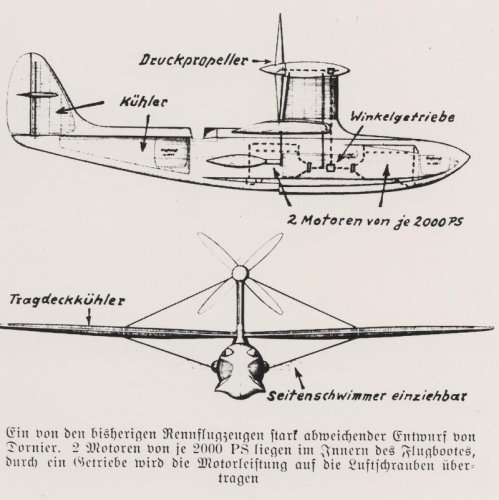

From a TSAGI book, notable for showing the location of the surface radiators


Attachments

  • dornier racer.jpg
    dornier racer.jpg
    104.6 KB · Views: 557
Re: Dornier 1931 Schneider Trophy racer flying boat

This is moving into speculative territory... but if this project had gone ahead - how do you think the floats would've been enlarged (given the thinking of Dornier in 1931?)

Would it have been lengthened to increase the maximum size of the retractable floats?

Would conventional floats be placed under the outer wings?

Would sponsons be preferred?

I think, the retractable auxiliary floats were an important feature of this design, so lengthening/
enlarging them would have been the solution of choice. To add fixed ones or sponsons would have
brought this design back into the class of the floatplanes, with regards to frontal area.

I don't think that Dornier had put much detail thought into this design, there are too many dubious features. Probably just a quick speculative sketch.
The separate planing bottom is a poor design, typical mid-1920s rather than 1931, and crude by Dornier standards. The balance floats look to be far too small and mounted too high on the fuselage to be effective. The braced tailplane is odd . The sketch of the two right-angle gearboxes look highly optimistic to handle 4000hp. The pilot's view is as close to zero as makes no difference.


Attachments

  • dornie14.jpg
    95.6 KB · Views: 440
I agree. This reminds me a bit of the Junkers J.1000 (from a few years earlier):

It was also a project with no chance of construction given the conditions of the day, designed around 'future' engines with much more power than any engine of the period, and probably intended mainly for press consumption.

It also shows signs of not being fully validated (in the J.1000 case it would have likely suffered from the 'Tarrant Tabor syndrome' during takeoff and had dubious controllability if one of the outer engines failed).

That said - they are both very interesting designs. It is interesting to try to figure out what they would have lead to if pursued.

Nowadays we probably would call it a "concept", not a project, drawn more to show those features like prop driven
via a Z-drive and retractable floats, than to be realised in itself.

Yes indeed, like a large percentage of designs shown on this site it is best called a concept rather than a project. I've moaned about the misuse of the word 'project' several times on threads, just something that winds me up :)

Supermarine proposed a flying boat with a similar layout to the Dornier concept in 1924 and soon ran into all kinds of problems with gearbox development, cooling requirements, and structural design. It was abandoned.

I'm pretty sure I saw that one during a documentary about the Spitfire.

I'm pretty sure I saw that one during a documentary about the Spitfire.
More likely to have been the Savoia-Marchetti S.65, which has the same basic push-pull configuration. The SM.65 was actually built and attended the Schneider race in Calshot in 1929, but was not flown in the race. It was featured in the press. Crashed during later development, so never made it to the races to compete.

Savoia-Marchetti S.65 Schneider Racer | Old Machine Press

Thanks for the pointer, not the one I was sure I saw but the program I saw it in might be wrong. Head like a bleepin' sieve honestly wonder sometimes how I get out of bed in the morning. Actually after the trials I had with amazon today I wonder why I bother. Duvet day? New balls please.

Stay well folks, gorging on chocolate is over rated.

Were there other German Schneider Trophy Projects? Albatross? Messerschmitt?
Good question Papacavy,

and from DDL Messerschmitt and anther book about Messerschmitt,there
wasn't any reference to this,but with early P series,I can guess a design or
more made for it,the only built was M-29.

Also in early period,they used Entwurf series,and maybe it was contained
a Projects for racer airplanes ?.

Re: Dornier 1931 Schneider Trophy racer flying boat

A better scan of the unbuilt Dornier racer for the 1931 Schneider trophy, from Air Enthusiast, Dec. 72:
Hi. I joined the forum today. Therefore I still need to learn how to use it correctly.
I couldn't find a specific thread for my question. I hope you can help me...?

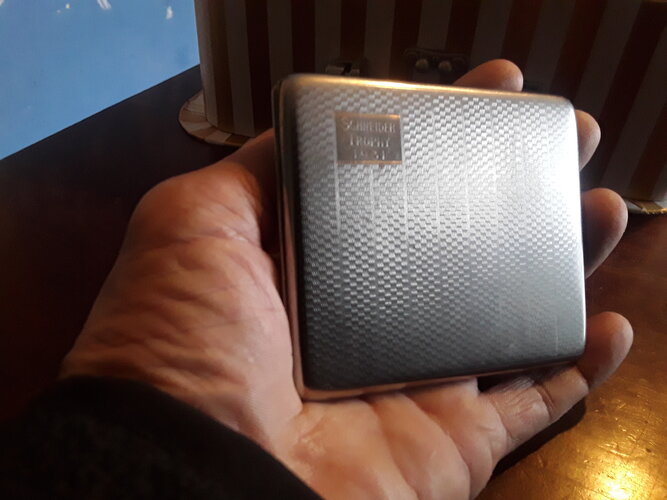

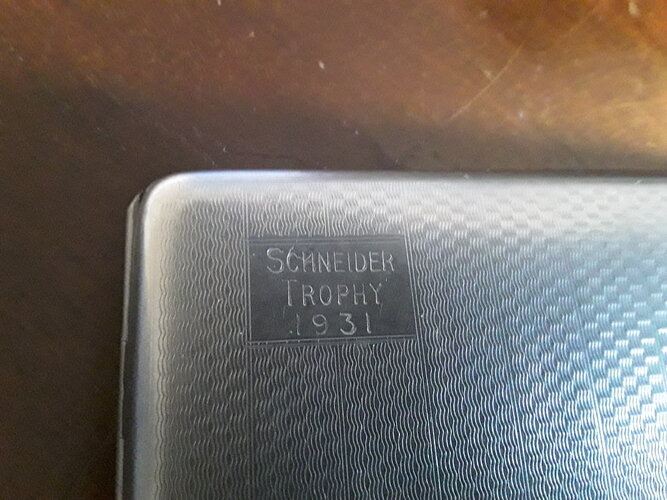

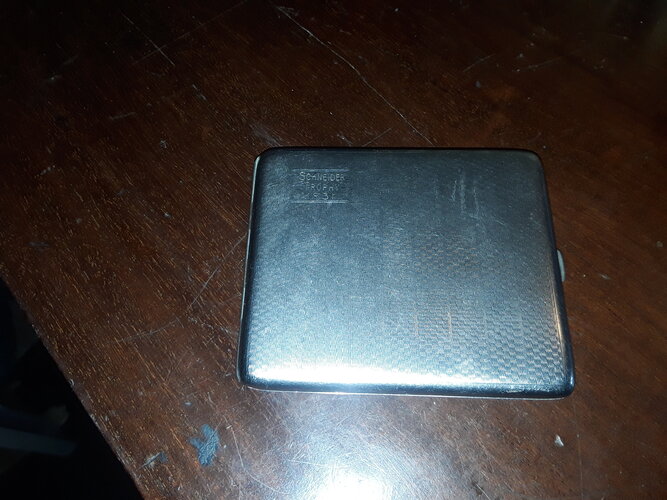

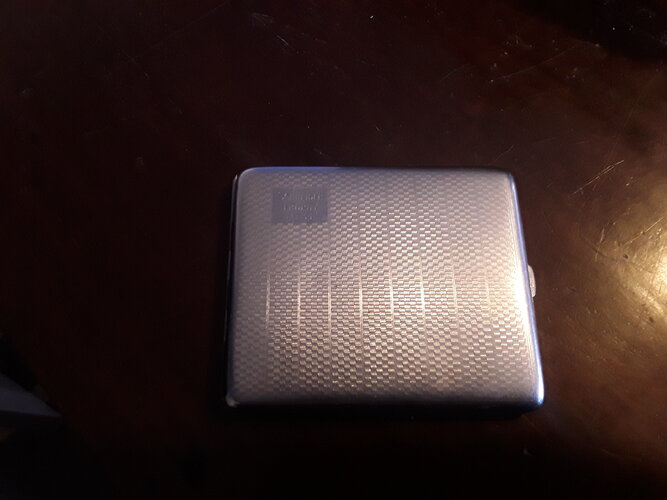

My mother gave me an old cigarette case many years ago. She died in 2015 and I found the case while clearing out a drawer.

It's a silver cigarette case with .....

SCHNEIDER
TROPHY
1931

Engraved on the case in the order shown above.

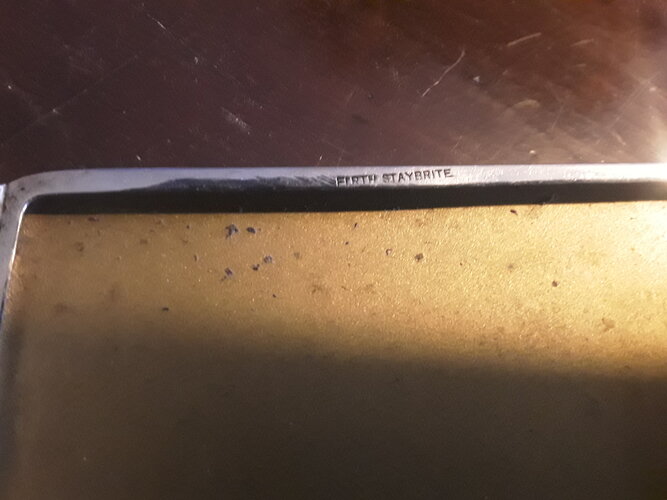

When you open the spring loaded lid of the case it's got "FIRTH STAYBRITE" stamped on the inner lip of the case. The inside of the silver case is gold coloured.

I googled the engraving on the case and that's what lead me to joining your forum.

Can you tell me any history of this cigarette case please..?

Thankyou

Kind regards

Walter

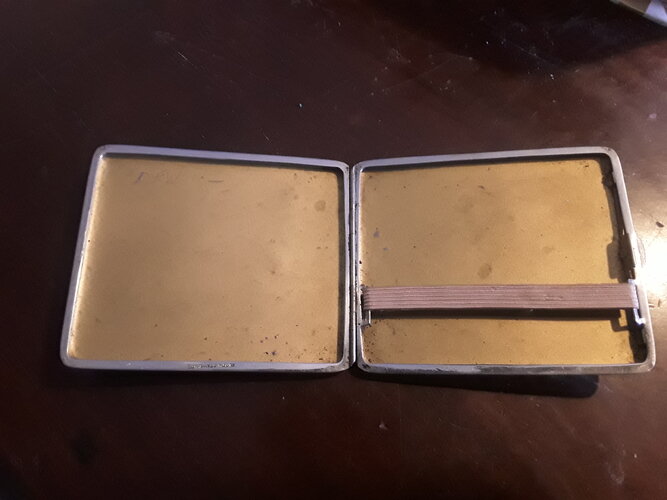

Here ya go mate. It's my first time on the forum. So I hope I've uploaded the photos correctly. Can you let me know if you can see them, or you want to see another part of the case please..? Thankyou for your help.

Kind regards

Walter


Attachments

  • 20221015_165157.jpg
    2.3 MB · Views: 31
  • 20221015_165237.jpg
    2.3 MB · Views: 31
  • 20221015_165010.jpg
    3.2 MB · Views: 27
  • 20221015_165025.jpg
    2.2 MB · Views: 26
  • 20221015_165044.jpg
    3.2 MB · Views: 25
  • 20221015_165116.jpg
    2.2 MB · Views: 26
  • 20221015_165135.jpg
    2.4 MB · Views: 40
Hallmarks mate, none of that is a hallmark which suggests pewter rather than silver. Gold or silver items have hallmarks of authenticity.
The (What looks like) innitials, could be recent too, they do not look like they are as old as the case. Actually found something suggestin pewter does have a hallmark, https://www.pewtersociety.org/identifying-and-collecting-pewter/pewterers-marks.

The trophy was rerun until quite recently as some kind of festival from what I have found so perhaps talk to the folks here:- http://royalaeroclub.co.uk/.

Last edited:
Hallmarks mate, none of that is a hallmark which suggests pewter rather than silver. Gold or silver items have hallmarks of authenticity.
The (What looks like) innitials, could be redent too, they do not look like they are as old as the case. Actually found something suggestin pewter does have a hallmark, https://www.pewtersociety.org/identifying-and-collecting-pewter/pewterers-marks.
Cheers for that. It's still a bit of mystery then...? In the morning I'll have another closer inspection with a magnifying glass to see if I can find any other markings etc on it.

I've looked up staybrite cigarette cases, and all the ones I've found so far say silver plated. But I'm more interested in the schneider trophy 1931 engraving on the lid...?

The "FIRTH STAYBRITE" stamp shouts stainless steel. Which may well be silver plated. Sorry, I have no idea about the origin of the case.

I'm going to contact an old friend who might be able to help

Souvenirs produced for the 1931 contest are not common; it was run in the teeth of the depression and money was tight. I have quite a few for 1929 but just a couple for 1931. As noted above Firth Staybrite was a brand of stainless steel, much used for cutlery, that may have been used for a few fixtures and fittings in the S6B (it was certainly used in their flying boats but proved rather brittle), so possibly a small number produced by Firth as handouts for the men that built the racer, but I do rather doubt that. The blank panel for engraving is common on 'generic' cigarette cases so this may well be a 'one-off' but whether it was engraved in 1931 for someone associated with or visitor to the contest, or later to make the case more interesting is really the question.
