DITS MOINEAU COLONIAL FLYING BOAT

vigair

CLEARANCE: Restricted
Joined
Jul 29, 2009
Messages
28
Reaction score
3

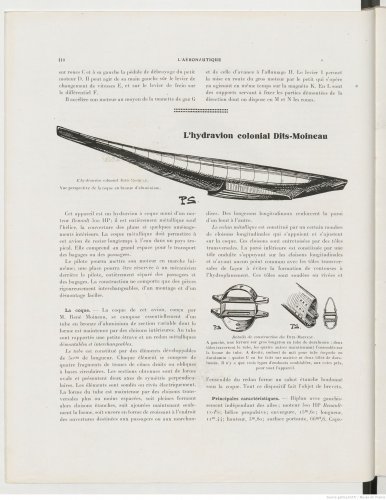

PUSHER PROPELLER
RENAULT 12 FE 300 HP
ANY INFOS PICS BLUEPRINTS ???


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,134
Reaction score
1,421
In the linked thread on the Rise of Flight forum, there is some info on the engine (beginning from 7th post down, in a (slightly unclear) comparison between engines used on the Breguet 14:

http://riseofflight.com/forum/viewtopic.php?f=49&t=12383&start=30


I think the Colonial Flying Boat itself was a early to mid 1920's programme using surplus engines. However I have no hard data, so buyer beware applies!

Hope that helps a bit.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,863
Reaction score
2,845
Hi,

I searched for this airplane,but I couldn't find it,instead off open new topic for take
about René Moineau,and his activities of aviation.

In 1909 he built some biplane gliders,after that he joined Breguet and designed a little
numbers of aircraft,followed by Salmson-Moineau S.M.1 & S.M.2,a well know recce/
bomber airplanes.

During WW1 also,he created the Moineau C.1, a single seat monoplane fighter,powered
by one 300 hp Hispano-Suiza engine,then he invented a two-seat pusher aeroplane for
military use,but no more details are known.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,863
Reaction score
2,845

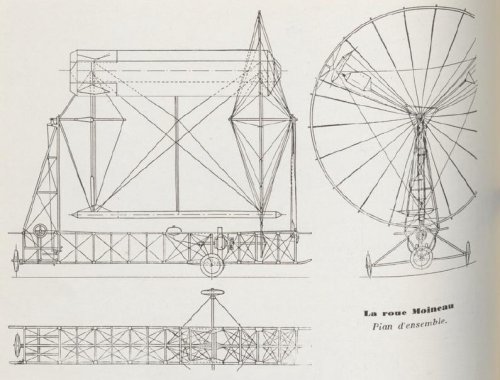

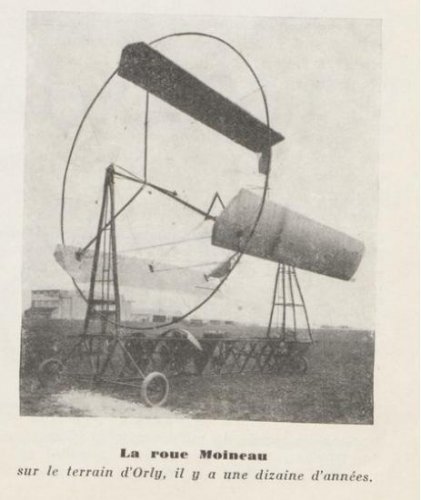

Also a helicopter design;

http://www.secretprojects.co.uk/forum/index.php/topic,2837.msg213953.html#msg213953


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,863
Reaction score
2,845
Hi,

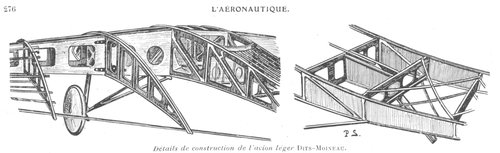

also Dits-Moineau designed a small metal airplane for tropical service.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,863
Reaction score
2,845
From L'Aeronautique 1923,

does anyone hear about it before,Type-X ?.


Attachments

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
72
Reaction score
20
Hi. In l'Aeronautique № 7 1923 p. 273 the avionnette "Dits-Moineau X" is mentioned.
She was announced for the Grand Prix du "Petit Parisien", but failed to participate.

It's flying wing. May be it never was finished.


Don't you know any details about this small plane? Or may be photo?

Lwing = 8,5 m, L = 6,5 m, Swing = 14 m2, Mempty = 140 kg, Sergant engine

Thank you in advance
