differentiating canard

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
Do you know any canards aircraft that canards are differetiating.
I mean the canard on these aircraft are all moving and moving asynchronously when it is necessary.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
I don't know if most do, but many do.

The Gripen is one example at least:



rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
The photo you posted just shows one side the foreplan moving down, but no shows other side is moving up.
sorry.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
I'm pretty sure they're differentiating, just no photos available (you can only get such a view with a full head-on or tail shot, after all) but at least it's all-moving.


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
MUCH harder that I thought to find a picture showing the foreplanes at different angles. The foreplanes on Gripen, Rafale and Typhoon are differential all-moving, but normally they are aligned with the airflow or moving together for pitch control. They are powerful control surfaces and make small, quick movements - you might try watching some videos to see them move. You are most likely to see them visibly move differentially during ground flight-control checks.

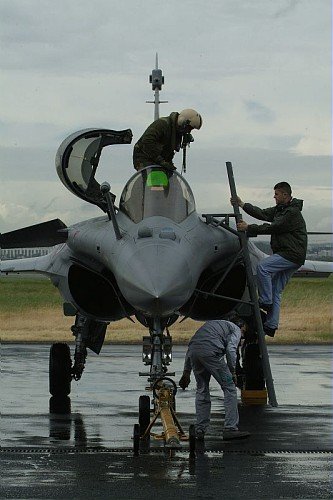

BUT I did find this one of a Rafale with the port foreplane horizontal (visible behind the guy on the ladder) and the starboard one angled leading-edge up.

PS - I was always taught that "canard" is an aircraft configuration and that the things at the front are "foreplanes", not canards...


Attachments

  • _DSF7664.jpg
    45.2 KB · Views: 65

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
Hmmm, if someone find photo shows foreplan could all-move differentially not only synchronously, which will be very much significent!
I will talk this after it be found


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
143
I think CammNut is probably right - the reason that you never see photos of them being deflected is that, when they are, things start to happen very quickly.


rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
So, no lensman notice such moment is really important to study tech of aviation and be wonderful to aviation fans? Let's call them to do it! :D
