Hi,

here is unknown De Havilland of Canada V/STOL model;who can
identify it?.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800019802_1980019802.pdf


Attachments

  • DHC VSTOL.JPG
    DHC VSTOL.JPG
    63 KB · Views: 358

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
963
Hesham,

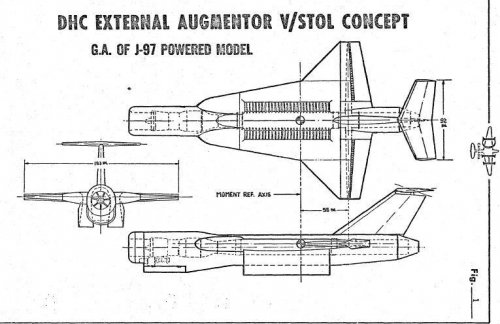

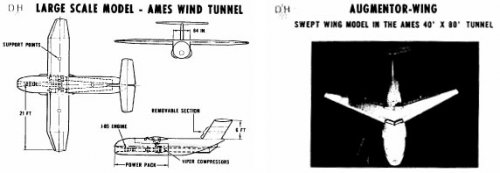

This is the large-scale, external augmentor V/STOL model tested in the NASA Ames Research Center's 40' x 80' wind tunnel in the late '70s and early '80s.

In a sense, this model is a follow-on from the large-scale models of the 1960s (first wing a straight wing, later replaced with a swept wing of the same aspect ratio). A flight research vehicle was projected (which was to be built by Boeing).

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720009048_1972009048.pdf

For more on your model, search D. B. Garland. For more on the earlier models, search D. C. Whittley.

[Added] Oops, image link corrected.

BTW, the 1966 model was part-funded by the CDRB (Canadian Defence Research Board, now DRDC). The engine in your model would be one of the 24 J97-GE-3 UAV turbojets put in storage at Ames after the 1971 termination of the AQM-91 Compass Arrow project.

There are a number of papers by Don Whittley available on the web. Unfortunately, most are for purchase as 'hard copies'.


Attachments

  • DHC-vstol-model-nasa.jpg
    26.9 KB · Views: 298

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,020

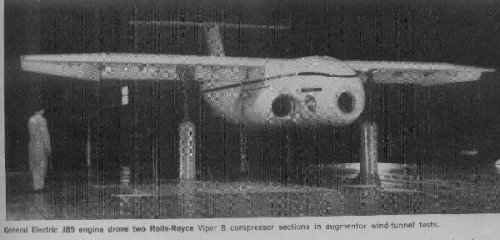

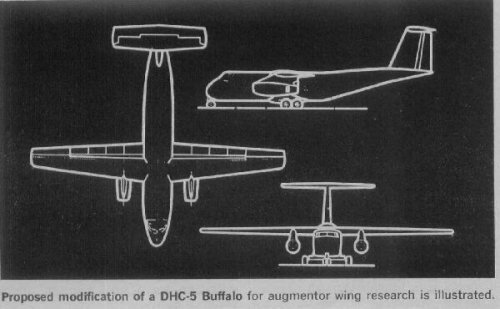

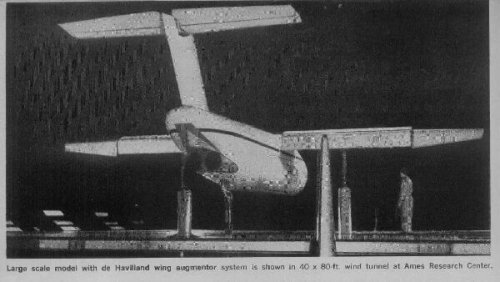

From Aviation Week 15/72, two photos of the model and a 3-view of
the proposed testbed, using the DHC-5.


Attachments

  • DHC-augmentor_wing_1.JPG
    39.5 KB · Views: 270
  • DHC-augmentor_wing_2.JPG
    37.6 KB · Views: 265
  • DHC-augmentor_wing_3.JPG
    35.6 KB · Views: 257

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,748
Thank you my dears Apophenia and Jemiba.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
963
Cheers Jens!

I'd read Whittley's description of the pylon-mounted engines for the augmentor-wing Buffalo but never seen a depiction before. Many thanks ;D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,020

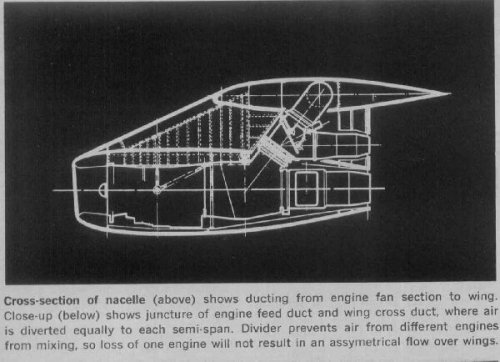

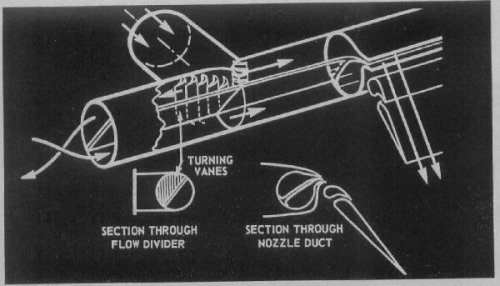

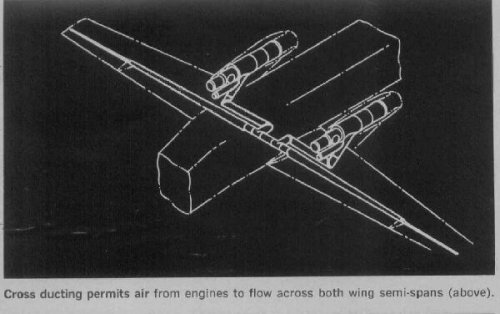

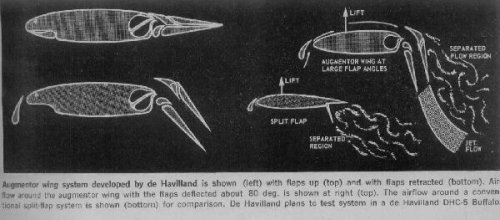

As it seems to be of special interest, here the drawings from the above
mentioned issue of Aviation Week, describing the intended arrangement
of engines and flaps.


Attachments

  • augmentor-wing_4.JPG
    38.8 KB · Views: 20
  • augmentor-wing_3.JPG
    47.9 KB · Views: 19
  • augmentor-wing_2.JPG
    36.3 KB · Views: 19
  • augmentor-wing_1.JPG
    39.1 KB · Views: 26

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
963
Amazing stuff ... many thanks Jens!

By the date of this Aviation Week article, I presume that all this work was feeding into the DHP-72 concept. http://www.secretprojects.co.uk/forum/index.php/topic,1629.0


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
26

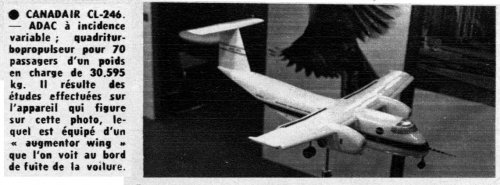

Model of a testbed for the "augmentor wing" exhibited at Le Bourget 1971, from Aviation Magazine 565.
The caption describes the Canadair CL-246 as an aircraft that would make use of the research done for this unnamed testbed.
For the CL-246, see this topic: http://www.secretprojects.co.uk/forum/index.php/topic,13862.0.html

PS: Why is this in "Aerospace" instead of "Postwar projects" ?


Attachments

  • augmentor_wing_testbed_avimag_565_p51.jpg
    148 KB · Views: 34

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,748

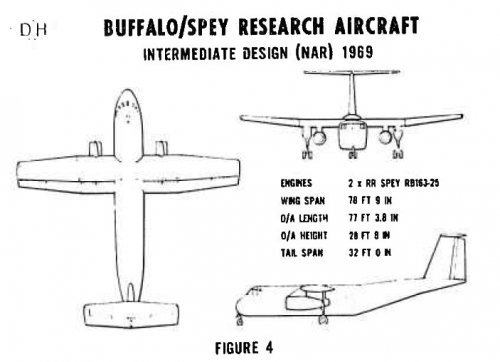

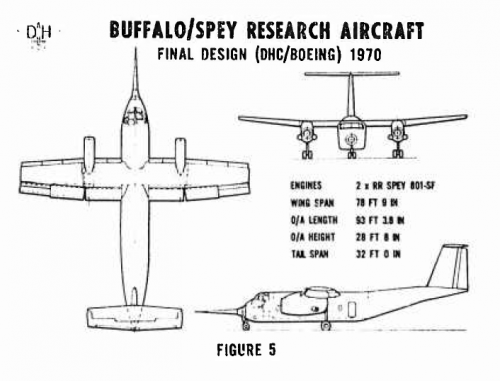

Jemiba said:
From Aviation Week 15/72, two photos of the model and a 3-view of
the proposed testbed, using the DHC-5.

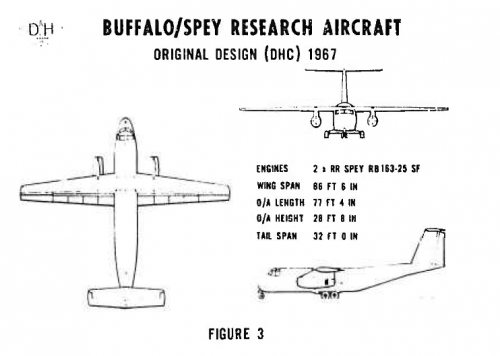

And from DTIC;


http://www.dtic.mil/dtic/tr/fulltext/u2/761972.pdf


Attachments

  • 1-1.png
    85.5 KB · Views: 13
  • 2-2.png
    105.4 KB · Views: 11
  • 3-3.png
    143.8 KB · Views: 13
