Dewoitine D.580 / SNCAM M.580 / Sud-Est SE.580

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
197

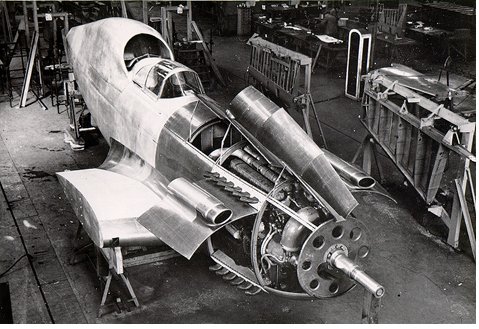

I saw this beast on a German aviation page a few years ago.
It looks like nothing I have ever heard of. X-24 or vertical-H engine, I would guess, and an enormous installation behind the cockpit - either a supercharger with its own engine (not a turbo, see exhaust stacks) or a Russian-type auxiliary-ramjet set-up, or the radiator.
I think it's probably a mock-up - just a guess from details like the ends of the wing stubs - but of what?
The photo is also blessedly free of cultural cues to where it was designed.

http://www.aviationpics.de/myst/page_12.htm

Modified to reflect the fact that I forgot the pic, sorry Deltafan


Attachments

  • mystery0239.jpg
    245.8 KB · Views: 615

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,189
Reaction score
740
Ah, OK, it's better now ;)

It was the french Sud-Est SE-580 fighter project (SE-582 for the french navy)

At first an Hispano Suiza 24 Z (2500 hp) with contraprop was foreseen. But there were too big problems with this engine and an Arsnal 24 H (from the german Jumo 213) was chosen. With the change of the engine there was a lot to change on the plane. At this time the jet fighters seemed to be the future and Sud-Est had enough works. The 580 was cancelled at first and the 582 a few later.

Two prototypes were ordered in 1944 but they were not finished when the program was cancelled at the end of 1947.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,552
Reaction score
360
Are you talking about "mystery0239.jpg"?. It is the mock-up of fighter project SE580/582 with Hispano-Suiza 24Z engine (3000 hp)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145

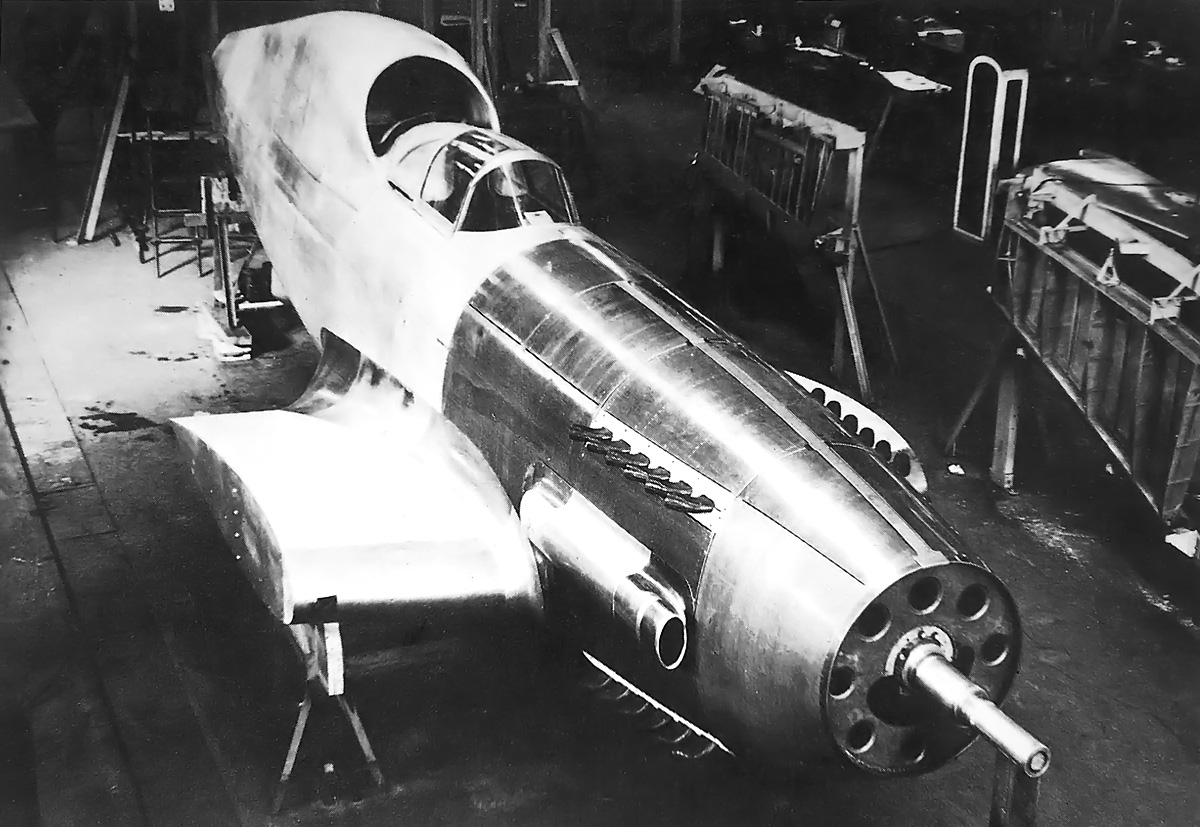

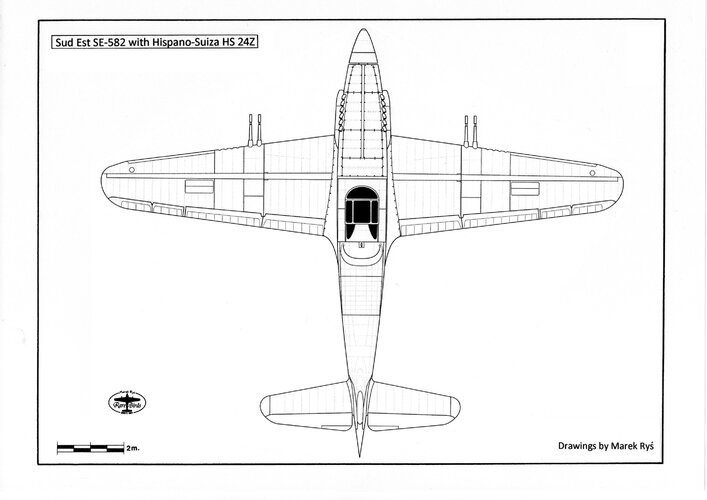

Once again uncompleted image.
But giving more full presentation.

Marek Rys http://www.airart3d.ovh.org/


Attachments

  • Sud-Est SE-580.jpg
    Sud-Est SE-580.jpg
    25.9 KB · Views: 594

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315

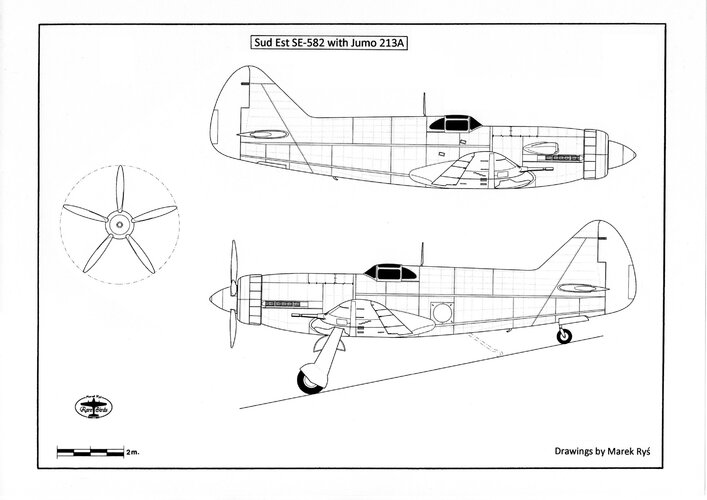

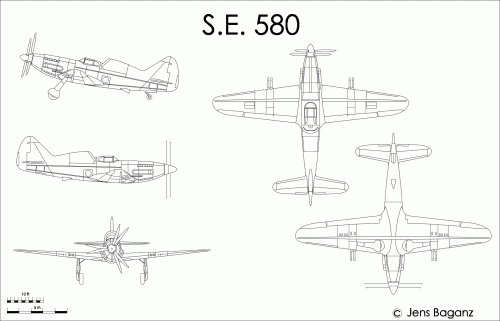

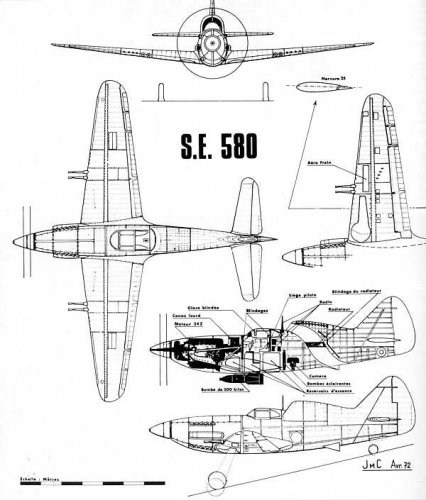

The SE.580


Attachments

  • SE-580.GIF
    121.6 KB · Views: 776

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,072
Reaction score
177
So, what is the massive structure behind the cockpit for?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,874
Reaction score
3,703
The pilot had a blind spot. It's fatal.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,770
Reaction score
1,268

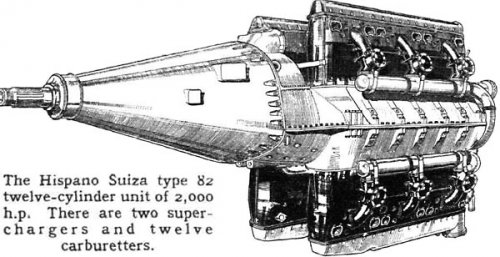

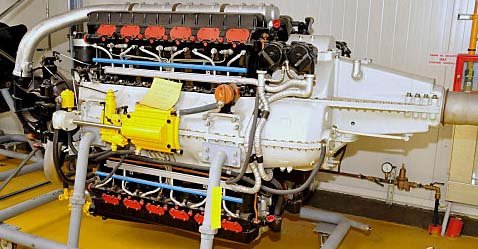

Rather OT but can anyone confirm that the Hispano-Suiza 24H and Type 82 are the same engine?

The image of the preserved HS-24H came from a blog which included the phrase "... un moteur Hispano-Suiza type 24 Z 82 - 24 cylindres en H ..." http://le-reve-d-icare.over-blog.com/15-index.html


Attachments

  • HS-24Z-preserved.jpg
    42.9 KB · Views: 460
  • Hispano-Suiza-type82.jpg
    63.3 KB · Views: 433

Pepe Rezende

ACCESS: Confidential
Joined
May 3, 2006
Messages
96
Reaction score
3
The SE580 was the last Dewoitine D.520 derivative. The intake also served to feed a turbocompressor.

Cheers


Pepe


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Hi,


we know SNCAM company,and it developed the M.580 (formally Dewoitine D.580),
it was a fighter project,led to develop the SNCASE SE.580;


http://forum.aviation-ancienne.fr/t6893-le-m580-sncam-vous-connaissez


Attachments

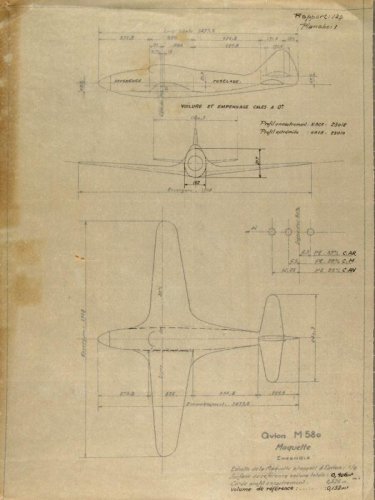

  • M.580.jpg
    54.9 KB · Views: 270

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
112
Hi all

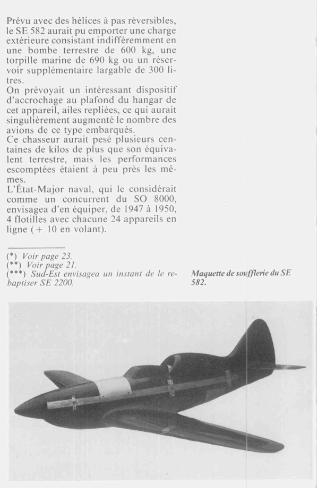

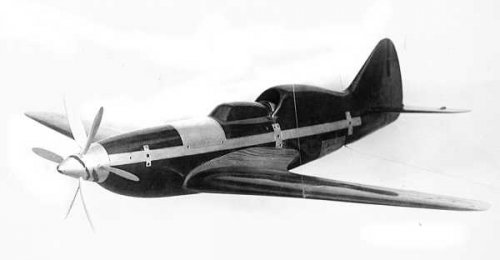

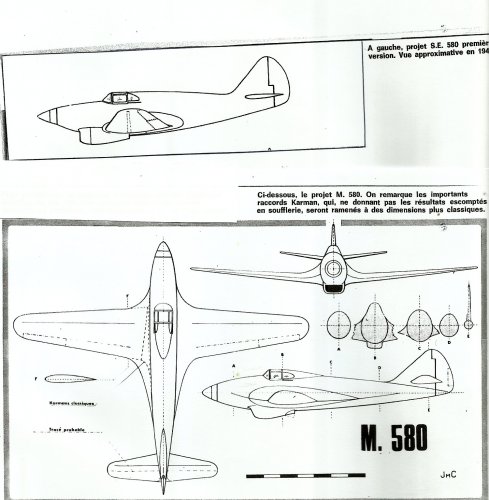

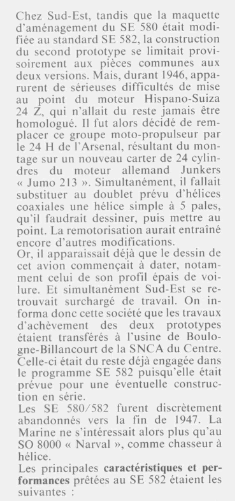

Some variations ,from "Le fana de l'aviation"


Attachments

  • Scan2.jpg
    355 KB · Views: 204
  • Scan3.jpg
    444.9 KB · Views: 241

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,874
Reaction score
3,703

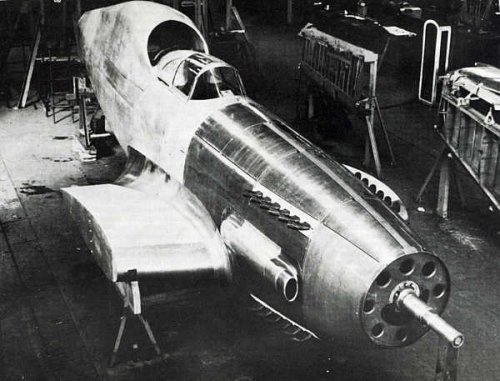

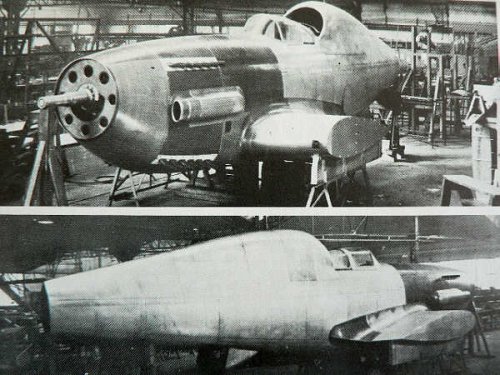

Hi!


Attachments

  • 2982.jpg
    9.8 KB · Views: 289
  • 2984.jpg
    89.8 KB · Views: 347
  • 2985.jpg
    212.2 KB · Views: 301
  • 2983.jpg
    100.3 KB · Views: 331
  • 87.jpg
    80.3 KB · Views: 349

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
706
Topics merged.

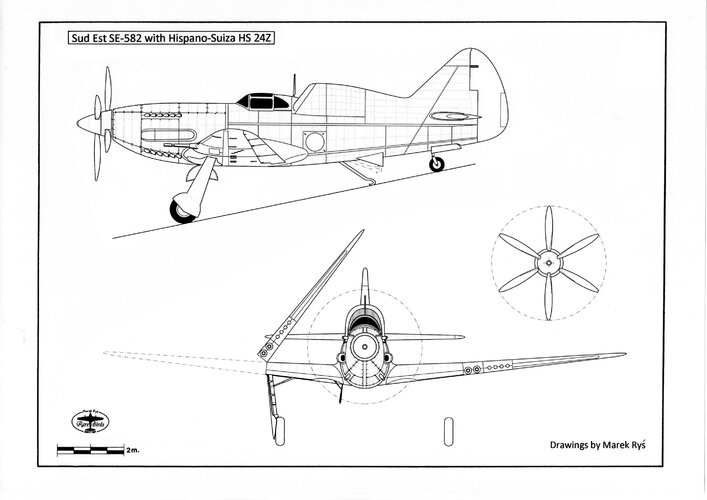

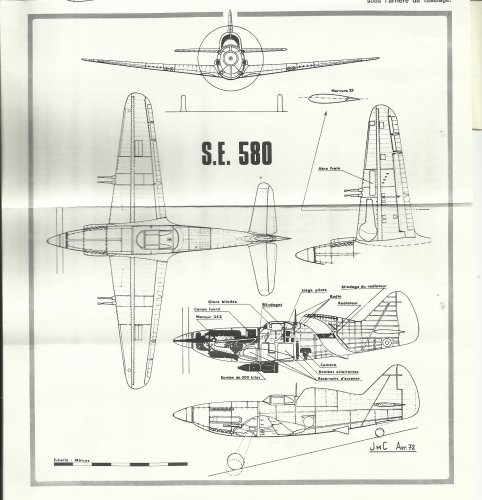

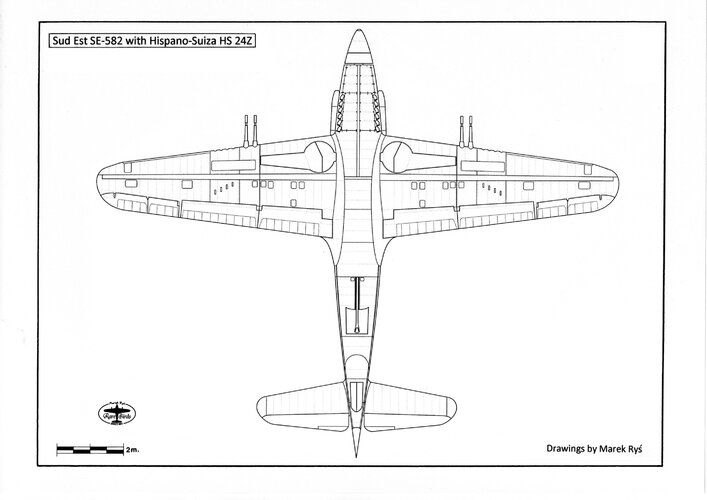

Here is the box to the resin model produced by Unicraft, as well as a plan:


Attachments

  • se580-box.jpg
    56.9 KB · Views: 200
  • se580-dr.jpg
    48.6 KB · Views: 202

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Hi,

there was also SNACSE SE.581 and SE.582,the SE.582 was a naval version
Project from SE.580,with some changes,included incorporating an arrestor
hook and folded wing.


Last edited:

Airborne2001

ACCESS: Confidential
Joined
Jun 19, 2020
Messages
88
Reaction score
70
Do any designs or artistic representations of the SE.582 exist? (With the wings folded would be helpful.)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Do any designs or artistic representations of the SE.582 exist? (With the wings folded would be helpful.)
Hi Airborne,

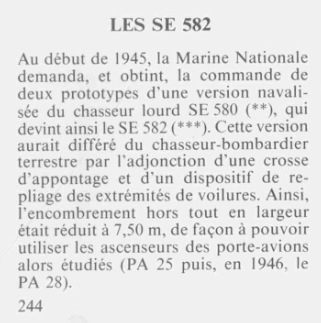

here is all I have,but by French Language.


Attachments

  • 1.png
    64.5 KB · Views: 44
  • 2.png
    75.8 KB · Views: 40
  • 3.png
    86.2 KB · Views: 70

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,762
Reaction score
3,978
Yup, SE being the same company - SNCA-SE : Société Nationale de Construction d'Avions - Sud-Est (all in the name !)
