Design development of the SAAB JAS 39 Gripen

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,249
Reaction score
1,682

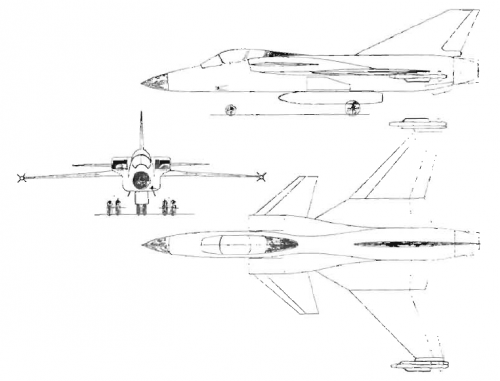

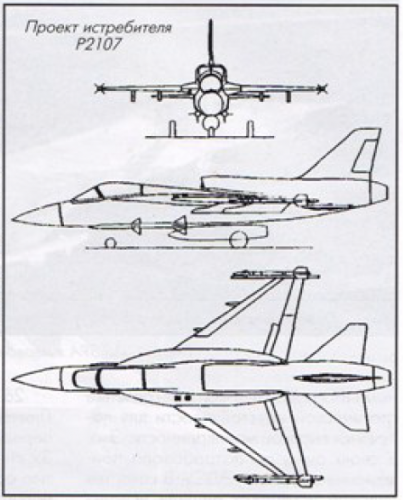

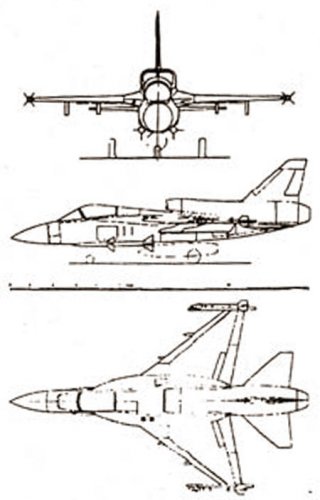

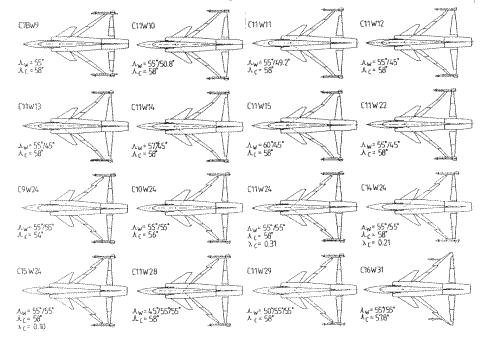

3-view from “Aerodynamic Design Evolution of the SAAB JAS 39 Gripen Aircraft”, AIAA 91-3195


Attachments

  • 2107.jpg
    43.6 KB · Views: 1,579

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
127
Website
theavgeeks.com
Out of curiousity, how did Saab manage to keep the airflow into the dorsal intake stable at high angles of attack? Was it in the way the LERXs were shaped?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
arc3371 said:
I am hoping that someone here can provide me with info about this intresting looking aircraft.

The Nov/Dec 2000 Air Enthusiast has a full article on Saab unbuilt project, with a Saab sourced 3-view.


arc3371

ACCESS: Restricted
Joined
Nov 11, 2006
Messages
39
Reaction score
1
I know thats were I first saw it but there is almost no info in the article


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,928
Reaction score
474
They weren't sure they could keep it stable at high AOA, which is one of the reasons it wasn't chosen. That isn't to say, it can't be done, as emayerle has pointed out, Northrop has performed alot of research into dorsal intakes that operate efficiently in such locations. However, it was most likely deemed to risky for SAAB to take on for their Gripen.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
Sentinel Chicken said:
Out of curiousity, how did Saab manage to keep the airflow into the dorsal intake stable at high angles of attack? Was it in the way the LERXs were shaped?

Proper shaping of the forward fuselage and LERX will do it. There was a lot of research done on this at Northrop under various government contracts. Up to the early-1980s it was reported in The Journal of Aircraft from AIAA, but nothing in unclassified print since then. I do kow that at least one Northrop ATF design employed this approach.


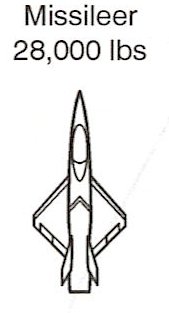

Attachments

  • northatfmissileer.jpg
    23.7 KB · Views: 1,151

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
Actually, Flateric, that wasn't the design I was thinking of, but it'll do.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,249
Reaction score
1,682
Evan, I hope you dont't mind adding pic to your post. Sorry, I was thinking of this design.


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
297
Reaction score
122

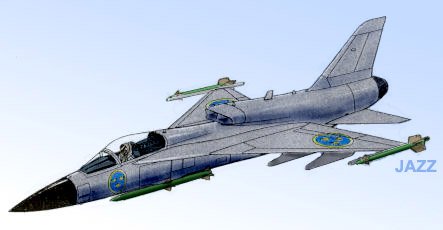

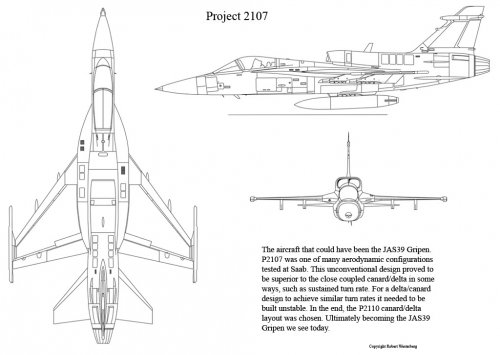

Just a quick rough one of the Saab 2107 - 2307?? prehaps someone can clarify ?


Attachments

  • SWED- Saab JAS Early Grypen P2307_1b.jpg
    SWED- Saab JAS Early Grypen P2307_1b.jpg
    23.4 KB · Views: 1,431

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,152

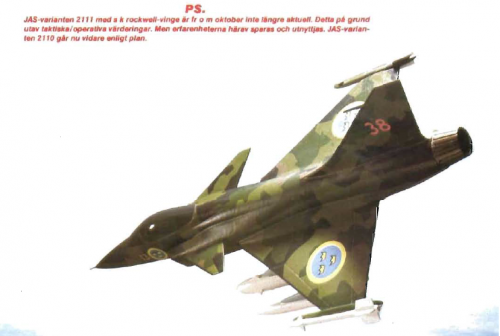

Saab 2111 with Rockwell designed wing. Costs of producing the wing were 50% higher than 2110.


Attachments

  • SAAB-2111.jpg
    31.2 KB · Views: 1,230

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,880
Reaction score
2,394

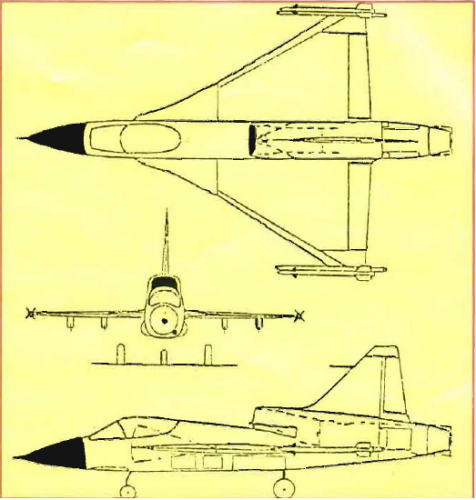

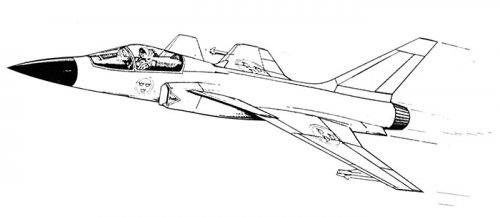

There was apparently a triplane or triple-delta configuration studied during the development process. If I'm reading the Google translation correctly, the designer responsible for the configuration was out sick for a protracted period, and the canard delta had been adopted by the time he returned to work.



Attachments

  • TorstenOrnberg_28497a.jpg
    3 KB · Views: 2,275
  • Jasvariant0825_28386a.jpg
    41.6 KB · Views: 1,180
Last edited:

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
502

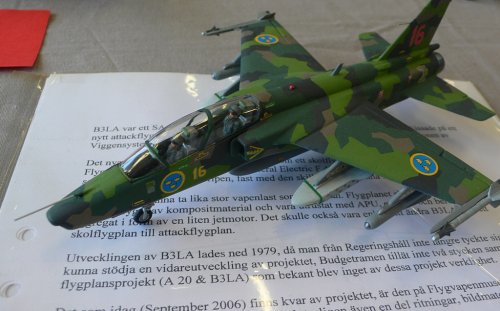

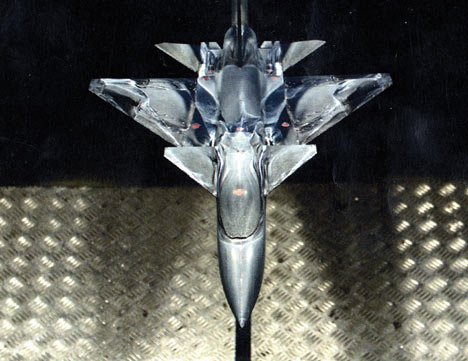

Beautiful model, thanks Yildirim, it's the B3LA, please look here for more info

http://www.secretprojects.co.uk/forum/index.php/topic,147.0/highlight,b3la.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
Hi,

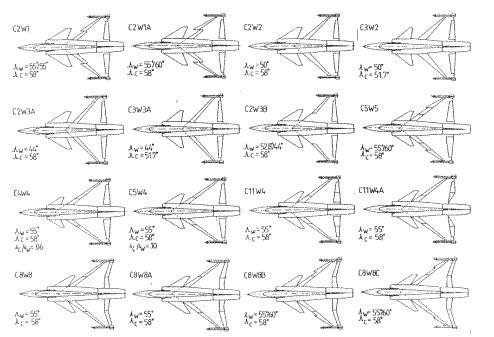

how to reach the final configuration.
http://www.mach-flyg.com/utg80/80jas_uc.html


Attachments

  • 1.JPG
    34.2 KB · Views: 1,404
  • 2.JPG
    35.3 KB · Views: 1,305

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,152

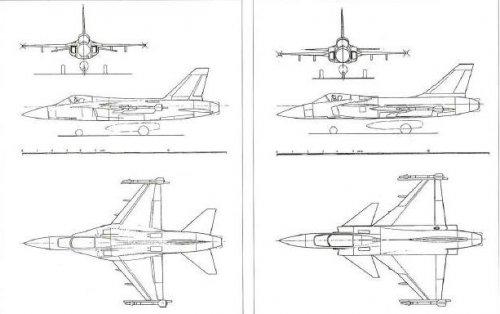

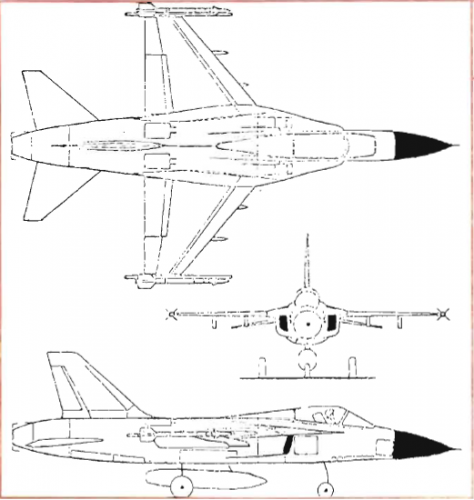

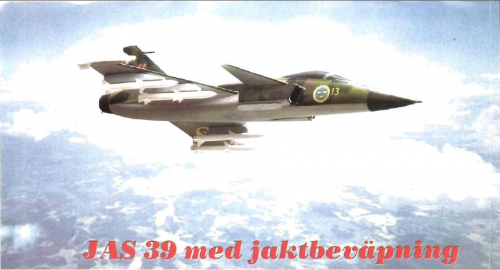

Some nice early Gripen stuff.

Source:
http://forum.keypublishing.co.uk/showthread.php?t=91659&highlight=2107


Attachments

  • pregripen.jpg
    151.6 KB · Views: 933
  • pregripen1.jpg
    158.8 KB · Views: 607
  • pregripen2.jpg
    142.1 KB · Views: 566
  • P2107-threeview-2.jpg
    131 KB · Views: 774
  • URGripen1-1.jpg
    60 KB · Views: 728

vajt

ACCESS: Confidential
Joined
May 6, 2007
Messages
74
Reaction score
1
Matej said:
Working... more info soon!

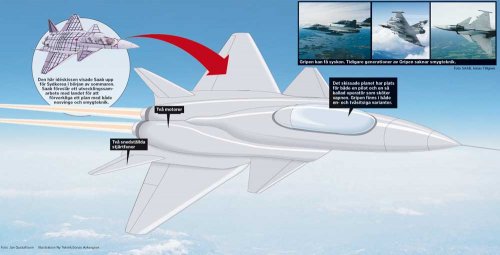

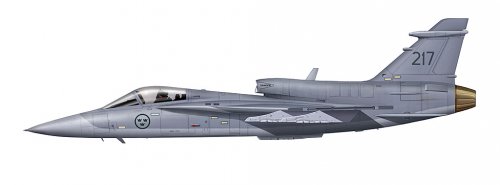

Nice drawing of the proposed stealthy aircraft that SAAB is bidding for the S. Korean requirement. I hope it gets developed as an alternative to the F-35.

-----JT-----


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
202
Website
www.hitechweb.genezis.eu

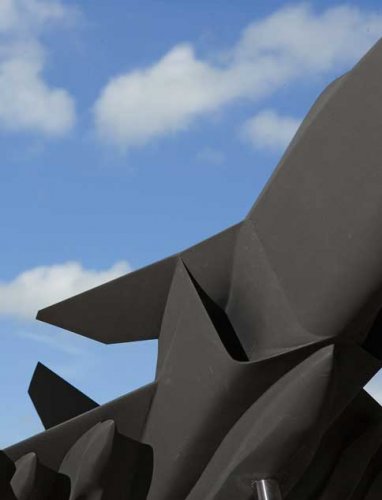

Work finished. Stealthy Gripen is the work of the small team, leaded by the Saab's stealth specialist Jakob Bjerkemo. He used some nice tricks to reduce the RCS, such as the Z shape tooth on the sides of the plane, especially between the wing's apex and canard, which already received a patent (attached). Despite my previous statements I realized, that the aircraft kept its vertical tail.


Attachments

  • jabokbjerkemo_30676a.jpg
    34.9 KB · Views: 280
  • 03098739_000001.pdf
    62.6 KB · Views: 90

Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
15
TomS said:
There was apparently a triplane or triple-delta configuration studied during the development process. If I'm reading the Google translation correctly, the designer responsible for the configuration was out sick for a protracted period, and the canard delta had been adopted by the tie he returned to work.

http://www.nyteknik.se/efter_jobbet/smatt_gott/article370997.ece
"Örnen" means "Eagle", so JAS might have had the same name as TSR-2. :)

(BTW, "Gripen" means "Griffon", unless you already knew that. ;) )


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
Hi,


for a long time,I found those unknown aircraft on Internet,please ID them.


Attachments

  • 1.JPG
    28.9 KB · Views: 376
  • 2.JPG
    32 KB · Views: 421

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
Thank you Shivering,


the last two aircraft was SAAB-2307 & SAAB-2111


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
24
yeb hes right!!! pre design development of SAAB JAS39 Gripen!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807
Topic renamed. Please hesham (and the others), when a mystery has been solved, think of renaming the topic accordingly. I have renamed many of the numerous "Please ID" or "Unidentified" topics on this forum and I would hate to have to do it again in a few months!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019

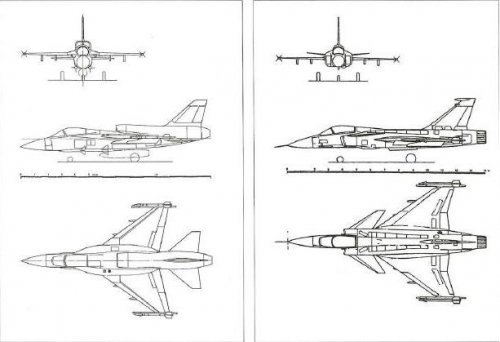

Hi,

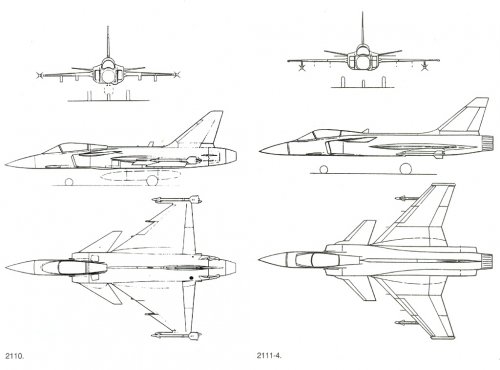

here is the SAAB-2111 and some alternative designs for Gripen.

Flygapennytt


Attachments

  • SAAB   1-1979.png
    SAAB 1-1979.png
    101.1 KB · Views: 272
  • 2     4-1980.png
    2 4-1980.png
    247.2 KB · Views: 231
  • 1     4-1980.png
    1 4-1980.png
    89.2 KB · Views: 235
  • 3   2-1980.png
    3 2-1980.png
    88.4 KB · Views: 259
  • 2   2-1980.png
    2 2-1980.png
    149.9 KB · Views: 247
  • 1     2-1980.png
    1 2-1980.png
    45.3 KB · Views: 245
  • 2111-2   3-1982.png
    2111-2 3-1982.png
    323.8 KB · Views: 212
  • 2111   3-1982.png
    2111 3-1982.png
    616.2 KB · Views: 196

pedrospe

ACCESS: Secret
Joined
Feb 9, 2010
Messages
282
Reaction score
36
Very interesting concepts,thanks alot Hesham.




best regards


Pedro


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019

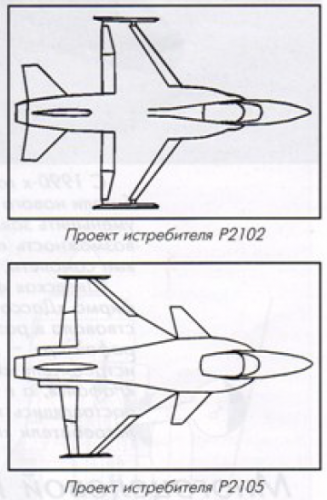

From Авиация и космонавтика 4/2009;

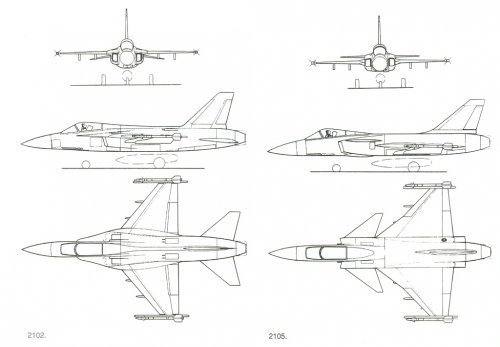

here is an early SAAB Proposals which led to Gripen.


Attachments

  • 3.png
    365.3 KB · Views: 944
  • 2.png
    309.1 KB · Views: 966
  • 1.png
    278.4 KB · Views: 1,011

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,213

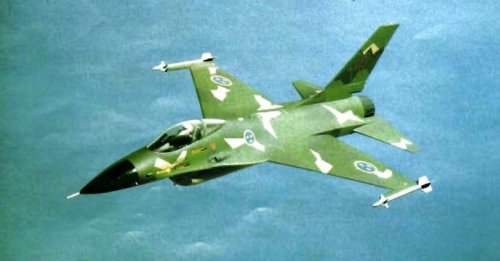

Slightly off-topic, but in the 80's GD proposed the F-16 to the SwAF.

One competitor Swedish industry had to beat in project JAS 39 was F-16. A photo/drawing from back then. #SwAF #FV90
Source: https://twitter.com/GripenNews/status/762390328313802752


Attachments

  • GD_F16_SwAF_drawing_20160807.jpg
    48.1 KB · Views: 803

ScrutorAudax

ACCESS: Restricted
Joined
Jun 5, 2015
Messages
48
Reaction score
14

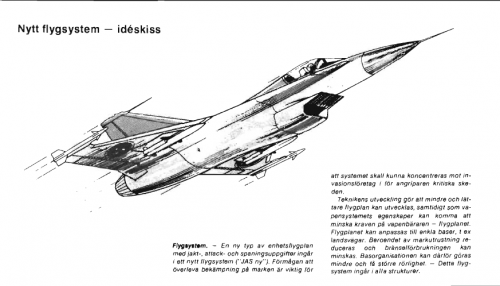

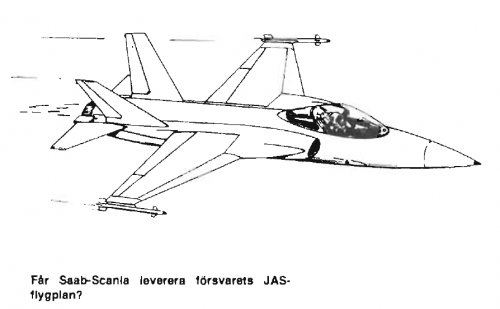

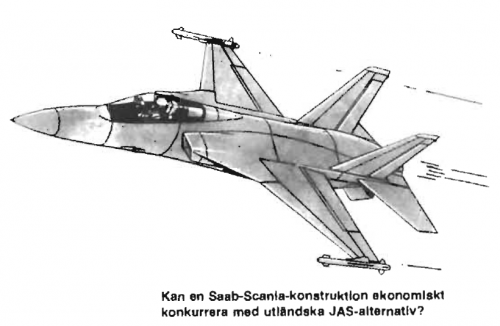

En ny typ av enhetsflygplan med jakt-, attack och spaningsuppgifter ingar i ett nytt llygsystem ("JAS ny"). Formagan att overleva bekampning pa marken ar viktig lor att systemet skall kunna koncentereras mot invasionstoretag i for angriparen kritiska skeden.
Teknikens utveckling gor att mindre och lattare flygplan kan utvecklas, samtidigt som vapensystemets egenskaper kan komma att minska kraven pa vapenbararen - flygplanet. Flygplanet kan anpassas till enkia baser, t ex landsvagar. Beroendet av markutrustning reduceras och branselforbrukningen kan minskas. Basorganisationen kan darfor goras mindre och fa storre rorlighet. - Detta flygsystem ingar i alla strukturer.

Via Google Translate:

A new type of unit aircraft with hunting, attack and voltage data in a new light system ("JAS new"). The proverb to survive fighting on the ground is important for the system to be able to concentrate against invasion corporations in the critical stages of the attacker.
The development of technology means that smaller and slower aircraft can be developed, while the weapon system's characteristics may reduce the requirements of the gunbar aircraft. The aircraft can be adapted to single bases, such as landslides. Dependence on land equipment is reduced and industry consumption can be reduced. The basic organization can therefore be reduced and increased in size. - This flight system is in all structures.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,224
Reaction score
245

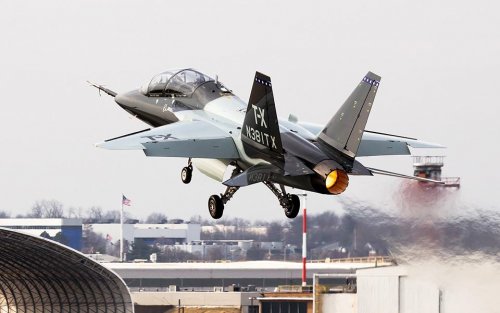

One of the airplanes from Hesham's 2015 post looks familiar...


Attachments

  • pregripen.png
    149.9 KB · Views: 455
  • t-x_afterburner_960x600.jpg
    64.4 KB · Views: 205

blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
204
Reaction score
120
Basically what ive ben told throughout my life was that they where tasked with just making the viggen sheaper and better. So they scaled it down and gave it top modern computers.


kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
668
Reaction score
23
Dorsal intake would solve the foreign object ingestion problem, always see the Gripen landing on highways and unprepared roads.
How has the record been for the Gripen regarding engine ingestion when landing on such roads? The dorsal design for Gripen must have been unnecessary. Does the Gripen use any screen or other device to protect the engine?


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,046
Reaction score
552
ScrutorAudax said:
En ny typ av enhetsflygplan med jakt-, attack och spaningsuppgifter ingar i ett nytt llygsystem ("JAS ny"). Formagan att overleva bekampning pa marken ar viktig lor att systemet skall kunna koncentereras mot invasionstoretag i for angriparen kritiska skeden.
Teknikens utveckling gor att mindre och lattare flygplan kan utvecklas, samtidigt som vapensystemets egenskaper kan komma att minska kraven pa vapenbararen - flygplanet. Flygplanet kan anpassas till enkia baser, t ex landsvagar. Beroendet av markutrustning reduceras och branselforbrukningen kan minskas. Basorganisationen kan darfor goras mindre och fa storre rorlighet. - Detta flygsystem ingar i alla strukturer.

Via Google Translate:

A new type of unit aircraft with hunting, attack and voltage data in a new light system ("JAS new"). The proverb to survive fighting on the ground is important for the system to be able to concentrate against invasion corporations in the critical stages of the attacker.
The development of technology means that smaller and slower aircraft can be developed, while the weapon system's characteristics may reduce the requirements of the gunbar aircraft. The aircraft can be adapted to single bases, such as landslides. Dependence on land equipment is reduced and industry consumption can be reduced. The basic organization can therefore be reduced and increased in size. - This flight system is in all structures.

of course, the S in JAS is 'spaning', which means reconnaissance, not voltage.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,923
Reaction score
933
ScrutorAudax said:
En ny typ av enhetsflygplan med jakt-, attack och spaningsuppgifter ingår i ett nytt flygsystem ("JAS ny"). Förmågan att overleva bekämpning på marken är viktig r att systemet skall kunna koncentreras mot invasionsretag i för angriparen kritiska skåden.
Teknikens utveckling gör att mindre och lättare flygplan kan utvecklas, samtidigt som vapensystemets egenskaper kan komma att minska kraven på vapenbäraren - flygplanet. Flygplanet kan anpassas till enkla baser, t ex landsvägar. Beroendet av markutrustning reduceras och bränsleförbrukningen kan minskas. Basorganisationen kan darför göras mindre och fa store rörlighet. - Detta flygsystem ingår i alla strukturer.

Via Google Translate:

A new type of unit aircraft with hunting, attack and voltage data in a new light system ("JAS new"). The proverb to survive fighting on the ground is important for the system to be able to concentrate against invasion corporations in the critical stages of the attacker.
The development of technology means that smaller and slower aircraft can be developed, while the weapon system's characteristics may reduce the requirements of the gunbar aircraft. The aircraft can be adapted to single bases, such as landslides. Dependence on land equipment is reduced and industry consumption can be reduced. The basic organization can therefore be reduced and increased in size. - This flight system is in all structures.
Translating from Swedish or German to other languages isn't made easier if you omit diacritical signs in the original text.
A native speaker of Swedish will probably spot some errors in this translation as well, but this is what I make of it with a dictionary in hand:

A new type of universal aircraft with fighter-, attack- and reconnaissance capabilities is introduced in a new flight system ("JAS new"). The ability to survive combat on the ground is important for the system to be able, in the event of an invasion, to concentrate on the critical theatre for the attacker.
The technology's development allows smaller and lighter aircraft to evolve, while the weapon system's characteristics can reduce the requirements for the weapon carrier - the aircraft. The aircraft can be adapted to simple bases, such as roads. Dependence on land equipment is reduced and fuel consumption can be reduced. Therefore, the base organisation can be made smaller and have greater mobility. - This flight system is integrated in all structures.


ScrutorAudax

ACCESS: Restricted
Joined
Jun 5, 2015
Messages
48
Reaction score
14
I was aiming for a very rough translation to get a better idea and thought I would post it here anyways. I could see that "voltage" was glaringly wrong. Thanks for the improved translation!
