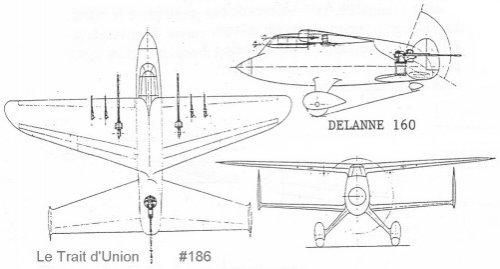

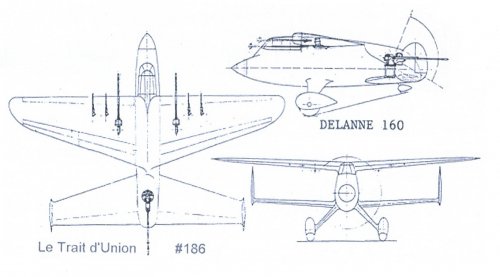

the Delanne 160 an attack aircraft or fighter from before the WWII.

Enjoy it, and i hope somebody could find more info about such weird companies and his projects.

Saludos

Raravia


Attachments

  • Delanne 160.jpg
    Delanne 160.jpg
    28.8 KB · Views: 1,645

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,867
Very odd!

Unfortunately, I'm not very interested in pre-jet stuff myself so I have nothing to contribute.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,437
Reaction score
1,944
Delanne was a firm of the late 30's specialised in tandem wings (Ie two wings, one forward, the other on the rear). If you are intrested, I can give details about Delanne
http://forums-fr.ubi.com/eve/forums/a/tpc/f/426102813/m/3891014553/p/2

http://www.aviafrance.com/aviafrance1.php?ID_CONSTRUCTEUR=415&ANNEE=0&ID_MISSION=0&CLE=CONSTRUCTEUR&MOTCLEF=

There was an article from "Le Fana de l'Aviation" some years ago.
The main problem is I haven't a scanner in my house...but I can made a short list of the projects and describe it.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Guys

I have the same problem, my scanners is dead right now, so i need to buy a new one, but i´m waiting for find a good one with a attractive price.

Raravia


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,016
Reaction score
1,344
Website
www.aerospaceprojectsreview.com
raravia said:
I have the same problem, my scanners is dead right now, so i need to buy a new one, but i´m waiting for find a good one with a attractive price.

I don't know what things are like where you are, but here you can get perfectly servicable scanners for about $30. They're built light, which means they're structurally weak... but it also means they're easy to haul around. I've had my cheapo scanner for 4-5 years and have haulled it all over, and it scans at high resolution perfectly well.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,257
Reaction score
1,019

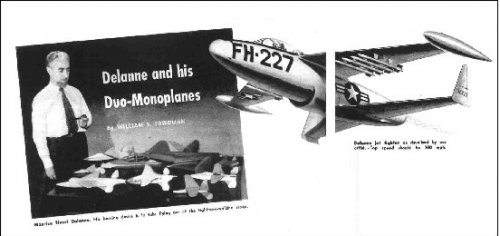

As Delanne was mentioned, I would like to add a picture from a copy of
a magazine (Air Trails ???). More interesting than the design in US colours
probably are the models in front of the designer himself. The one in the left
foreground could be the Westland-Delanne proposal, shown by Cuny,I think.
The gap in the middle of the artist's impression is due to the center fold.


Attachments

  • Delanne.JPG
    35.9 KB · Views: 1,050

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,437
Reaction score
1,944
It seems that Delanne keep on working on its project after WWII...
What happened to many french ingeniers is as follow
- they funded their own private firm between 1910 and 1936
- the firm was nationalised in 1936; as private owner, they were forced to withdrawn.
- French defeat of 1940 achieved the disaster by stopping aviation design for 5 years.
Only two french ingeniers (Dassault and Breguet) managed to take control again of their firm. Others such as Dewoitine, Delanne, or Wibault ended without firm under their control... Wibault had the first (raw) idea which led to the Harrier, in 1956...


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Jemiba

This Westland-Delanne Attack aircraft is wonderful.
Indeed, the models over the table are more interesting, do you know which models are those?. I wonder if the magazine says something more about it

What happened to Delanne? Did he keep working during the war for the allies?...or was captured by germans? I doubt it, I just want to know how he ended working with Westland. I think all this projects ended in nothing, because I couldn´t find any mention his work after the war.

And the drawings of Wibault are very good too. Great work!

Raravia


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,257
Reaction score
1,019
@ raravia :

Sorry, I've just got two pages of this article in a magazine I've never heard of.
I'll try to get the rest, but as far as I can see, it's more about Delanne himself,
than about his aircraft, and there's no information about the other designs.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Gentlemen,

The article mentioned by Jemiba comes from AirTrails,October 1950.
It's a description of the lifes and times of Mr.Delanne and his
research for the Duo-Mono or the tanden wing.
No more illustrations are shown but the ones mentioned by Jemiba.

A good account about the Duo-Mono wing ,with more illustrations is given on:
www.nestofdragons.com.
(choose specials)

Enjoy.

lark.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744
anther Delanne projects for bombers aircraft were : DL-120 and DL-150.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744
There are some Delanne projects:


DL-70 double-deck tandem 6-engined flyingboat.

DL-120 twin engined tandem-wing bomber.

DL-150 and DL-151 twin engined tandem-wing bombers.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,257
Reaction score
1,019
hesham said:
Hi,

some little known aircraft:

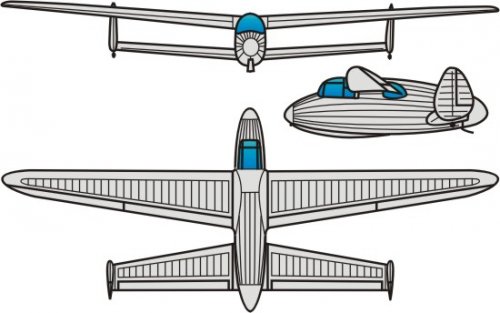

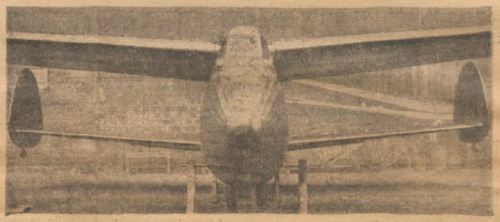

Delanne DL-190 sailplane.

My information to the Delanne DL-190 is, that it was a testbed to explore the
possibility of larger transport gliders using the Delanne principle and was built
during the german occupation.


Attachments

  • delanne-dl190.jpg
    40.3 KB · Views: 922

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744
Thank you my dears Jemiba and Lark,

The Delanne DL-40 was twin engined tandem wing transport
aircraft project,intended to carry 25-passengers and a crew
of three,it had an estimated speed of 560 km/h and maximum
range 1600 km.

Last edited:

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,367
Website
www.amazon.com

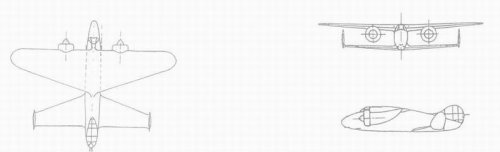

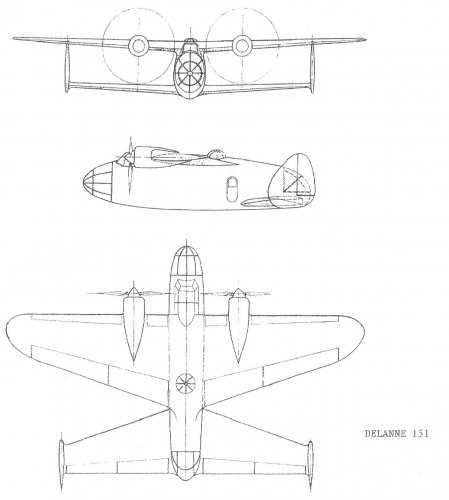

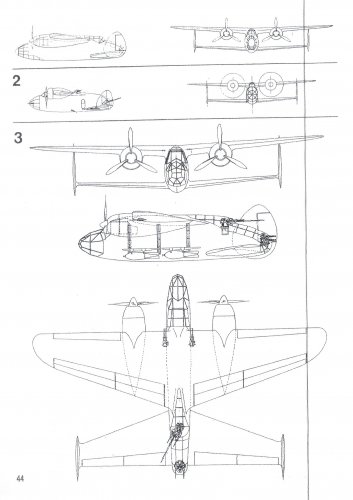

Delanne 150/151

Projects

"Le trait d'Union" unknown issue


Attachments

  • Escanear0001.jpg
    286.7 KB · Views: 710
  • Escanear0002.jpg
    110.8 KB · Views: 614

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,367
Website
www.amazon.com

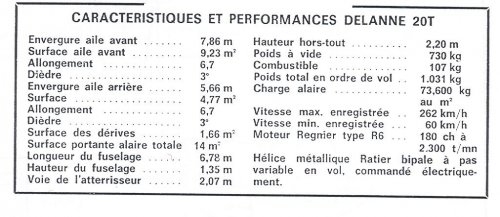

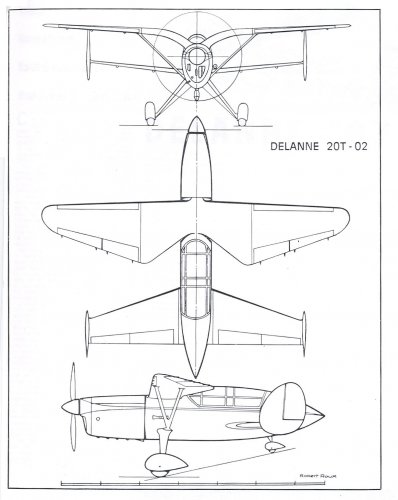

Delanne 20T

Prototype
source
-"les belles bêtes du temps passé" by Robert J. Roux-le fanatique de l'Aviation unknown issue


Attachments

  • Escanear0003.jpg
    84.7 KB · Views: 355
  • Escanear0002.jpg
    127.5 KB · Views: 417

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,367
Website
www.amazon.com

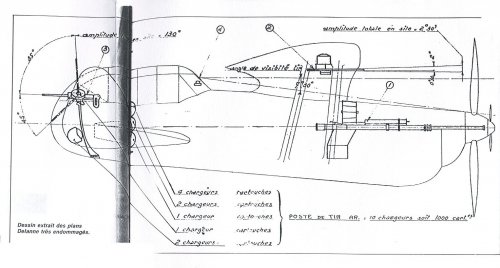

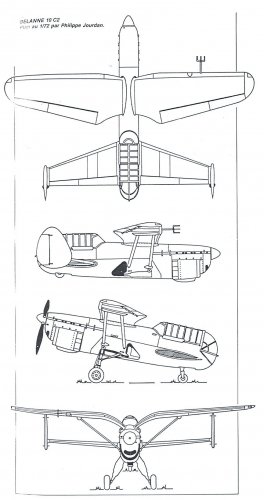

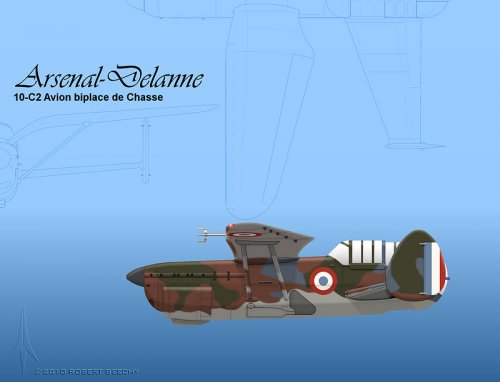

Delanne 10C2

prototype
source
-"Delanne:une certaine formule" by Jean Cuny-le fanatique de l'Aviation unknown issue


Attachments

  • Escanear0001.jpg
    130.4 KB · Views: 326
  • Escanear0004.jpg
    142.4 KB · Views: 292

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246
Delanne projects compilation from previous topics


CAO 700

ACCESS: Confidential
Joined
Nov 22, 2009
Messages
91
Reaction score
2
The Arsenal-Delanne 10 C2 was really built and was tested by froggies and germans.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
38
Website
cmeunier.chez-alice.fr
Justo Miranda said:
"Le trait d'Union" unknown issue
It is the issue #186 of July/August 1999 (Charles Claveau's article).
There is also the 3-view of the Patent of 1935, the DL70, DL120, DL190 (and 2 others without tandem wings, less funny).
Alas my scanner is in a jam, sorry. Maybe someday if someone is interested.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,257
Reaction score
1,019

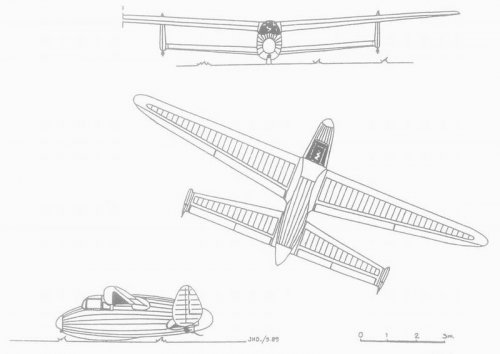

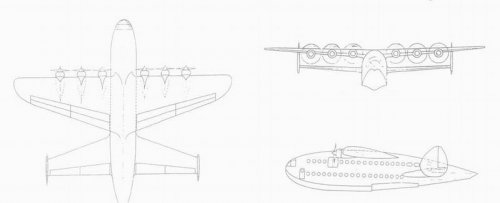

Perhaps I can assist you. Here are the mentioned drawings from
the mentioned Le Trait d'Union issue.


Attachments

  • Delanne_DL-190.jpg
    34.5 KB · Views: 188
  • Delanne_DL-120.jpg
    13.2 KB · Views: 175
  • Delanne_DL-70.jpg
    17.6 KB · Views: 203

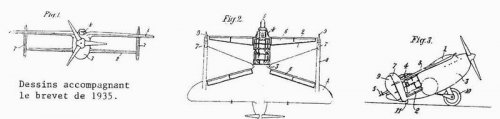

  • Delanne_Brevet-1935.jpg
    22.3 KB · Views: 147

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
102
Hi all

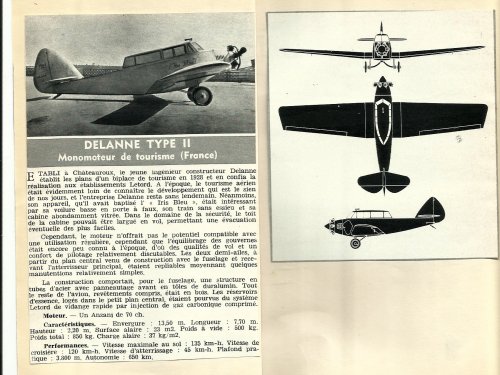

Here is the first Delanne' plane.


Attachments

  • Scan.jpg
    584.6 KB · Views: 305

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
102
first from "aviation magazine"
and this one from " le Fana"


Attachments

  • Scan.jpg
    549.2 KB · Views: 244

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744
Hi,


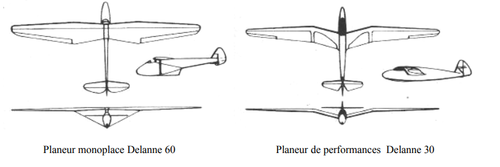

The Delanne DL-50 P1 was a single seat high-performance glider project,intended
in 1939,but may be for the circumstances of the war,the design ignored.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744
Hi,

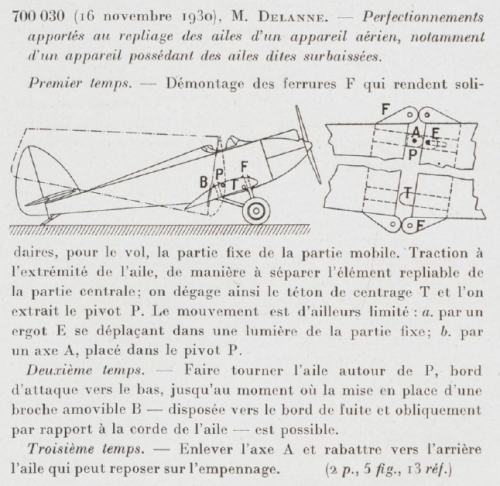

a Delanne folded wing aircraft patent.


l'Aeronatique 1932


Attachments

  • Delanne.png
    575.8 KB · Views: 381

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,055
Reaction score
384
Justo Miranda said:
Delanne 20T

Prototype
source
-"les belles bêtes du temps passé" by Robert J. Roux-le fanatique de l'Aviation unknown issue
N°229 12/1988 too

Justo Miranda said:
Delanne 10C2

prototype
source
-"Delanne:une certaine formule" by Jean Cuny-le fanatique de l'Aviation unknown issue
N°230 01/1989



Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
70
Reaction score
19
Really odd looking aircraft...
The pilot in the last shown A/C would have had hardly any sight forward/down.

What was the benefit of Delanne's concept?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,257
Reaction score
1,019
Principally the benifits are the same, as for all tandem wings. All flying surfaces are producing
positive lift, whereas in a conventional aircraft, the tailplane is producing negative lift, so decreasing
overall lift and adding drag. Besides that, AFAIK a tandem wing allows for a greater tolerances of
the position of the CG. And for smaller overall dimensions, especially with regards to span ...
Good explained, to my opinion, here http://www.nestofdragons.net/weird-airplanes/tandemwings.aspx ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744

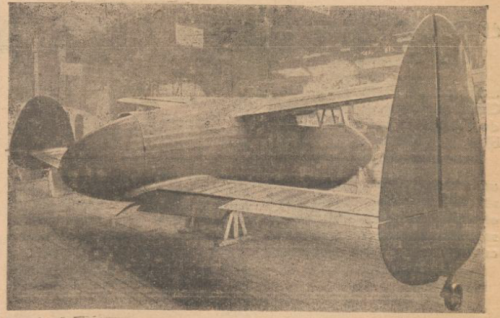

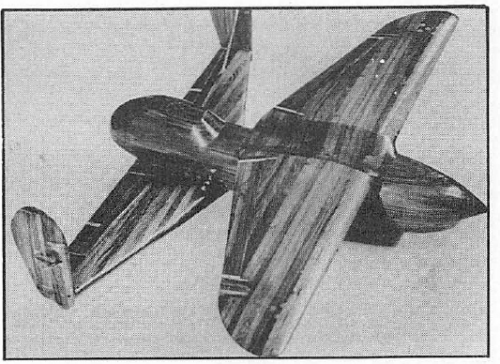

From Le Fana 230,here is artist drawing to a patent,and DL-10 wooden Model.


Attachments

  • 1-230.png
    193.4 KB · Views: 82
  • 2-230.png
    262.2 KB · Views: 82

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744

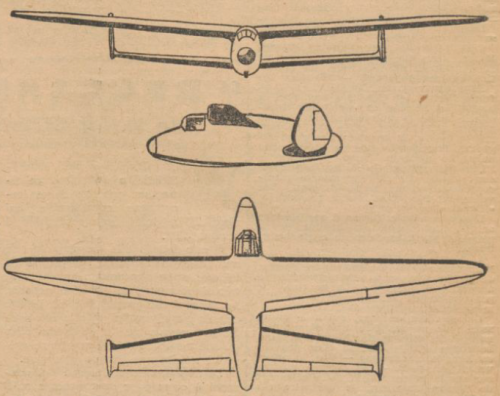

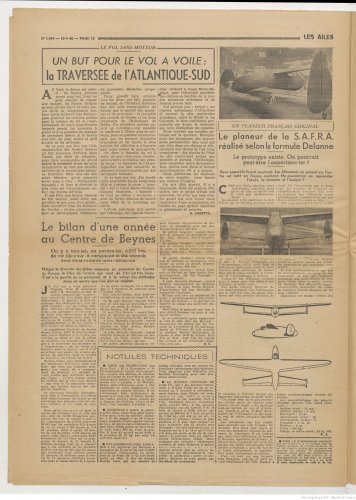

From Ailes 1/1946,

Delanne DL.190.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k9795984b_12.jpeg
    1.5 MB · Views: 77
  • 4.png
    568.5 KB · Views: 60
  • 3.png
    411.9 KB · Views: 59
  • 2.png
    587.7 KB · Views: 73

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
282
Reaction score
87

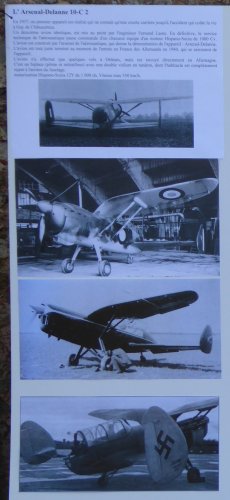

A few photographs of the Delanne 10-C2 which formed part of an exhibition at Giremoutiers on the occasion of the inauguration of the plaque commemorating the death of Guy de Châteaubrun, who was flying the 10-C2 when it crashed at les Fermiers, in that commune, on 10 August 1938.


Attachments

  • Delanne 10-C2.jpg
    Delanne 10-C2.jpg
    534.9 KB · Views: 93

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,744

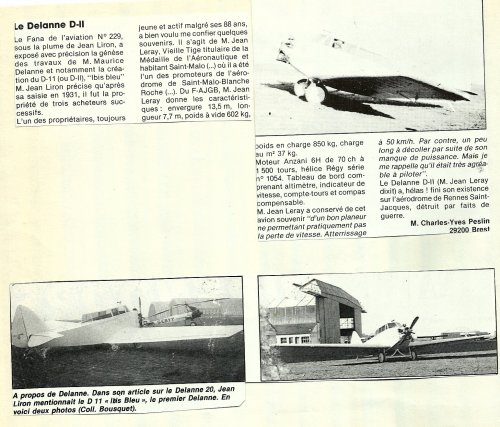

Here is the first Delanne' plane.

My dear Toura,

It's not the first one,so it called D.II,but D.I was the first aircraft of 1929 as in TU magazine.


Attachments

  • 1.png
    97.4 KB · Views: 69

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,221
Reaction score
612

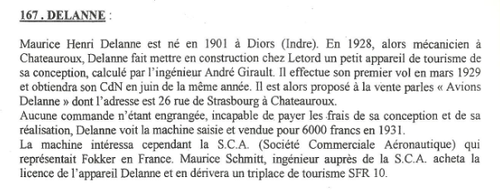

According to the French Wikipedia page, Maurice Delanne was born in 1901. He founded his own factory and built a few tandem wing prototypes. His tandem wings were based on Henri Mignet’s Pou de Ciel concept, but improved by increasing spacing between the two wings.
His single-engines prototypes had forward gull wings because “Polish wings” (see PZL) were fashionable during the 1930s.
During WW2, Delanne served in the Resistance, but was captured in October 1942 and stayed in a German forced labour camp until liberated in April 1945 (US Army).
Just before WW2, Delanne licensed Westland to build a tandem wing variant on the Lysander. A single Delanne Lysander prototype flew with a 4-gun powered turret, but was too late to participate in the Battle of Britain and never went into production.
Afterer WW2, Delanne moved to the USA, but returned to France in 1960.

Last edited:
Top
