My dears,

do you know Davis Manta fighter ?.
just model;


Attachments

  • manta_1s.jpg
    5.3 KB · Views: 4,156

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,665
Reaction score
3,457
My dears,

for Davis Manta it was a really fighter project.

In 1938 USN issue a specification a light high performance carrier
based fighter to replace biplane fighters then in service,the main
contenders were Bell Model-5 XFL-1,Grumman G-34 XF5F-1,Vought
V.166B XF4U-1,Brewster and Curtiss,I search for the last two companys
but I found nothing,does anyone know those two proposals ?.specially
one of two company submitted a twin engined design.


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
1
Any more information on the Manta? With a rendering similar to the one displayed on this thread, the artist stated that the aircraft was cancelled without explaination. ???


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
Should have posted this before;

Davis Manta

From Miranda aviation mag


Attachments

  • manta.jpg
    59.5 KB · Views: 1,685

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
Davis Manta

From Miranda aviation mag

I didn't knew about this Manta. It looks like an advanced version of the original project posted above, could you tell us more about if?


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
1
red admiral said:
Should have posted this before;

Davis Manta

From Miranda aviation mag

Nice pic. But, is there anymore information about the history? (Specification, engine, project timeline, ect.?)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70

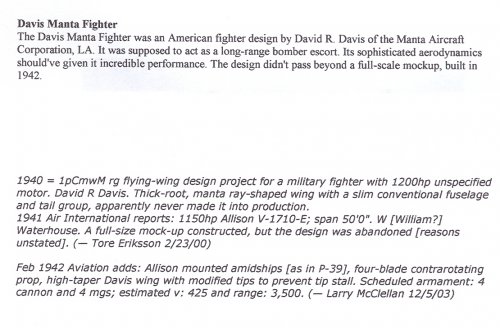

About the 'Manta' fighter.

Design by David R.Davis. (of Davis-wing fame)

purpose : ultra longrange fighter.

Manufacturer (planned) : Manta Aircraft Corporation
Los Angeles .California.
Year : 1942.

engine : 1 Allison ? of 1150hp.
span : 14,935m ( or with 2e wingset 15,240m)
lenght : 11,580m
height : 4,877m

performence:

max speed :720km/h
cruise :560km/h
landing sp. :96km/h

range . 5600km
max.flying time : h.10
ceiling. 12.000m

armament :4x20mmm cannon
4x 12.5 mmMG

weight : unknown

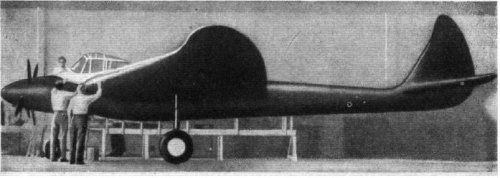

one 1/1 mock-up constructed

source:Luftfahrt-Lexikon 3061-801-2 Luftfahrt International 25.
further reading:Davis Manta Fighter ,Flying models ,October 1956.
Future Fighter,Air Trails,September 1941


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
That Manta info is great!. Thanks for it hesham :)


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850

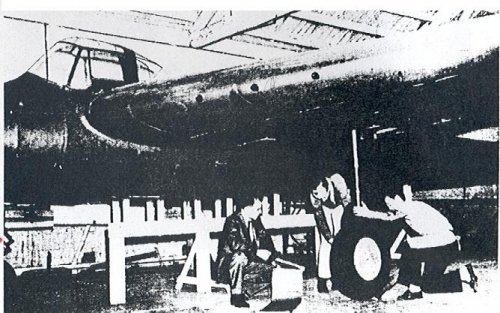

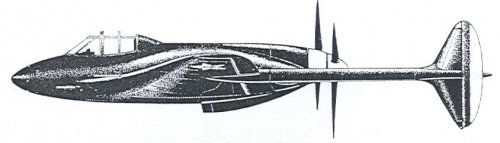

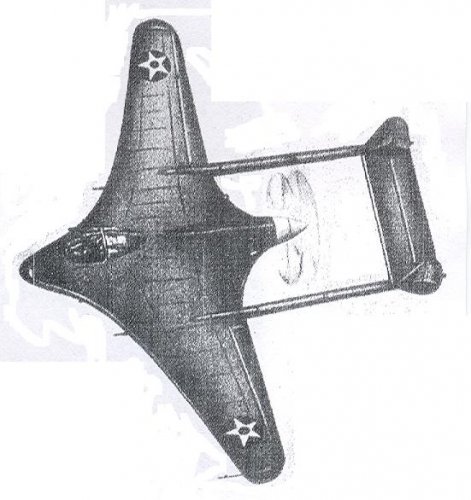

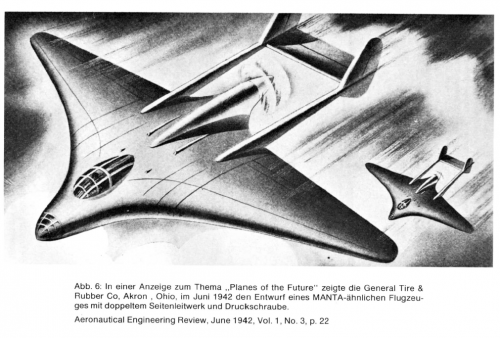

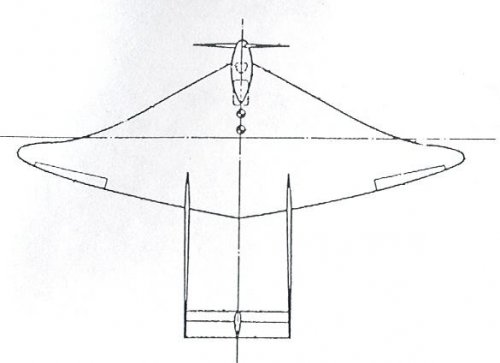

Here some pics of the twin booms version from
-"Die Deutsche Sportflieger" sept 1942
-"Aeronautical Engineering Review" june 1942
-"Luftahrt International" No 25
-"Le Fanatique de l´Aviation" 216-217


Attachments

  • Escanear0004.jpg
    29.7 KB · Views: 650
  • Escanear0003.jpg
    19.3 KB · Views: 1,039
  • Escanear0002.jpg
    139.6 KB · Views: 1,088
  • Escanear0001.jpg
    50.2 KB · Views: 1,122

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850

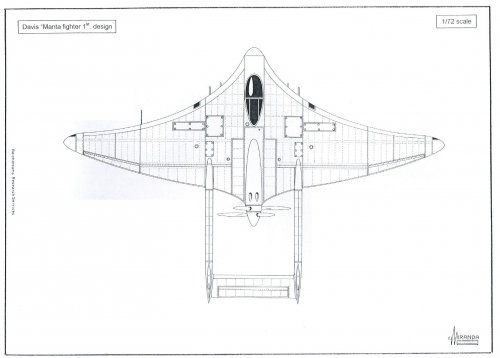

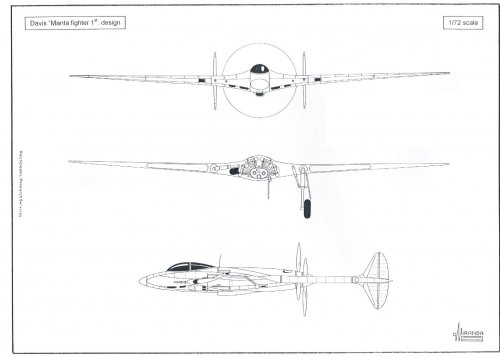

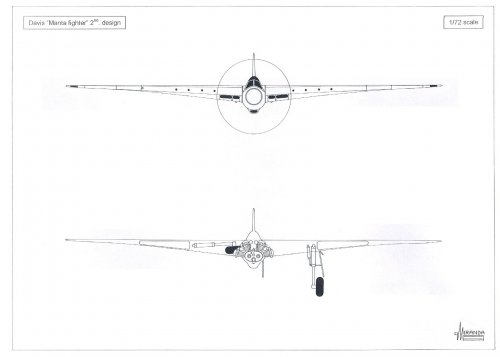

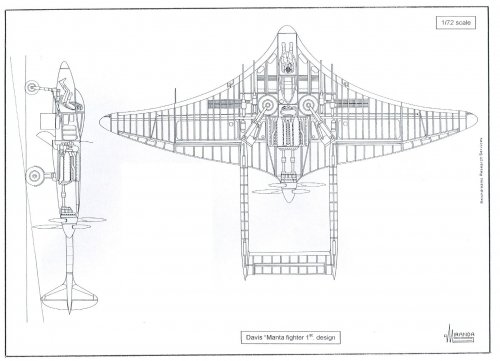

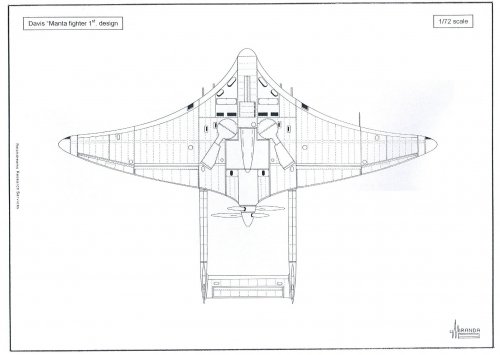

Some speculative drawings by myself
SOURCE GRADING 2-3


Attachments

  • Escanear0003.jpg
    133.4 KB · Views: 753
  • Escanear0004.jpg
    133.6 KB · Views: 261
  • Escanear0005.jpg
    105.6 KB · Views: 328
  • Escanear0006.jpg
    179.2 KB · Views: 331

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
Thanks a lot Justo. That twin tail layout came earlier than the more conventional one?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850
pometablava said:
Thanks a lot Justo. That twin tail layout came earlier than the more conventional one?

In my opinion the conventional fuselage version dates of 1940


Attachments

  • Escanear.jpg
    353.5 KB · Views: 185

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850

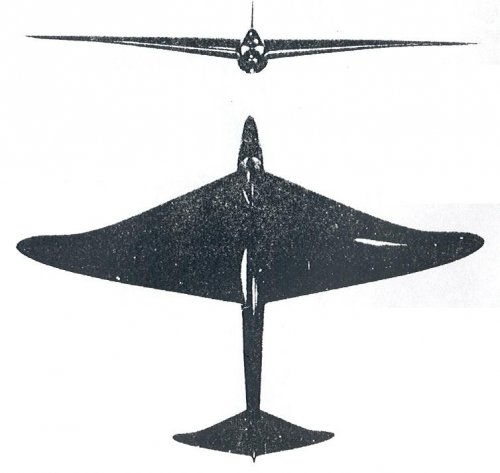

Here some pics of the conventional version


Attachments

  • Escanear0001.jpg
    285.6 KB · Views: 307
  • Escanear0002.jpg
    44.2 KB · Views: 213
  • Escanear0004.jpg
    106.4 KB · Views: 233
  • Escanear0003.jpg
    72 KB · Views: 168

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850

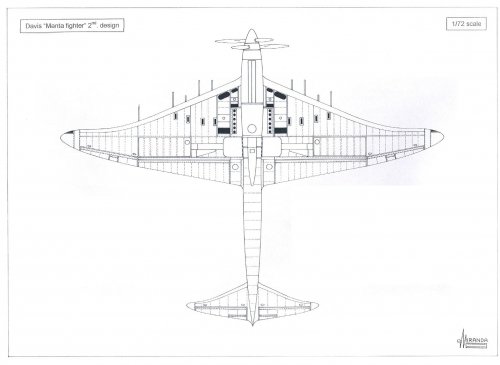

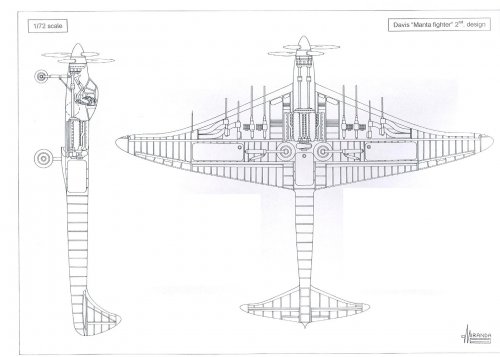

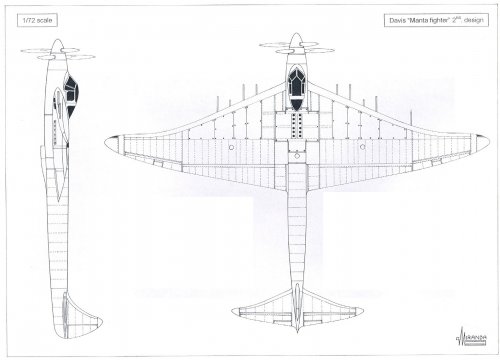

Some speculative drawings by myself
SOURCE GRADING 3-4


Attachments

  • Escanear0008.jpg
    147.7 KB · Views: 288
  • Escanear0007.jpg
    78.8 KB · Views: 226
  • Escanear0006.jpg
    122.5 KB · Views: 277
  • Escanear0005.jpg
    135.7 KB · Views: 287

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
Thank you very much Justo, you help me a lot.

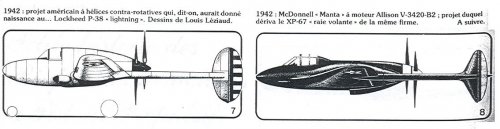

I had a fighter profile from a french magazine labeled McDonnell Manta fighter from 1942. I posted it here:

http://www.secretprojects.co.uk/forum/index.php/topic,650.0/highlight,tophe.html

Thanks to your info I see that when we delete the word "McDonnell", we have "Manta fighter from 1942" and that has more sense.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181

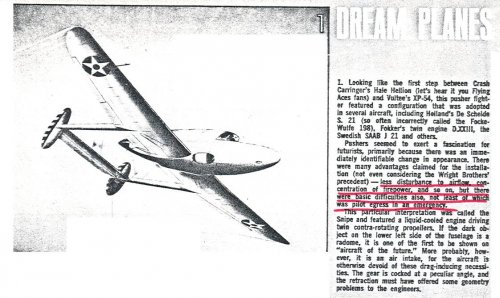

Again from that french magazine: the twin tailed manta would have been powered with Allison V-3420-B2 engine instead of early conventional version with Allison V-1710. ( That powerplant alone could have doomed the project prior any other technical or operational consideration :p)


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850
Unidentified french magazine is Le Fanatique de lÁviation Nr. 216-217-218
Please see attached some drawings of the unknown plane from:
-Wings & Airpower September 1972
-Die Deutsche Sportflieger Sept 1942
-Le Fanatique de l'Aviation No 216


Attachments

  • Escanear0001.jpg
    141.6 KB · Views: 346
  • Escanear0002.jpg
    35.8 KB · Views: 289
  • Escanear0003.jpg
    55.8 KB · Views: 285

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
Thanks again Justo,

I clearly see that the unknown fighter drawing from Le Fana has no real similarity with the Brewster Model 33 other than its layout. Loocking at the drawings and text from your post I guess it is not a real project but one of this "future aircraft concept" so popular in pre-WWII mags. Something like that I knew from Lark's post here:

http://www.secretprojects.co.uk/forum/index.php/topic,773.0.html


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,850
pometablava said:
Thanks again Justo,

I clearly see that the unknown fighter drawing from Le Fana has no real similarity with the Brewster Model 33 other than its layout. Loocking at the drawings and text from your post I guess it is not a real project but one of this "future aircraft concept" so popular in pre-WWII mags. Something like that I knew from Lark's post here:

http://www.secretprojects.co.uk/forum/index.php/topic,773.0.html

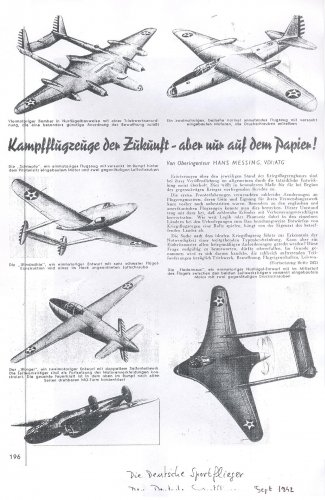

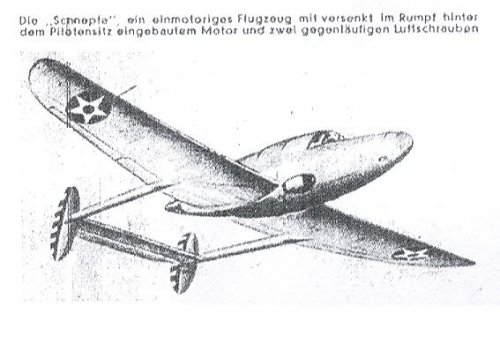

From "Die Deutsche Sportflieger" September 1942


Attachments

  • Escanear.jpg
    365.1 KB · Views: 432

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
An old PM article on the Manta for sale:
http://books.google.com/books?id=RicDAAAAMBAJ&pg=PA62&lpg=PA62&dq=Davis+Manta+fighter&source=bl&ots=-2O69S6hmQ&sig=Unmzyf1Ij8ESoLM2QyRJ6hICuvI&hl=en&ei=QXHCSoqEEZSOswOioJHTAg&sa=X&oi=book_result&ct=result&resnum=2#v=onepage&q=Davis%20Manta%20fighter&f=false


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
This old topic seems to consider (like I often do myself) that the Davis Manta and the McDonnell Model 1 Manta were one and the same. But do we have evidence of this?

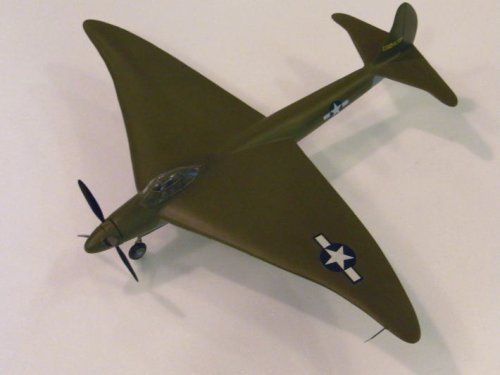

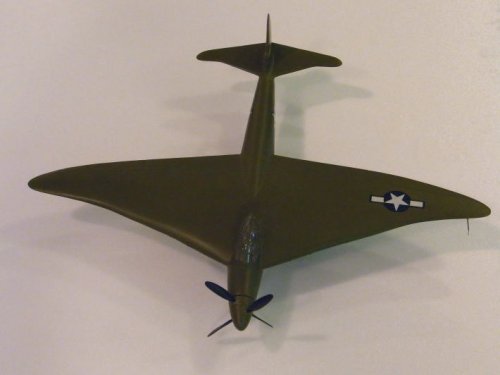

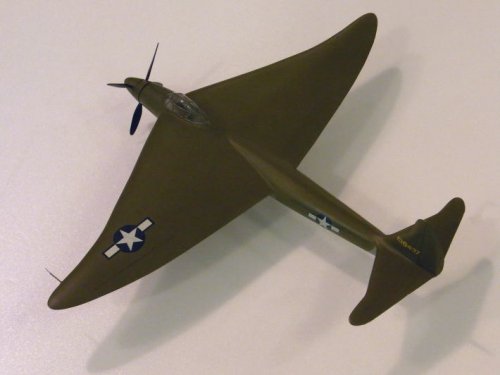

Meanwhile, here is a marvelous scale model of the Davis Manta found on a Japanese website:
http://www.ne.jp/asahi/tsmc/net/work-16.html

Next is a fake "maiden flight" picture once saved from the web (but I don't remember where from).

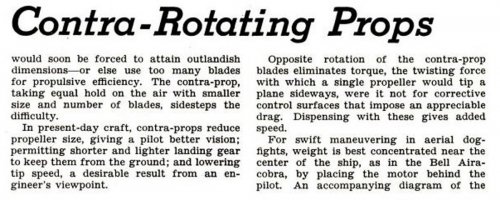

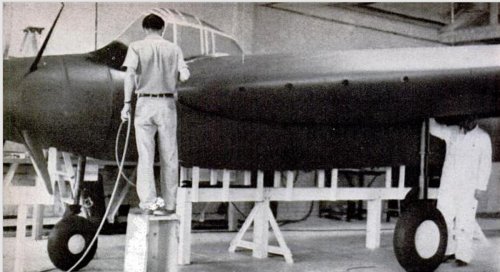

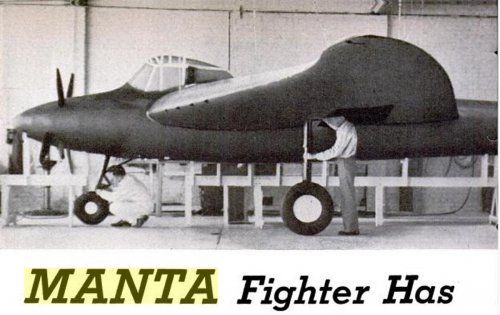

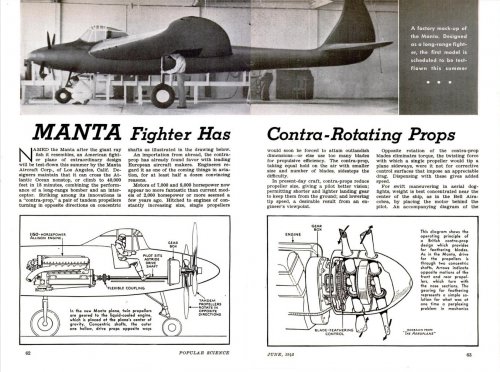

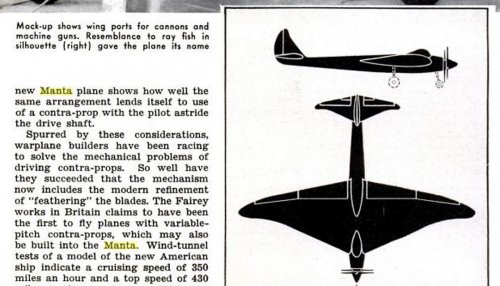

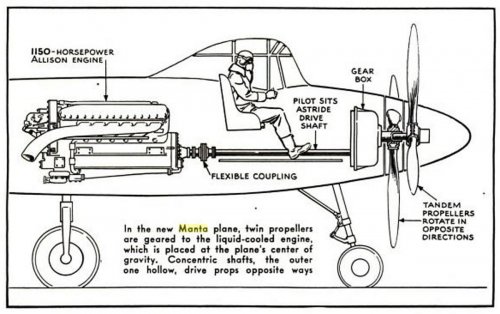

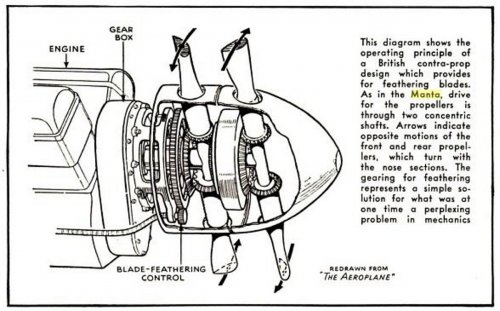

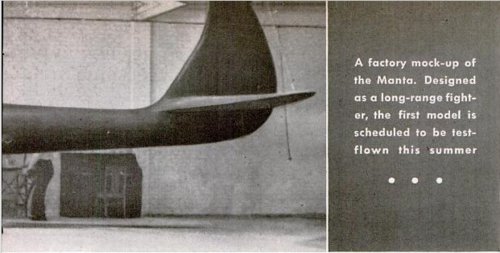

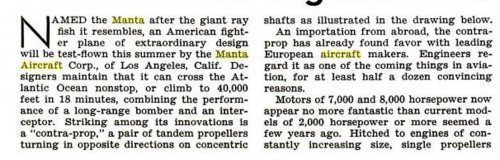

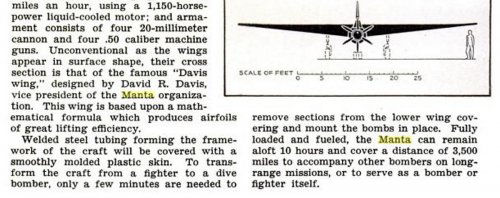

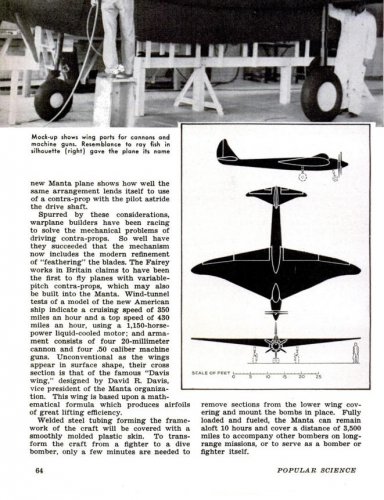

Finally, a three-page article from Popular Science dated June 1942.


Attachments

  • RA0012114M1.jpg
    28.1 KB · Views: 179
  • Popular Science June 1942 (page 64).jpg
    Popular Science June 1942 (page 64).jpg
    300.2 KB · Views: 191
  • Popular Science June 1942 (pages 62-63).jpg
    Popular Science June 1942 (pages 62-63).jpg
    671.5 KB · Views: 213
  • MantaMaiden133.jpg
    90.9 KB · Views: 103
  • RA0012117M1.jpg
    29.9 KB · Views: 53
  • RA0012116M1.jpg
    26.3 KB · Views: 50
  • RA0012115M1.jpg
    30 KB · Views: 66

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,894
Reaction score
232
Quote from: Apophenia on Today at 01:03:05 am
Quote from: Stargazer2006 on Yesterday at 09:20:57 pm
Next is a fake "maiden flight" picture once saved from the web (but I don't remember where from).

Stéphane, the "maiden flight" is a slope flying model. At a guess, the model is about 1m long.

Image from here: http://www.rcgroups.com/forums/showthread.php?t=1166269

Thanks Apophenia!
+
I've recently become a member on RCGroups.com, so I've posted a link to this thread on the topic over there...




cheers,
Robin.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55

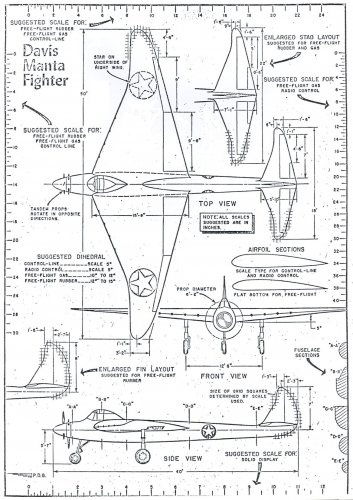

Here's an article about building a gliding model of the Manta.

http://www.theplanpage.com/Months/2806/Manta.htm


Attachments

  • image007.jpg
    7.5 KB · Views: 962

Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
382
Reaction score
40
Website
www.aviationart.aero
In a very dusty corner of my website lives this...
http://digitalaviationart.com/skyraider3d/manta_1.htm
Embarassingly amateuristic image by now... :-[


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
382
Reaction score
40
Website
www.aviationart.aero
Hehe nice mod! :)

Compared to the detail and realism of my current 3D models, that Manta really is pretty poor! Then again, it's a dozen years old by now. If I find some time, I might rework it and bring it up to a more modern standard perhaps.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,368
Reaction score
2,532
Hi! Manta fighter.


Attachments

  • MANTA 8.jpg
    MANTA 8.jpg
    162 KB · Views: 83
  • MANTA 7.jpg
    MANTA 7.jpg
    169.2 KB · Views: 75
  • MANTA 6.jpg
    MANTA 6.jpg
    165.4 KB · Views: 64
  • MANTA 5.jpg
    MANTA 5.jpg
    149.6 KB · Views: 521
  • MANTA 4.jpg
    MANTA 4.jpg
    141.7 KB · Views: 561
  • MANTA 3.jpg
    MANTA 3.jpg
    152.7 KB · Views: 587
  • MANTA 2.jpg
    MANTA 2.jpg
    134.7 KB · Views: 611
  • MANTA 1.jpg
    MANTA 1.jpg
    167.5 KB · Views: 626

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,368
Reaction score
2,532

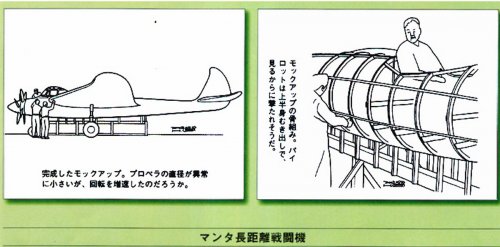

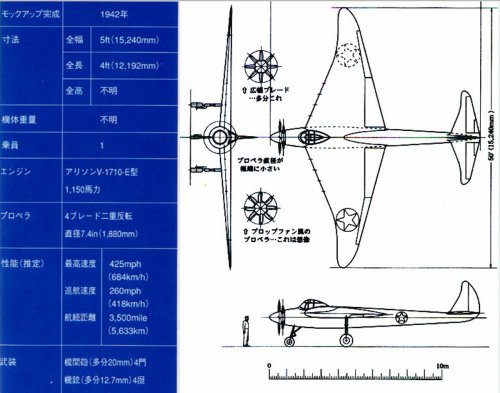

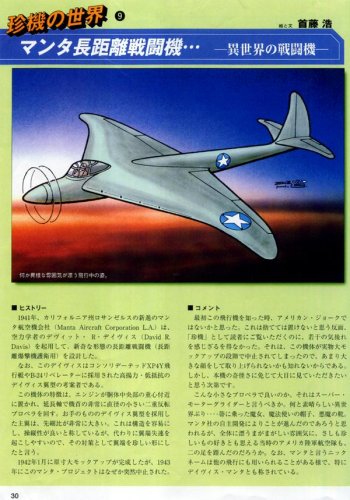

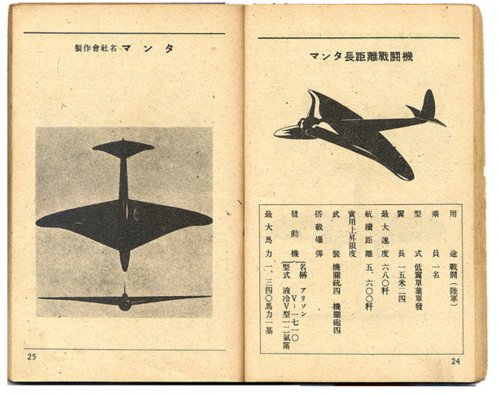

From recent Japanese book.
Japanese text says that propeller diameter is abnormally small.


Attachments

  • hikohki-manta1-600.jpg
    98.9 KB · Views: 67
  • Manta long range fighter.jpg
    Manta long range fighter.jpg
    177 KB · Views: 85
  • 3 side view.jpg
    3 side view.jpg
    125 KB · Views: 125

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
Thanks blackkite, but we already had a topic on this... Topics merged.

Please think of using the search engine!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
blackkite said:
Wow! Sorry for duplication.

No problem... We've all made that mistake at times, and even using the search engine sometimes doesn't turn up the results we need, so no worries. Besides you added more images so it's cool... ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,665
Reaction score
3,457
Hi,


a clearer drawing to Davis Manta fighter,from Luftfahrt International.


Attachments

  • Manta.png
    601.8 KB · Views: 98
