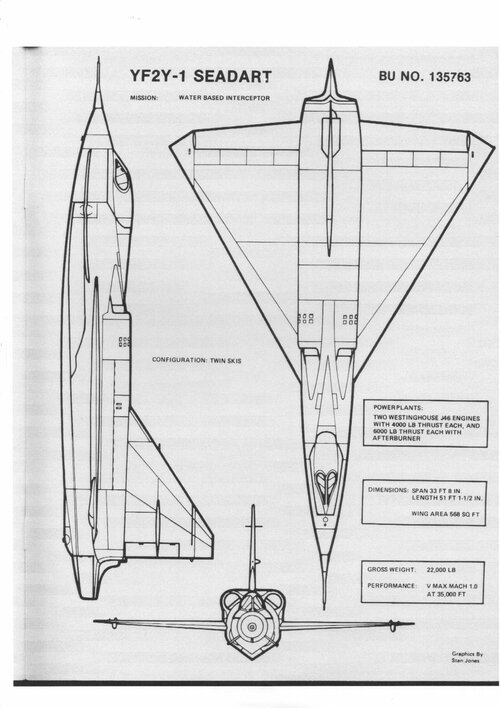

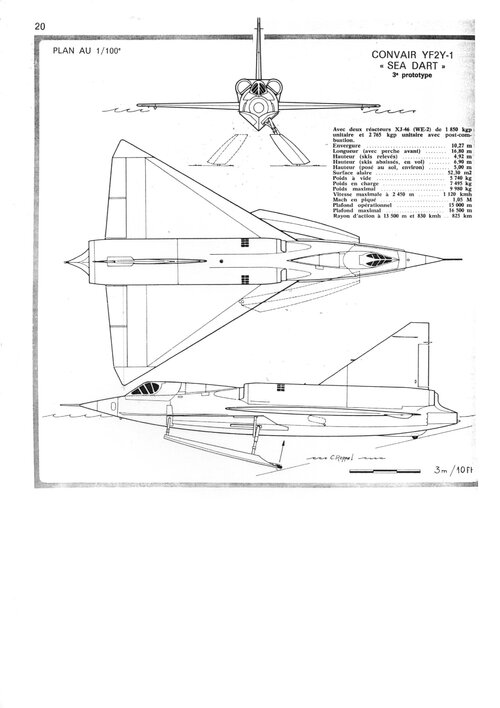

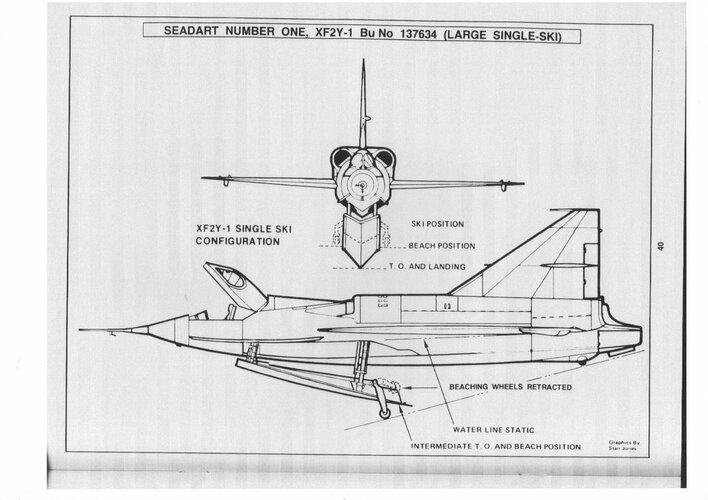

Convair XF2Y-1 Seadart

I still not 100% on what I am being pointed to? Are these doc's in a US national archive?

Sorry not in the US and not sure of the procedure to find this material.

Regards,

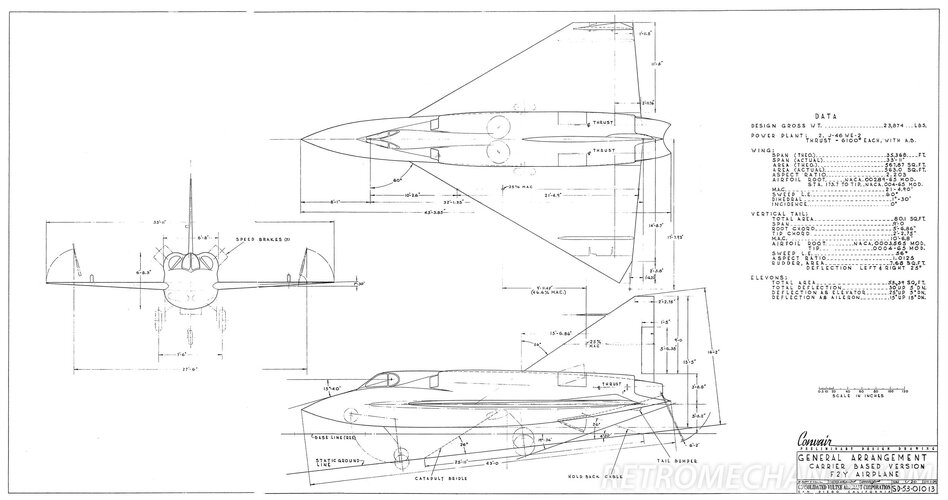

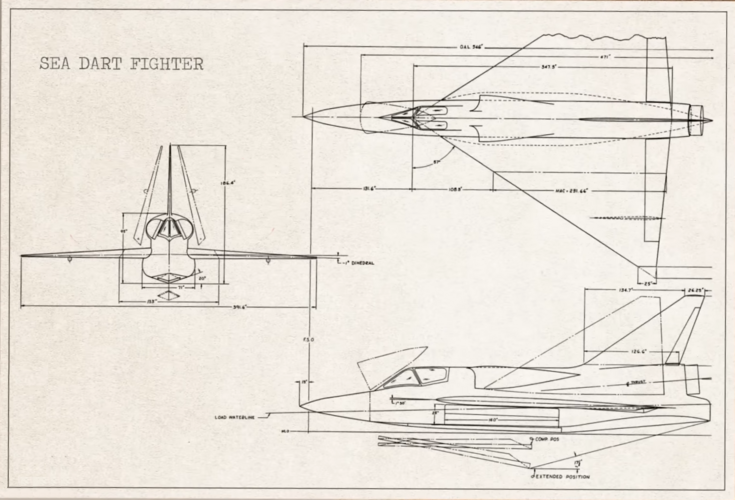

Carrier capable version of the F2Y. This adaptation is a total revelation to me and I thought I knew something about Convair designs. Twin J-46-WEs and either 4 20mm cannon or 56 FFARs. The date looks like January, 1953, four months after the navy ordered 12 production aircraft.
I checked through the search function and didn't see this version mentioned anywhere; of course, I've been accused of not being able to find my, um, yeah, with both hands. If this design is already on this site, I apologize.


Attachments

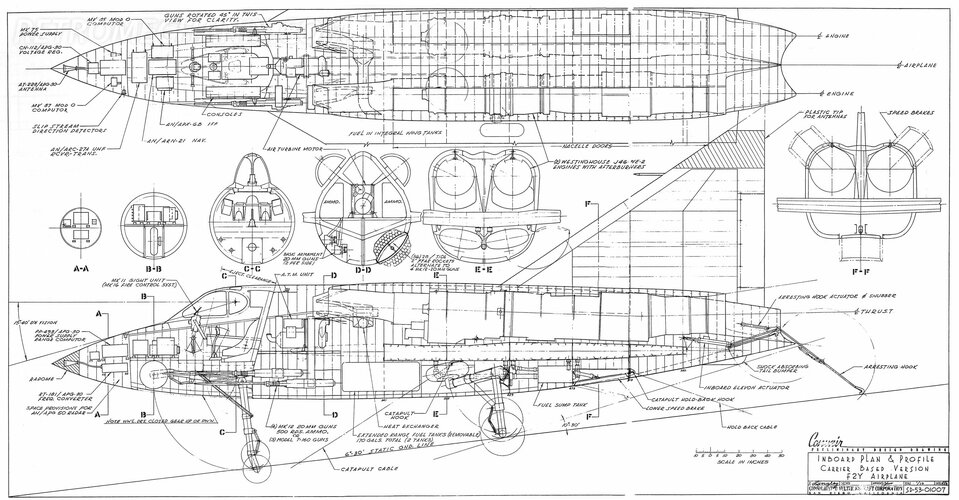

  • Carrier Capable Convair F2Y.jpg
    Carrier Capable Convair F2Y.jpg
    676.6 KB · Views: 291
I contacted the San Diego Air & Space Museum and they replied with a considerable list of drawings and PDF's that they can supply.

Approximately 40 files at $15 a pop, will have a think about it.

Regards,

barbara_em said:
Carrier capable version of the F2Y. This adaptation is a total revelation to me and I thought I knew something about Convair designs. Twin J-46-WEs and either 4 20mm cannon or 56 FFARs. The date looks like January, 1953, four months after the navy ordered 12 production aircraft.
I checked through the search function and didn't see this version mentioned anywhere; of course, I've been accused of not being able to find my, um, yeah, with both hands. If this design is already on this site, I apologize.
Click to expand...
Dude, there's nothing to apologize about. You've already tried your best!

Last edited:

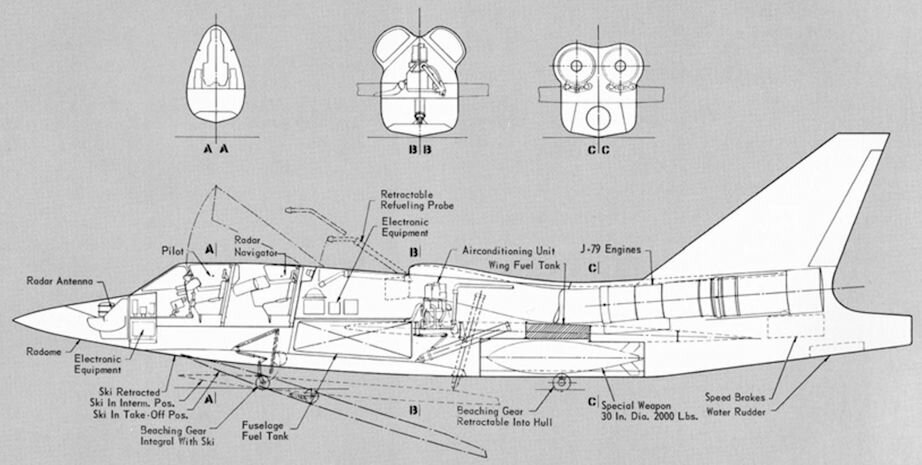

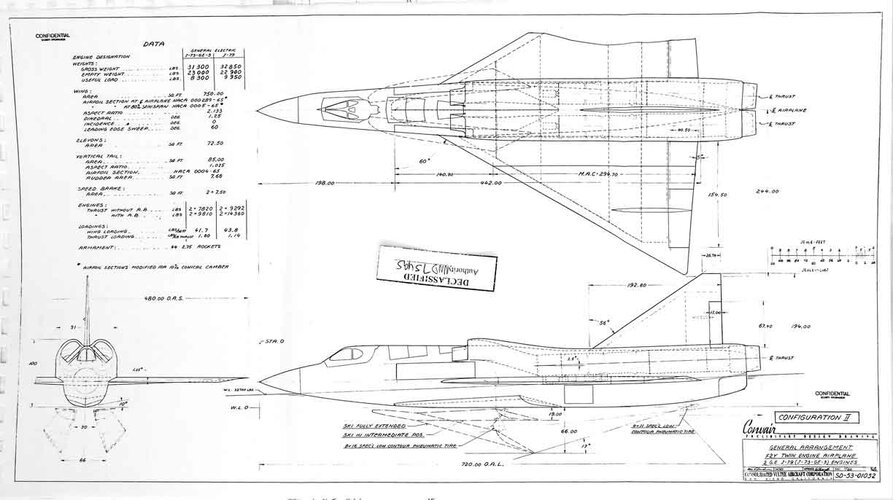

Here is the general arrangement drawing for the Seaplane, Configuration II, with two J-79 engines.


Attachments

  • xSD-53-01052-General-Arrangement-F2Y-single-Engine-Airplane-Two-J-79-Engines.jpg
    59.2 KB · Views: 183

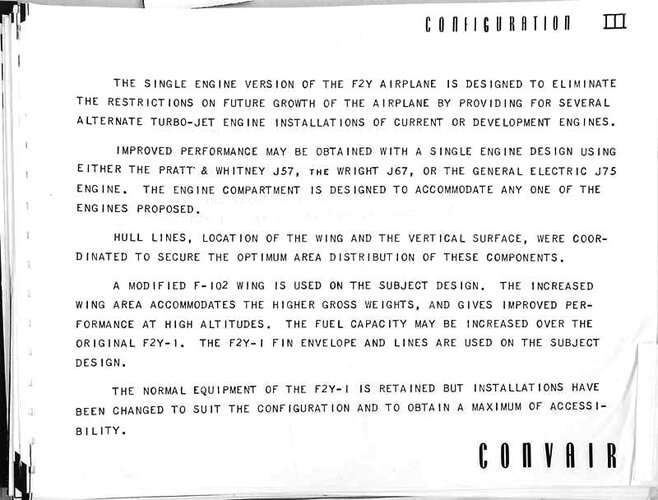

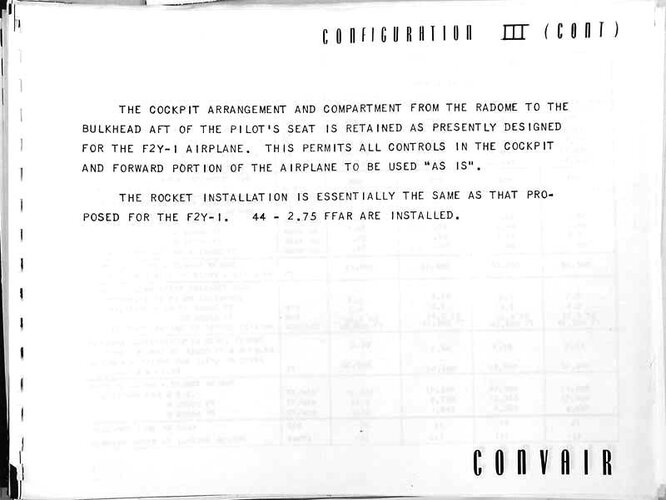

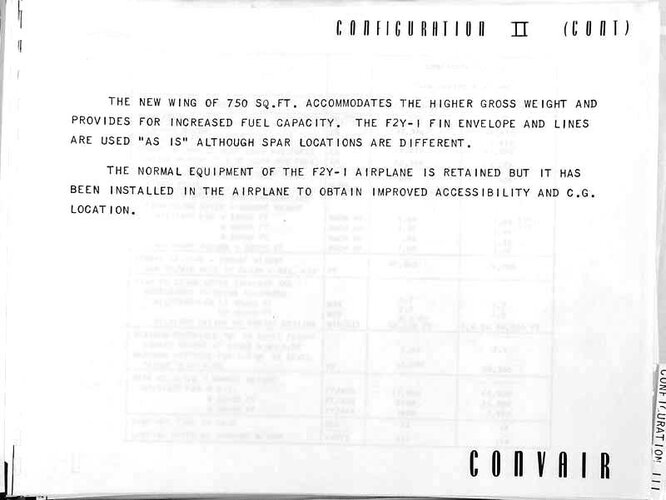

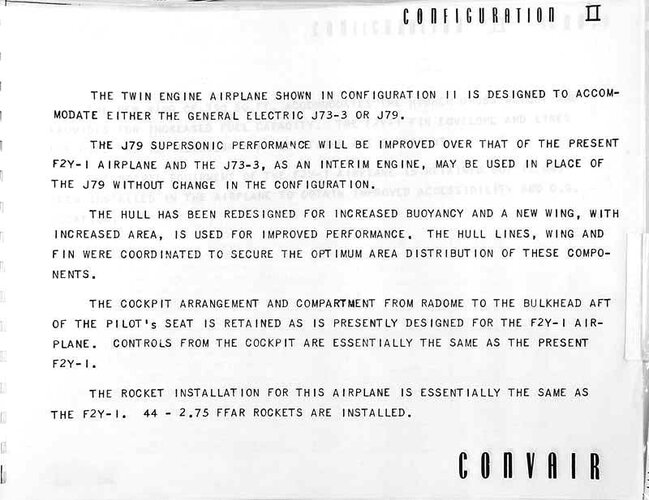

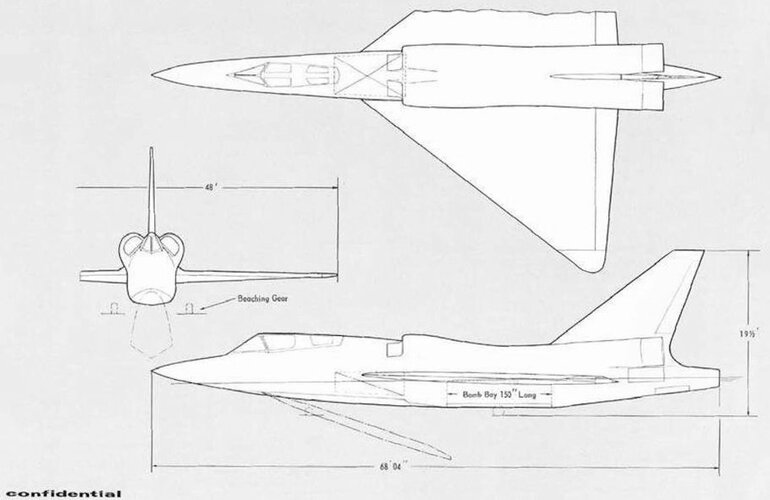

Here are a few pages that give a little more insight into the Configurations.


Attachments

  • Config III-2.jpg
    Config III-2.jpg
    53.2 KB · Views: 133
  • Config III-1.jpg
    Config III-1.jpg
    95.2 KB · Views: 74
  • Config II-2.jpg
    Config II-2.jpg
    50.8 KB · Views: 81
  • Config II-1.jpg
    Config II-1.jpg
    88.5 KB · Views: 148

Attachments

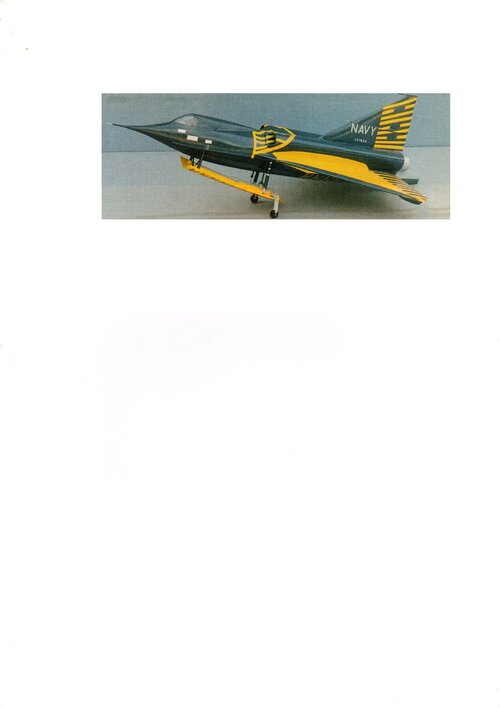

  • gettyimages-517446214-612x612.jpg
    72.6 KB · Views: 145
Must have been interesting flying that plane with the engine thrust centerline appearing to be above the aircraft's CG.

And it looks like the Seadart was designed before the Area Rule, so could potentially have gotten a bit faster with some resculpting like they did with the F-102.

Trying to upload some images and keep getting error codes?

"Oops! We ran into some problems"

Regards,

Halcyon66 said:
Trying to upload some images and keep getting error codes?

"Oops! We ran into some problems"

Regards,
Click to expand...
Happened to me too, and that's because you need to put some text in your comment, however short, not just images.
A single point "." will do!

Orionblamblam said:
Re: Original Convair F2Y Sea Dart Documents

I've run a few crowdfunded ebay efforts. This sure as hell looks like a dandy candidate. If nobody else here is already bidding, I'll do so and attempt to score this, as it needs to be secured and scanned.

EDIT:
Oh, what the heck, I'm'a going for it. As with some prior crowdfunding of ebay items, what I'm doing is offering a complete set of 300DPI scans (color where relevant) of the set to "contributors." This means anyone who signs on in advance promising to pay a straight fraction of the total. If ten people sign on and it goes for $500, that's $500/11 (10 people plus me) or $45.45 each. Which really ain't too bad for a haul like this. I'm also soliciting contributors to the effort over at my APR Patreon, so hopefully I can get a bunch of people interested. So... who's interested?

PS: As for the original items, I'm thinking that if I get this and make and distribute the scans, the best thing for the originals is to donate them to the San Diego Air & Space Museum... which is about the best place I can think of for 'em. But scans first...
