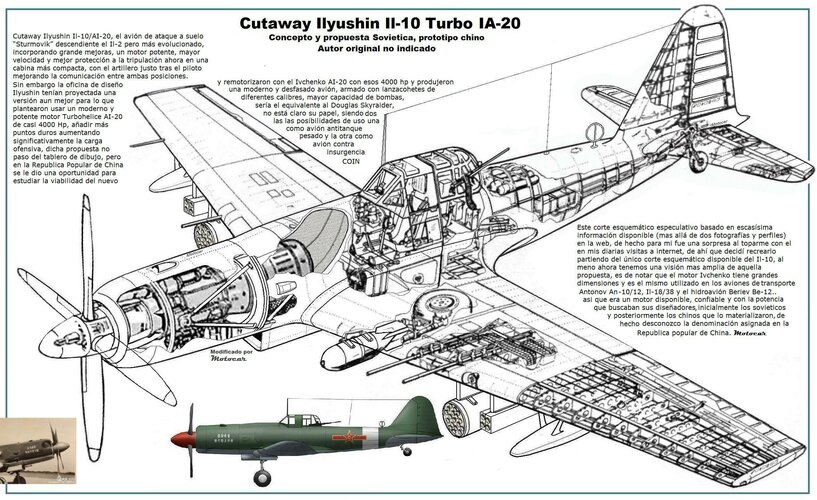

Sorry if this is off-topic, but upon scrowlling down through the page posted above, I saw a nice rendition of what seems to be a turboprop Il-10 conversion. Was this actually considered or even built?

Answer:
The Il-10-re-engineing proposal came into being during 1969 when the CMC requested a new engine to replace the Tu-4's ASh-73TK piston engines. As a result the Ivchenko AI-20 was chosen for a few Tu-4 (the KJ-1 AWACS demonstrator and the Tu-4 UAV-carrier). In line with these the proposal was made also to replace the Il-10's Mikulin AM-42 by the same engine.

Deino


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,466
Reaction score
21
Yeppp ... (will be included in the book too ::) ), ... following the latest information I got two aircrfat were converted and at least one also flown. Sadly both were destroyed - one after an crash and the other during an engine-fire - and later on that project was canceled esp. after the Q-5 made some progress.

Deino

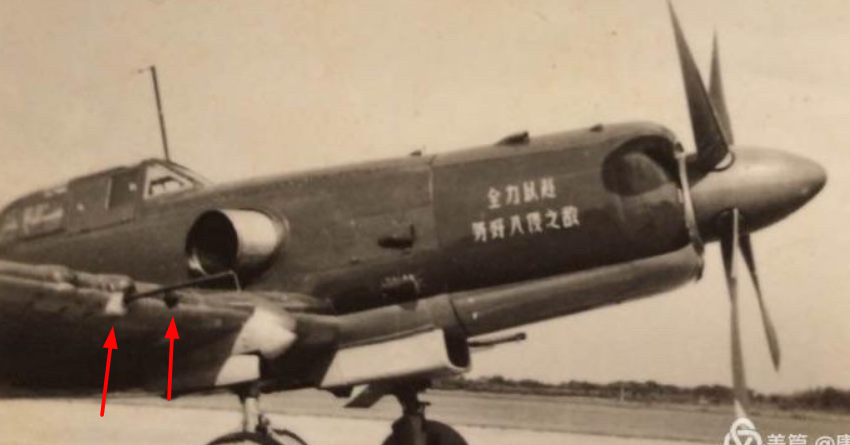

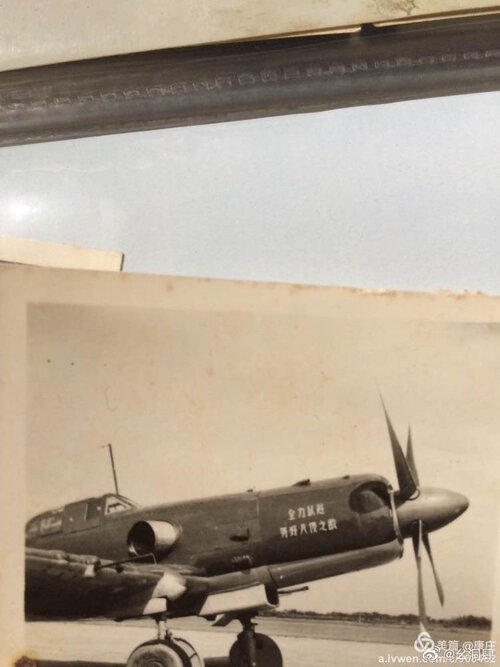

PS: regarding the photo's title "re-engined real maybe" ... when I first found it I was not sure if simply psed, but it is real.


Attachments

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,257
Reaction score
24

Hawker Nut

CLEARANCE: Restricted
Joined
Nov 14, 2008
Messages
36
Reaction score
0
Thanks Deino! Amazing stuff. I am sure the Czech and Russian authors that penned the latest works on the Il-10 didn't have such info available just a few years ago. Heavy COIN is the only role I can envision for such an obsolete design at such a late date. It reminds me of the Piper PA-48 Enforcer (especially the photo you posted - thank you). Do you have a release date for your book or is it still early to ask for it?


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Veering away from the original topic, but regarding the turbo Il-10, do we know what engine it uses? I had considered a Whif Turbo Il-10 developed in the '60s for the N Vietnamese AF as a counter to the USN /USAF Skyraiders & darned if this real one looks like what I imagined! especially all the extra hardpoints & assorted weapons surely make me think 'Chinese Skyraider'. Anyway, my question. They put turbo props on just about everything that was piston-powered, Tu-4s, Be-6s, (some smaller a/c?) & even the Mi-4 helo, (Z-6?) which IIRC, looked kinda like an Mi-8, now the Il-10 has come to light. Do we know if they converted any Tu-2s & Li-2s ? IIRC, they used the Tu-2s well into the '60s & Li-2s even later..


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Deino said:
The Il-10-re-engineing proposal came into being during 1969 when the CMC requested a new engine to replace the Tu-4's ASh-73TK piston engines. As a result the Ivchenko AI-20 was chosen for a few Tu-4 (the KJ-1 AWACS demonstrator and the Tu-4 UAV-carrier). In line with these the proposal was made also to replace the Il-10's Mikulin AM-42 by the same engine.

Deino

Wow! 2 1/2 times the HP. I wonder if it was de-rated any or it had it all available. It doesn't seem it was exactly underpowered with its 1700+ HP.

Last edited by a moderator:

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,970
Reaction score
60
famvburg said:
...In line with these the proposal was made also to replace the Il-10's Mikulin AM-42 by the same engine.

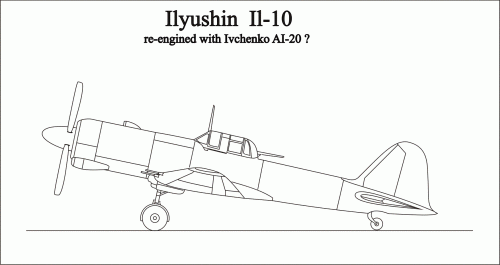

I simply added an engine of the KJ-1 AWACS to the Il-10, but I think, it looks quite large,
especially as compared to the photo, doesn't it ? ???


Attachments

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Assuming you have them to the same scale as I'd expect, it doesn't look too big, as in being out of proportion or distorted. I had suspected an AI-24 engine & for my Whif model I mentioned, that's what I would have used for both size & power. Isn't the AI-24 what they installed on their Be-6s, rather than AI-20? Thanks for making it.


Jemiba said:
famvburg said:
...In line with these the proposal was made also to replace the Il-10's Mikulin AM-42 by the same engine.
I simply added an engine of the KJ-1 AWACS to the Il-10, but I think, it looks quite large,
especially as compared to the photo, doesn't it ? ???


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
39
Jemiba said:
famvburg said:
...In line with these the proposal was made also to replace the Il-10's Mikulin AM-42 by the same engine.
I simply added an engine of the KJ-1 AWACS to the Il-10, but I think, it looks quite large,
especially as compared to the photo, doesn't it ? ???

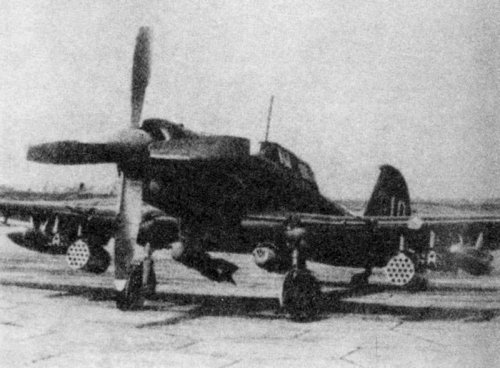

Well it DOES look big in the photo here, doesn't it? Rhe prop even seems bigger in the photo than in your artwork!


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,970
Reaction score
60

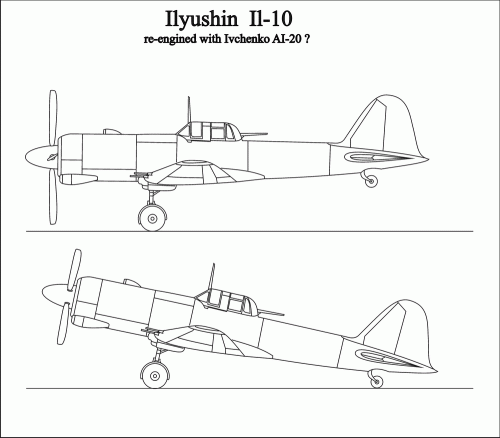

I modified the prop and reduced the diameter of it in the 45° position.
So, in the perpendicular position, there's still some ground clearance left,
which wouldn't have been there in the first drawing.But indeed, this plane
needed a smooth runway !


Attachments

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Well, like many highly modified air racers & some tail wheel a/c in general, it could have been SOP with this mod to only do 3 point takeoffs & landings. I would imagine with the amount of torque generated a locking tailwheel would be most helpful during takeoff.



Jemiba said:
I modified the prop and reduced the diameter of it in the 45° position.
So, in the perpendicular position, there's still some ground clearance left,
which wouldn't have been there in the first drawing.But indeed, this plane
needed a smooth runway !


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,970
Reaction score
60
Indeed, but that would render the use of such an aircraft by standard crews
a little bit doubtful. But maybe the accidents just proved that.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Standard crews flew P-51s & it was SOP to do 3 point takeoffs in them. A lot of airplanes have very strange, demanding characteristics that the standard crews are trained to deal with because 'that's just the way it works'.


Jemiba said:
Indeed, but that would render the use of such an aircraft by standard crews
a little bit doubtful. But maybe the accidents just proved that.

C

CostasTT

Guest

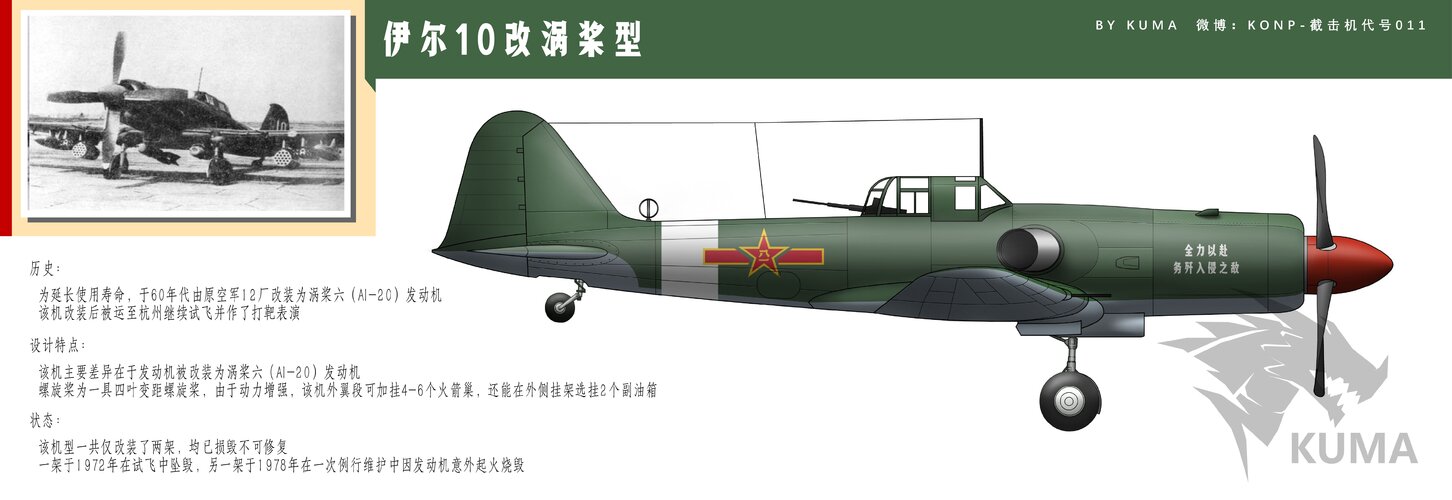

Another artist's impression of the turboprop Il-10 here: http://iask.sina.com.cn/b/18773500.html


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
"Another"? That's the same one shown in the link in the first post.


CostasTT said:
Another artist's impression of the turboprop Il-10 here: http://iask.sina.com.cn/b/18773500.html


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
815
Reaction score
17
famvburg said:
"Another"? That's the same one shown in the link in the first post.
You have to scroll down to see the second artist's impression with the aircraft showing its belly side ;) .


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
Duh! I reckon I'll have to do just that. :) Thanks.

boxkite said:
famvburg said:
"Another"? That's the same one shown in the link in the first post.
You have to scroll down to see the second artist's impression with the aircraft showing its belly side ;) .


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
39
Thanks, boxkite! I had made the same mistake, not scrolling the page down...


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,891
Reaction score
3
Stargazer2006 said:
I simply added an engine of the KJ-1 AWACS to the Il-10, but I think, it looks quite large,
especially as compared to the photo, doesn't it ? ???
Well it DOES look big in the photo here, doesn't it? Rhe prop even seems bigger in the photo than in your artwork!


Does anyone know what type of rocket pods those are?

Some does look 'off' about the picture btw.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,466
Reaction score
21
famvburg said:
Wow! 2 1/2 times the HP. I wonder if it was de-rated any or it had it all available. It doesn't seem it was exactly underpowered with its 1700+ HP.
2 1/2 times the HP ??? ... the info I have is:

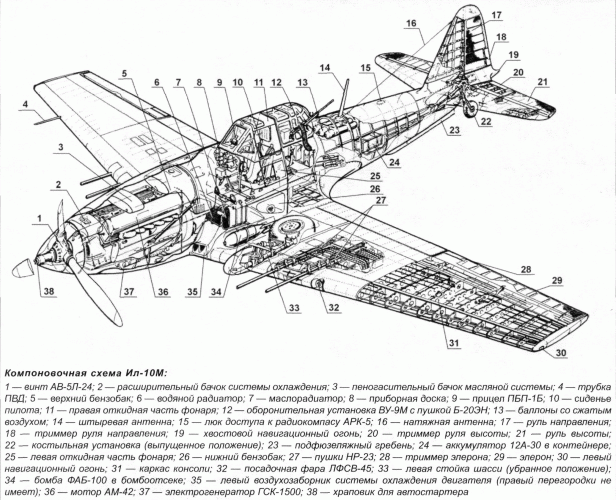

Mikulin AM-42: power: 1,770 hp continuous (three-blade propeller AV-5L-24 of 3.6 m diameter).
Ivchenko AI-20: power
2,600 hp continuous (?) ... that would be "only" a factor of 1.47 ! Anyway still not bad ... or are my data wrong ?


Deino


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
317
Reaction score
3
IIRC, the AI-20 is rated at over 4000 hp. 2600 is awfully weak for the a/c it powers.



Deino said:
famvburg said:
Wow! 2 1/2 times the HP. I wonder if it was de-rated any or it had it all available. It doesn't seem it was exactly underpowered with its 1700+ HP.
2 1/2 times the HP ??? ... the info I have is:

Mikulin AM-42: power: 1,770 hp continuous (three-blade propeller AV-5L-24 of 3.6 m diameter).
Ivchenko AI-20: power
2,600 hp continuous (?) ... that would be "only" a factor of 1.47 ! Anyway still not bad ... or are my data wrong ?


Deino


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,466
Reaction score
21
famvburg said:
IIRC, the AI-20 is rated at over 4000 hp. 2600 is awfully weak for the a/c it powers.
Hmmm ... You are correct ! 3,149 kW (4,250 hp) for take off ! :eek:


SovietPotatoes

CLEARANCE: Restricted
Joined
Apr 21, 2019
Messages
1
Reaction score
1
Website
plane-encyclopedia.com
I hope my message isn't too late. I've been doing a bit of my own research on this aircraft, mainly with Chinese books regarding Chinese aviation.

It would appear that the Il-10 project's engine conversion was done with a HS-8 radial engine (locally produced ASh-82 radial engines), not a turboprop. This was done due to the Sino-Soviet Split's negative effects on the PLAAF due to the lack of new AM-42 engines and other parts.

Contrary to many Western sources, I believe this information more likely for a variety of reasons. The book I've been reading on this is 中国飞机全书: 第2卷 written by a former PLAAF official model maker / artist, a current PLAAF officer and a well respected magazine writer in China who specialises in aviation.
