Caproni Ca.65

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,523
Reaction score
274

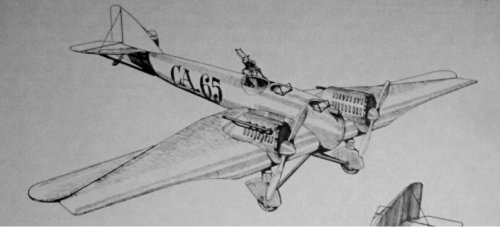

Unbuilt 3 seat heavy fighter project from 1922/23. Offered in versions with radial or in line engines. It was armed with 3 guns.

Source: Rosario Abate, Gregory Alegi e Giorgio Apostolo, Aeroplani Caproni. Gianni Caproni ideatore e costruttore di ali italiane, Museo Caproni, 1992


Attachments

  • Caproni Ca65.jpg
    Caproni Ca65.jpg
    91.9 KB · Views: 4,356

Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,489
Reaction score
792
Looks err unique? Interesting wing/fuselage configuration for a fighter. I wonder if there any other drawings exists?


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
14
Could be very interesting so see more data about this aircraft: dimensions as least ?

The wings and undercarriage looks like a bigger version than the one in the ca.64 fighter.

http://www.secretprojects.co.uk/forum/index.php/topic,12071.0.html

and I've seen that engines on another aircraft. Just if I could remember ... ???


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
348
Powerplants: S.P.A.6A with 205HP
Span: 15.00m
L: 8,80m
H: 2,60m
Area: 38,0m²
empty weight: 1395kg
loaded weight: 1890kg
Vm: 245Km/h
altitude: 5000m

Maveric


James

ACCESS: Restricted
Joined
Mar 4, 2011
Messages
9
Reaction score
0
Tzoli said:
Looks err unique? Interesting wing/fuselage configuration for a fighter. I wonder if there any other drawings exists?

Certianly does. I've never come across this before. I find the idea of a heavy fighter in the early 20s interesting. Would anyone have any ideas regarding rate of climb?


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
14
Maveric said:
Powerplants: S.P.A.6A with 205HP
Span: 15.00m
L: 8,80m
H: 2,60m
Area: 38,0m²
empty weight: 1395kg
loaded weight: 1890kg
Vm: 245Km/h
altitude: 5000m

Maveric

Thanks for the data Maveric. The wingspan it's just 1,75 meters more than the ca.64 but it's shorter: 8,80 m vs 9,05 m.
Looks like the Ca.65 was a little heavy fighter or the Ca.64 a big fighter.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
Was one of the crew members a navigator (the front gun appears to be fixed in the drawing)?


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
55
theponja said:
Thanks for the data Maveric. The wingspan it's just 1,75 meters more than the ca.64 but it's shorter: 8,80 m vs 9,05 m.

That's a question at issue - Ca 64 dimensions. I have another data - 10 m wingspan and 6.84 m length. This is more plausible for 1920s fighter, isn't it?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
348
redstar72 said:
theponja said:
Thanks for the data Maveric. The wingspan it's just 1,75 meters more than the ca.64 but it's shorter: 8,80 m vs 9,05 m.

That's a question at issue - Ca 64 dimensions. I have another data - 10 m wingspan and 6.84 m length. This is more plausible for 1920s fighter, isn't it?

Hi redstar72,

these data are from the same book as for Caproni Ca.64...


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
14
redstar72 said:
theponja said:
Thanks for the data Maveric. The wingspan it's just 1,75 meters more than the ca.64 but it's shorter: 8,80 m vs 9,05 m.

That's a question at issue - Ca 64 dimensions. I have another data - 10 m wingspan and 6.84 m length. This is more plausible for 1920s fighter, isn't it?

Yes, it's more plausible and after work a bit with the drawings and dimensions as you can see in the post about the ca.64 the dimensions for the ca.65 are a lot more logical.


juanT

ACCESS: Restricted
Joined
Dec 25, 2008
Messages
24
Reaction score
37
Hi.

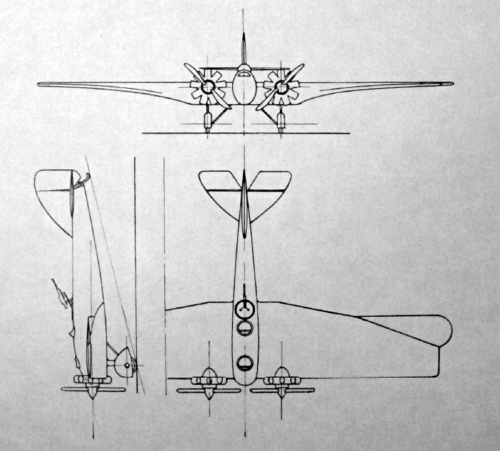

Caproni CA-65 3-view from AEROFAN



Juan.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
32
Website
www.res-aeronautica.com

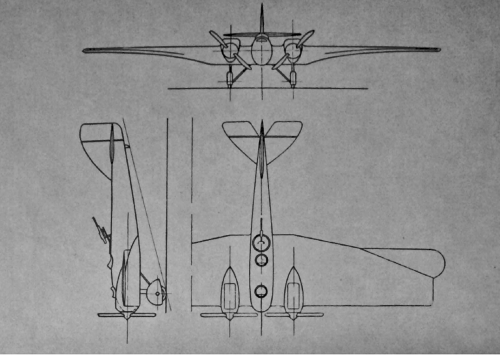

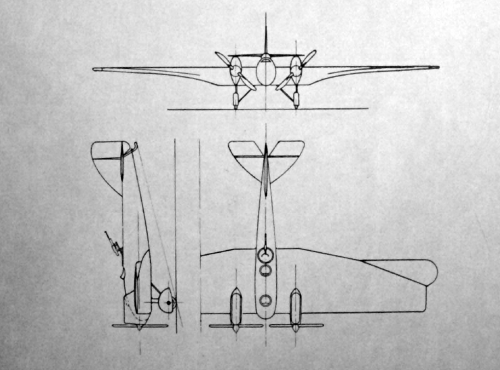

From the design of the Ca.65 born also 2 different projects, both never realized, named Caproni Ca.65a and Caproni Ca65b.

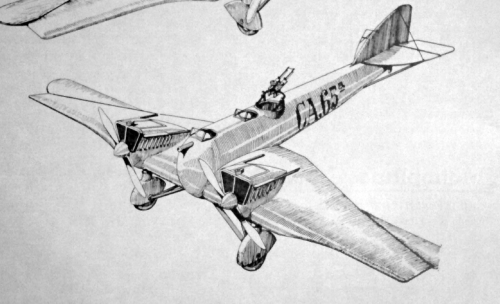

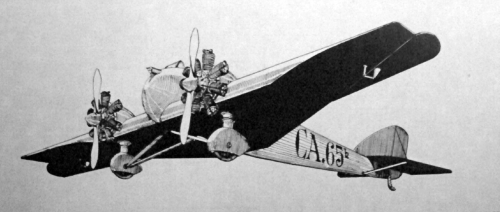

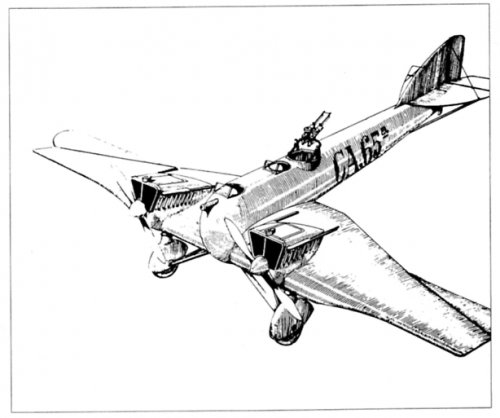

Here some pics, always taken from the book "Gli Aeroplani Caproni": (The first 2 are of the Ca.65a, the seconds are of the Ca.65b)


Attachments

  • Immagine1.png
    706.7 KB · Views: 100
  • 1310.png
    707.6 KB · Views: 87
  • Immagine12.png
    898.2 KB · Views: 77
  • 33333.png
    980.2 KB · Views: 328

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
14
Lucas thanks a lot for the drawings, I'm very interested on this plane. Muchas Gracias ;)

Do you have any detail of the engines on 65a and 65b projects?


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
32
Website
www.res-aeronautica.com
I'm sorry but in my source there are very few info about the Ca.65 and all development. Nothing is said about the engine and the technical data only explain the purposed powers and dimensions...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
517
More on the Caproni Ca 65 (there were three versions):


Attachments

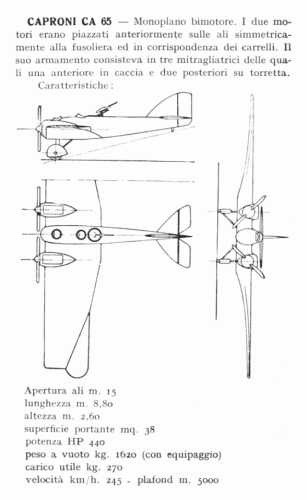

  • Caproni CA 65.gif
    Caproni CA 65.gif
    116.1 KB · Views: 195

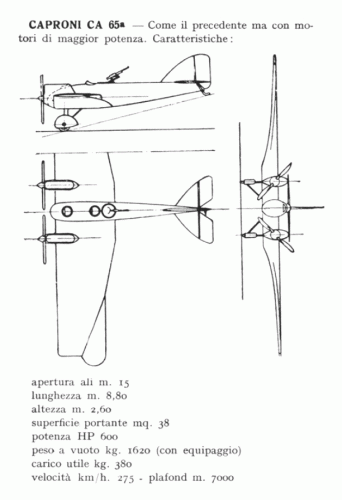

  • Caproni CA 65a.gif
    Caproni CA 65a.gif
    96 KB · Views: 179

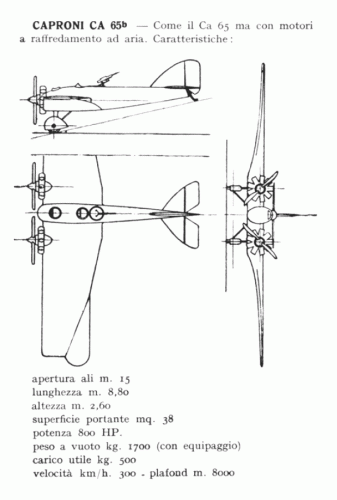

  • Caproni CA 65b.gif
    Caproni CA 65b.gif
    98.7 KB · Views: 162

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
517
airman said:
Stargazer2006 said:
More on the Caproni Ca 65 (there were three versions):
from which source is these ?

A very old Italian book entitled I Cento Aeroplani Caproni - 1909-1930, by T. L. Barbero, published by Aeronautica.
