This Italian factory designed some biplane trainers.[/size]The following numbers are known: C-1, C-2, SC-4 and SC-5About number 3 nothing known.If you have something about the above mentioned 4 types please let me know, everything is welcome.Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086
Hi Jan,


for the number 3,it was Caproni/Bergamaschi PL-3 low-wing cantilever monoplane
racer,powered by one Fiat A.59 engine.


http://www.flightglobal.com/FlightPDFArchive/1934/1934%20-%200916.PDF


Attachments

  • PL-3.JPG
    32.5 KB · Views: 472

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
269
Reaction score
26
Thanks
Yes this was an unlucky aeroplanes special designed for the London-Melbourne air race, but not used for it.


But what about these 4 biplane types?


Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086
The other types,first two are well known;


C-1 and C-2;
http://en.wikipedia.org/wiki/Bergamaschi_C-1


and for the other,I will search about them,I remember that I saw their
pictures in Internet.


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
269
Reaction score
26
The last two were later build as Breda.


An other question do you know some one who can help me with the old Italian magazine Aeroplani d'Italia?


Jan


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
269
Reaction score
26
Bergamaschi P.L.3

The Bergamaschi P.L.3 was designed for the London-Melbourne race, but was one of the unlucky aeroplanes who has not started.[/size]Who can help me with all kind of information/materials concerning this aeroplane?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
Re: Bergamaschi P.L.3

Google is your friend, Jan. I turned this up in 30 seconds. Cheers, Matthew

http://en.wikipedia.org/wiki/Caproni_Bergamaschi_PL.3

http://www.flightglobal.com/FlightPDFArchive/1934/1934%20-%200916.PDF



Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,768
Reaction score
584
Re: Bergamaschi P.L.3

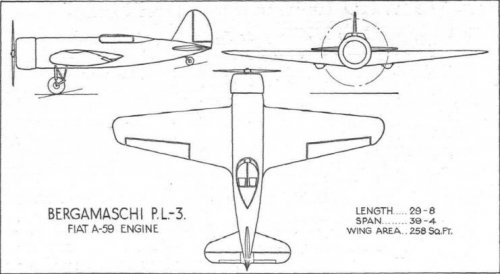

3-view from Flight
See reply#1


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086
Re: Bergamaschi P.L.3

I think we most merge those topics;


http://www.secretprojects.co.uk/forum/index.php/topic,17540.msg167466.html#msg167466


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
269
Reaction score
26
Thanks so far concerning the P.L.3[/size]But I have difficult one:Who can help me with:Impression of the the fusselage construction, wing construction, landinggear details and the cockpit lay outThanks and have a nice christmas and all the best for 2013Jan


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
355
Reaction score
618
As it says in the wikipedia entry Jan, the P.L.3 had a low wing built entirely of wood, covered with plywood, tapering uniformly both in chord and thickness from wide, deep roots to rounded tips. The tail was conventional, the tailplane set at mid-fuselage with straight swept leading edges and carrying elevators with trim tabs. The fin was triangular, with a rounded rudder ending above the fuselage.
In contrast the fuselage of the PL.3 was mostly of metal construction. From propeller to aft of the wing root the fuselage was a tube of constant diameter, set by the wide chord NACA cowling around its 525 kW (700 hp) licence-built Pratt & Whitney Hornet radial engine (which was designated as the Fiat A.59) which then tapered to the tail. The underlying structure from nose to tail was a rectangular chrome molybdenum steel frame, aluminium covered in front and plywood behind. The low profile cockpit placed the crew at the wing trailing edge. The PL.3 had a conventional undercarriage with mainwheels retracting rearwards into the wing, leaving a small part exposed. (Presumably to allow for a reduction in damage should it force land with wheels up).
Although it never entered the MacRobertson race it was tested by the Regia Aeronautica before finally being scrapped.

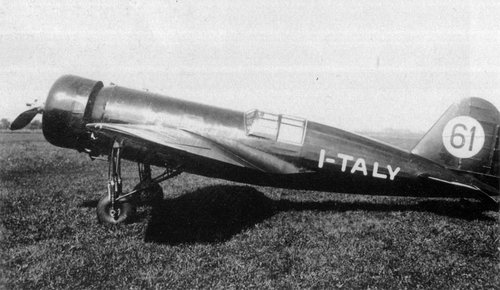

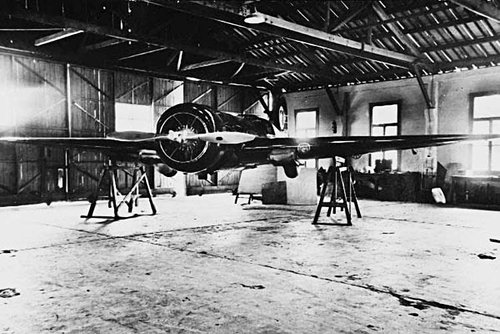

All comments in brackets mine. Here's some pics of the P.L. 3. Of note is the first which shows the partial exposure of the main undercarriage wheels.
P.L. 3 pic 1.jpg P.L. 3 pic 3.jpg P.L. 3 pic 2.jpg
