Hi
During the twenties the Italian Breda factory designed and build a few biplane bombers, from which were only build prototype.
Its concerning the following types:

Breda A.3, was powered with four SPAD 200 hp engines (2 in tandem);
Breda A.8, was powered with two Isotta-Fraschini Asso 500 hp engines ( aeroplane based on the A.3);
Breda A.14, was powered with three Bristol radial 450 hp engines;
this aero plane was later rebuild as passenger aero plane.

I am interrested in:
1. History;
2. Colors;
3. Drawings;
4. Dimensions;
5. Pictures;
6. Drawings/pictures who gives an impression of construction of several parts;
7. Other interresting details/materials.

Thanks
Jan


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,877
Reaction score
1,536
Jan: Breda proposed a demilitarized version of the A.14 for the civilian market. Are you saying that this projected derivative actually flew as a conversion from the sole prototype A.14? Do have a source?

Photos, 3-view, history, and specs for the A.3: http://www.airwar.ru/enc/bww1/bredaa3.html
[Note that the 3-view drawing is for the twin 400hp Lorraine version, not 4-motored]
Brief history/specs: http://it.wikipedia.org/wiki/Breda_A.3

Photos, brief history, and specs for the A.8: http://www.airwar.ru/enc/bww1/bredaa8.html
Brief history/specs: http://it.wikipedia.org/wiki/Breda_A.8

Note that the Assos were an upgrade. The sole Breda A.8 first flew with the 400hp Lorraines.

Photos, brief history, and specs for the A.14: http://www.airwar.ru/enc/bww1/bredaa14.html
Greater history and specs from Italian source: http://it.wikipedia.org/wiki/Breda_A.14

The Breda (Società Italiana Ernesto Breda) A.14 three-engined biplane (sesquiplane) night bomber proposed to the Regia Aeronautica in the 1920s. Discarded after unsuccessful assessment. Breda proposed a a demilitarized version for the civilian market.


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
Apophenia,
Thanks for the information, but this is what I found also until now.
I hoped some one could give me more information/materials.
Regards
Jan


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
Apophenia,
I had to check.
If you look on the page of airwar.ru and look at the page of the A.14 you can see the second picture that there are windows in the aero plane.
Regards
Jan


Kdmoo

ACCESS: Confidential
Joined
Nov 7, 2008
Messages
63
Reaction score
20

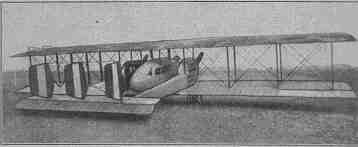

Had this photo of the A.3. Not sure of original source.



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096

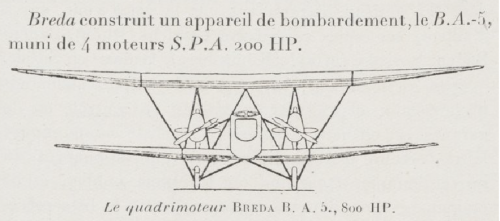

From l'Aeronautique journal 1924,

here is the Breda A.5 four engined bomber drawing,powered by four 200 hp engines,and thta means
the old picture t Breda A.5 may be was wrong.


Attachments

  • Breda A.5 bomber.png
    Breda A.5 bomber.png
    340.1 KB · Views: 520
  • BR A-5.jpg
    BR A-5.jpg
    4.3 KB · Views: 493

Tomac

ACCESS: Restricted
Joined
Jan 31, 2009
Messages
45
Reaction score
8
Jan den Das said:
Hi
During the twenties the Italian Breda factory designed and build a few biplane bombers, from which were only build prototype.
Its concerning the following types:

Breda A.3, was powered with four SPAD 200 hp engines (2 in tandem);
Breda A.8, was powered with two Isotta-Fraschini Asso 500 hp engines ( aeroplane based on the A.3);
Breda A.14, was powered with three Bristol radial 450 hp engines;
this aero plane was later rebuild as passenger aero plane.

I am interrested in:
1. History;
2. Colors;
3. Drawings;
4. Dimensions;
5. Pictures;
6. Drawings/pictures who gives an impression of construction of several parts;
7. Other interresting details/materials.

Thanks
Jan

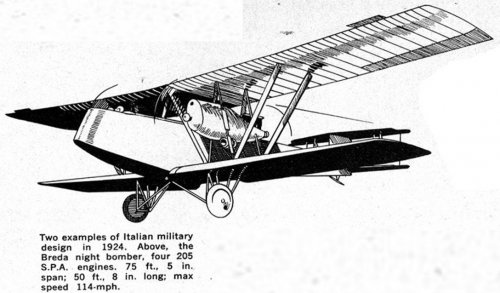

Jan - I don't know if this will help, but I have one drawing, with a bit of a description, from an old aviation magazine, most likely Air Trails or Air progress dating from the 1950s. The drawing is either by Doug Rolfe or done in his style.


Regards,
John Braungart


Attachments

  • (1924) Night Bomber (01).jpg
    (1924) Night Bomber (01).jpg
    147.6 KB · Views: 453

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096
hesham said:
From l'Aeronautique journal 1924,

here is the Breda A.5 four engined bomber drawing,powered by four 200 hp engines,and thta means
the old picture t Breda A.5 may be was wrong.

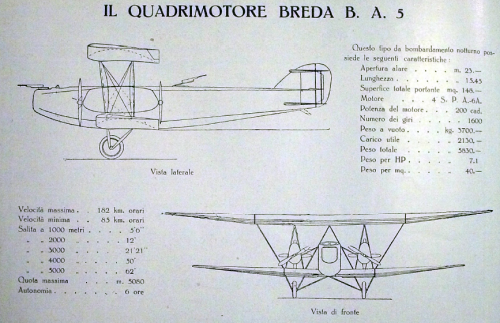

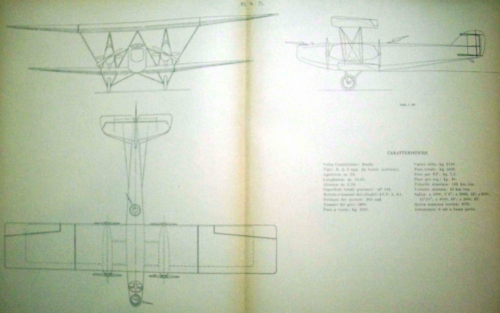

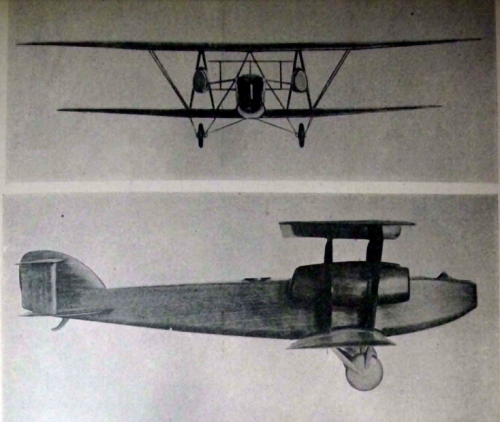

Here is a Breda Ba.5 or A.5,a four engined biplane heavy bomber project.


Aeronautica Italiana 1923


Attachments

  • Ba.5.png
    699.5 KB · Views: 231
  • Ba.5   I.png
    Ba.5 I.png
    582.1 KB · Views: 58
  • Ba.5   II.png
    Ba.5 II.png
    429 KB · Views: 47

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096
hesham said:
hesham said:
From l'Aeronautique journal 1924,
here is the Breda A.5 four engined bomber drawing,powered by four 200 hp engines,and thta means
the old picture t Breda A.5 may be was wrong.
Here is a Breda Ba.5 or A.5,a four engined biplane heavy bomber project.
Aeronautica Italiana 1923

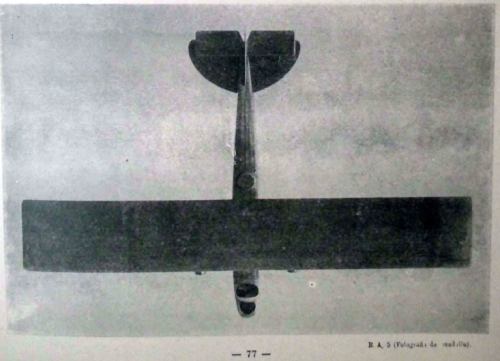

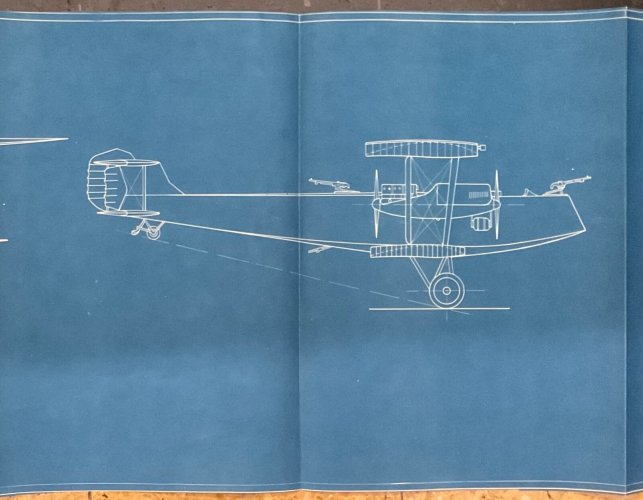

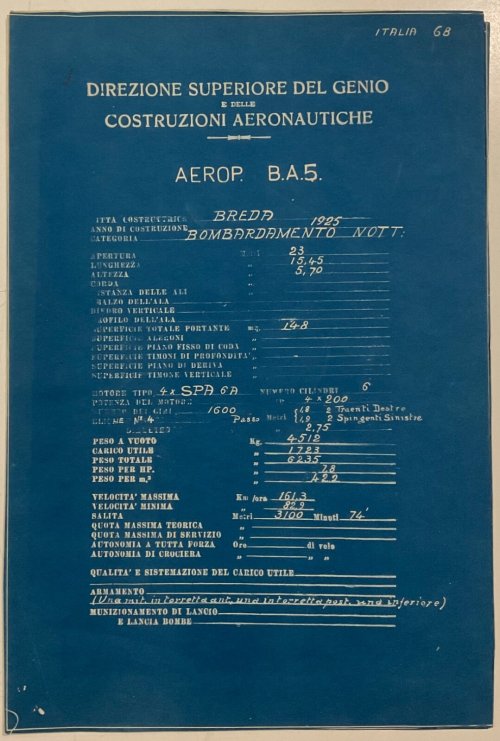

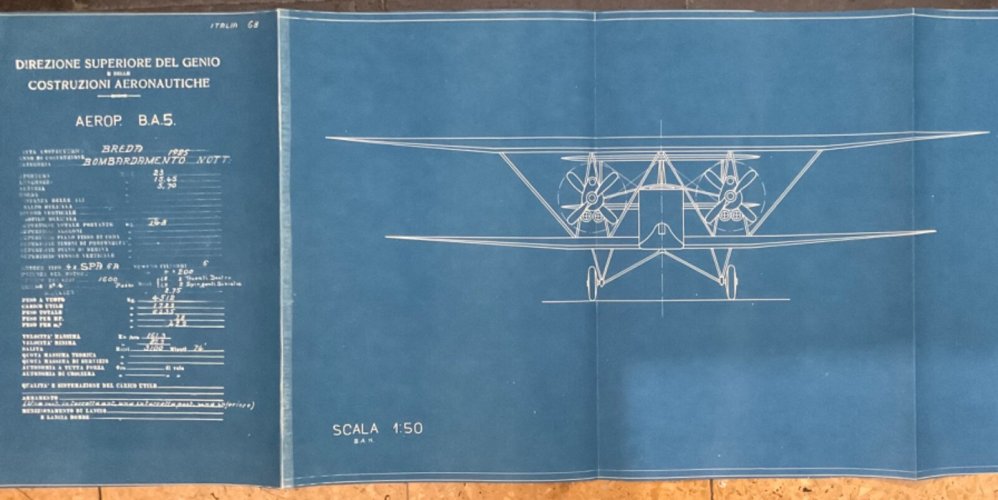

Again Breda A.5;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201924%2005.pdf


Attachments

  • 1.png
    930.2 KB · Views: 39
