Hi Everyone!

Presented here is information on the Northrop Grumman C-2 Greyhound 21, a proposed jet-engined version of the standard C-2 Greyhound.

My source for this is Jane's All the World's Aircraft 1990-1991, and they describe the Greyhound 21 as a multi-mission carrier-based aircraft.

Jane's further describes the Greyhound 21:

"Fitted with turbofan engines in place of the Allison T56 turboprops, it could be used for anti-submarine/anti-surface vessel warfare, electronic surveillance, carrier onboard delivery and aerial refuelling missions. In the COD rold, the Greyhound 21 will be able to airlift a 4536 kg (10,000 lb) cargo payload; for other roles, the hold area will contain specialised mission equipment and system operators."

Chuck


Attachments

  • Greyhound 21.JPG
    Greyhound 21.JPG
    52.6 KB · Views: 2,517

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
As I've asked elsewhere, does Jane's say what the proposed engines were? I've got my ideas, but I'd like to see what was really spec'd out.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
ChuckAnderson said:
Hi Everyone!

Presented here is information on the Northrop Grumman C-2 Greyhound 21, a proposed jet-engined version of the standard C-2 Greyhound.

My source for this is Jane's All the World's Aircraft 1990-1991, and they describe the Greyhound 21 as a multi-mission carrier-based aircraft.

Jane's further describes the Greyhound 21:

"Fitted with turbofan engines in place of the Allison T56 turboprops, it could be used for anti-submarine/anti-surface vessel warfare, electronic surveillance, carrier onboard delivery and aerial refuelling missions. In the COD rold, the Greyhound 21 will be able to airlift a 4536 kg (10,000 lb) cargo payload; for other roles, the hold area will contain specialised mission equipment and system operators."

Chuck

The same proposal appeared - again - in the 1999-2000 edition of Jane's All The World's Aircraft. I would assume that the proposal was revive as a CSA entry?


rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1
Hey gang, sorry to be a pest, but I'm trying to find some info on the Fokker F28 variant that was put forth as an entry in the USN's MMVX proposal. I have a single color painting in Bill Gunston's Warplanes of the Future, and am hoping that there might have been a 3-view published in a magazine or Janes at some point.

My idea is to convert a Revell Fokker 100 kit to something like the MMVX configuration, so any help would be greatly appreciated.

TIA
Tony


F14

ACCESS: Restricted
Joined
May 18, 2007
Messages
1
Reaction score
0
Hi There,

There is a Fokker F28 COD brochure for sale on EBay, which includes a 3-view. You could try contacting the seller and requesting a scan of the 3-view:
http://cgi.ebay.com/FOKKER-F28-COD-CARRIER-DELIVERY-AIRCRAFT-LEAFLET-RARE_W0QQitemZ330119949518QQihZ014QQcategoryZ40051QQcmdZViewItem

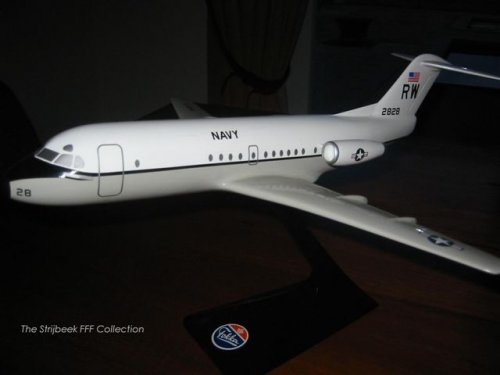

There is already a scale model of this aircraft:
http://www.triple-f.eu/database/displayimage.php?album=lastup&cat=0&pos=24

If you want more info, this is what I have found on other websites:
- F28 COD was a Mk. 5000 with slatted wings.
- Carrier operation required a much stronger undercarriage and fuselage.
- Increased ailerons and spoilers
- RR Tay or GE F404 engines
- Intended for use as tanker or COD with 65 passengers and/or appropriate payload. EW or AEW was also considered possible.
- Fokker cooperated with Lockeed Aircraft Services when making its proposal to the U.S. Navy, but in the end an improved version of the Greyhound was selected.
- The flight tests in September 1983 were terminated.
- Costs of the program would have been approx. US $ 500 million.


rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1
D'Oh!! I didn't even think of checking EBAY............thanks for the info, it's got me going in the right direction now!

Cheers!
Tony


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
297
Reaction score
16

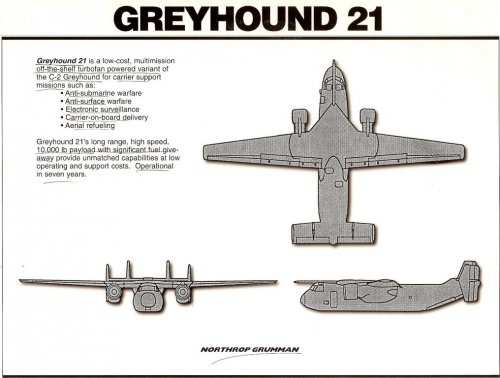

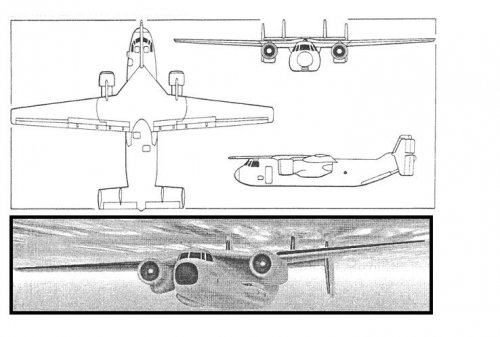

Found this product card in my files. It's dated 3/98. Engines are almost certainly CF34-class. The interesting design feature is the undercarriage retracting into the engine nacelles. Not sure I've seen that anywhere else.

I dug this up as I was searching for info on Gulfstream's COD proposal combining the Fokker 100 fuselage with the GIV wing. I know I didn't imagine it - anyone have any info? It was offered in the competition that led to the C-2 being put back into production.


Attachments

  • Greyhound 21.JPG
    Greyhound 21.JPG
    168.4 KB · Views: 2,131
  • Greyhound 21 3v.JPG
    Greyhound 21 3v.JPG
    134 KB · Views: 2,187

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
It looks like they left the turbofan's gas generator where the present turboprop's one is and adjusted the nacelle configuration to duct the fan exhaust around it. A fairly straightforward approach to improving the performance of the basic airframe without tremendous redesign.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,224
Reaction score
245
CammNut

Don't recall a Gulfstream-Fokker proposal, but I do remember Fokker USA promoting the idea of an F28 Mk 4000 derivative for COD. Any documention is buried deep, deep in my basement. Very early 1980s, and even they admitted that they didn't have a snowflake's chance in hell of seeing it built.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
I've read of a DC-9 COD version as well. Don't recall any drawings or concepts.


LowObservable said:
CammNut

Don't recall a Gulfstream-Fokker proposal, but I do remember Fokker USA promoting the idea of an F28 Mk 4000 derivative for COD. Any documention is buried deep, deep in my basement. Very early 1980s, and even they admitted that they didn't have a snowflake's chance in hell of seeing it built.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
127
Website
theavgeeks.com
There is art work of the F28 COD proposal in "Warplanes of the Future" by Bill Gunston and Terry Waddington's book on the DC-9 (Great Airliners Series) has a drawing of the DC-9 COD.

It had folding wings, deleted thrust reversers, refueling probe and the nose wheel was moved back and was extendable to improve AoA at takeoff. It was based on the Series 10 DC-9.

If I get a chance I'll try to get some low-res scans of both this weekend.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,370
Reaction score
6,031
Sentinel Chicken said:
There is art work of the F28 COD proposal in "Warplanes of the Future" by Bill Gunston and Terry Waddington's book on the DC-9 (Great Airliners Series) has a drawing of the DC-9 COD.

It had folding wings, deleted thrust reversers, refueling probe and the nose wheel was moved back and was extendable to improve AoA at takeoff. It was based on the Series 10 DC-9.

If I get a chance I'll try to get some low-res scans of both this weekend.

The F-28COD;
http://www.flightglobal.com/FlightPDFArchive/1981/1981%20-%203133.pdf


Attachments

  • Fokker F-28COD.JPG
    Fokker F-28COD.JPG
    34.7 KB · Views: 2,000

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,116
Reaction score
661
Sentinel Chicken said:
There is art work of the F28 COD proposal in "Warplanes of the Future" by Bill Gunston and Terry Waddington's book on the DC-9 (Great Airliners Series) has a drawing of the DC-9 COD.

It had folding wings, deleted thrust reversers, refueling probe and the nose wheel was moved back and was extendable to improve AoA at takeoff. It was based on the Series 10 DC-9.

If I get a chance I'll try to get some low-res scans of both this weekend.

Any luck with finding that drawing of the DC-9 COD??

I think its in that "Warplanes of the Future" by Bill Gunston, that you mention - says that the F.28 DOD/Tanker was proposed with GE F404 engines - which make sense with onboard carrier compatibility with the F/A-18A/B/C/D series.

Regards
Pioneer


Mike OTDP

ACCESS: Restricted
Joined
Dec 4, 2009
Messages
36
Reaction score
27
I recall Pax River doing tests of an F28 in the early 1980s to evaluate the concept.


The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291
Pioneer said:
Sentinel Chicken said:
There is art work of the F28 COD proposal in "Warplanes of the Future" by Bill Gunston and Terry Waddington's book on the DC-9 (Great Airliners Series) has a drawing of the DC-9 COD.

It had folding wings, deleted thrust reversers, refueling probe and the nose wheel was moved back and was extendable to improve AoA at takeoff. It was based on the Series 10 DC-9.

If I get a chance I'll try to get some low-res scans of both this weekend.

Any luck with finding that drawing of the DC-9 COD??

I think its in that "Warplanes of the Future" by Bill Gunston, that you mention - says that the F.28 DOD/Tanker was proposed with GE F404 engines - which make sense with onboard carrier compatibility with the F/A-18A/B/C/D series.

Regards
Pioneer

I've looked at my copy of the Great Airliners DC-9 book and I can see that there may be a copyright issue with posting that image (and another one) here.

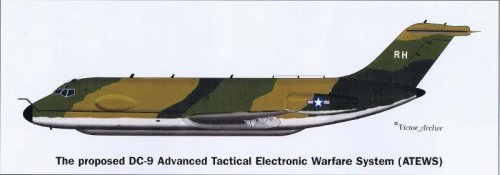

The drawings of the C-9 COD and the ATEWS - Advanced Tactical Electronic Warfare System - are both clearly tagged with a copyright notice. The copyright holder's name is Victor Archer.

A description of the C-9 is as follows. Nose gear moved 12.5 feet aft. Nose gear strut capable of extending to give the aircraft a 6-degree nose up attitude for takeoff. Local strengthening for the arresting hook which was positioned on the underside (externally) under the engine location. A large tail bumper added on the underside roughly in line with the exhaust end of the engine. Wing folding was explored with the fold being at either of two locations. On one, the folded span would be 58.5 foot. On the other the folded span would have been 47 foot. In flight refueling probe extending from the lower left fuselage angling up then leveling again ahead of the nose at a level roughly that of the lower edge of the windscreen. Pylon attach points about 12 foot inboard of each wing tip. These pylons could have held the "buddy" refueling system. Thrust reversers omitted and replaced with simple exhaust cones. Air-stairs omitted. --- Paraphrased from Great Airliners Volume 4: McDonnell Douglas DC-9, Terry Waddington, 1998. Pgs. 81-82.

I hope this description is helpful.

Mike


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Thanks for the info. As has been mentioned before, whether or not a drawing, pic, etc., has the copyright actually on it, it belongs to whomever drew it, wrote it, took the pic, etc. Essentially, if it's not yours or your creation, it's copyrighted by someone else whether it actually states it or not.


The Artist said:
Pioneer said:
Sentinel Chicken said:
There is art work of the F28 COD proposal in "Warplanes of the Future" by Bill Gunston and Terry Waddington's book on the DC-9 (Great Airliners Series) has a drawing of the DC-9 COD.

It had folding wings, deleted thrust reversers, refueling probe and the nose wheel was moved back and was extendable to improve AoA at takeoff. It was based on the Series 10 DC-9.

If I get a chance I'll try to get some low-res scans of both this weekend.

Any luck with finding that drawing of the DC-9 COD??

I think its in that "Warplanes of the Future" by Bill Gunston, that you mention - says that the F.28 DOD/Tanker was proposed with GE F404 engines - which make sense with onboard carrier compatibility with the F/A-18A/B/C/D series.

Regards
Pioneer

I've looked at my copy of the Great Airliners DC-9 book and I can see that there may be a copyright issue with posting that image (and another one) here.

The drawings of the C-9 COD and the ATEWS - Advanced Tactical Electronic Warfare System - are both clearly tagged with a copyright notice. The copyright holder's name is Victor Archer.

A description of the C-9 is as follows. Nose gear moved 12.5 feet aft. Nose gear strut capable of extending to give the aircraft a 6-degree nose up attitude for takeoff. Local strengthening for the arresting hook which was positioned on the underside (externally) under the engine location. A large tail bumper added on the underside roughly in line with the exhaust end of the engine. Wing folding was explored with the fold being at either of two locations. On one, the folded span would be 58.5 foot. On the other the folded span would have been 47 foot. In flight refueling probe extending from the lower left fuselage angling up then leveling again ahead of the nose at a level roughly that of the lower edge of the windscreen. Pylon attach points about 12 foot inboard of each wing tip. These pylons could have held the "buddy" refueling system. Thrust reversers omitted and replaced with simple exhaust cones. Air-stairs omitted. --- Paraphrased from Great Airliners Volume 4: McDonnell Douglas DC-9, Terry Waddington, 1998. Pgs. 81-82.

I hope this description is helpful.

Mike


The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291
frank said:
Thanks for the info. As has been mentioned before, whether or not a drawing, pic, etc., has the copyright actually on it, it belongs to whomever drew it, wrote it, took the pic, etc. Essentially, if it's not yours or your creation, it's copyrighted by someone else whether it actually states it or not.

I understand that. What I was trying to say is that these drawings are not project drawings from the company, these are drawings done by a third party who has incorporated the copyright notice into the signature within the drawing - and that clearly makes them unsuitable for posting here.

Mike


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
633
Reaction score
424

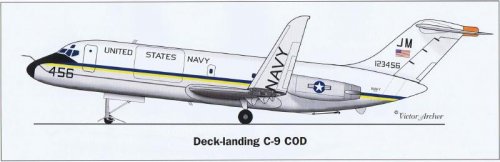

Perhaps these will help...


Attachments

  • C-9 COD 1.jpg
    C-9 COD 1.jpg
    64.4 KB · Views: 1,720
  • C-9 COD 2.jpg
    C-9 COD 2.jpg
    85.2 KB · Views: 897

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
291
aim9xray said:
Perhaps these will help...

Yes. Thanks.

The illustration in the book is just a left profile drawing.

A note on the placement of the nose gear. The nose gear strut is directly below the "U" of the word United in the profile drawing.

Mike


alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
104
Reaction score
240
Hi everybody,

Here is a scan of the picture of the Fokker F28 COD. It was proposed for the MMVX program. Does the C-9 COD was proposed for the same competition, or is it totally independant?
Does anybody has more materials on this F28 COD to share? I'm desperately seekink documentation on that. I remember Fokker published some slides...

Thanks, regards.
Alain


Attachments

  • Sans titre-32 copie.jpg
    Sans titre-32 copie.jpg
    728 KB · Views: 1,698

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,370
Reaction score
6,031
We discussed that before,here;

http://www.secretprojects.co.uk/forum/index.php/topic,662.msg25681/highlight,1981+3133.html#msg25681


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
hesham said:
We discussed that before,here;

http://www.secretprojects.co.uk/forum/index.php/topic,662.msg25681/highlight,1981+3133.html#msg25681

Topics merged and renamed (with an awkward title).


northerndancer2000

ACCESS: Restricted
Joined
May 23, 2011
Messages
47
Reaction score
4

Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,046
Reaction score
552
I recently bought a Fokker F.28 COD brochure on eBay, I'll try and get it scanned this week. It consists of copies from a set of overhead projection sheets, so there's less information than I hoped for. It does have a nice 3-view.
They offered the F-28 for these roles: COD/tanker (these could be combined in the same aircraft), ELINT and AEW. Engines either larger Speys (it says Rolls 183-03, haven't been able to find specs of that variant) or F-404. The standard F-28 had about 44 kN of thrust per engine, I haven't worked out yet what the COD proposal would have but it could be as much as 50% more.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,046
Reaction score
552
Here's a summary of the brochure:

• Tanker-2 cycle (4.0 hrs) productivity 1.27 to 1.

• AEW-planar antenna, 2 operators, spare RIOs. 6.7 hrs on station @ 300 n.m. From zz

• elint/comint - five stations, 2 spare operators. 5.1 hrs on station @ 500 n.m. From zz

• COD/land based support. 10,000 lbs 2300 n.m. Sea/land based. Can be combined with tanker

Study conclusions
  • it is feasible to incorporate the capability to catapult and arrest aboard CVA class 59 and superior carriers. WOD with one engine inoperative on a tropical day: (90°f): catapult 17 kts, arrest 4 kts
  • study takeoff weight 86,000 lb with 10,000 lb payload.
  • Low speed flying qualities expected to be suitable with modest increase in roll rate.
  • Derivative design should be able to meet all mil spec requirements stipulated by navairsyscom or necessary for a cod aircraft design.
  • Nose landing gear which is extendable 45 inches to p erform dual function of providing adequate wing angle of attack for catapulting, as well as to allow the tail to clear hangar door, will pose a difficult design task and is a risk to cost and schedule commitments.
  • Can successfully operate from class 59 or superior carriers.

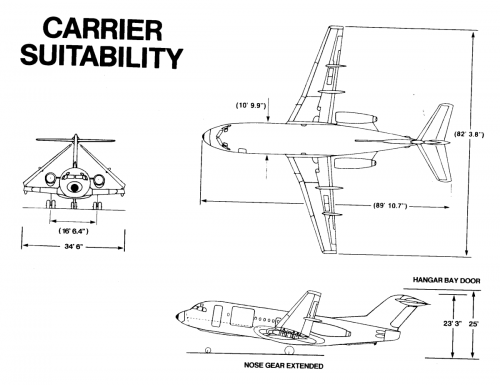

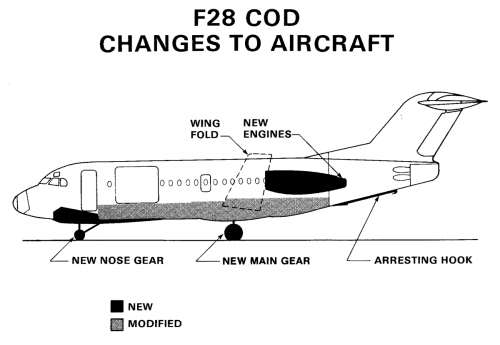

Carrier suit configuration changes:
  • nose gear
  • wing fold
  • beef up to 21 fps sink rate
  • re-engine ge-404 or rolls 183-03
  • arresting hook
  • Full leading edge slats
  • Tanker: wingtip reel pods and fuselage drogue. No fuel tanks on cargo deck
The brochure goes into cargo/fuel capacity and time on station (lots of diagrams)
deck spotting compared to E-2 and A-3: 1ft in both dimensions more than E-2.
takeoff and landing (positive rate of climb with one engine out unlike the C-2), good approach characteristics thanks to tail air brake
Program cost $700M for 20 aircraft, compared to $1.2B for the C-2

I've attached the full brochure (39 pages, 4 Mb).


Attachments

  • Fokker F-28C Multimission brochure_Page_16.png
    Fokker F-28C Multimission brochure_Page_16.png
    76.1 KB · Views: 699
  • Fokker F-28C Multimission brochure_Page_14.png
    Fokker F-28C Multimission brochure_Page_14.png
    79.8 KB · Views: 725
  • Fokker F-28C Multimission brochure.pdf
    4.3 MB · Views: 53
Last edited:

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,116
Reaction score
661
I've just come across Zebedee's post titled 'British Aerospace Type 849 NGMR' on this means!
If you click on the link he has posted you will see that Hawker-Siddeley/British Aerospace proposed a COD variant of its Type 748 to the U.S Navy in 1972 + a neat profile drawing!!! (unfortunately I can't work out how to post the drawing on hear :mad: )
It's probably more suitable to the comp, which derived the actual Grumman C-2 Greyhound, rather than its replacement, but all the same I though you might be interested!!

Regards
Pioneer


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,046
Reaction score
552
re-engine ge-404 or rolls 183-03

I just found out the RR 183-03 is the RR Tay. The Tay variant used on the Fokker 70 and 100 produces 62 kN, up from the 44 kN of the F-28 Speys. So they wer looking at a significant upgrade.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,841
Reaction score
372
Hobbes said:
Another image I came across, this is artwork Fokker commissioned for a magazine ad.
The same image appears in the brochure, unfortunately it's a crappy b/w photocopy.

This version I found at http://thanlont.blogspot.com/2011/05/carrier-onboard-delivery.html

I missed that when you posted it earlier in May. Much earlier in the thread you'll see that I mentioned how I remembered this artwork but could not find it. I went looking through old copies of Proceedings, but couldn't locate it. The plane looked too big for a carrier, but other posts here show that it was not all that large compared to other planes like the F-14.

Thanks for posting it.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
989
Website
deeptowild.blogspot.com
1.72 scale resin Fokker F.28 COD proposal model by IMC.

Source:
http://www.triple-f.eu/database/displayimage.php?album=5&pos=61


Attachments

  • website_navy.jpg
    25.9 KB · Views: 885

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
989
Website
deeptowild.blogspot.com
Photo of Boeing 727 Carrier Support concept circa 1965 found on ebay.

Source:
http://www.ebay.com/itm/1965-Boeing-727-Press-Photo-/200794131566?pt=Art_Photo_Images&hash=item2ec0434c6e


Attachments

  • 6_13_308_img2329A.jpg
    61.5 KB · Views: 814

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,506
Span is less, than that of a Herk, which proofed to be "carrier capable", weight maybe somewhat higher,
but I don't think, that the 727 has the same STOL capabilities, as the Herk. And probably even the
Fokker F-28 COD has a shorter take-off distance.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
Since nobody has come up with an answer, I will speculate. This might have been a Boeing proposition to the Navy for a small fleet of airplanes to provide high-speed transport of time-critical spares and technicians to airports around the world, from which the hardware and people would be delivered to aircraft carriers at sea via the conventional COD. Range would be important; cargo bay size would not. That suggests the 727 freighter as a cost-effective transport for the mission.

For what it's worth Boeing did propose its 737 as a true COD.


Attachments

  • !BjCuu5!CGk~$(KGrHqIH-DQEs777iVdbBLR4nub5U!~~_3.jpg
    45.7 KB · Views: 847

Similar threads

Top
