BTZ VTOL Projects

[hesham]

Hi,

The BTZ projects.

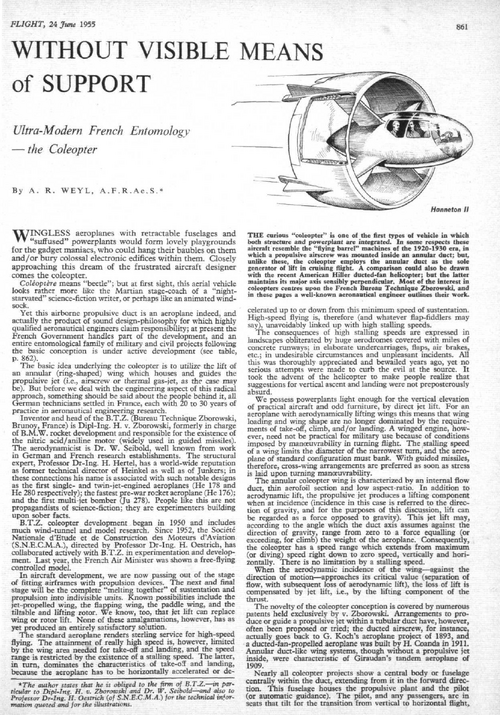

http://www.flightglobal.com/FlightPDFArchive/1955/1955%20-%200863.pdf



[hesham]

Hi,

we know BTZ VTOL projects,but I found those projects,are there
unknown projects ?.
http://www.ufologie.net/aircraft/coleoptere.htm



[Stingray]

I believe the first one is the Hanneton III.



[Jemiba]

.. or the Hanneton II, as the III should have a wider fuselage.
The others were more or less mentioned here :
http://www.secretprojects.co.uk/forum/index.php/topic,4584.0/highlight,coleopter+missile.html



[Michel Van]

Hi,

we know BTZ VTOL projects,but I found those projects,are there
unknown projects ?.
http://www.ufologie.net/aircraft/coleoptere.htm

they got those Information from here
http://www.vstol.org/encyclopedia.htm
a very good source on Vstol, who gave us also this
http://www.aiaa.org/tc/vstol/unbuilt/index.htm



[hesham]

Thank you my dears,

but the second picture,I think it was different.



[Jemiba]

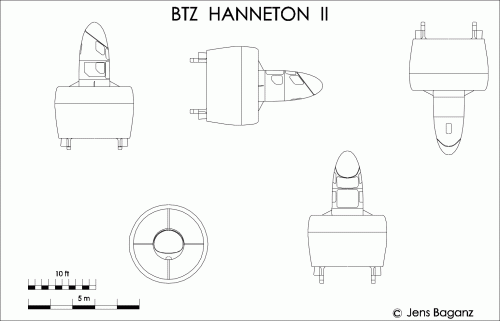

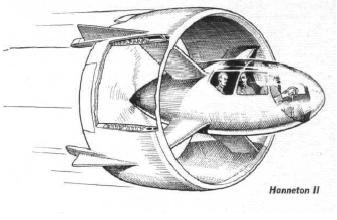

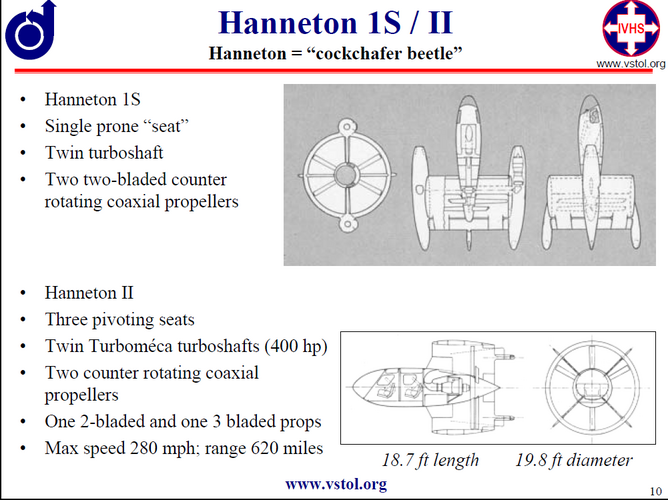

The manned type in the first picture,to my opinion is the Hanneton II.

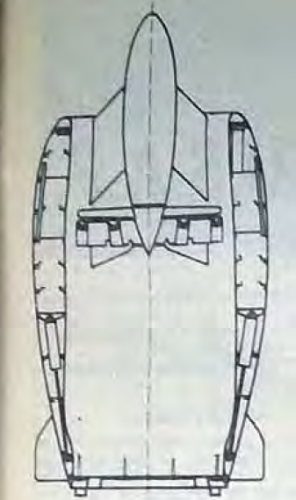

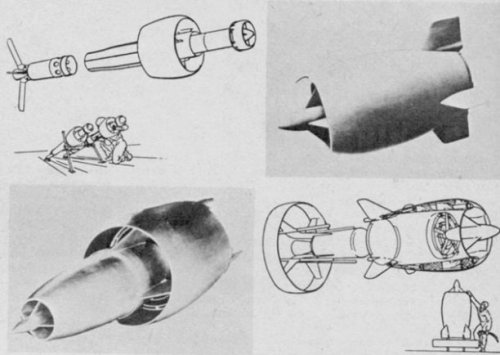

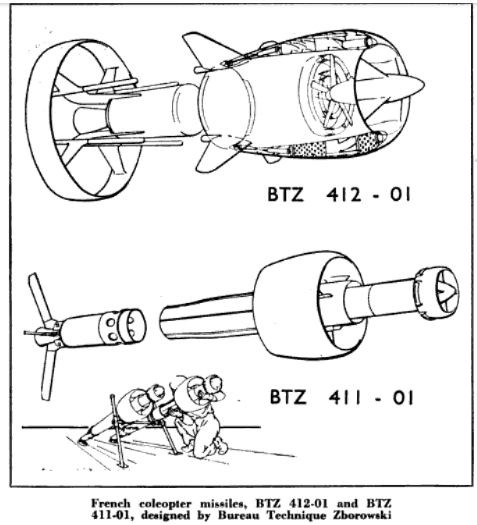

In the second picture in the upper left is the BTZ 411-01, upper right
probably the BTZ 412 (without take-off booster), in the lower left is the

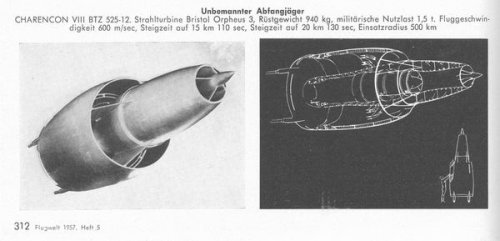

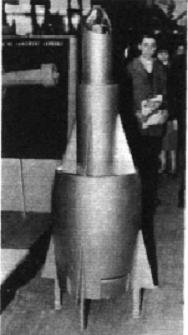

BTZ 525-12 (see pictre from Flugwelt 5/1957) and in the lower right
the BTZ 412-01 with and without booster.



[hesham]

Hi,

http://books.google.com.eg/books?id=xCUDAAAAMBAJ&pg=PA98&dq=ducted-propeller&hl=ar&ei=sZYkTP6fLYuD_Ab_ws3KBA&sa=X&oi=book_result&ct=result&resnum=4&ved=0CDcQ6AEwAw#v=onepage&q=ducted-propeller&f=true



[Triton]

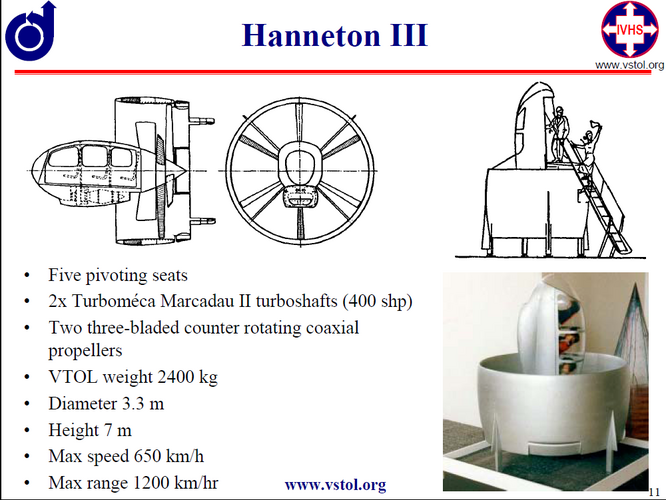

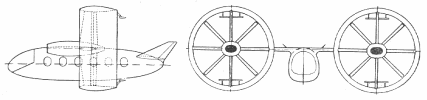

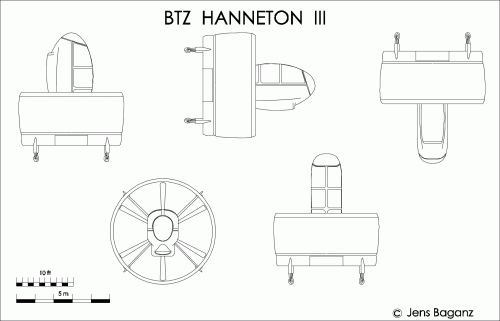

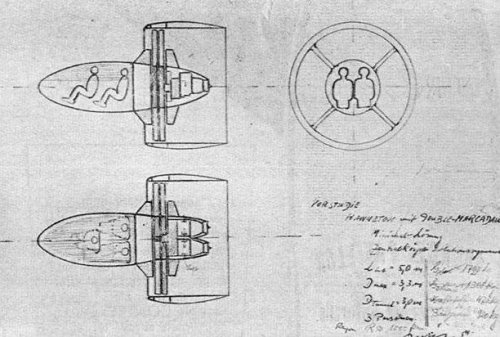

Three-view drawing of Bureau Technique Zborovski (BTZ) Hanneton III. Bureau Technique Zborovski was located in Brunoy, France.

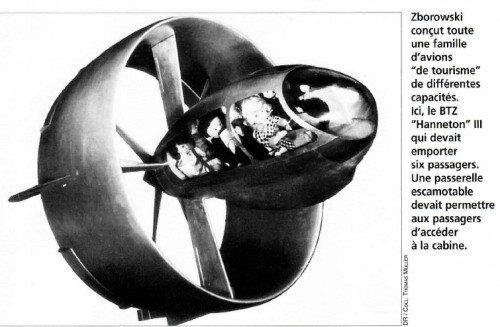

Wood model of BTZ Hanneton III.

Source:
http://www.ufologie.net/aircraft/coleoptere.htm



[Triton]

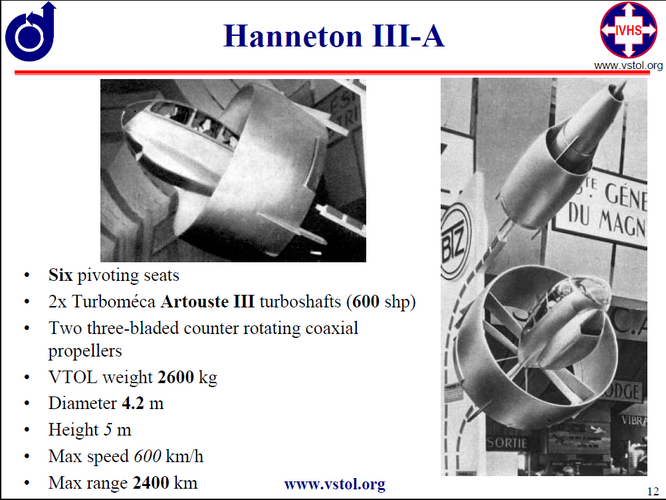

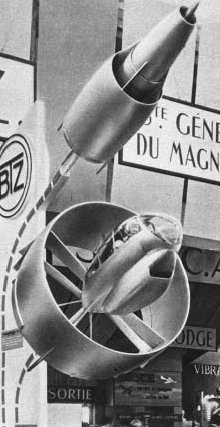

Model of BTZ Hanneton IIIA.

Source:
http://www.ufologie.net/aircraft/coleoptere.htm



[RanulfC]

As for the "unknowns" in the second picture I've seen the same information pretty much word for word translated from a French site
(IIRC) where the pictured vehicles are identified as missiles:
http://www.secretprojects.co.uk/forum/index.php/topic,4584.0/highlight,btz.html )
The one at top left is an anti-tank guided missile, the one at top right is the "top" of the surface-to-air ramjet missile pictured at
bottom right and the bottom left is another anti-aircraft missile configuration.

Here is the first page (teaser-page) for an AIAA article from 2002:
http://pdf.aiaa.org/preview/CDReadyMBIPL02_686/PV2002_5978.pdf

I may have posted this before but here are plans for building your own... Model that is:
http://jetex.org/models/plans/plans-misc/article-plan-coccinellida-am-5611.html

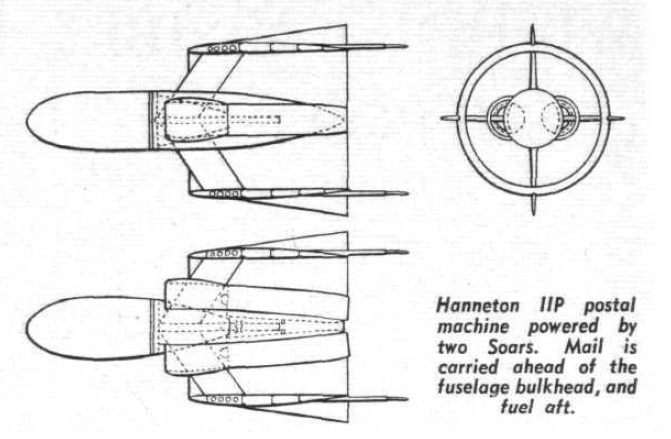

Page two of this article has a listing of some of the proposed vehicles:
http://www.flightglobal.com/pdfarchive/view/1955/1955%20-%200863.html?tracked=1

Randy



[hesham]

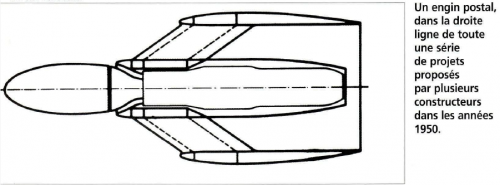

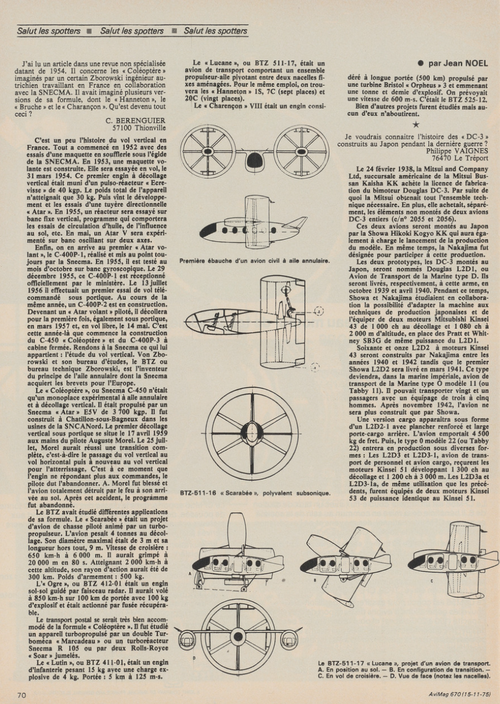

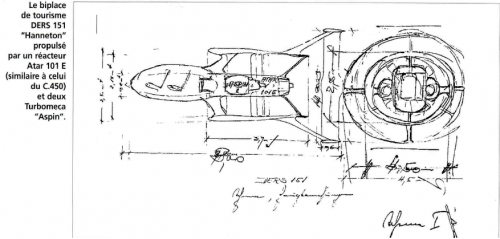

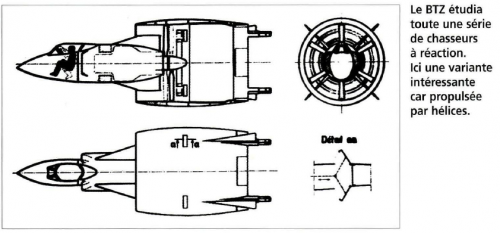

Also from Le Fana 474;



[hesham]

And from that site;

http://aerospaceengines.blogspot.com.eg/2014/11/cdxl-la-version-francesa-de-vtol-de-los.html



[bigvlada]

Also from Le Fana 474;

And from that site;

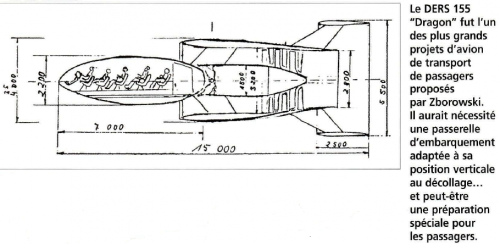

In the 4th picture, the text says tthe name of the bird is BTZ Dragon.

http://aerospaceengines.blogspot.com.eg/2014/11/cdxl-la-version-francesa-de-vtol-de-los.html

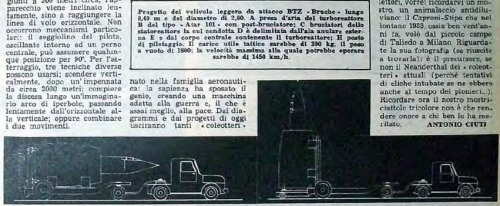

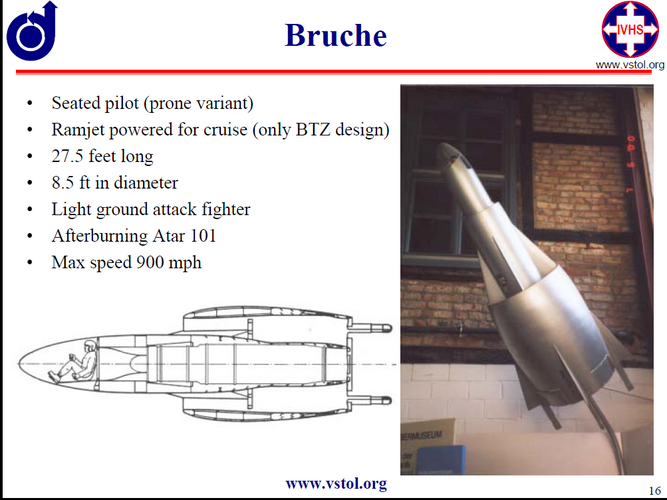

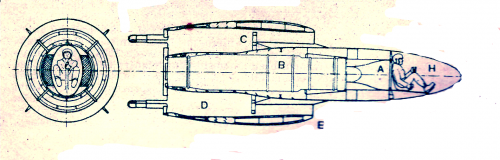

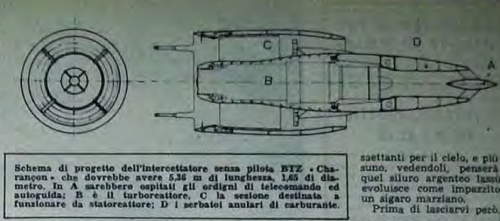

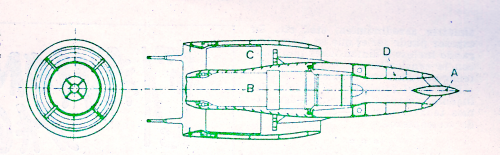

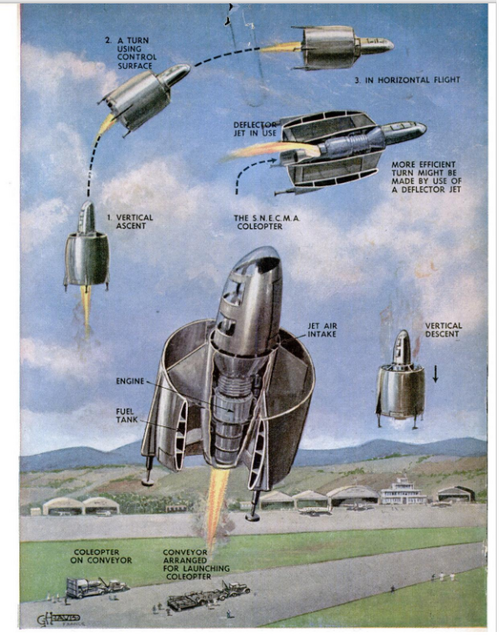

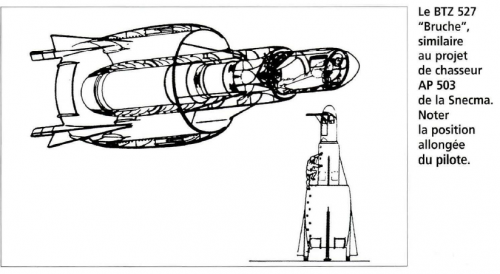

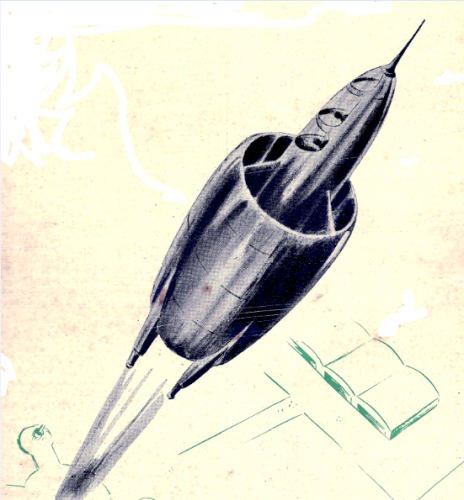

First picture is not BTZ design, it's artist's impression of SNECMA Coleoptere. Second one is credited as BTZ Charançon (Weevil) and third one as BTZ Bruche (BTZ 527).



[hesham]

Hi,

I read before about this BTZ,it was related to Bertin ,am I right ?.



[circle-5]

BTZ is the acronym for Bureau Technique Zborowski. Helmut Philip von Zborowski was a significant figure in early rocket and jet engine development. A contemporary of Werner von Braun, Zborowski worked on rocket and jet development for BMW during World War II, afterwards going to France and serving as a research engineer for the Société d'Etudes de la Propulsion par Réaction (SEPR). Zborowski later founded his own company, Bureau Technique Zborowski, which contributed significantly to the SNECMA C450 Coléoptère design.



[dan_inbox]

BTZ was Bureau Technique Zborowski.
Helmut Graf von Zborowski was an Austrian aristocrat turned SS officer, who worked on the Walther rocket engine and other last-ditch weapons at the end of WW2. He was captured by the French.

The BTZ was created to get hold of his technical knowledge and continue his research, while keeping him more-or-less incommunicado in a castle near Paris to avoid the embarrassment of his unsavory past.

Edit: oops, I didn't see circle-5's post



[hesham]

Thank you my dears Circle and Dan.



[hesham]

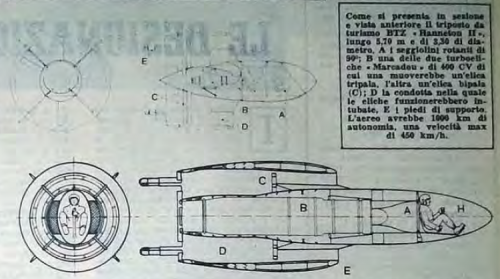

From Ali Nuove 1/1955.



[Archibald]

BTZ was Bureau Technique Zborowski.
Helmut Graf von Zborowski was an Austrian aristocrat turned SS officer, who worked on the Walther rocket engine and other last-ditch weapons at the end of WW2. He was captured by the French.

The BTZ was created to get hold of his technical knowledge and continue his research, while keeping him more-or-less incommunicado in a castle near Paris to avoid the embarrassment of his unsavory past.

Edit: oops, I didn't see circle-5's post

yikes. The name had caught my attention a looooong time ago, in 1996 when I heard of the Coleoptere for the first time (well, second time after Tintin's Dan Cooper "Le mur du silence")
I ignored that the guy was a nazi SOB. I thought he was Polish.
Well, now I understand better the entire Coleoptere bizareness. It was a late offspring of the Luft'46 Wunderwaffen ! And it did not worked too well, the poor pilot paid a high price to the crash in 1959.



[hesham]

Hi,

ovni - Les OVNIS vus de près: avions inhabituels - le BTZ et le Coléoptère de la SNECMA

ovni - Les OVNIS vus de près:avions inhabituels - le BTZ et le Coléoptère de la SNECMA

ufologie.patrickgross.org



[Aubi]

Zborowski was "Austrian" because he was born in the Austria-Hungary. His family was nobility of Polish origin from Galicia, which was at the time part of the empire, altough given his name, Helmut, I assume the family was germanised at this point. Also his grandfather was famous forefather of nazism, Georg von Schönerer. Zborowski himself was born in Bohemia, in the military town and fortress of Theresienstadt, used during the WWII as concentration camp.



[hesham]

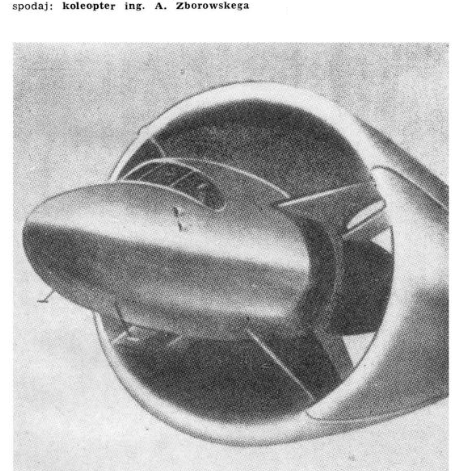

From Krila 4/1957.



[hesham]

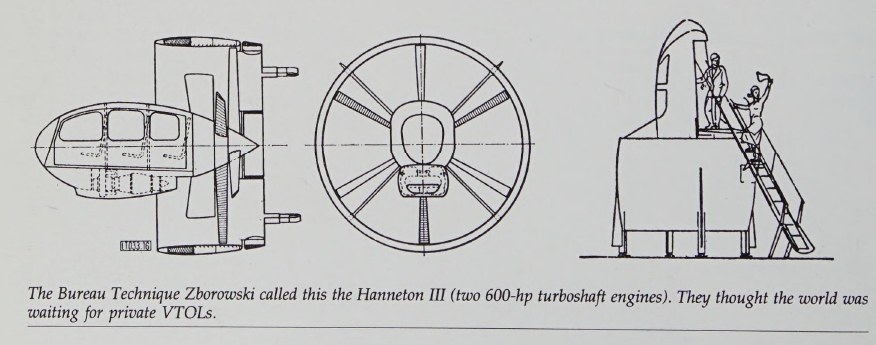

From, Back to the Drawing Board Aircraft That Flew, But Never Took Off.



[hesham]

From Aviation magazine 1975.



[TsrJoe]

Tintin comic, #4...



[hesham]

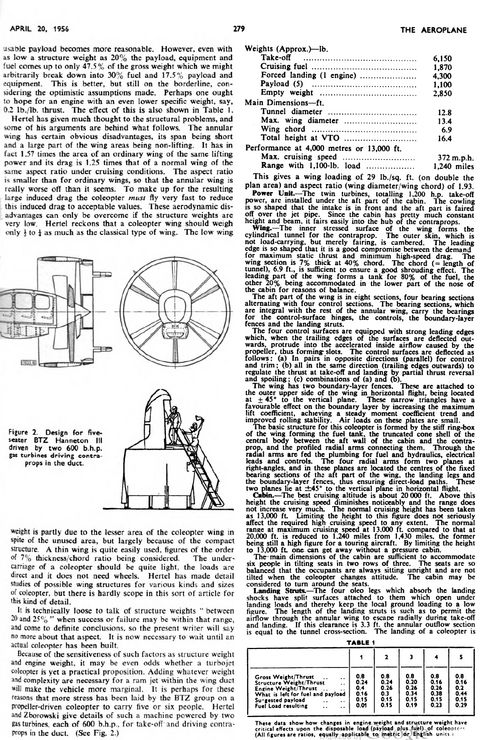

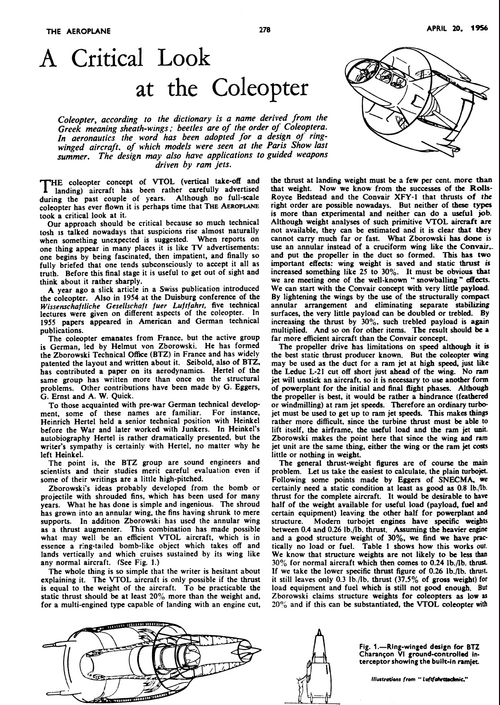

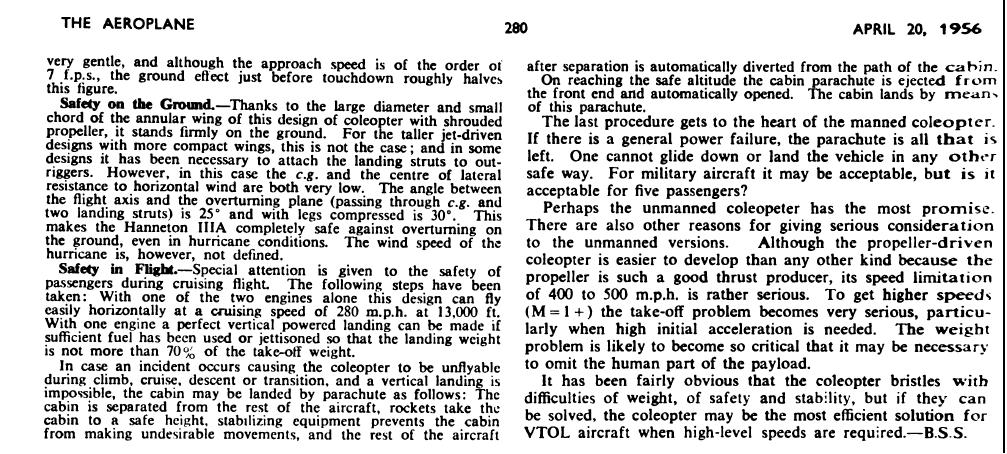

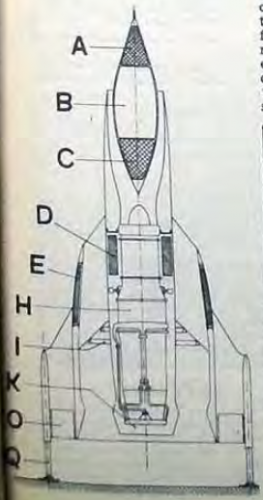

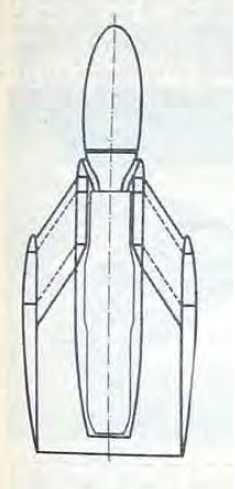

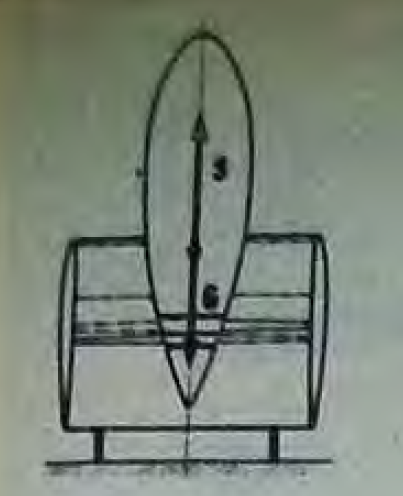

From Aeroplane 1956.



[hesham]

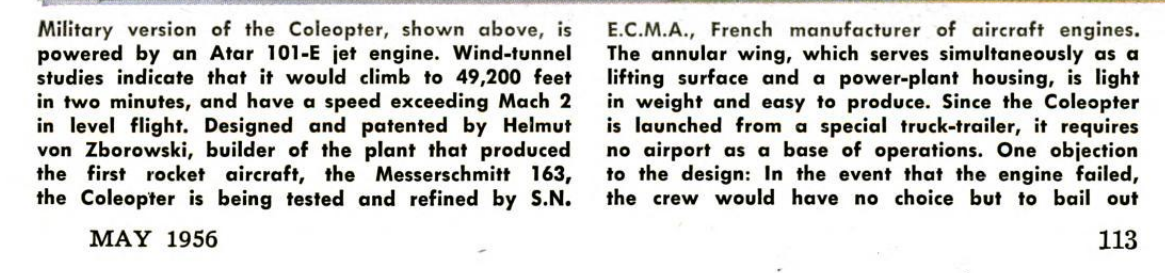

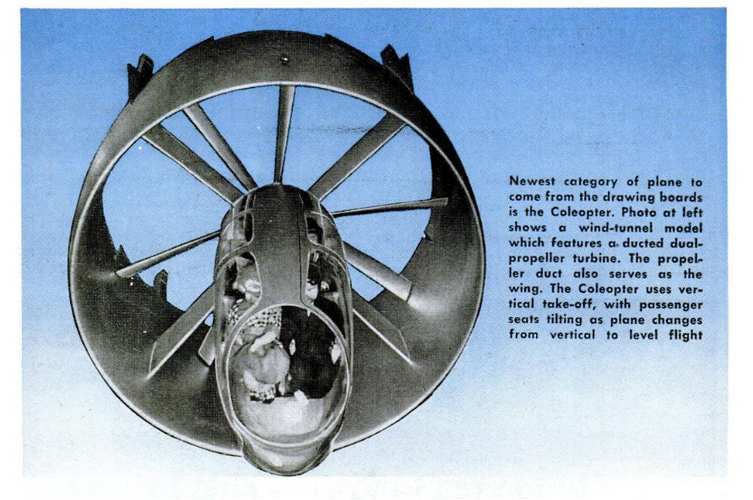

From Popular Mechanics 1956-5.



[hesham]

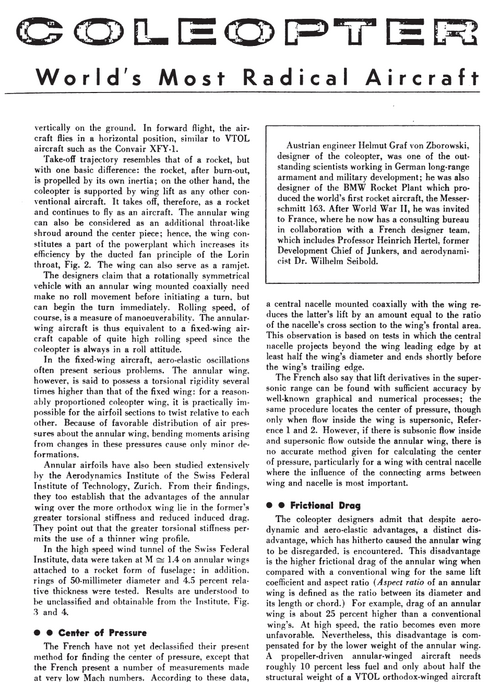

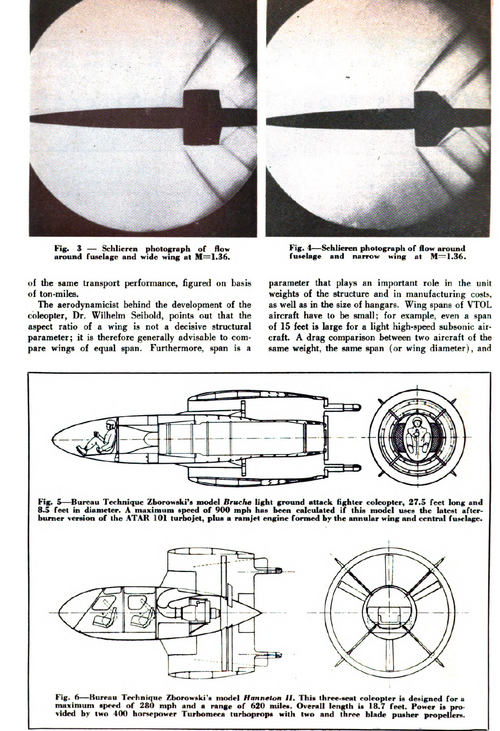

From Aero-Digest 1955.



[hesham]

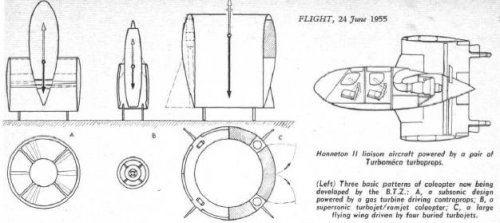

Hi,

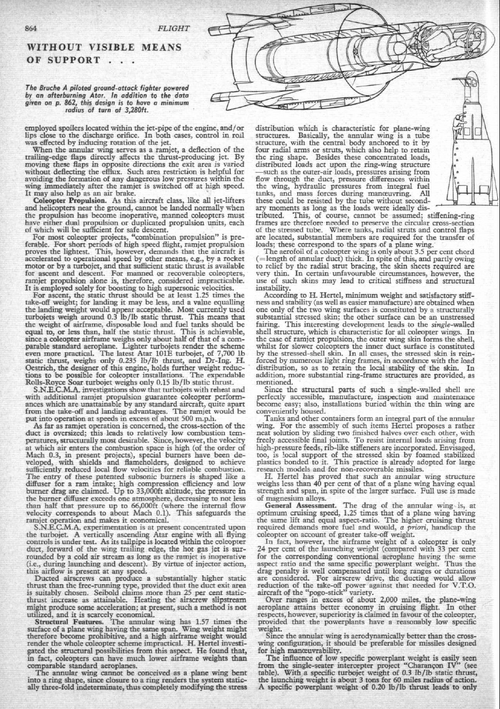

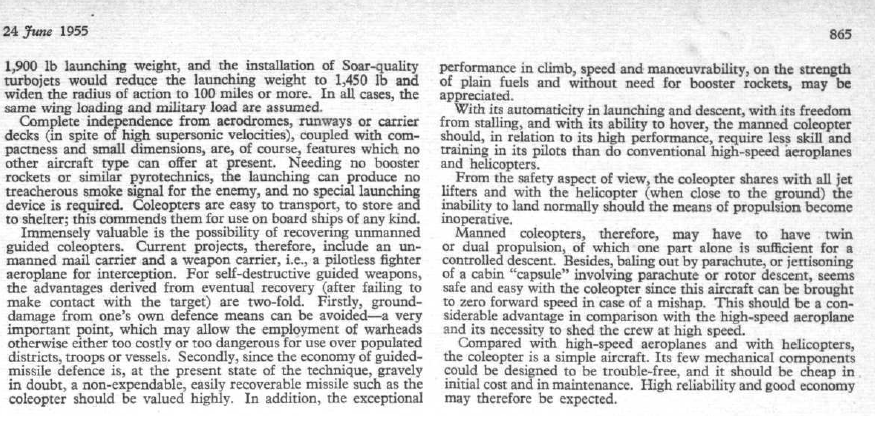

The BTZ projects.

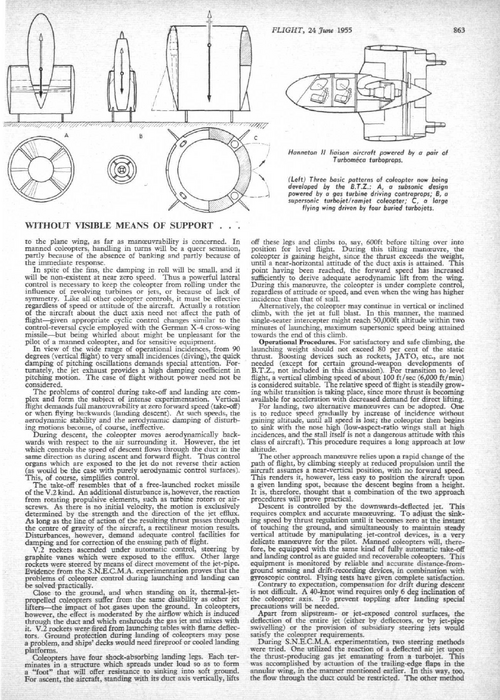

http://www.flightglobal.com/FlightPDFArchive/1955/1955%20-%200863.pdf

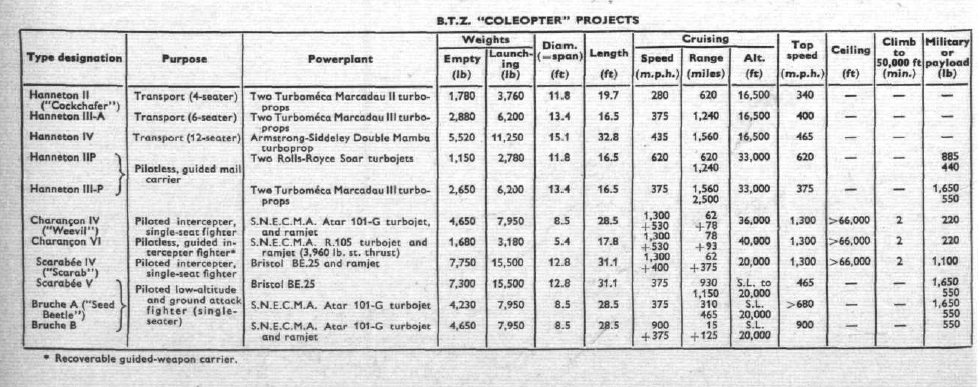

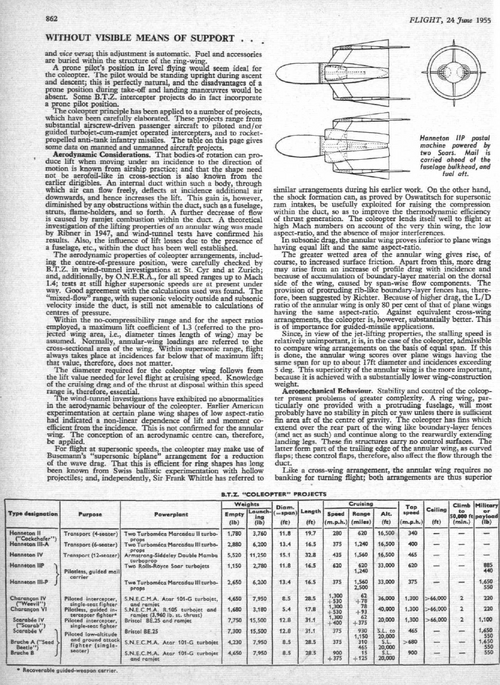

The whole article,with a schedule for Projects.



[hesham]

From Aero Digest 1956.



[PhR]

From Aero Digest 1956.

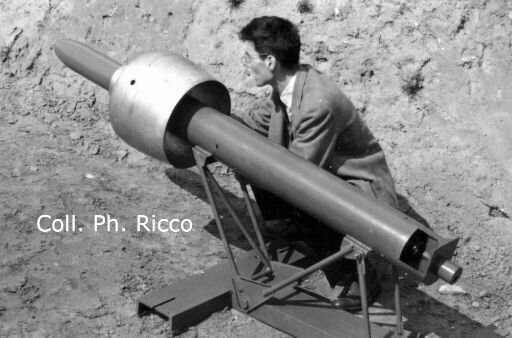

A version of such missile was built by SEPr (see attached).

As a reminder, all these BTZ studies and projects, as well as many other ones, are presented in detail in this book by Jean-Christophe Carbonel: https://www.secretprojects.co.uk/threads/la-snecma-von-zborowski-et-le-coleoptere.10882/



[dan_inbox]

https://www.secretprojects.co.uk/threads/btz-annular-wing-missiles.4584/



[hesham]

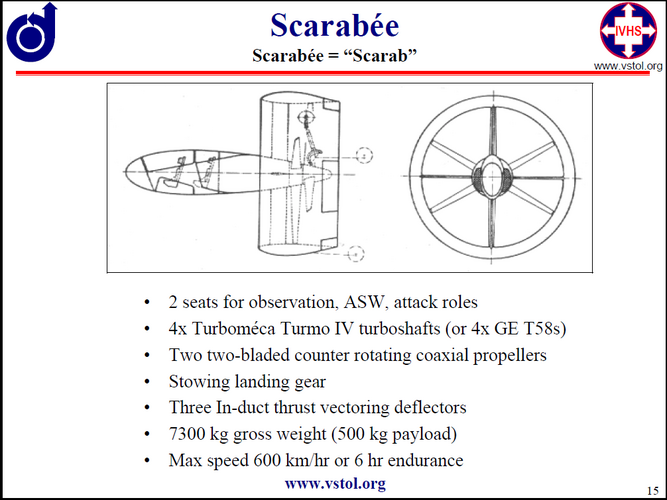

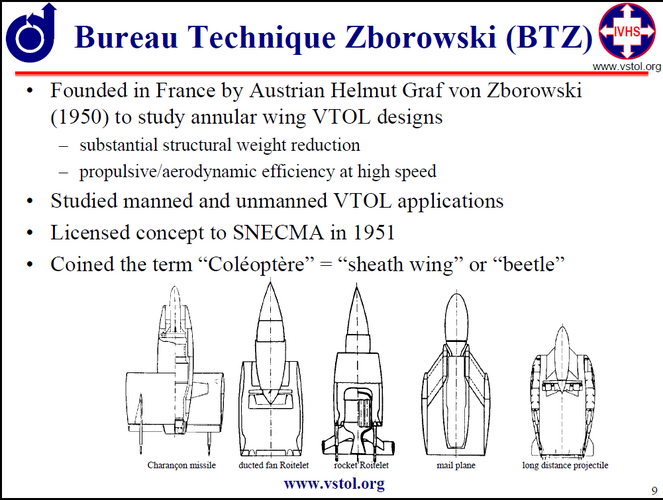

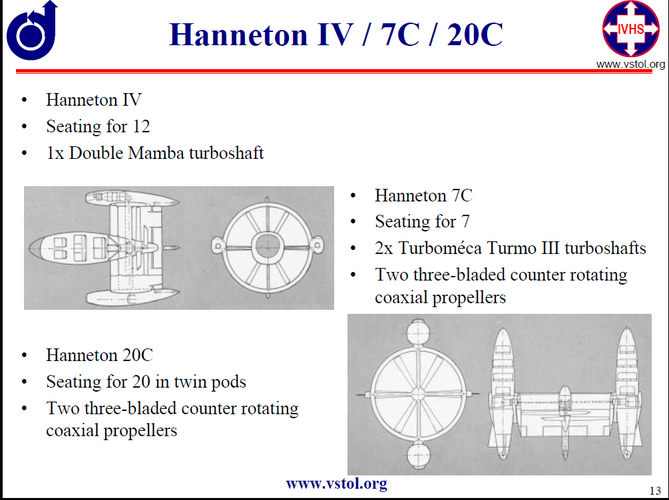

From AIAA.



[AlvaDyson95]

I am curious how an annular wing generates lift, or if they do at all.



[Jemiba]

I am curious how an annular wing generates lift, or if they do at all.

Similar to a biplane, with the upper wing curved downwards, and the lower one upwards, I think. Of course the amount of lift decreases to the edge of the ring, as well, as the horizontally stabilizing moment .



[martinbayer]

Similar to a biplane, with the upper wing curved downwards, and the lower one upwards, I think. Of course the amount of lift decreases to the edge of the ring, as well, as the horizontally stabilizing moment .

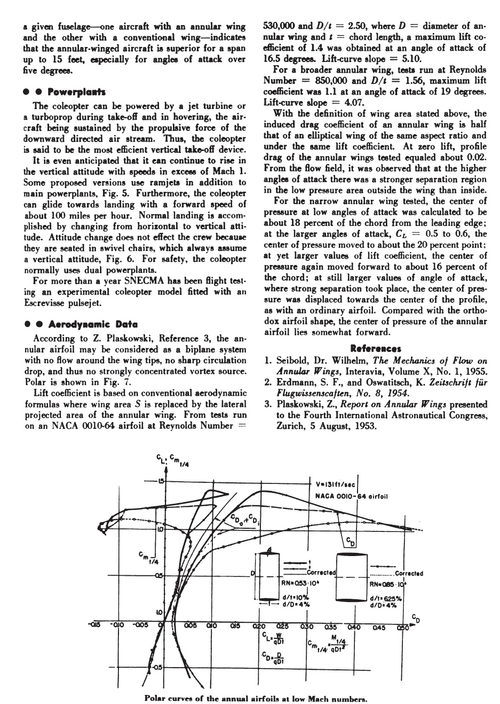

Looking at the cross sections above, which look completely rotationally symmetrical, I think lift would be wholly dependent on the angle of attack of the whole vehicle.



[Jemiba]

Similar to a biplane for aerobatics then ?



[martinbayer]

Similar to a biplane for aerobatics then ?

That would depend on whether one wing on those designs is inverted/mirrors the other wing, but I don't know anything about the design details of aerobatics biplanes.



[AlvaDyson95]

Similar to a biplane, with the upper wing curved downwards, and the lower one upwards, I think. Of course the amount of lift decreases to the edge of the ring, as well, as the horizontally stabilizing moment .

Very interesting.
