Breguet 910

J

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,789
Website
www.amazon.com

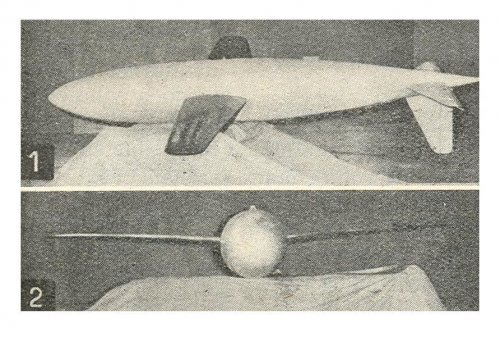

Hagelkorn based 1946 french desing with die-cast concrete wings


Attachments

  • Escanear0003.jpg
    168.5 KB · Views: 232
  • Escanear0004.jpg
    35.9 KB · Views: 197
  • Escanear0005.jpg
    39.8 KB · Views: 189
  • Escanear0006.jpg
    72.3 KB · Views: 184
C

cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
42
Justo Miranda said:
Hagelkorn based 1946 french desing with die-cast concrete wings
Click to expand...

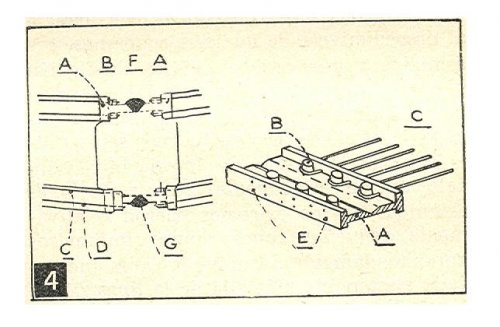

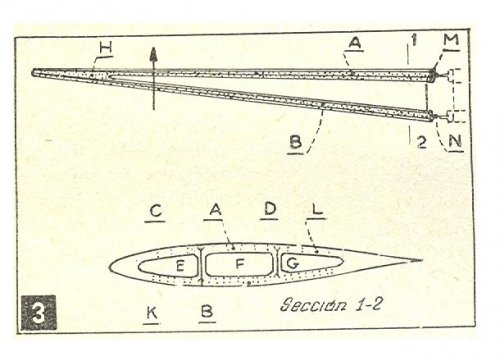

According to "Les Avions Bréguet 1940-1971" (Jean Cuny et Pierre Leyvastre, DOCAVIA, 1977), the wings were made of a material rather like a composite material with steel wires as fibers and concrete as matrix.

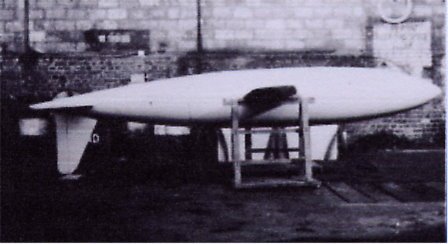

Six Br 910 gliding bombs were tested in 1952-53.


Attachments

  • Br910.jpg
    22.7 KB · Views: 177
flateric

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,105
Reaction score
1,082
...


Attachments

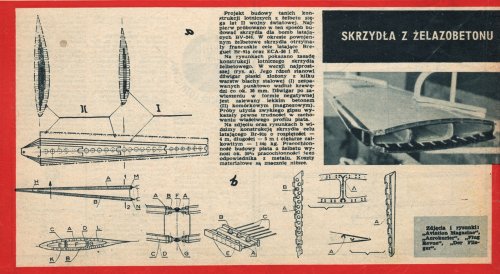

  • 910 wing.jpg
    910 wing.jpg
    889.1 KB · Views: 52
