Breguet Br.122 VG Projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,438
Reaction score
3,455

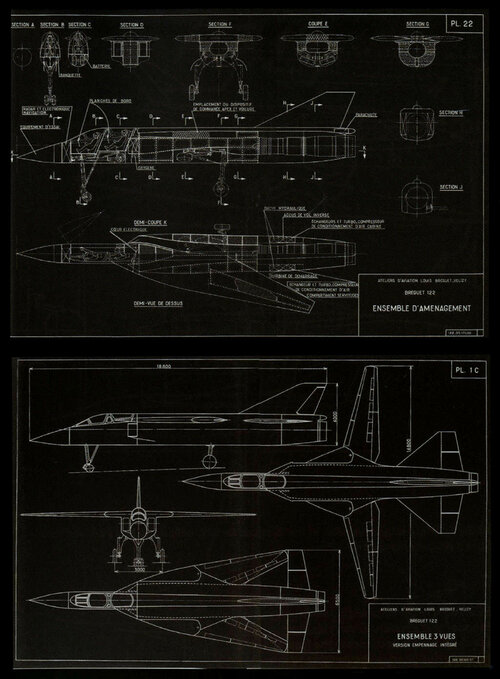

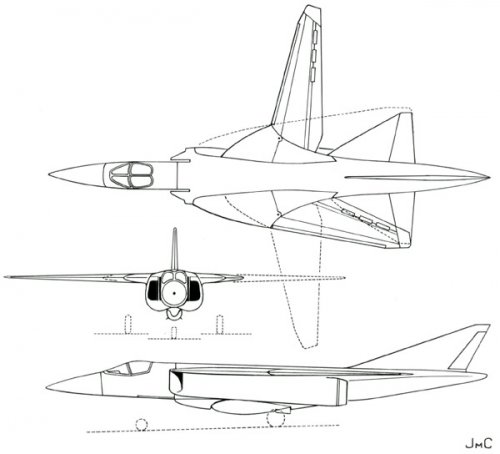

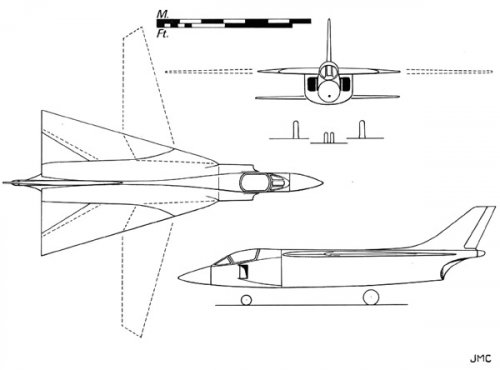

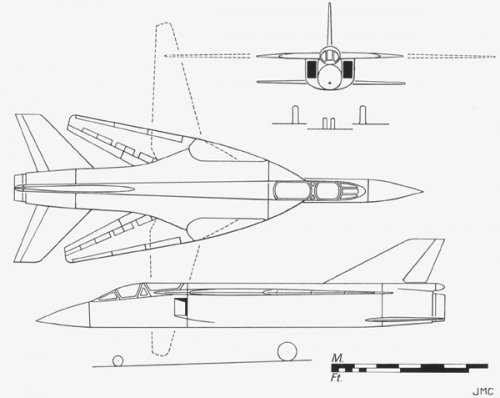

Some interesting VG projects from Breguet. Note the development of a particular VG form where the wing and tail form a locked delta wing planform in full sweep.

Source:

Jean Cuny, Les Avions Breguet 1940-1971

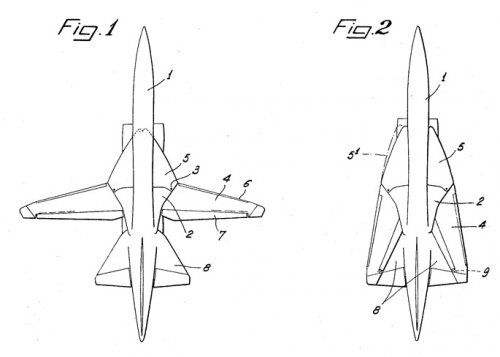

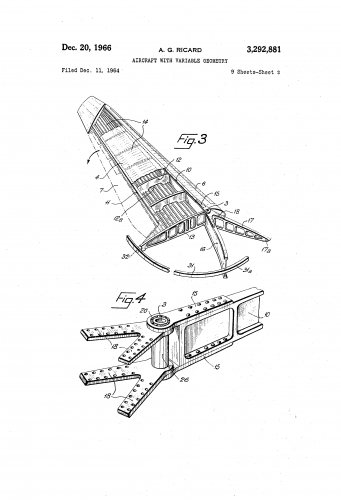

The last two images are from US Patent 3,292,881 by Breguet chief engineer, A G Ricard.


https://www.google.com/patents/US3292881


Attachments

  • Br-122.jpg
    42.1 KB · Views: 618
  • Br-122B.jpg
    33.8 KB · Views: 553
  • Breguet-VG.jpg
    44 KB · Views: 562
  • Breguet-VG-1964-Patent.jpg
    41.6 KB · Views: 467
  • US3292881-0.png
    35.5 KB · Views: 211
  • US3292881-1.png
    83 KB · Views: 83

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
My dear Paul,


although I had the book; Les Avions Breguet 1940-1971,from 2007,but
your drawings are more clearance than the drawings from that book,thank
you.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,438
Reaction score
3,455

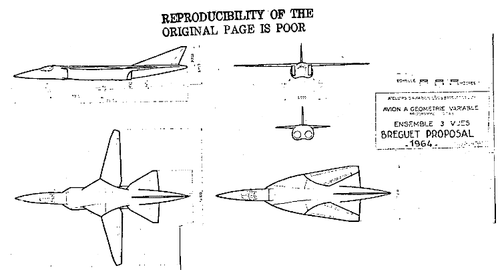

In 1963, the Technical Aeronautics Service requested ONERA to make a general study, both theoretical and experimental, on variable sweep design, and simultaneously requested the Breguet Company to undertake a preliminary design study on a multipurpose combat aircraft (Fig. 41). Shortly thereafter, a similar study was requested of the Dassault Company, which was to be followed by an order for a single-engine experimental prototype from this company, the Mirage G, in October 1965. This aircraft made its first flight 25 months later, and a large part of the flight envelope was explored in the following 2 months (beginning of 1968). The unquestionable success of this program and the speed of its execution demonstrate the solidity of a prototype policy based on experience gained with previous aircraft: in developing a new concept (variable sweep wing), the Dassault Company had actually reused most of the elements already tested in flight on the Mirage F2 fixed wing experimental aircraft (same PW-TF-306 jet engine, same fuselage with already qualified side air inlets and nozzle, and virtually identical pivoting horizontal stabilizers; see Fig. 8).

From https://ia800303.us.archive.org/18/items/nasa_techdoc_19750001983/19750001983.pdf
