Boulton Paul Lift Fan Designs

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
Hi,

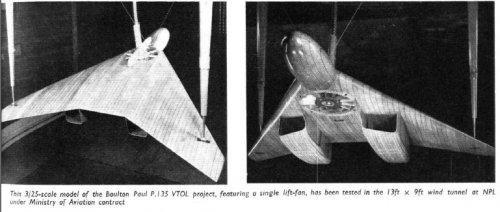

the Boulton Paul P.135 was VTOL reserach aircraft project and
had a single lift-fan.
http://www.flightglobal.com/pdfarchive/search.aspx?search=BOULTON+PAUL+P.135+vtol&SearchSubmit=Search


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164

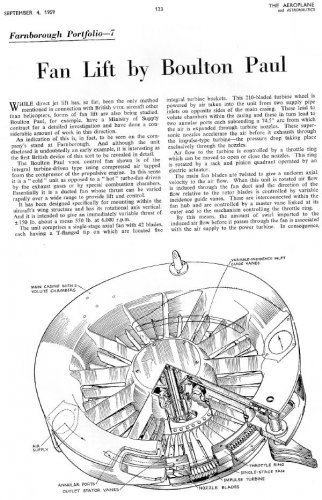

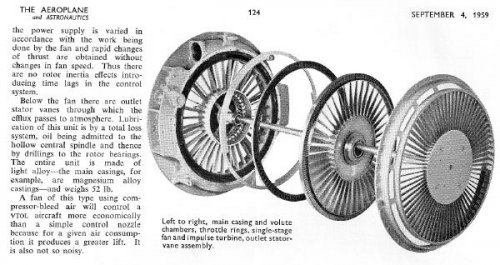

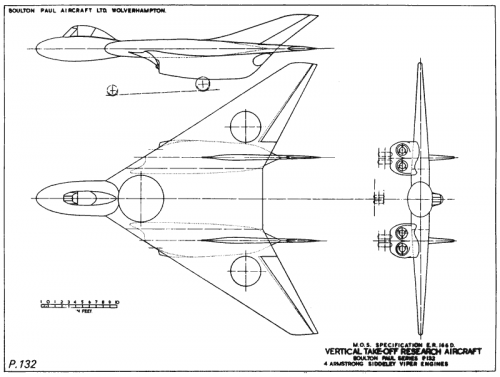

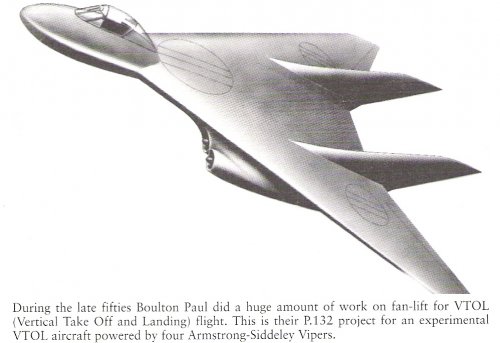

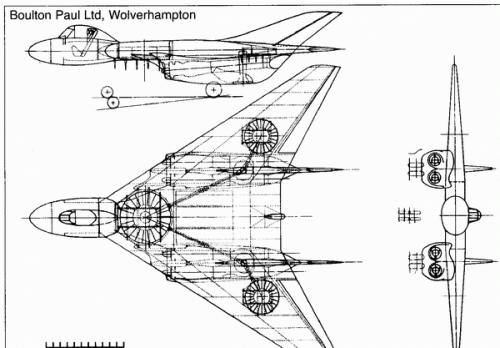

A possible application was the P.132 Research aircraft, a design from 1956:
(from Alec Brew "Boulton Paul Aircraft")


Attachments

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
927
Reaction score
17
As well as the fans can I see jet deflection there as well?

Regards,
Barry


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164

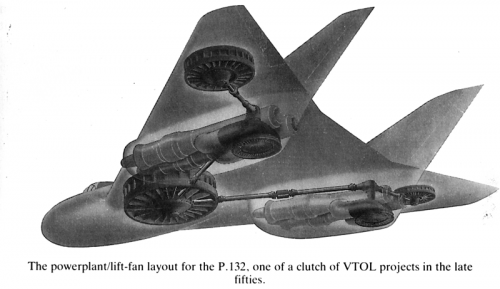

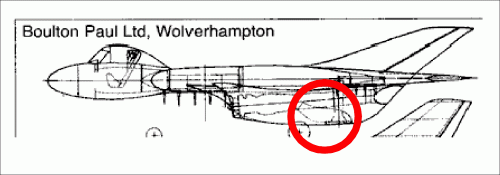

Refferring to the mentioned book, the P.132 was intended to uselift fans only.
Do you thought of the object, looking like a jet pipe, as part of jet deflection ?


Attachments

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
927
Reaction score
17
Well at first glance I thought that there was jet deflection there. Studying it a bit more it does seem that it is a contraption that is powering the lift fans (as pipes/shafts go off to the wing and fuselage units) from a large pipe coming off of the engines.

Regards,
Barry


Kokoro

CLEARANCE: Confidential
Joined
Apr 8, 2009
Messages
50
Reaction score
0
I did some searches and didn't find anything mentioned about the machine. So I thought I'd make a new post, if that is okay.

I was talking with a friend the other day, about aircraft design as you do, talking about why aircraft tend to have dorsal rather than ventral tail fins. I was reminded of this Boulton Paul design that had ventral fins only, and wheels on the end of them. Should surely save weight, not needing a main set of undercarriage legs.

So what information can you share on this machine? thanks. ^_^


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,443
Reaction score
744
P.130

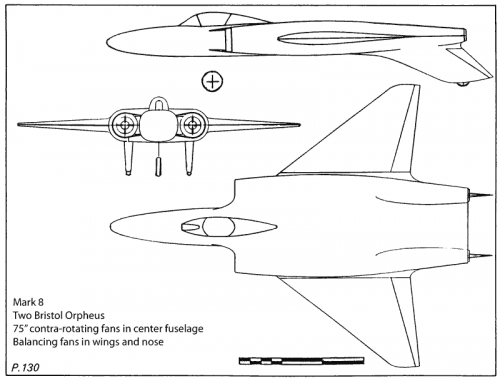

This was a group of proposals formulated in late 1954/early 1955, and designated Mk 1 to Mk 12, for VTOL aircraft having fanlift. Details of only two of them survive. The Mk 6 was a fairly conventional delta-wing aircraft with a centrally-mounted 54 in diameter contra-rotating fan, and powered by five Rolls-Royce RB.108 engines. The Mk 8 was a more radical delta powered by two Bristol Orpheus engines, and featuring a 75 in diameter contra-rotating fan, with three smaller balancing fans in the wings and the nose. The twin fins were underslung and supported the mainwheels of the tricycle undercarriage. This layout was to give adequate ground clearance for the large mass airflow from the fans. The Mk 8 design had folding wings and a cannon mounted in each wing inboard of the balancing fan, and outboard of an underwing pylon.
Source:
Alec Brew, Boulton-Paul Aircraft since 1915, Putnam 1993


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164
"Should surely save weight, not needing a main set of undercarriage legs."

this is a concept, that was favoured by the good old Luigi Colani, too, who used it
in quite a number of designs. I don't know any more, where I read about it, but once
there was a report about the credibility of his designs, especially mentioning the concept
of the "symbiosis of fin and main gear", as he called it, too. And IIRC, the result was quite
disappointing : The fins of course would have to be beefed up considerably and in
most cases would have a shape, which would be less than ideal aerodynamically. And
the landing gear itself would be heavier, than necessary, because of the not ideal
load distribution.


Kokoro

CLEARANCE: Confidential
Joined
Apr 8, 2009
Messages
50
Reaction score
0
Thats the one, thanks for the replies.

I guess if there was any advantage to using fins as landing gear it would be more commonly seen. Being a VTOL design it was a possible option on the P.130 then.

Maybe such a langing gear arrangement would make better sence with an ultralight than a military fighter. not quite the same but a Quickie comes to mind with the main gear on the ends of the canards.


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
14

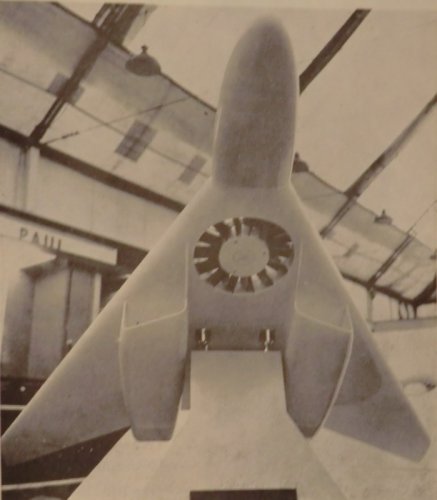

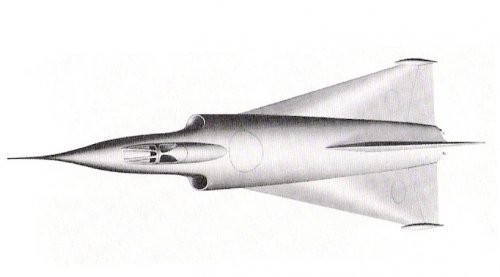

Alec Brew's Boulton Paul Aircraft (Budding Books 1998 Edition) has a rendering of the P.135B high-speed experimental version. It was to be used in the investigation of fan-lift combat applications.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
Wow,incredible design my dear Cy-27;


thank you for sharing.


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
14
See attached image of the A.S. Viper powered P.132 from Alec Brews Boulton Paul Aircraft (Budding Books, 1998 edition) ISBN 1840150785


Attachments

JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,174
Reaction score
57
Cy-27,

Thank you so much for posting, it looks like the P.135B is the missing link between the P.132-5 and the P.136. The P.136 as illustrated in Kites, Birds & Stuff - Boulton Paul Aircraft by P.D Stemp looks almost identical to the P.135B except is uses 6 x RB.108s mounted in the centre fuselage instead of the Boulton Paul lift-fan system of the P.135B. Based on that the P.135B was probably designed for a pair of Bristol Siddeley Orpheus engines too. Is it possible that the P.135 and P.136 were aimed at the same ER.161T that the Armstrong Whitworth AW.171 was designed to?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
Hi!

http://blog.livedoor.jp/janome_gotyou/archives/cat_136010.html?p=9

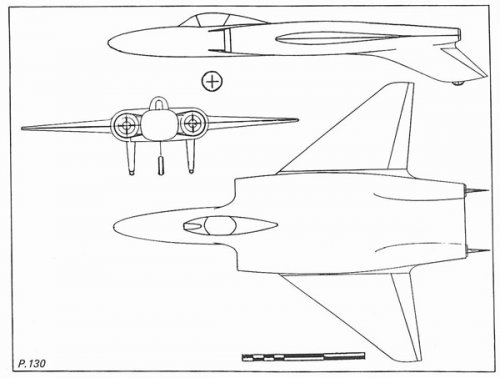

P.130 Mk.8 Fan diameter is 75-inch and P.130 Mk.6 Fan diameter is 54-inch. Mk.8 is said for the Navy.
But I can't see any fan in this drawing. ???


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
Hi!

http://blog.livedoor.jp/janome_gotyou/archives/cat_136010.html?p=9

So I can see fan drive turbine located under the engines which connected to three fans by shaft ? This fan is not gas drive type?
Also I can see jet deflector under the fans in this drawing.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=3668.0;attach=44159;image


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
From Ailes 1/10/1960.\,

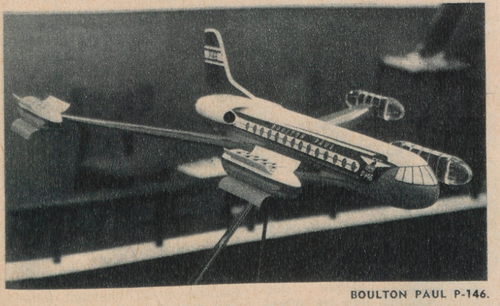

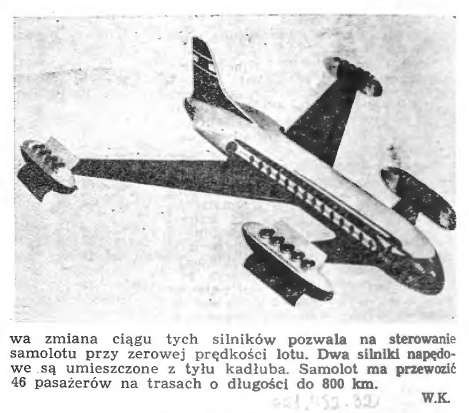

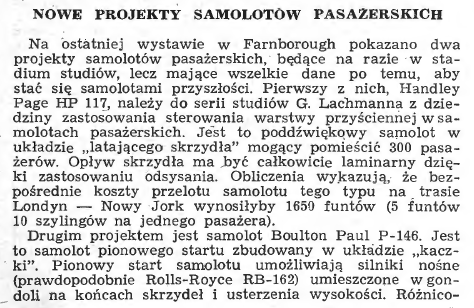

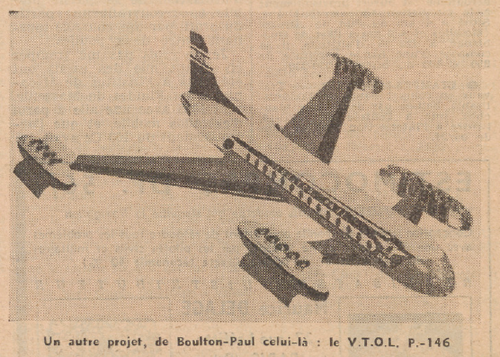

the P.146.


Attachments
