Hi,

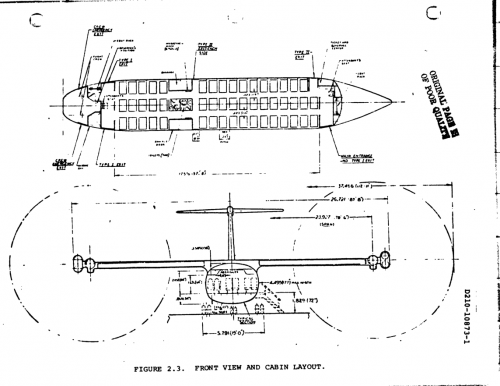

I find anther report for this convertiplane,and they also called it D-210,
but I can't ID if this means design-210 or not ?.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19750022072_1975022072.pdf


Attachments

  • D210.jpg
    74.3 KB · Views: 209

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
856
They call it D210, not D-210... and we're not even sure this corresponds to a Model number.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,045
Website
deeptowild.blogspot.com

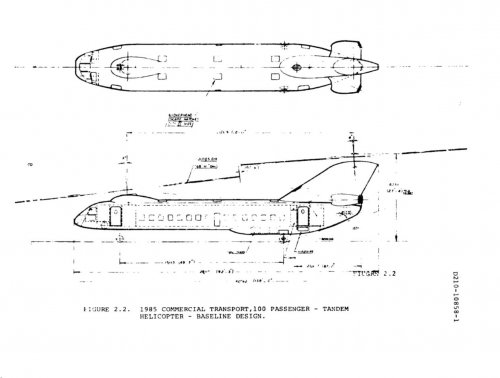

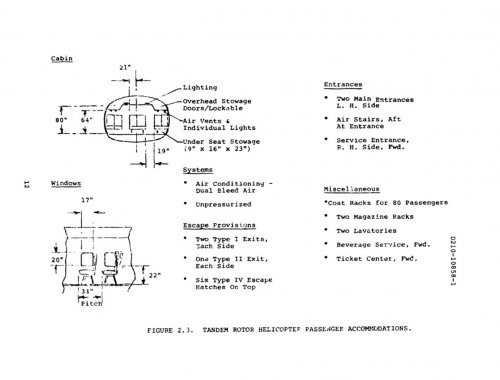

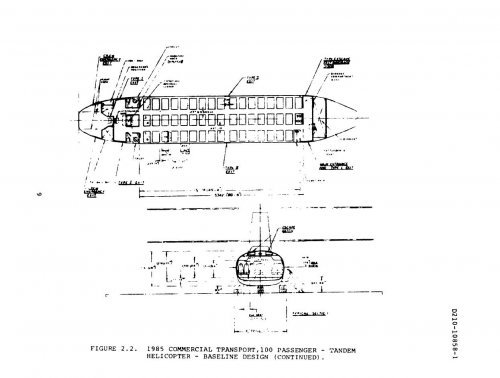

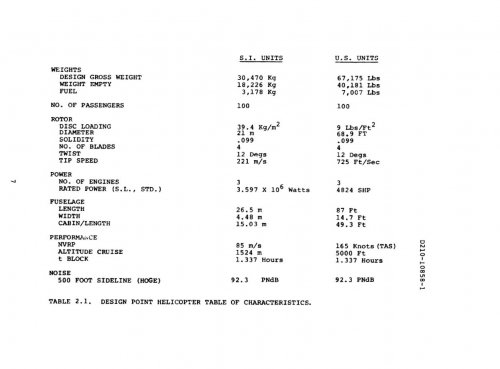

Boeing Vertol 100-passenger tandem helicopter design baseline concept as part of the NASA 1985 Commercial V/STOL Transport program.

Source:
Magee, J. P.; Clark, R. D.; Alexander, H. R. Conceptual Design Studies of 1985 Commercial VTOL Transports That Utilized Rotors, Volume I Boeing Vertol Company November 1, 1974

Abstract:
Results of conceptual design studies of commercial rotary wing transport aircraft for the 1985 time period are presented. Two aircraft configurations, a tandem helicopter and a tilt rotor, were designed for a 200 nautical mile short haul mission with an upper limit of 100 passengers. In addition to the baseline aircraft two further designs of each configuration are included to assess the impact of external noise design criteria on the aircraft size, weight, and cost.

URL: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19750022073_1975022073.pdf


Attachments

  • BoeingTandemTable.JPG
    146 KB · Views: 25
  • BoeingTandem1985d.jpg
    76.1 KB · Views: 32
  • BoeingTandem1985c.jpg
    96.1 KB · Views: 52
  • BoeingTandem1985b.jpg
    69.9 KB · Views: 247
  • TandemHelicopter1985.jpg
    95.9 KB · Views: 234

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,045
Website
deeptowild.blogspot.com

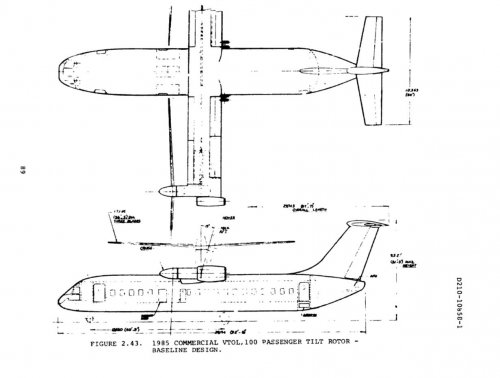

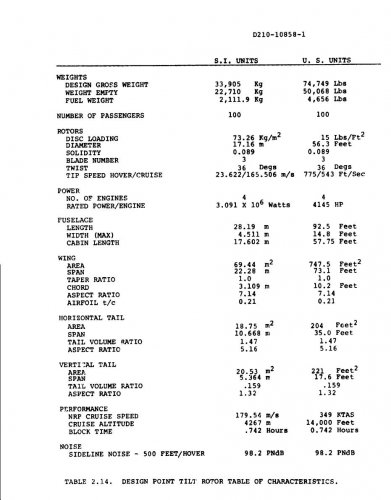

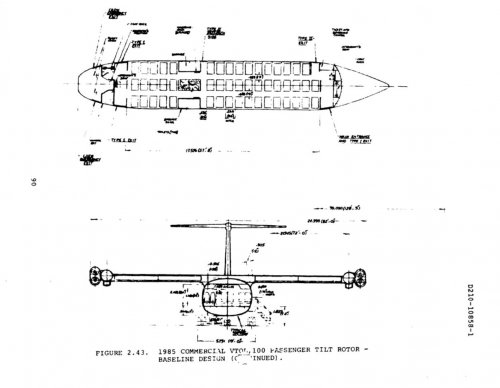

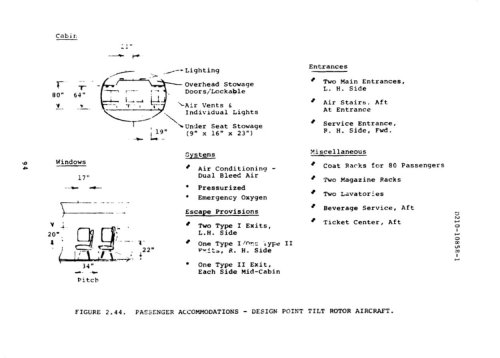

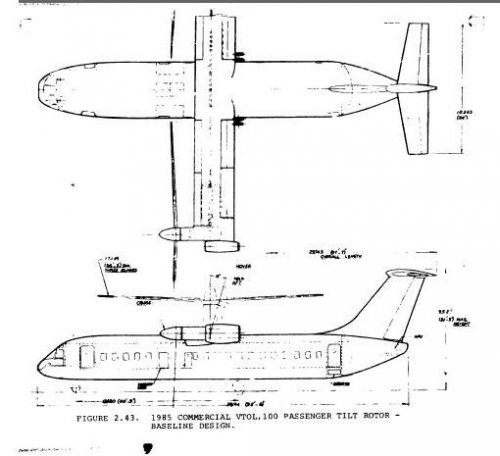

Boeing Vertol 100-passenger tiltrotor design baseline concept as part of the NASA 1985 Commercial V/STOL Transport program.


Source: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19750022073_1975022073.pdf


Attachments

  • Boeing1985tiltrotore.jpg
    68.9 KB · Views: 31
  • Boeing1985tiltrotord.JPG
    115.8 KB · Views: 27
  • Boeing1985tiltrotorc.jpg
    75.4 KB · Views: 35
  • Boeing1985tiltrotorb.jpg
    74.3 KB · Views: 55
  • BoeingTiltrotor1985.jpg
    209.4 KB · Views: 59

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,045
Website
deeptowild.blogspot.com
Artist's concept of Boeing Vertol 100-passenger tilt-rotor concept as part of the NASA 1985 Commercial V/STOL Transport program.

Source:
Widdison, C. A.; Magee, J. P.; Alexander, H. R. Conceptual Design Study of a 1985 Commercial STOL Tilt Rotor Transport

Abstract:
Results of conceptual engineering design studies of a STOL tilt rotor commercial aircraft for the 1985 time frame are presented. The details of aircraft size, performance, flying qualities, noise, and cost are included. The savings in terms of fuel economy resulting from STOL operations compared with VTOL vehicles are determined.

URL: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19750022072_1975022072.pdf


Attachments

  • Boeing1985TiltRotor.jpg
    435.7 KB · Views: 66

F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,869
Reaction score
447
What I always found interesting about designs from those early days is that Bel's designs tilted the engines while Boeing's designs didn't. There are pros and cons with either concept.


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,945
Reaction score
891
In the documents I was looking at the preliminary design was referred to as TH-100 with the design in the Op being referred to as TR-100, so my mistake is an honest one. Feel free to merge this with the older topic.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,081
Reaction score
248
How can anything so interesting be a mistake? ;D

I guess we'll see a topic merge soon?
