Boeing Model 869: VG Mohawk replacement

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
2,911
Reaction score
1,505
I have just found a copy I made of a picture on the old Aerospace Projects Review site of a Boeing swing wing aircraft looking like a Grumman Mohawk but flatter. Confusingly there is a side view drawing in Internavia from about 1962 showing a Republic (I think) vstol pair, one of which is like the early AVS design and the other like the Mohawk. I must try and find this as I think it is a miscaption of a Boeing handout rather than Republic.

UK 75


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
This sounds highly intriguing.
Hope we will see the results of your search ;D

Success!


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com
lark said:
Hope we will see the results of your search

I have six designs from that effort, thought not that *precise* design. Ranged from dull turboprop to something that looks like the bastard offspring of a Mohawk and an F-111.

If *only* someone would subscribe to APR, I'd find it in my heart to scan & post....

http://www.up-ship.com/eAPR/index.htm

Ahem. Ahem.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,676
Reaction score
1,720
Orionblamblam said:
lark said:
Hope we will see the results of your search

I have six designs from that effort, thought not that *precise* design. Ranged from dull turboprop to something that looks like the bastard offspring of a Mohawk and an F-111.

If *only* someone would subscribe to APR, I'd find it in my heart to scan & post....

http://www.up-ship.com/eAPR/index.htm

Ahem. Ahem.

Hell if you'd scan and post all your Pluto/SLAM stuff I'd buy it today. ;D (Like you did with the B-1, Snark, Saturn, etc.)


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
2,911
Reaction score
1,505
APR subs

Do you take Paypal?

UK 75


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com

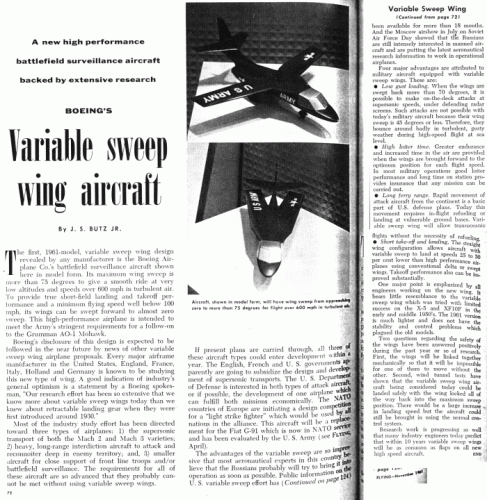

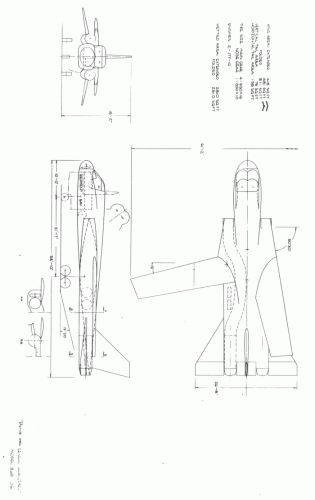

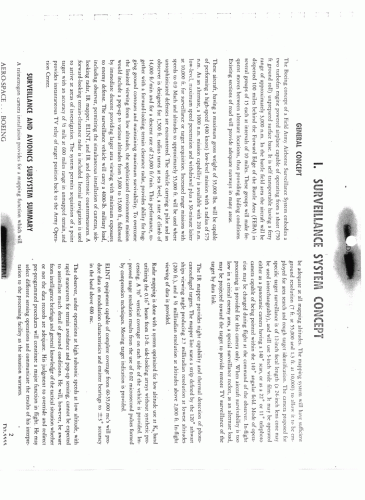

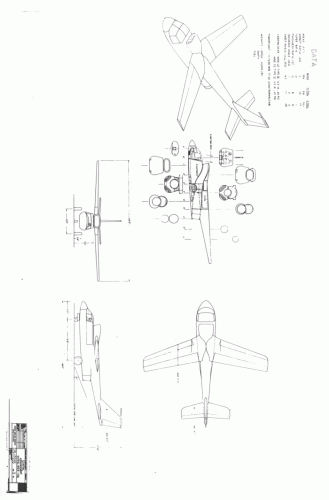

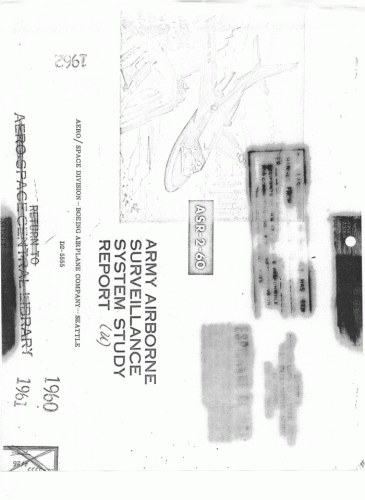

At long last, a new APR subscriber signed up (yay. all the way up to 32 now... :mad: ). So, as promised, here's some stuff:


Attachments

  • boeing model 869 article.gif
    boeing model 869 article.gif
    289.3 KB · Views: 983
  • boeing model 869-1.gif
    boeing model 869-1.gif
    83 KB · Views: 854
  • boeing model 869-2.gif
    boeing model 869-2.gif
    98.2 KB · Views: 809
  • boeing model 869-3.gif
    boeing model 869-3.gif
    74.3 KB · Views: 742
  • boeing model 869-4.gif
    boeing model 869-4.gif
    45 KB · Views: 725
  • boeing model 869-5.gif
    boeing model 869-5.gif
    102.9 KB · Views: 371

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com
pometablava said:
subscribed tonight...

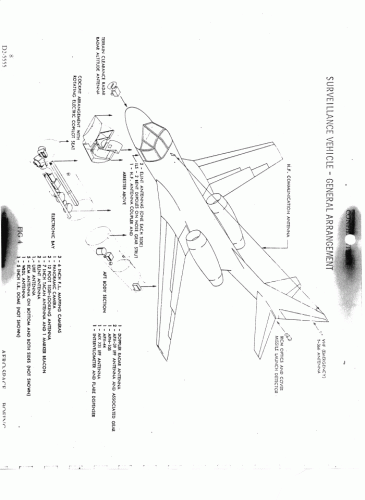

Indeed so. As a reward (as if APR wasn't reward enough):


Attachments

  • Boeing surveil 5.gif
    Boeing surveil 5.gif
    94.6 KB · Views: 220
  • Boeing surveil 4.gif
    Boeing surveil 4.gif
    127.9 KB · Views: 135
  • Boeing surveil 3.gif
    Boeing surveil 3.gif
    199.8 KB · Views: 203
  • Boeing surveil 2.gif
    Boeing surveil 2.gif
    81.6 KB · Views: 341
  • Boeing surveil 1.gif
    Boeing surveil 1.gif
    362 KB · Views: 209

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

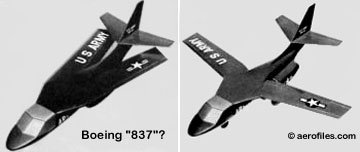

In Aerofiles site they spoke about Boeing-837 as rumored swing-wing
close-air support project for the Army to replace Mohawk.


Attachments

  • boe-837.jpg
    10.7 KB · Views: 248

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com

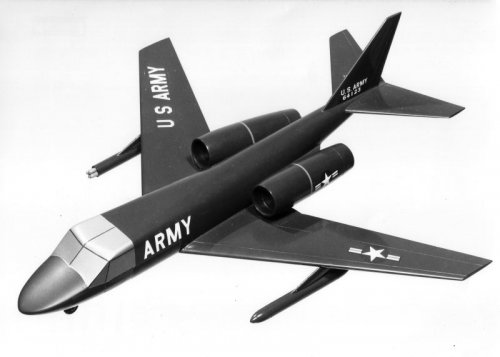

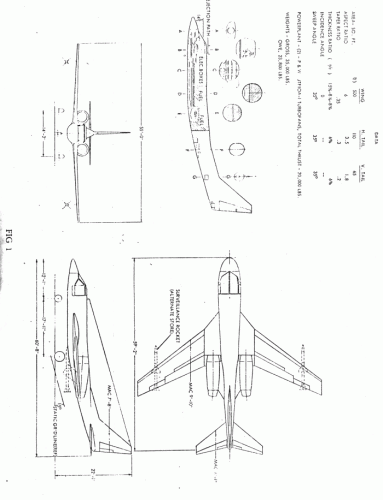

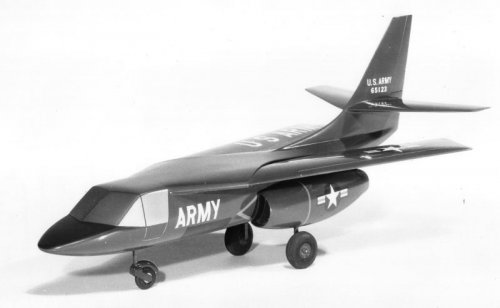

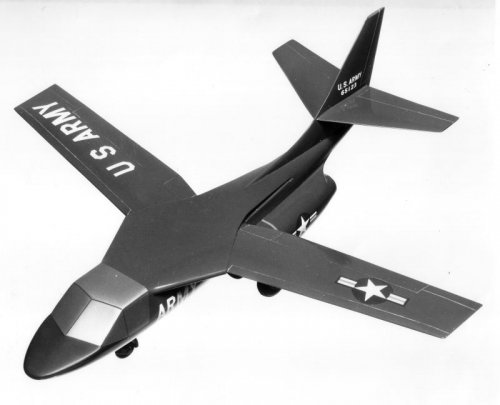

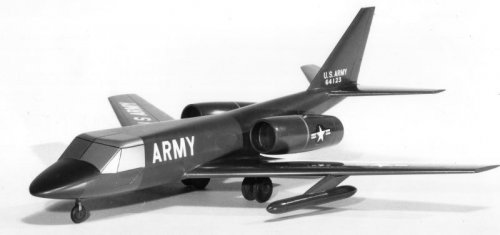

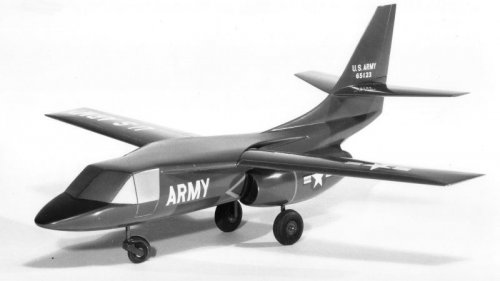

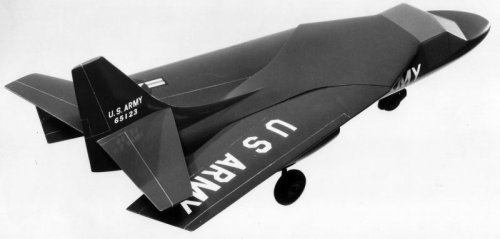

Had these sitting quietly in my hard drive...


Attachments

  • Image34.jpg
    25.9 KB · Views: 139
  • Image32.jpg
    35.2 KB · Views: 160
  • Image30.jpg
    26 KB · Views: 152
  • Image29.jpg
    37.8 KB · Views: 161
  • Image28.jpg
    25.6 KB · Views: 172

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,920
Reaction score
290
Interesting find gents!

But this VG-wing design seemed very complicated = expensive for such basic role in which it was to have served!


Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,661
Reaction score
4,267
In the context of 1960 I think VG was thought of as a universal panacea, the cost/benefit analysis not yet clear.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,480
Reaction score
696
And yet look at how progressive was the thinking of the U.S. Army in the early 1960's. A far cry from the convention of today.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
2,911
Reaction score
1,505
Its been a while since anyone posted here. I am still interested in a three view of the swing wing version and also what other proposals were made?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

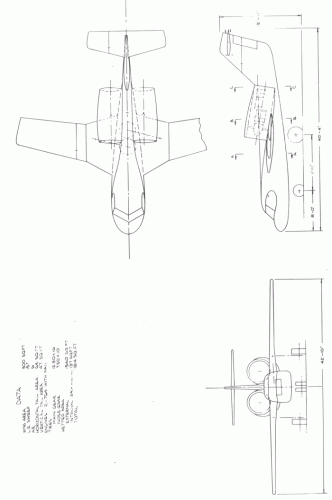

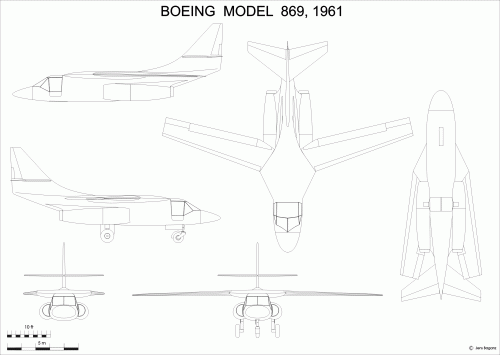

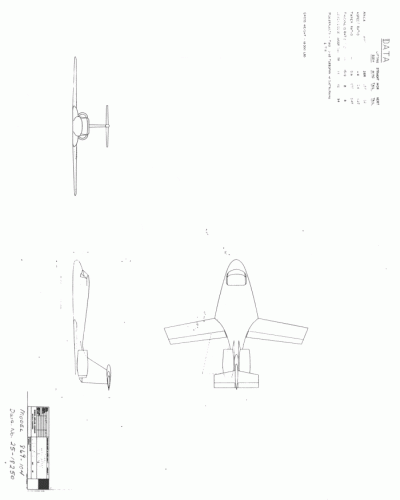

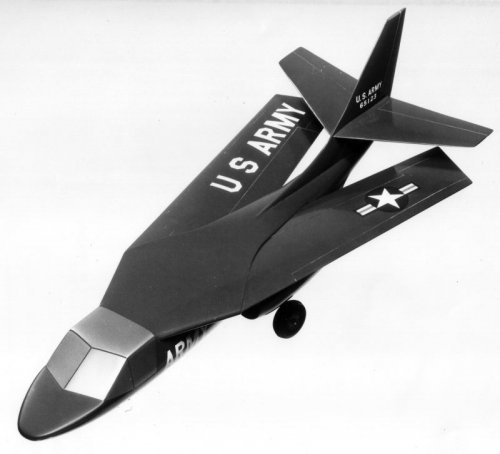

Based on the model photos and comparison with the other designs of this series,
source grade 2. Anybody who has the full designation ?

(Corrected, thanks Sundog ! ;) )


Attachments

  • Boeing_Model-869_CP.jpg
    181 KB · Views: 418
  • Boeing_Model-869.gif
    189.3 KB · Views: 300

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,861
Reaction score
320
That looks great. There is one slight error with the multi-views; in the bottom view, the wing tip should be clipping out the stabilizer, since the stabilizer is higher than the wing. Just saying. Nice work. :)


Volkodav

I really should change my personal text
Joined
Mar 28, 2014
Messages
313
Reaction score
265
It sort of reminds me of the Spector Gunship on the Command and Conquer Generals PC Game ::)
