Boeing Lunar Rover circa 1991

blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13

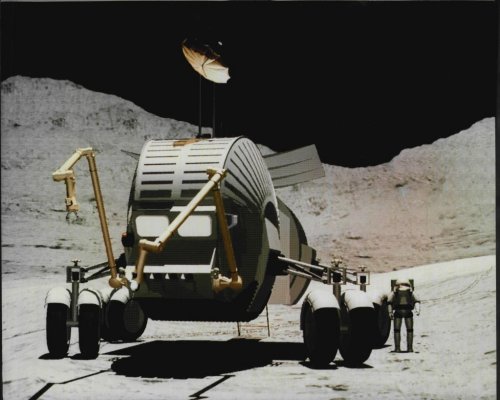

That cabin shape doesn't seem very sensible. Wouldn't you want something that didn't waste volume like that?


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,953
Reaction score
29
blackstar said:
That cabin shape doesn't seem very sensible. Wouldn't you want something that didn't waste volume like that?
If the cabin is pressurised then it is quite a sensible shape.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13

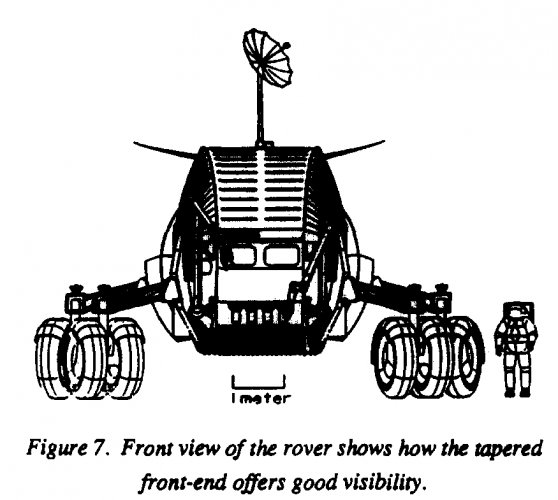

Imagine standing in it. It's like standing in the middle of a wheel--you have trouble moving forward or backward in it, and you're always going to hit your head. And notice where the windows are located, not where your head would be, but lower down. Nobody builds cars or trucks like that. It just doesn't make sense.


Rhinocrates

CLEARANCE: Secret
Joined
Sep 26, 2006
Messages
205
Reaction score
33

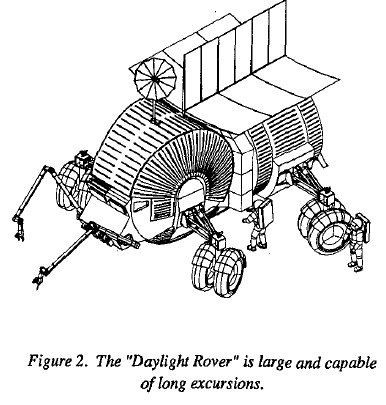

Not necessarily. Look at the scale of it compared to the space-suited figure outside. If it's a two-level cabin, then a seated driver behind the windows should have a good position, while there would be space above for sleeping berths (or whatever). I assume that this is a rover intended for long-term excursions.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13
But it's a _circle_. Nobody builds cars like that. You want a cabin that is horizontal so that people can move around in it. And you don't want to raise the center of gravity with a second floor, because then it topples over more easily.


Rhinocrates

CLEARANCE: Secret
Joined
Sep 26, 2006
Messages
205
Reaction score
33
I do note that it has a very wide track. I'm trying to find the rationale - you're right, the designers wouldn't waste space overhead, so what would go up there? Bunks is my guess and perhaps whatever's up there doubles as radiation shielding. I agree that it's not a GOOD design, with the ergonomic tradeoffs not being worth whatever other advantages there might be and likely that's why we haven't seen any later iterations. :)

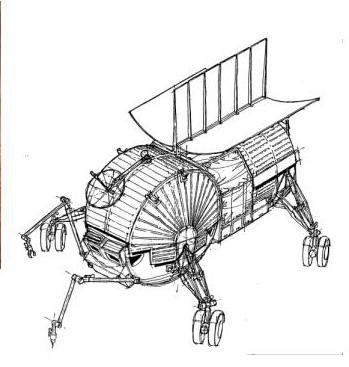

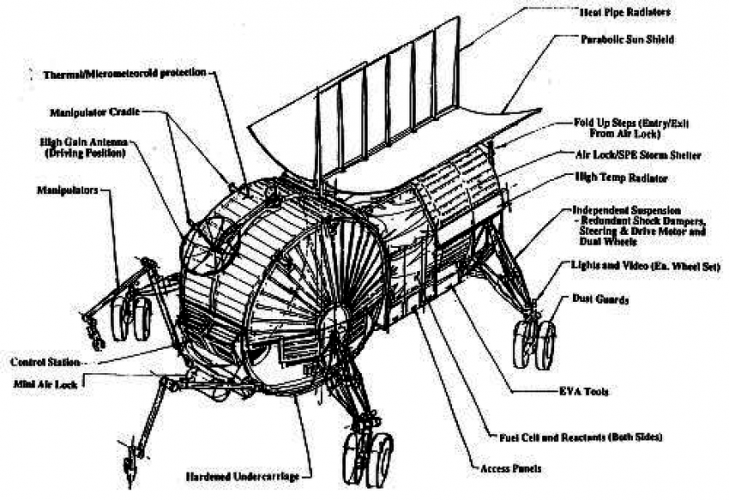

Edit: I've just dug up another image (sorry, source unknown), and there's a second section visible, possibly allowing freer longitudinal movement, though that could just be an unpressurised service module.

Anyway, I'm going to make these guesses - the scale of the suited figure suggests that a hypothetical upper level wouldn't be high enough to allow standing, but would allow something like a Japanese capsule hotel (http://en.wikipedia.org/wiki/Capsule_hotel) and there is no hatch visible on at least one side of the vehicle, suggesting that the aft section is in fact accessible (or has a tunnel), with an airlock and/or docking port at the rear.

Certainly there are more elegant designs around, such as the SEV (http://en.wikipedia.org/wiki/Space_Exploration_Vehicle) in its current form.


Attachments

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
blackstar said:
But it's a _circle_. Nobody builds cars like that. You want a cabin that is horizontal so that people can move around in it. And you don't want to raise the center of gravity with a second floor, because then it topples over more easily.
...You're a) forgetting that this would be in a 1/6g environment, so the c/g issues might not be as crucial - remember, we've only had *two* designs of rovers on the Moon, and only one of those actually had a driver and passenger on board, and b) we haven't seen the docs/images on *how* this thing was packed, delivered and/or deployed; ergo, the final operational shape we see is the end result, and the details on the trip itself aren't shown.

Again, the key words are "inflatable" and "pressurized". I read this still-short thread, look at that one deployed concept drawing, see the "it can't be done, you'll fall off the edge of the Earth if you keep going west, Christobal!" comment, and keep shaking my head at the fact that for all the positive support I've given Bigelow for their blimphabs, I can't recall ever seeing any images of it undeployed and just ready for launch.

Anyone got images or links to said on how this Moonble Home looks all gift-wrapped and ready for launch and/or deployment?


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13
Rhinocrates said:
I do note that it has a very wide track. I'm trying to find the rationale
I drove around in the Lunar Electric Rover in late July at JSC (they wouldn't let me drive it). Internal volume is at a premium in such a vehicle. There just doesn't seem to be any good reason to add volume above people's heads. If you're going to add volume, you add it horizontally.

I'm guessing that their rationale was they were drinking beer.


Rhinocrates

CLEARANCE: Secret
Joined
Sep 26, 2006
Messages
205
Reaction score
33
Without further information, I'm giving the benefit of the assumption of competence and assuming that something useful was supposed to go up there, such as compact sleeping berths and/or stuff that was supposed to be radiation shielding. In any case, it appears that there have been far more elegant solutions since and this design concept has been abandoned.

"I drove around in the Lunar Electric Rover in late July at JSC"

You lucky bastard.


Rhinocrates

CLEARANCE: Secret
Joined
Sep 26, 2006
Messages
205
Reaction score
33
Added (the window for amendments ran out):


For the SEV design, the seats were supposed to convert into beds anyway? Separate beds - if that was what the upper level was meant to provide - are redundant since the SEV has been developed.

"If you're going to add volume, you add it horizontally."


Rhinocrates

CLEARANCE: Secret
Joined
Sep 26, 2006
Messages
205
Reaction score
33
(separate post since the window for amendments ran out)


Which must have been Boeing's eventual decision. It's a fundamentally flawed design, of historical interest only, but interesting because of that because it shows a step along the path to a more sophisticated manned rover design. In the process of designing things, people make proposals that could potentially work, but which get superseded in the next design cycle. I think that what we're seeing is an idea that addressed some issues, but had penalties that meant that the concept was not worth pursuing and later, better solutions came up and they were followed.


RanulfC

CLEARANCE: Top Secret
Joined
Mar 6, 2009
Messages
738
Reaction score
121
Rhinocrates said:
Edit: I've just dug up another image (sorry, source unknown), and there's a second section visible, possibly allowing freer longitudinal movement, though that could just be an unpressurised service module.
Actually the design DOES make sense, in context :)

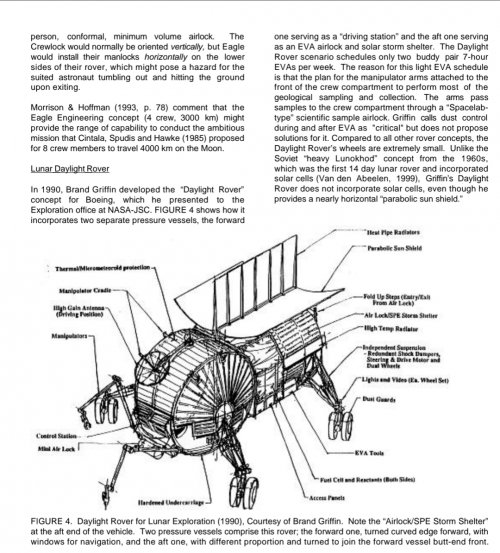

Ok look at the design Rhinocrates posted, the "cab" is maybe a little bigger than the aft "module" but you see two possible same-size segments at the very aft of the module. Look how "deep" they are, (or imagine how deep it would be turned sideways :) ) and you see that by turning the "circle" side-ways Boeing gave the "crew-deck" the maximum horizontal space (fore-aft) possilbe in the space. Meanwhile you have equipment, (batteries, electronics, life support, etc) in the "basement" to lower the cabin CG, while storing equipment, supplies and maybe even sleeping cubicles in the "attic" are.

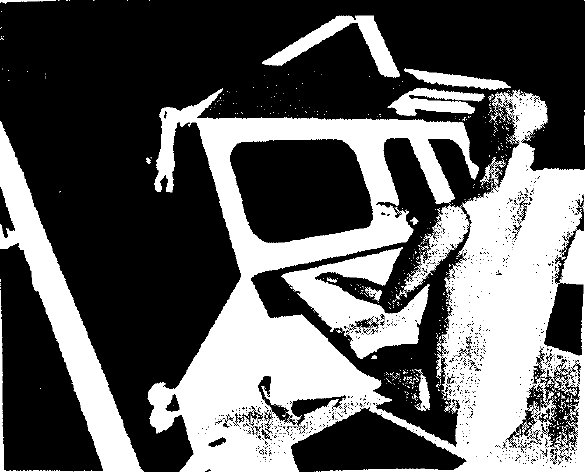

Accessing the "side" windows is important, as in the SEV "seeing" is important and given the design constraint that it appears to be under the set up makes the most of needing a "narrow" designed cab without being to constricting in overall inside movement space. (I suspect that it was driven while standing up, to allow greater movement ability. A lot of the rovers around the time-frame used that as I recall with a restraining "harness" but allowing the astonauts own body to absorb shocks)

Round shapes are always hard to partition, but round it what rockets (and cargo bays) tend to be which dicates what you have to work with. This looks like such a case as the positioning is probably the best available for the constraints. But without knowing all the constraints and at least SOME of the "assumptions" made during the design process I have to agree with Rhinocrates, that it was a design meant to address the issues Boeing knew about rather than a free-form "best-case" design. (I wouldn't go so far as to call it "fundamentally flawed" because Blackstar makes a bit of a "fundamental" mistake in his critisism that people don't build cars or trucks "that way" when in fact people DO build rather "weird" designs when working to a point solution around constraints. For example one would think that designing and building a series of trucks that had a single person, high mounted cab placed on the chasis on the left side of the vehicle engine would be "flawed" because of such things as low visibility to the right side among others. Yet there are thousands of those trucks driving around on US highways working the 'niche' of field-to-processing transportation. In the context they make technical and economic sense :) )

Randy


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13
RanulfC said:
But without knowing all the constraints and at least SOME of the "assumptions" made during the design process I have to agree with Rhinocrates, that it was a design meant to address the issues Boeing knew about rather than a free-form "best-case" design. (I wouldn't go so far as to call it "fundamentally flawed" because Blackstar makes a bit of a "fundamental" mistake in his critisism that people don't build cars or trucks "that way" when in fact people DO build rather "weird" designs when working to a point solution around constraints. For example one would think that designing and building a series of trucks that had a single person, high mounted cab placed on the chasis on the left side of the vehicle engine would be "flawed" because of such things as low visibility to the right side among others. Yet there are thousands of those trucks driving around on US highways working the 'niche' of field-to-processing transportation. In the context they make technical and economic sense :) )

Randy
The fact that there are all those vehicles with the cab mounted to one side indicates that there is some kind of value to that design (although I don't know what it is).

But show me a single other vehicle that is shaped like this hamster wheel that is used for anything at all.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,029
Reaction score
204
Boeing were involved in the original LRV, alongside General Motors:


I'm cheating a bit here, the rover first flew on Apollo 15.

ORIGINAL CAPTION: The Apollo 15 Lunar Roving Vehicle (LRV) and the Lunar Module (LM) during
simulations at the Kennedy Space Center. [Photo: NASA]
