Bendix Dual Mode LRV

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,470
Reaction score
234

Attachments

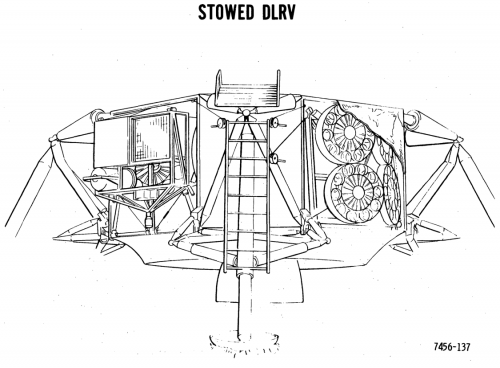

  • DLRVStowed.png
    226.1 KB · Views: 483

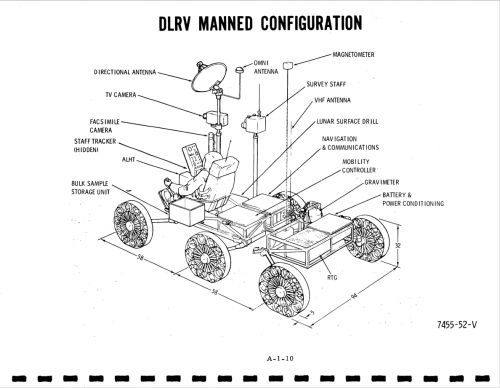

  • DLRVManned.png
    239 KB · Views: 464

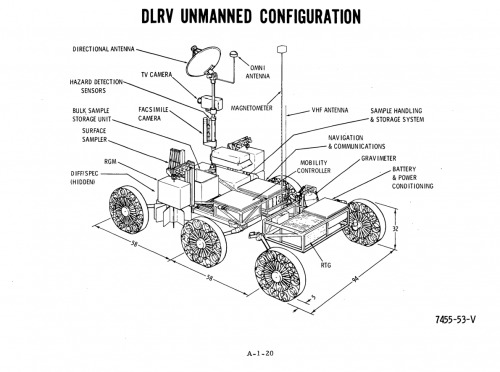

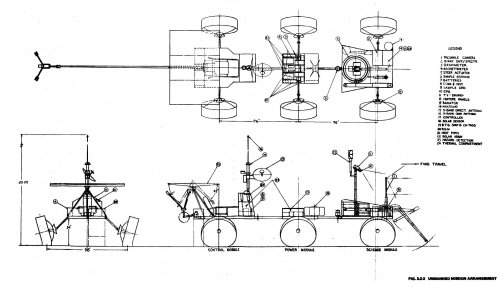

  • DLRVUnmanned.png
    241.4 KB · Views: 437
  • RecommendationIII.png
    43.8 KB · Views: 409

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

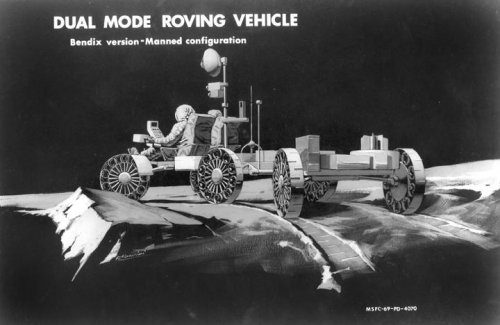

Artist's impression of Bendix Dual Mode LRV.

Source:
http://www.knology.net/~skeetv/SimHist3.html


Attachments

  • Lunar20.jpg
    44.2 KB · Views: 398

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
Triton said:
blackstar said:
Powered by an RTG.

Radioisotope Thermoelectric Generator?


Yes, because Dual Mode LRV needed allot power like for tools like Lunar surface drill
and after the Manned mission for the remote control exploration.
Wat take several months (or several Lunar day and Nights)
so battery or Solarcell were out of question


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,766
Reaction score
136
There's also the two-week lunar night. That wrecks havoc on batteries. Even if you went with batteries and solar power, you'd need a radioisotope heating unit.


Igor B

CLEARANCE: Restricted
Joined
Oct 26, 2009
Messages
27
Reaction score
6

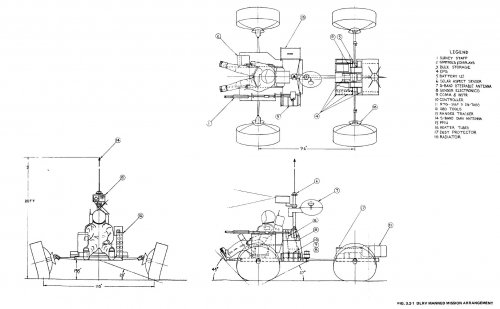

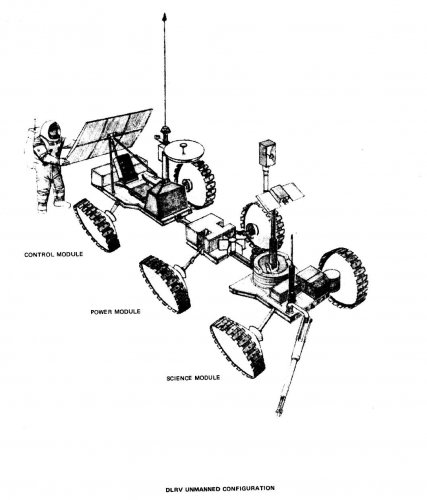

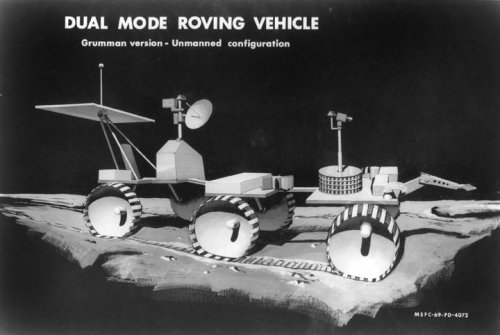

Anothe concept of dual mode rover from GRUMMAN is that:


Attachments

  • Dual_Mode_Grumman_03.jpg
    247.6 KB · Views: 35
  • Dual_Mode_Grumman_02.jpg
    200 KB · Views: 32
  • Dual_Mode_Grumman_01.jpg
    120 KB · Views: 36
  • 0401767.jpg
    42.5 KB · Views: 35
  • 0401766.jpg
    58.8 KB · Views: 34
  • Dual_Mode_Grumman_04.jpg
    109.7 KB · Views: 28

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
blackstar said:
There's also the two-week lunar night. That wrecks havoc on batteries. Even if you went with batteries and solar power, you'd need a radioisotope heating unit.

...One other thing to consider is that there would need to be some sort of automation and/or robotics to open/close the shutters on the wax packs, which were used on the Rovers as a form of heat sinks. IIRC - and I may have this backwards - the shutters were closed to allow the wax to melt and collect heat from the Rover's instruments, and opened to allow the extreme sub-zero Lunar surface temps in shadow to syphon away the heat and cooled the wax back to a solid, ready to recycle the process when it was time to saddle up and ride. Again, IIRC, this required that the Rover be parked so that the bulk of it was between the wax packs and the Sun, in order to provide as much shadow as possible. I'd have to review the footage from the Spacecraft Films remasterings, but until final ascent the Rovers may have been parked between EVAs in the shadow of the LM to assist in keeping the Rover electronics cooled.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,710
Reaction score
1,863
As for what was eventually used: Boeing's Lunar Roving Vehicle

First operationally used 41 years ago today as part of the Apollo 15 mission: http://www.wired.com/thisdayintech/2009/07/dayintech_0731/

And ye might find the document linked below of interest:

Lunar Rover Operations Handbook

Doc. LS006-002-2H
Prepared by the Boeing Company
LRV Systems Engineering
Huntsville, Alabama
April 19, 1971


Scanning and PDF formatting by Ron Wells.
Last revised 2 November 2005.


Link

(From the Apollo Lunar Surface Journal website)


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,766
Reaction score
136
Grey Havoc said:
As for what was eventually used: Boeing's Lunar Roving Vehicle

I rode around in the Lunar Electric Rover at JSC last week. Even took it into the grass and did the sideslip and the crabbing and some of the other things you can do with independent drive motors. Alas, they wouldn't let me drive it.


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
Grey Havoc said:
As for what was eventually used: Boeing's Lunar Roving Vehicle

First operationally used 41 years ago today as part of the Apollo 15 mission: http://www.wired.com/thisdayintech/2009/07/dayintech_0731/

And ye might find the document linked below of interest:

Lunar Rover Operations Handbook

Doc. LS006-002-2H
Prepared by the Boeing Company
LRV Systems Engineering
Huntsville, Alabama
April 19, 1971


Scanning and PDF formatting by Ron Wells.
Last revised 2 November 2005.


Link

(From the Apollo Lunar Surface Journal website)

...Page 2: "Thank you for buying the world's most expensive R/C Hot Wheels..."


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,014
Reaction score
1,578
Seems they badly wanted to try the "dual mode" trick on Apollo 17 LRV. Alas, money (as usual) screwed that bold plan. Imagine, Apollo 17 LRV and Lunokhod 3 racing side by side on the lunar surface...

Unfortunately, all I could find is this
