Boeing Bird of Prey Demonstrator

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

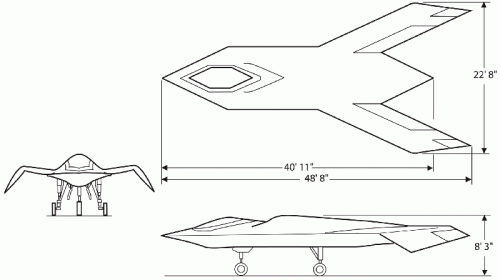

If someone can help with BoP 3-view, I'd be very obliged. Seems to have been in Flight International. Thanks!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

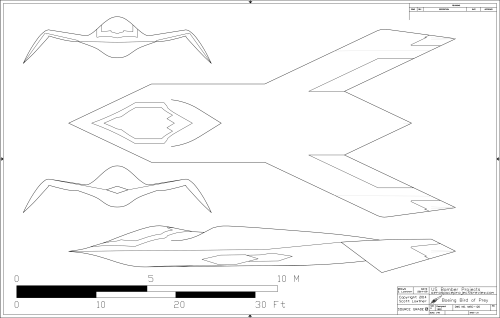

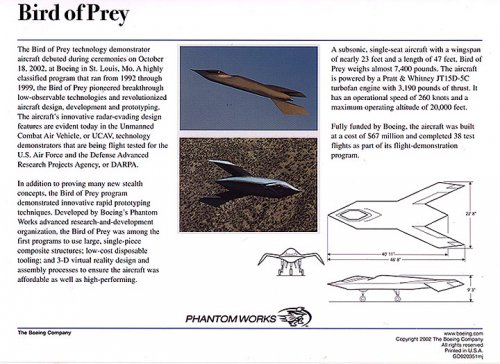

Thanks, Scott. I always wanna to look at these little gremlins from PR Dept. who're retouching drawings to make them as little common with actual engineering drawings as possible))) I have this factsheet...no one happy to have this FI article?


Attachments

  • bopfactsheet.jpg
    113.7 KB · Views: 803

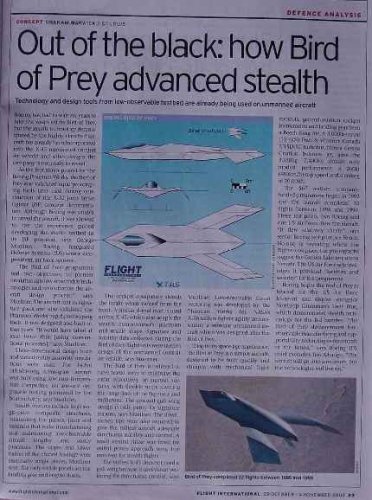

  • boparticle.jpg
    54.2 KB · Views: 768

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

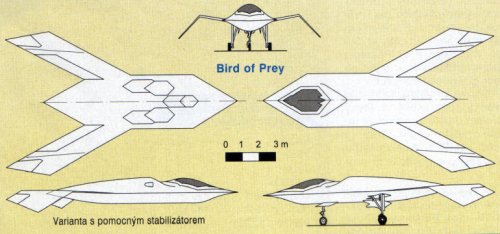

Another one from L+K 25-26/2002, but I am not sure about its accuracy. It contains also small vertical stabilisator under the fuselage that was soon after beginning of flight tests removed.


Attachments

  • BoP.JPG
    73.1 KB · Views: 764

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Thank you, Mato!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
...

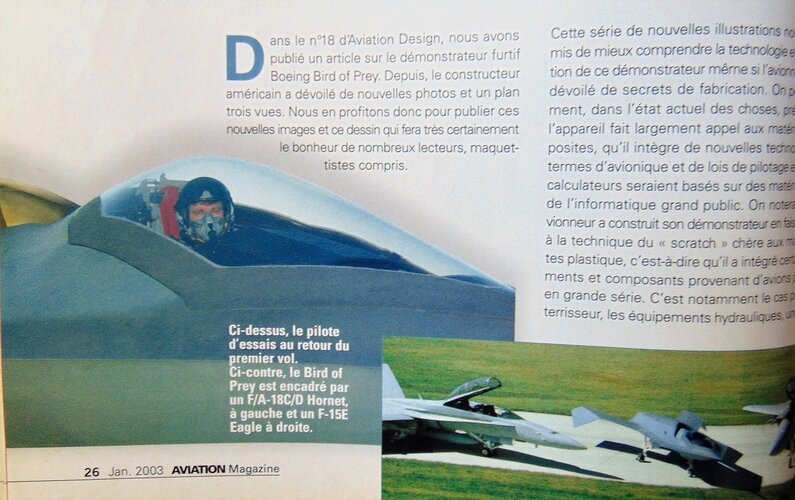

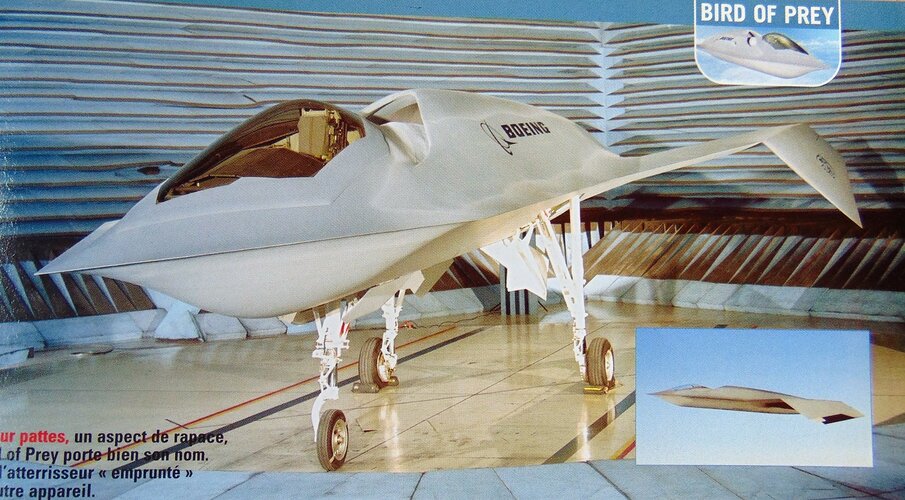

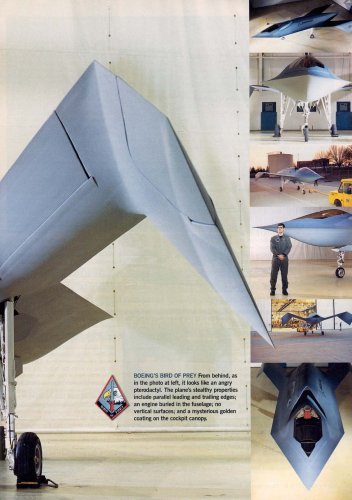

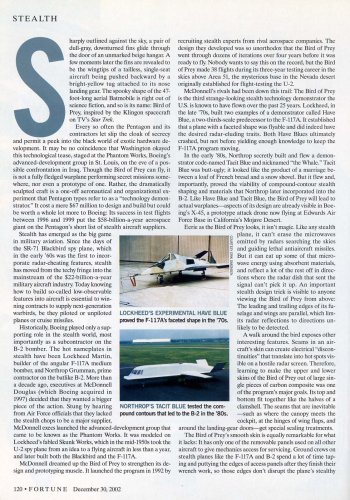

Attachments

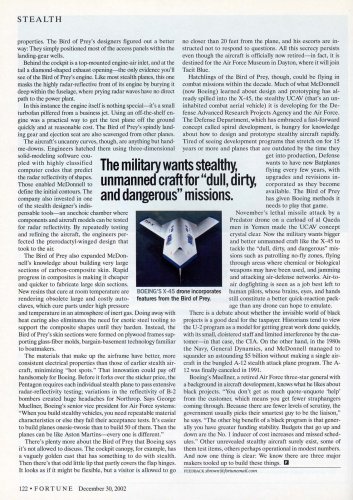

  • Brown_Bird-of-Prey_Page_3_Page_4.jpg
    341.7 KB · Views: 202
  • Brown_Bird-of-Prey_Page_3_Page_3.jpg
    328.4 KB · Views: 249
  • Brown_Bird-of-Prey_Page_3_Page_2.jpg
    143.7 KB · Views: 279

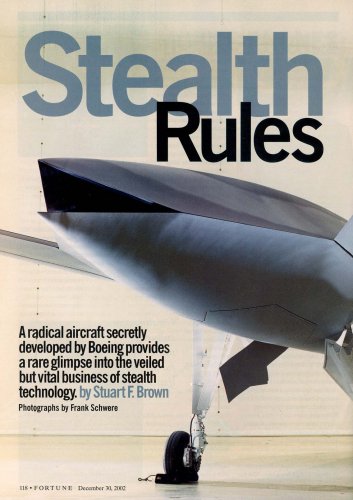

  • Brown_Bird-of-Prey_Page_1.jpg
    134.2 KB · Views: 631

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

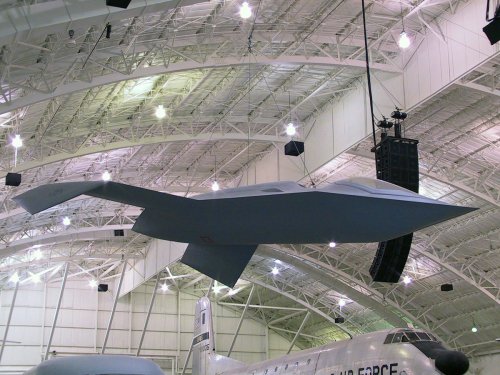

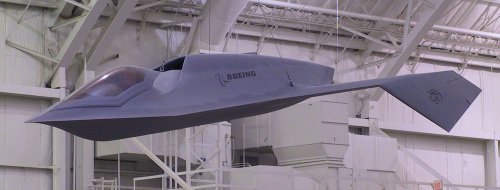

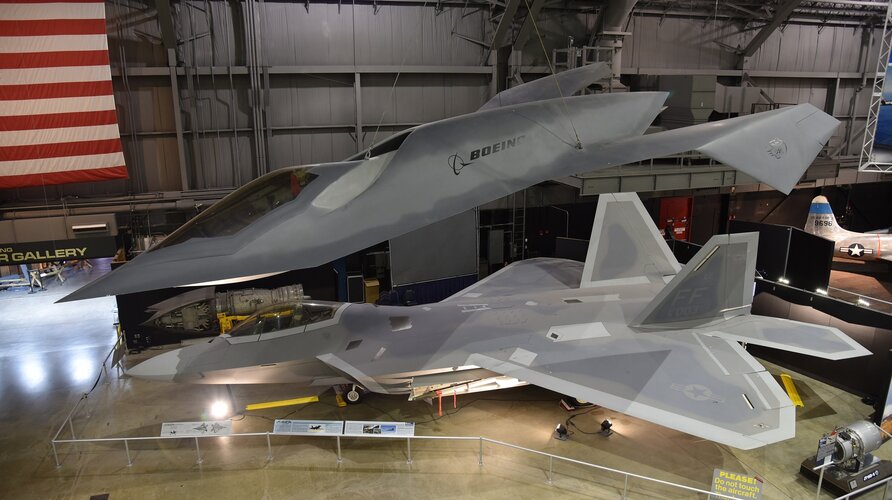

The BoP is hanging in the Air Force Museum - I took a few pics of it back on 12-17-03 (100th Anniversary of the Wright Brother's 1st powered flight!) and though that a few of them might help visualize the shape. A tough place to shoot photos, especially if you are looking upwards :)

Enjoy the Day! Mark


Attachments

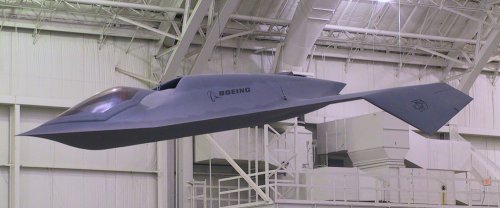

  • xBoP left side view - 7.jpg
    xBoP left side view - 7.jpg
    113.6 KB · Views: 137

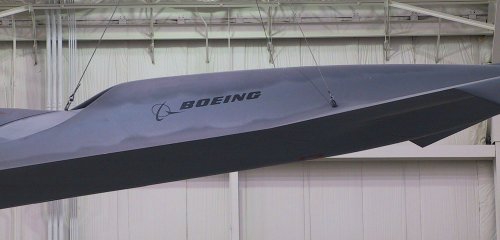

  • xBoP left side center - 1.jpg
    xBoP left side center - 1.jpg
    102.3 KB · Views: 91

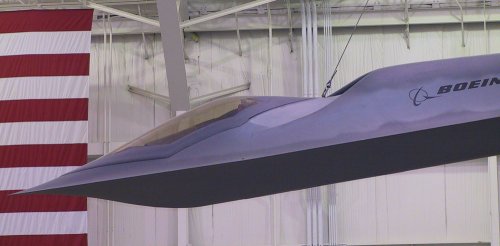

  • xBoP left side forward - 1.jpg
    xBoP left side forward - 1.jpg
    109.2 KB · Views: 110

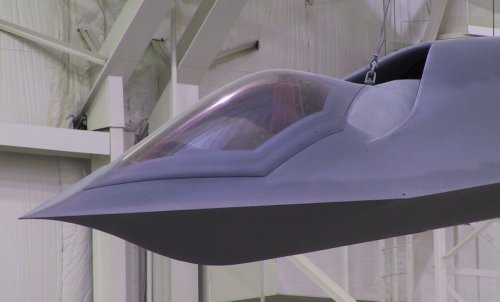

  • xBoP left side canopy and inlet close up.jpg
    xBoP left side canopy and inlet close up.jpg
    110.6 KB · Views: 128

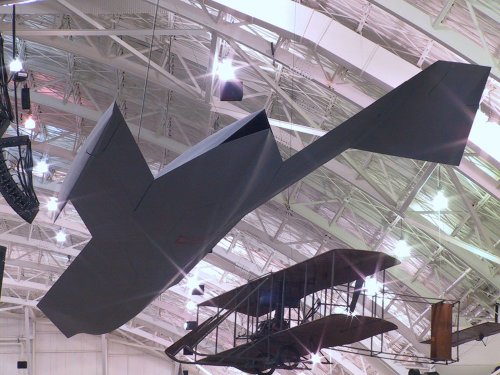

  • xBoP left rear quarter view.jpg
    xBoP left rear quarter view.jpg
    219.7 KB · Views: 154
  • xBoP left front quarter view - 2.jpg
    xBoP left front quarter view - 2.jpg
    104.8 KB · Views: 147

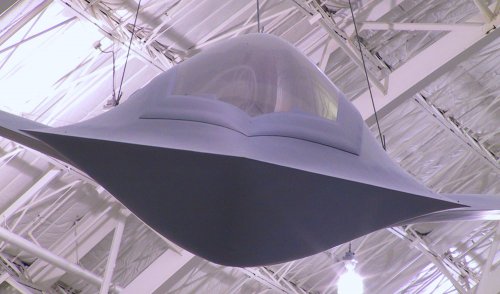

  • xBoP front view close up - 1.jpg
    xBoP front view close up - 1.jpg
    147.6 KB · Views: 110

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
One more... Mark


Attachments

  • xBoP right front quarter view - 1.jpg
    xBoP right front quarter view - 1.jpg
    337.8 KB · Views: 148

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
I'm trying to find out the exact dates of the Bird of Prey's first and last flights...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
maiden flight Sept. 11, 1996
last flight 1999 exact date unknown


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
162
XB-70 Guy said:
I'm trying to find out the exact dates of the Bird of Prey's first and last flights...

I've asked around for the final flight's date, but no luck so far, sorry.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
From theworacle via YouTube:

The McDonnell Douglas (later Boeing) Phantom Works built the Bird of Prey to demonstrate stealth technology. The single aircraft flew 40 times between 1996 and 1999 and is now in the USAF museum in Dayton, Ohio

http://www.youtube.com/watch?v=TBgV_6L__zA


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
162
Demon Lord Razgriz said:
Question, has there been any word on it's stealth in comparison to say the F-117 or F-22?

There has been nothing definitive published, of course.
But it can be reasonably inferred that the signature is significantly lower. According to people familiar with the program, the visual signature became dominant - it could be seen with the eyeball before it could be seen using radar. The visual signature was then reduced by several means, and this was one of the primary goals of the project.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

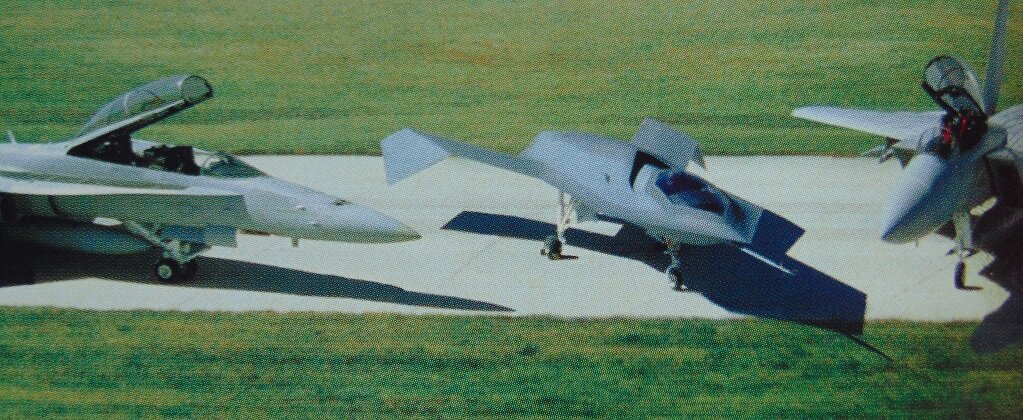

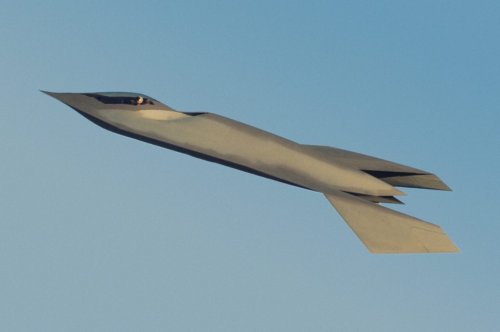

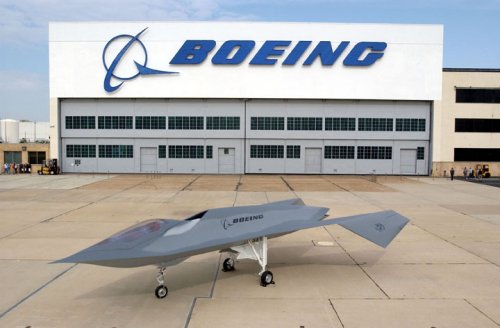

Boeing Bird of Prey

Source:
http://www.dreamlandresort.com/black_projects/bird_of_prey.html
http://www.abovetopsecret.com/forum/thread470427/pg1


Attachments

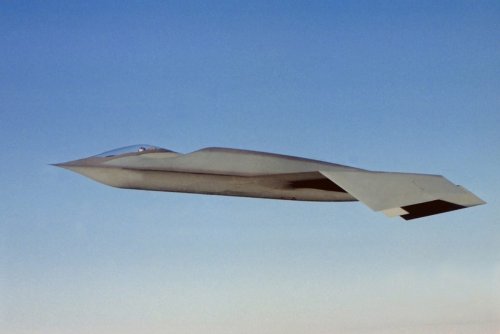

  • birdofprey11.jpg
    68.2 KB · Views: 1,000
  • birdofprey03.jpg
    53.9 KB · Views: 1,009
  • bb00a1a01f08.gif
    101.7 KB · Views: 972
  • bird_of_prey_17[1].jpg
    68.6 KB · Views: 1,034

Empire

ACCESS: Confidential
Joined
Nov 4, 2006
Messages
89
Reaction score
1
Hi All,
Anybody have any info on a fully operational version of the BOP. Looking for pictures or statistics. I know Boeing used the data from the BOP on the X-45 program. They must have had a paper study done on a operatonal version for the DOD in case they ordered some.
thanks,
Empire


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
6
Was there any military operational consideration incorporated into the configuration design? Was it solely an academic exercise to fly the least observable platform, or was some actual military role envisoned?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Fact Sheet from National Museum of the USAF:

The Bird of Prey is a single-seat stealth technology demonstrator used to test "low-observable" stealth techniques and new methods of aircraft design and construction. The secret Bird of Prey project ran from 1992 to 1999, and the aircraft first flew in the fall of 1996. The Bird of Prey was named for its resemblance to the Klingon spacecraft from the science fiction series Star Trek.

In its 38 flights, the Bird of Prey tested ways to make aircraft less observable to the eye and to radar. It also validated new ways to design and build aircraft using large single-piece composite structures, "virtual reality" computerized design and assembly, and disposable tooling. The Bird of Prey was revealed in 2002 because its design techniques had become standard practice -- Boeing used them in its X-32 Joint Strike Fighter demonstrators and later in its X-45A Unmanned Combat Air Vehicle prototype.

The aircraft demonstrates advanced stealth concepts, notably its "gapless" control surfaces that blend smoothly into the wings to reduce radar visibility, and an engine intake completely shielded from the front. The Bird of Prey, however, used some "off the shelf" technology to reduce costs and speed production. Its control system is all-manual with no computer assists, and the landing gear is adapted from Beech King Air and Queen Air aircraft.

Boeing donated the Bird of Prey to the museum in 2002.

TECHNICAL NOTES:
Engine: One Pratt & Whitney JT15D-5C turbofan of 3,190 lbs. thrust
Maximum speed: 300 mph
Ceiling: 20,000 ft.

Source:
http://www.nationalmuseum.af.mil/factsheets/factsheet.asp?id=348


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
162
chuck4 said:
Was there any military operational consideration incorporated into the configuration design? Was it solely an academic exercise to fly the least observable platform, or was some actual military role envisoned?

It was purely a technology demonstrator. Some of the things it demonstrated are public knowledge, some not so much. But there was never to be an operational derivative.


Whisperstream

I really should change my personal text
Joined
Dec 19, 2011
Messages
40
Reaction score
19
Lots of good information about it here:

www.dreamlandresort.com/black_projects/bird_of_prey.html


Empire

ACCESS: Confidential
Joined
Nov 4, 2006
Messages
89
Reaction score
1
Hi All,
A little though experiment!! I know we have a ton of aviation and air frame experts in this forum. Its 1999 the BOP's flight test program has just ended and the DOD wants a manned F-117 replacement. What would need to be done to the BOP design to make a operational fighter bomber. I'm talking air frame changes, engine used, radar, etc.
thanks
Empire


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,290
Reaction score
1,247
Simple -- start from scratch.

Read the links; the BoP configuration made for a nasty aircraft to fly. Any attempt to "operationalize" it would probably have started with an entirely new aerodynamic arrangement. At that point, you're developing an entirely new aircraft.


sublight is back

ACCESS: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
778
Reaction score
58
aliensporebomb said:
Yeah, what a beautiful and unusual bird but I hear she was really a handful to actually fly.

That is an understatement. The primary test pilot Fred Madenwald, resigned because he didn't want to die.... :)


Empire

ACCESS: Confidential
Joined
Nov 4, 2006
Messages
89
Reaction score
1
Ya but the flight control system was manual add a fly by wire system and it becomes more stable. Remember they built it this way to save money. I think the design would have become more like a X-45 wing and body plan form. what do you all think?


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
162
Empire said:
Ya but the flight control system was manual add a fly by wire system and it becomes more stable. Remember they built it this way to save money. I think the design would have become more like a X-45 wing and body plan form. what do you all think?


X-45 was a direct application of lessons learned from Bird of Prey, so that would be a reasonable conclusion.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
Empire said:
Hi All,
A little though experiment!! I know we have a ton of aviation and air frame experts in this forum. Its 1999 the BOP's flight test program has just ended and the DOD wants a manned F-117 replacement. What would need to be done to the BOP design to make a operational fighter bomber. I'm talking air frame changes, engine used, radar, etc.
thanks
Empire

I suppose you could use the design without major changes as the basis for a light battlefield interdiction/rear area harassment type. A 21st Century 'Bedcheck Charlie' in other words. With regards as to weaponry, you could, for example, design a conformal dispenser especially for the BOP that could deploy weapons such as the BLU-108/B or even ERAM (BLU-101/B & BLU-102/B(?)) and other airdroppable mines. Other possibilities could have included a HAVE SLICK derived weapon such as Rockwell's LOCATM.





Empire

ACCESS: Confidential
Joined
Nov 4, 2006
Messages
89
Reaction score
1
I find it strange that no pictures or plans of a manned full fledged fighter bomber design of BOP ever leaked out from McAir or Boeing. For gods sack they where trying to prove their stealth building abilities to the Government you'd think they would have all kinds of pictures or plans ready for government viewing. Some of them should have leaked.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,162
Reaction score
163
Boeing Lifts the Veil on Stealthy Bird of Prey (From 2002)


Attachments

  • Boeing lifts the veil on stealthy Bird of Prey.pdf
    227.6 KB · Views: 180

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

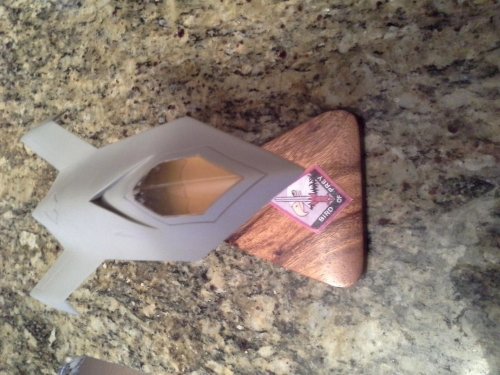

https://www.worthpoint.com/worthopedia/mcdonnell-douglas-bird-prey-model-1859380679

sold at ePay in Feb

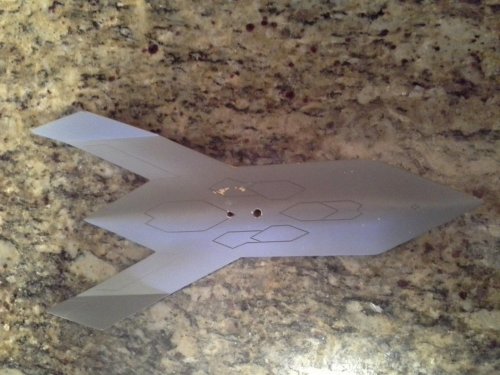

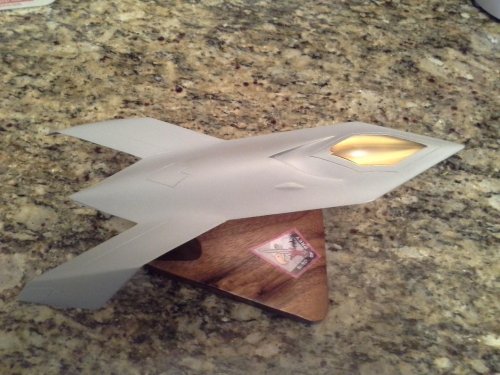

Small scale model of the McDonnell Douglas Bird of Prey. The predecessor of the UCAV combat drone. 1st flown by Rudy Haug. (That took some balls). This was not a Boeing plane . They just took over the company. I worked Phantom Works and this is the real deal, not something made in the Phillipines. These were a limited edition and handed out to the few that had their hands on this project. Made from 3-D printer, hand finished and painted in Phantom Works by the ppl that built this craft. Comes on a Koa wood stand. It has a very small chip on the tip of the wing and a paint scratch on the bottom. I did not want to take away the original paint that was a two part mix, to keep it original. I have had my fill with the aircraft industry and am ready to part with it.Small scale model of the McDonnell Douglas Bird of Prey. The predecessor of the UCAV combat drone. 1st flown by Rudy Haug. (That took some balls). This was not a Boeing plane . They just took over the company. I worked Phantom Works and this is the real deal, not something made in the Phillipines. These were a limited edition and handed out to the few that had their hands on this project. Made from 3-D printer, hand finished and painted in Phantom Works by the ppl that built this craft. Comes on a Koa wood stand. It has a very small chip on the tip of the wing and a paint scratch on the bottom. I did not want to take away the original paint that was a two part mix, to keep it original. I have had my fill with the aircraft industry and am ready to part with it.


Attachments

  • mcdonnell-douglas-bird-prey-model_1_935eeba1ff4fd9481bcb4ce8c903f75e (2).jpg
    mcdonnell-douglas-bird-prey-model_1_935eeba1ff4fd9481bcb4ce8c903f75e (2).jpg
    230.4 KB · Views: 321
  • mcdonnell-douglas-bird-prey-model_1_935eeba1ff4fd9481bcb4ce8c903f75e.jpg
    216 KB · Views: 313
  • mcdonnell-douglas-bird-prey-model_1_935eeba1ff4fd9481bcb4ce8c903f75e (1).jpg
    mcdonnell-douglas-bird-prey-model_1_935eeba1ff4fd9481bcb4ce8c903f75e (1).jpg
    237.4 KB · Views: 303
