Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19880069581_1988069581.pdf


Attachments

  • 1.JPG
    32.7 KB · Views: 129
  • 2.JPG
    31.7 KB · Views: 124

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

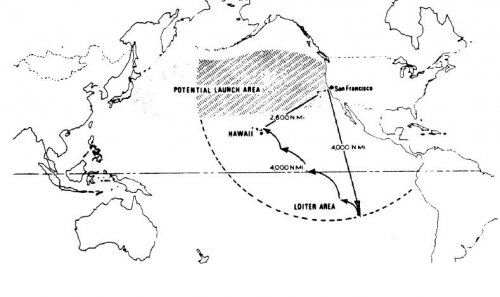

The mission concept envisions take-off from US bases, dispersal in equitorial latitudes, changes of "ocean sitting" positions during the holding portion of the mission, and return to base on a dogleg in Hawaiian latitudes.

Coverage of Northern Hemisphere target areas is possible from latitude 30 degrees north and launch points are available in a vast area remote from simple surveillance.

Source: Anon. Liquid Hydrogen Fueled Aircraft The Boeing Company January 1, 1973

URL above.


Attachments

  • LaunchArea.JPG
    48.1 KB · Views: 102
