Boeing Advanced Systems 1989 High Altitude Long Endurance (HALE) RPV

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
From

AIAA 89-2014
High Altitude Long Endurance (HALE) RPV
N. Baullinger and V. Page
Boeing Advanced Systems
Seattle, WA

Looks much more unconventional than Condor


Attachments

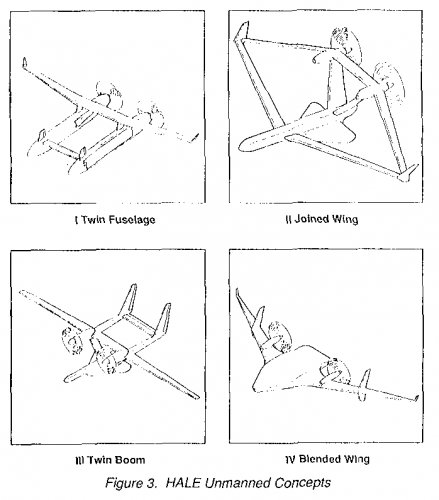

  • Boeing 1989 HALE concepts.jpg
    Boeing 1989 HALE concepts.jpg
    124.2 KB · Views: 616

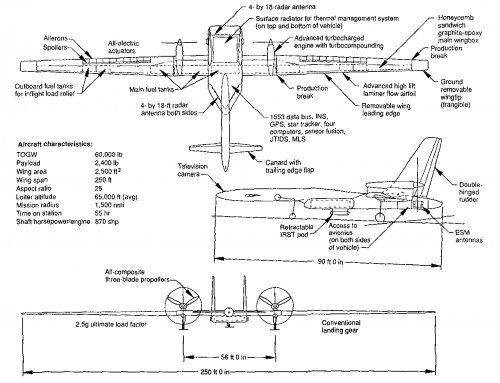

  • Boeing 1989 HALE baseline.jpg
    Boeing 1989 HALE baseline.jpg
    321.6 KB · Views: 581

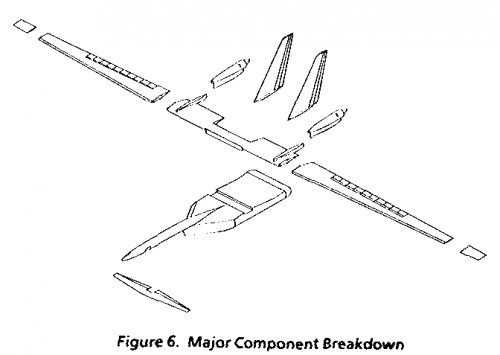

  • Boeing 1989 HALE baseline break.jpg
    Boeing 1989 HALE baseline break.jpg
    51.8 KB · Views: 462

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
Here are a couple of the designs Boeing is now looking at for a HALE UAV. It would be powered by automotive engines converted to burn hydrogen and have an endurance of seven days at 65,000ft. Boeing is working with Aurora Flight Sciences, which is developing and testing the engine for its single-engined, hydrogen-fuelled Orion HALL (high altitude, long loiter) UAV, now under construction.


Attachments

  • HALE-1.JPG
    33.9 KB · Views: 435
  • HALE-2.JPG
    75.3 KB · Views: 413

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
Here are a couple of the designs Boeing is now looking at for a HALE UAV. It would be powered by automotive engines converted to burn hydrogen and have an endurance of seven days at 65,000ft. Boeing is working with Aurora Flight Sciences, which is developing and testing the engine for its single-engined, hydrogen-fuelled Orion HALL (high altitude, long loiter) UAV, now under construction.
Wonder if these designs had anything in common with the Boeing Phantom Eye; the Orion UAV flew on August 24, 2013 and was later placed in company storage in September 2015, but is reportedly being earmarked to fly again in response to Air Force and Coast Guard requirements (https://www.flightglobal.com/news/a...orion-uav-production-for-2019-deliver-435898/).


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
162
Orion started its life as a hydrogen-powered single engine HALE, but was later converted to twin engine MALE, using two Austro AE300 Diesel engines of about 167shp.
It has demonstrated an endurance in excess of 80 hours, the payload is in the vicinity of 1,000 lbs, mostly comms and sigint gear.
