Boeing 7J7

Article about the Boeing 7J7, "The Short, Happy Life of the Prop-fan" from Air & Space Smithsonian magazine by Bill Sweetman.
http://www.airspacemag.com/history-of-flight/prop-fan.html

Concept art of the UDF (unducted fan) or prop fan version of the 7J7.


Attachments

  • 7J7.jpg
    85.6 KB · Views: 956
  • fan-388-sept05.jpg
    36.3 KB · Views: 833
  • 7j7a.jpg
    61.1 KB · Views: 830
always like Mr.Sweetman's sense of humor
The Short, Happy Life - LOL

I have not seen the lower aircraft before but I would guess that it is a straw-man comparison of a 7J7-spec aircraft with a very high bypass cowled engine, probably PW's Advanced Ducted Prop or one of its relatives. Not a serious study, but done to underline the merits of the 7J7 and show that Boeing had looked at alternatives.

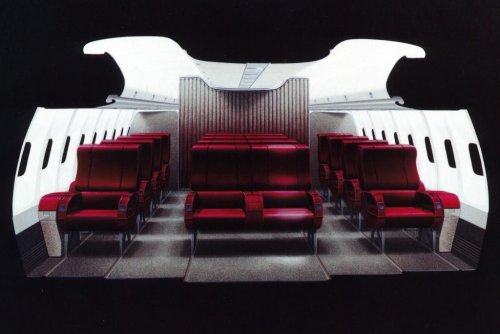

Interesting picture of the twin-aisle 7J7 proposal here:

http://www.flightglobal.com/blogs/runway-girl/2010/07/photos-twin-aisle-narrowbody-i.html

Also has a cabin cross-section and a bit of data.

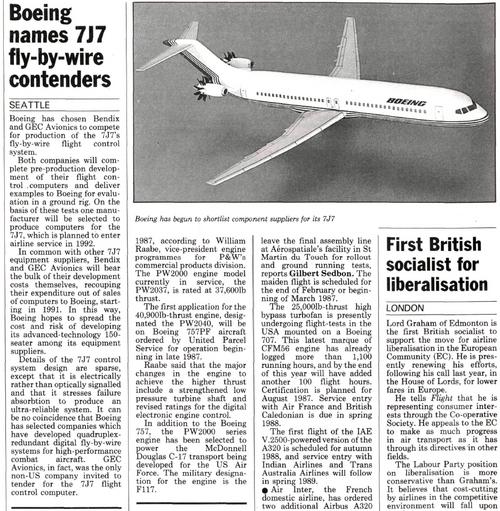

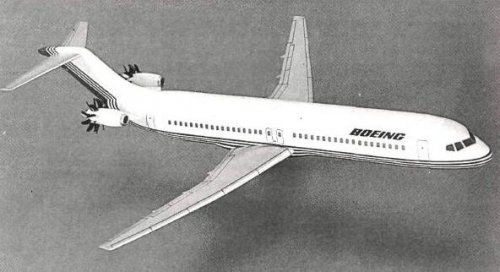

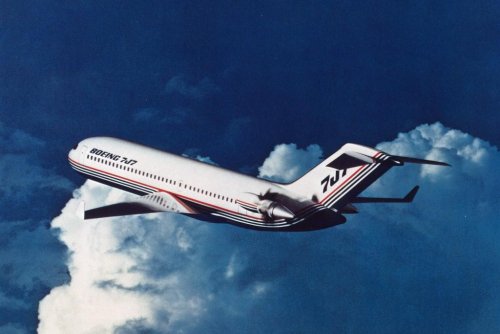

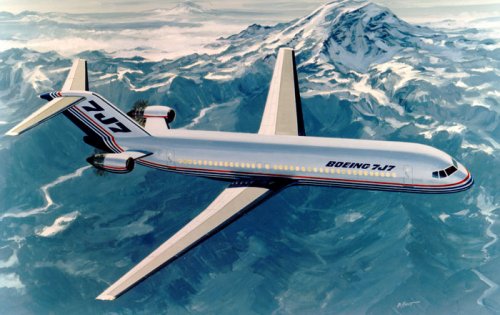

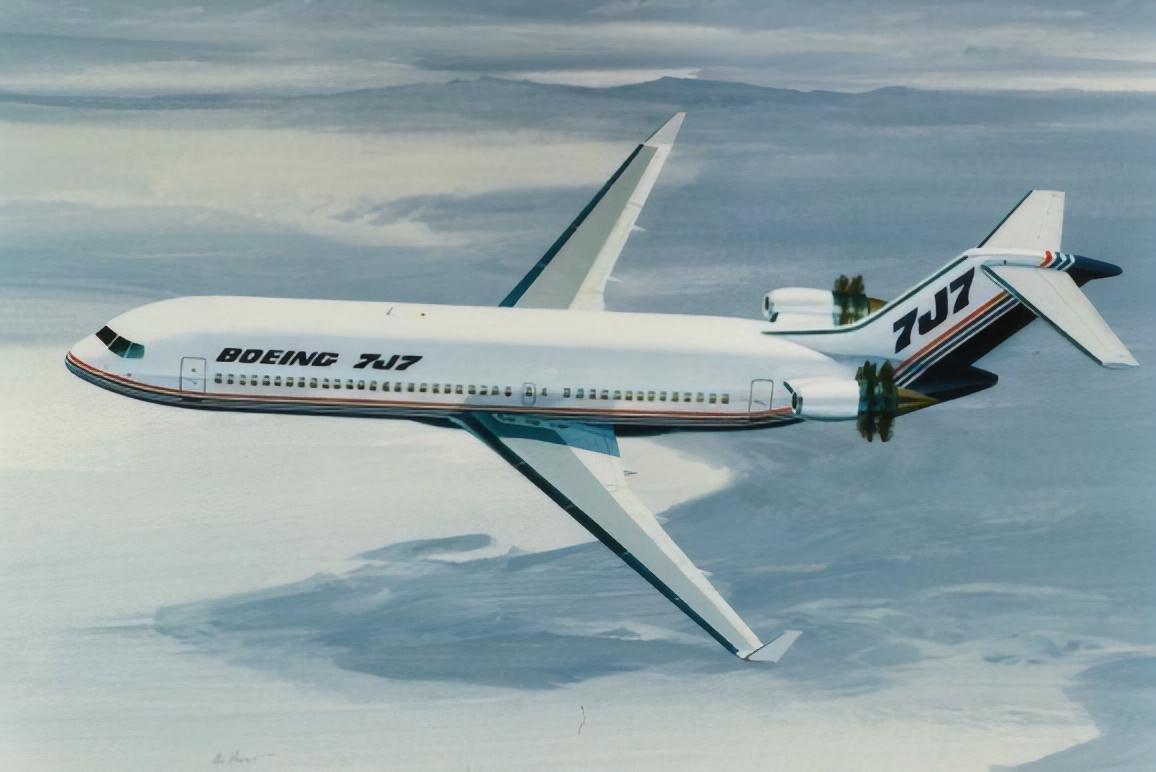

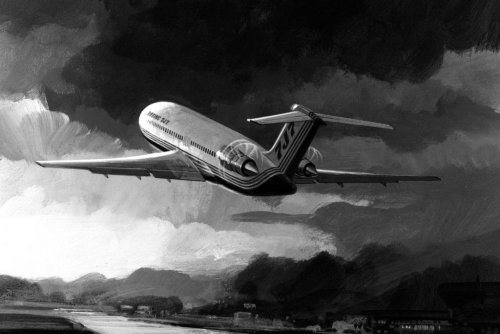

Artist's impression of Boeing 7J7.

Source: "Boeing names 7J7 fly-by-wire contenders" Flight International October 25, 1986 p. 4.
http://www.flightglobal.com/pdfarchive/view/1986/1986%20-%202886.html


Attachments

  • Boeing7J7a.JPG
    32.9 KB · Views: 220

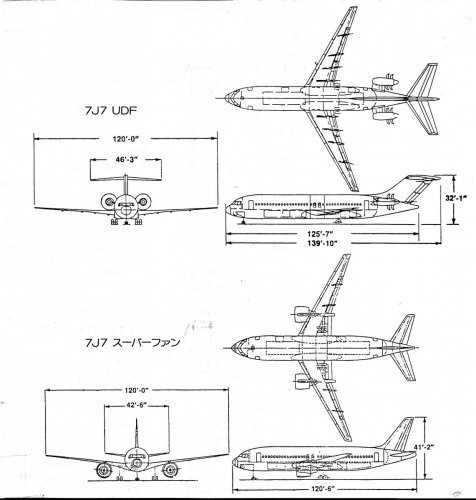

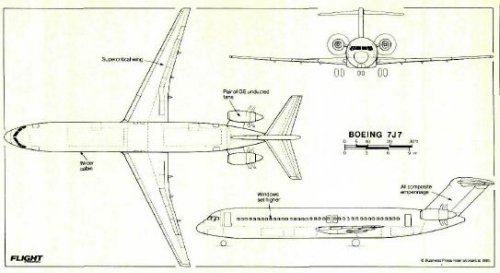

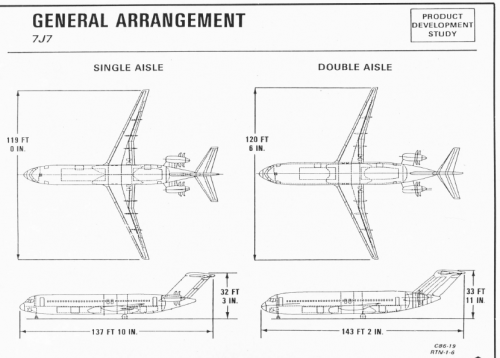

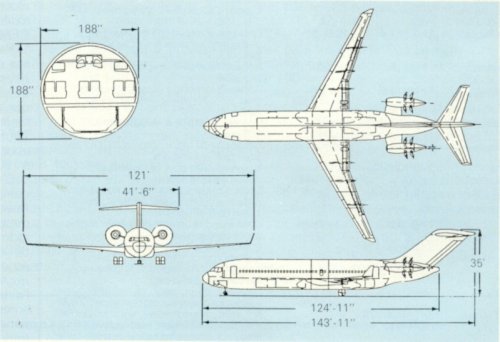

Three-view drawing of Boeing 7J7.

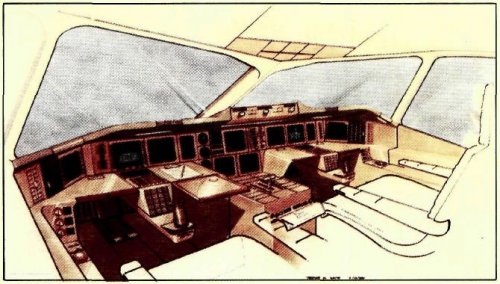

Artist's impression of Boeing 7J7 cockpit.

The 7J7 cockpit will almost certainly feature a flat-panel display. The sidestick question is unresolved, depending on the flight control system chosen.

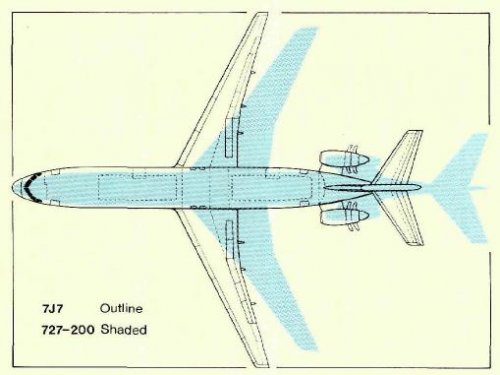

Comparison of Boeing 7J7 to Boeing 727.

The supercritical wing will have less sweep than the Boeing 727, and its aspect ration will be increased by around 25 per cent, improving efficiency at the Mach 0.8 crusing speed.

Source: Moxon, Julian. "7J7: Boeing sets the pace" Flight International October 26, 1986 p. 27,28.
http://www.flightglobal.com/pdfarchive/view/1985/1985%20-%202924.html
http://www.flightglobal.com/pdfarchive/view/1985/1985%20-%202923.html


Attachments

  • Threeview7J7.jpg
    23.8 KB · Views: 309
  • 7J7cockpit.jpg
    61 KB · Views: 299
  • 7J7dorsal.jpg
    24.4 KB · Views: 283
Propfans are supposed to be back in favor, but wether we'll see actual metal being cut on new propfan powered designs is still open to question.

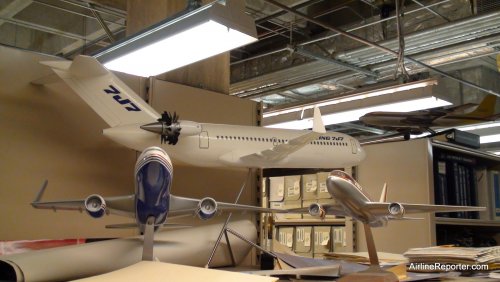

Model of Boeing 7J7 at the Boeing Archives.

Source:
http://www.flickr.com/photos/airlinereporter/4957523840/in/set-72157624753056369/


Attachments

  • 4957523840_d600107f62_o.jpg
    436.1 KB · Views: 282
I would certainly like to see a propfan driven plane. I thought there was a noise problem with this type of engine. Does anyone know if this problem has been solved? If it hasn't then they will be bucking the same old headwinds of years past. If anything it will be worse with the more stringent noise laws around our airports.

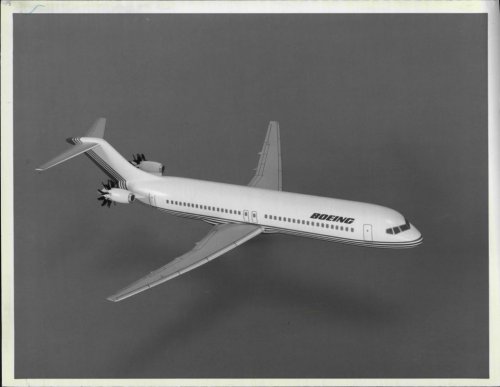

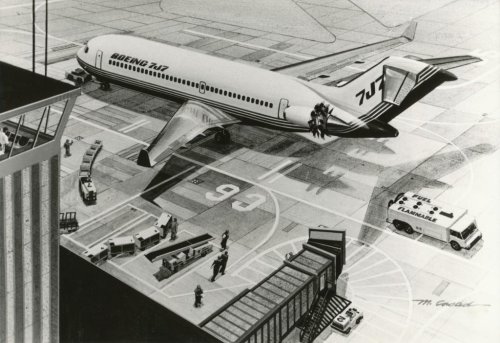

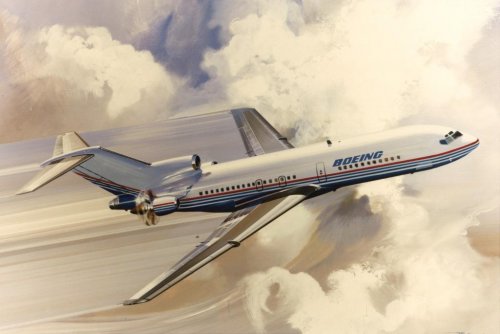

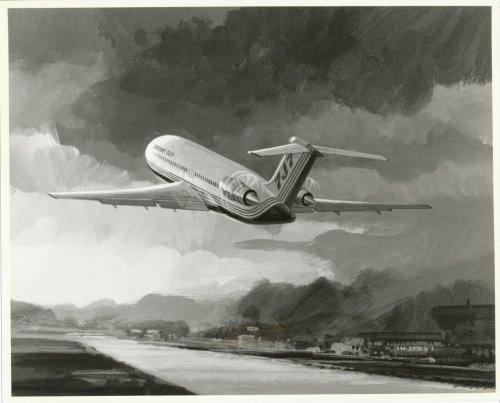

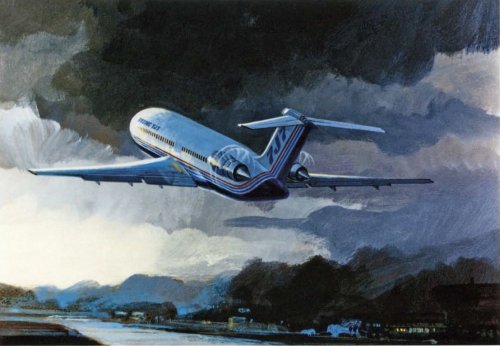

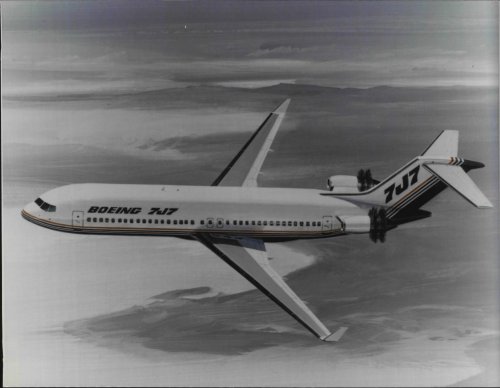

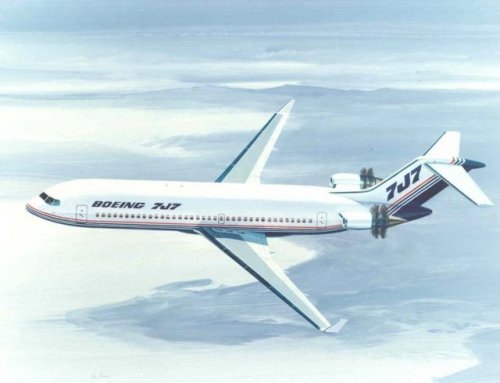

Boeing Publicity Release photos and artwork of 7J7 airliner.

Source:
http://cgi.ebay.com/Boeing-Publicity-Release-Photos-Artwork-7J7-Airliner-/250808477173


Attachments

  • 465761312_o.jpg
    114.2 KB · Views: 214
  • 465761356_o.jpg
    208.1 KB · Views: 226
  • 465761447_o.jpg
    249.5 KB · Views: 253

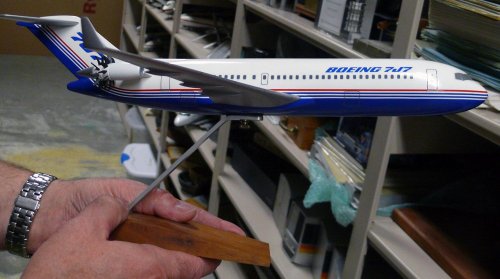

Model of Boeing 7J7 located in the Boeing Archives Bellevue, Washington.

The Boeing 7J7 was a short- to medium-range airliner proposed by the United States aircraft manufacturer Boeing in the 1980s. It would have carried 150 passengers and was touted as the successor to the successful Boeing 727. It was initially planned to enter service in 1992. This was intended as a highly fuel-efficient aircraft employing new technologies, but it was cancelled when the price of oil dropped during the 1980s. The 7J7 was planned to include advanced technology and electronics,[1] such as a fly-by-wire flight control system, glass cockpit, and two General Electric GE36 UDF rear-mounted advanced technology contra-rotating unducted fan (propfan) engines. The sum of all these features promised better fuel consumption by more than 60% compared to any existing large passenger aircraft technology at the time. "Efficiency" was the key theme. The 7J7 was to have a twin-aisle (2+2+2) seating configuration, giving an unprecedented wide and spacious cabin for its class, with no passenger more than one seat from an aisle. It was also unprecedented in its foreign content with Japan having 25% industrial workshare. Potential customers were concerned about the economics and noise of the unproven propfan engines. Boeing cancelled the 7J7 in 1987 and instead concentrated its resources on further developments of the Boeing 737 and the Boeing 757. The project's cancellation (as disappointing as it was to the Japanese aviation industry signaled a new era of cooperation between Boeing and Japanese suppliers. Japanese companies contributed significantly larger percentages of subsequent Boeing projects (about 15% of the Boeing 767 and 25% of the Boeing 777. Japanese industry continues to be a primary foreign partner on the Boeing 787 Dreamliner. Courtesy: Wikipedia

Source:
http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-7j7-model-at-boeing-archive-mid-1980s/19048


Attachments

  • 19048.jpg
    139.6 KB · Views: 214

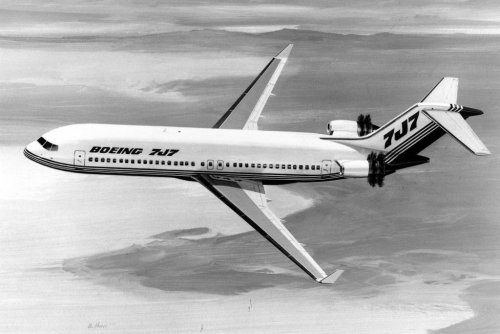

Artist's impression of Boeing 7J7.

Three-view drawing.

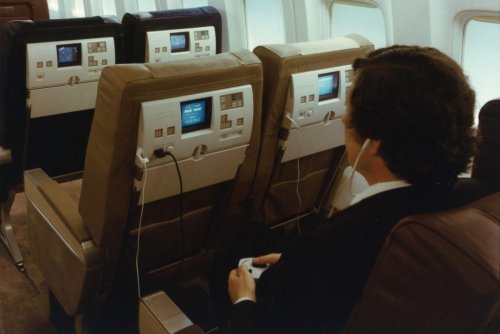

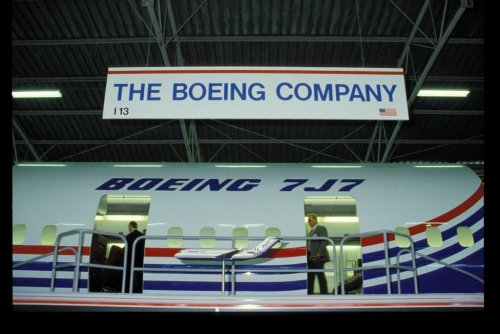

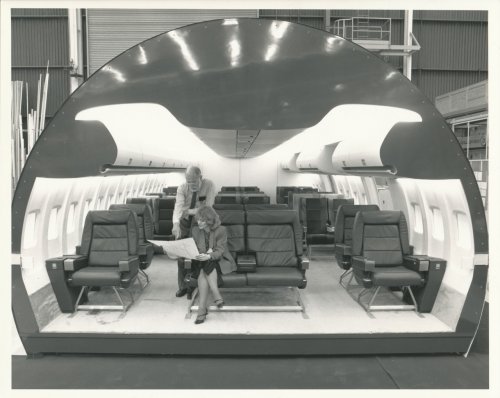

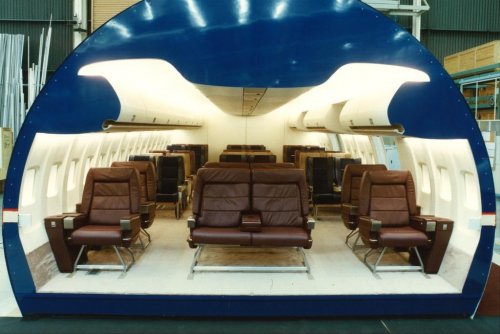

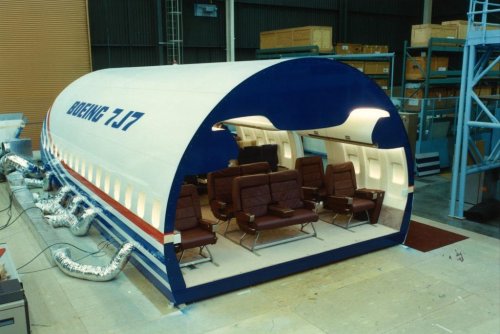

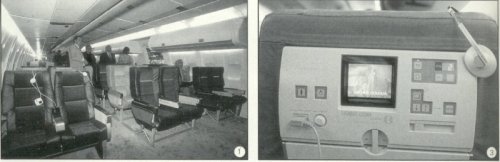

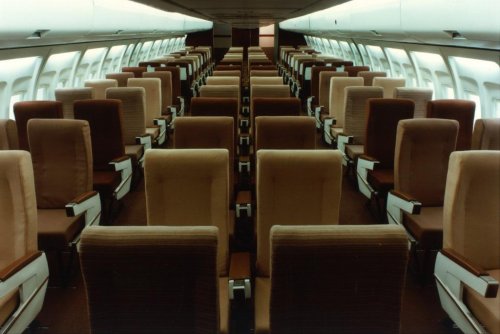

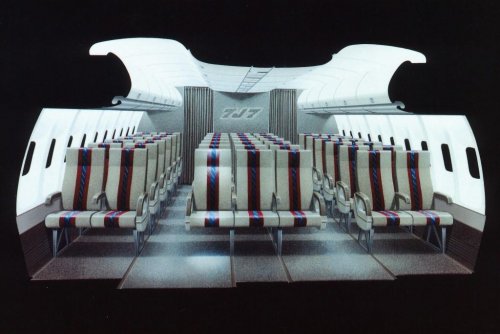

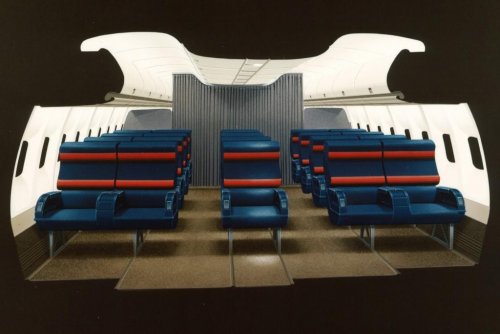

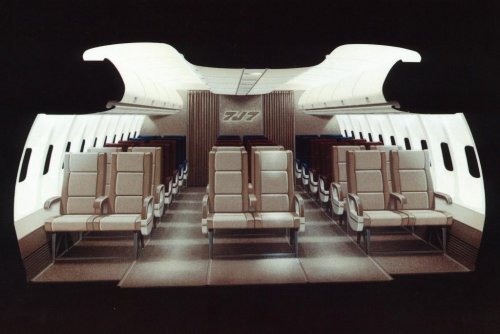

Boeing 7J7 cabin mockup on display at Paris Air Show 1987.

Source:
http://media.photobucket.com/image/recent/frontrunners2/SEA/SEA-474/6_13_308_img1767A.jpg
http://avia.superforum.fr/t1200-boeing-7j7
http://media.photobucket.com/image/recent/frontrunners2/SEA/SEA-474/6_13_308_img1765A.jpg


Attachments

  • 6_13_308_img1765A.jpg
    91.4 KB · Views: 178
  • 7j7car10.jpg
    124.8 KB · Views: 173
  • 7j7cou10.jpg
    109.7 KB · Views: 597
  • 7j7pra10.jpg
    96.4 KB · Views: 651
  • 7j7int10.jpg
    77.6 KB · Views: 661
  • 7j73vu10.jpg
    123.6 KB · Views: 685
  • 6_13_308_img1767A.jpg
    70.9 KB · Views: 663

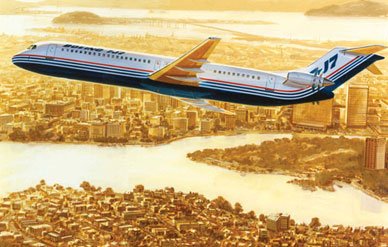

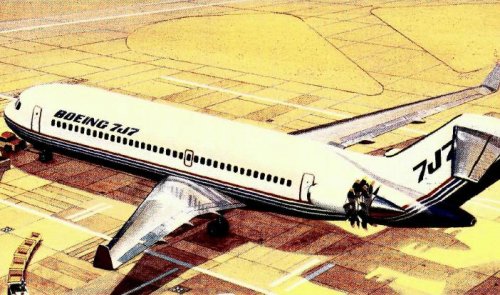

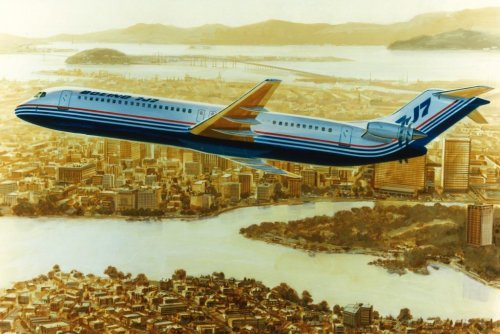

Artist's impression of Boeing 7J7.

Source:
Hager, Roy D.; Vrabel, Deborah. Advanced Turbofan Project, NASA Glenn Research Center, Jan. 1, 1988
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19890003194_1989003194.pdf


Attachments

  • Boeing7J7color.jpg
    232.4 KB · Views: 191

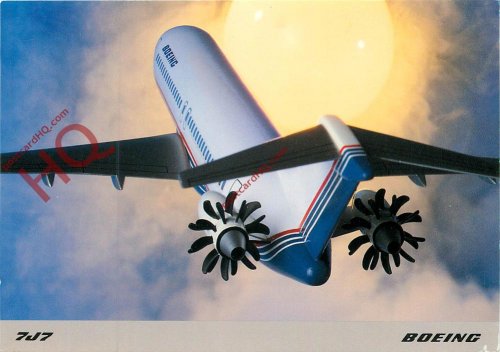

Source:
http://www.ebay.com/itm/POSTCARD-Boeing-7J7-Propfan-Concept-Boeing-Issue-/291181930897?pt=UK_Collectables_Postcards_MJ&hash=item43cbcba991


Attachments

  • k001914.jpg
    47.3 KB · Views: 165
  • k001913.jpg
    109.7 KB · Views: 169
B) :)

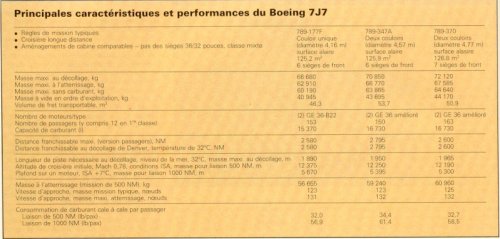

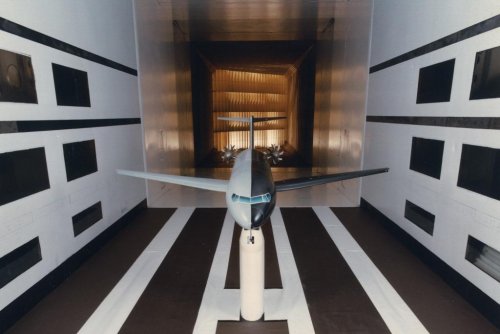

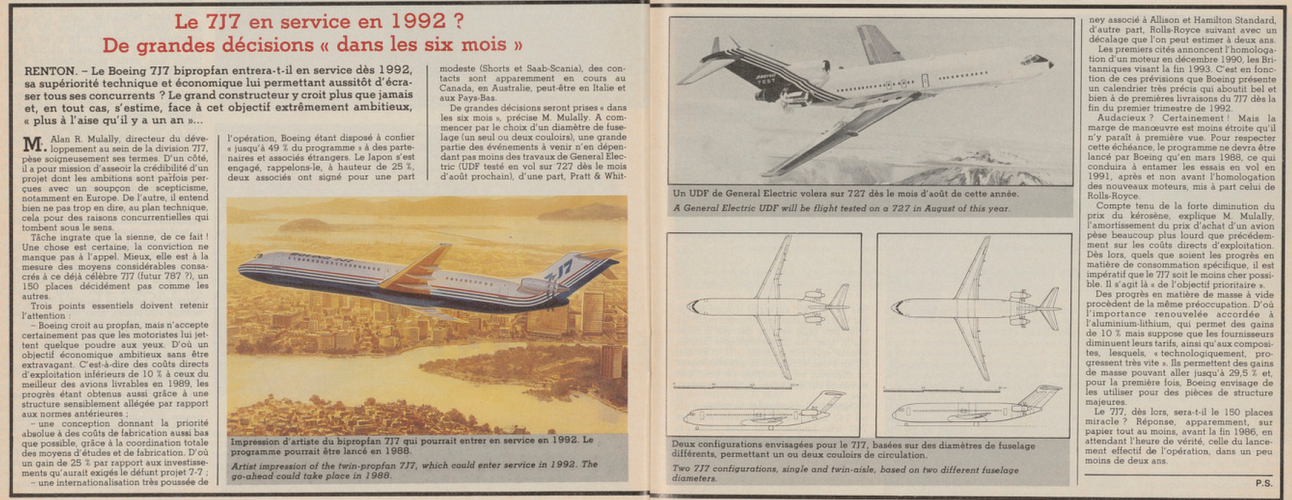

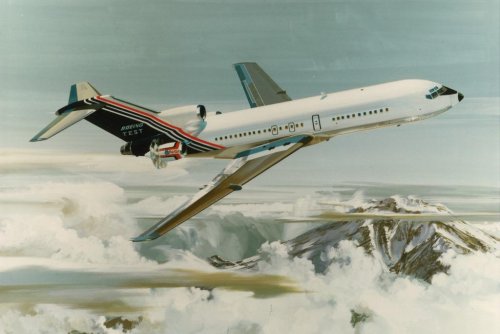

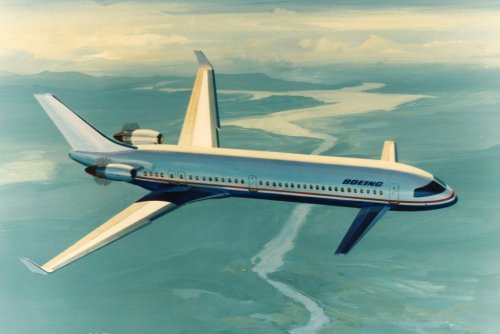

Here some pictures of the Boeing 7J7 project.
Copyright: Boeing and Herzog
Source: http://www.flugrevue.de/zivilluftfahrt/flugzeuge/boeing-7j7/638496/fsuebersicht


Attachments

  • Boeing 7J7 -011_6659204.jpg
    Boeing 7J7 -011_6659204.jpg
    61.1 KB · Views: 156
  • Boeing 7J7 -010_6659184.jpg
    Boeing 7J7 -010_6659184.jpg
    89.7 KB · Views: 138
  • Boeing 7J7 -009_6659164.jpg
    Boeing 7J7 -009_6659164.jpg
    81.9 KB · Views: 123
  • Boeing 7J7 -008_6659144.jpg
    Boeing 7J7 -008_6659144.jpg
    75.4 KB · Views: 126
  • Boeing 7J7 -007_6659124.jpg
    Boeing 7J7 -007_6659124.jpg
    68.6 KB · Views: 131
  • Boeing 7J7 -006_6659104.jpg
    Boeing 7J7 -006_6659104.jpg
    76.1 KB · Views: 132
  • Boeing 7J7 -005_6659084.jpg
    Boeing 7J7 -005_6659084.jpg
    62.6 KB · Views: 122
  • Boeing 7J7 -004_6659064.jpg
    Boeing 7J7 -004_6659064.jpg
    60.4 KB · Views: 129
  • Boeing 7J7 -003_6659044.jpg
    Boeing 7J7 -003_6659044.jpg
    116.6 KB · Views: 157
  • Boeing 7J7 -002_6659024.jpg
    Boeing 7J7 -002_6659024.jpg
    67.9 KB · Views: 136

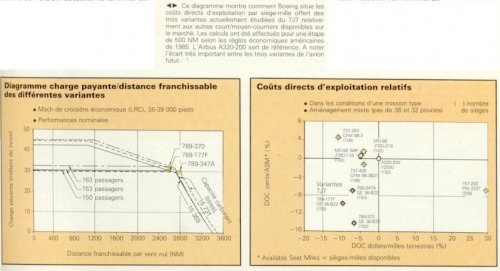

More pictures of the Boeing 7J7 project.
Copyright: Boeing and Herzog
Source: http://www.flugrevue.de/zivilluftfahrt/flugzeuge/boeing-7j7/638496/fsuebersicht


Attachments

  • Boeing 7J7 -024_6659344.jpg
    Boeing 7J7 -024_6659344.jpg
    61.1 KB · Views: 123
  • Boeing 7J7 -030_6659364.jpg
    Boeing 7J7 -030_6659364.jpg
    80 KB · Views: 107
  • Boeing 7J7 -036_6659384.jpg
    Boeing 7J7 -036_6659384.jpg
    75.2 KB · Views: 108
  • Boeing 7J7 -049_6659404.jpg
    Boeing 7J7 -049_6659404.jpg
    54.7 KB · Views: 121
  • Boeing 7J7 -021_6659324.jpg
    Boeing 7J7 -021_6659324.jpg
    70.9 KB · Views: 111
  • Boeing 7J7 -017_6659304.jpg
    Boeing 7J7 -017_6659304.jpg
    107.8 KB · Views: 142
  • Boeing 7J7 -015_6659284.jpg
    Boeing 7J7 -015_6659284.jpg
    56.7 KB · Views: 149
  • Boeing 7J7 -014_6659264.jpg
    Boeing 7J7 -014_6659264.jpg
    63.3 KB · Views: 153
  • Boeing 7J7 -013_6659244.jpg
    Boeing 7J7 -013_6659244.jpg
    80.8 KB · Views: 142
  • Boeing 7J7 -012_6659224.jpg
    Boeing 7J7 -012_6659224.jpg
    62.3 KB · Views: 132
Last two pictures of the Boeing 7J7 project.
Copyright: Boeing and Herzog
Source: http://www.flugrevue.de/zivilluftfahrt/flugzeuge/boeing-7j7/638496/fsuebersicht


Attachments

  • Boeing 7J7 Le Bourget (Herzog 1987)_6659444.jpg
    Boeing 7J7 Le Bourget (Herzog 1987)_6659444.jpg
    79.8 KB · Views: 177
  • Boeing 7J7 -052_6659424.jpg
    Boeing 7J7 -052_6659424.jpg
    130.9 KB · Views: 138
So was the 7J7 going to use a side stick or am i just seeing the cockpit concept art wrong and was any attempt made to convert the 7J7 into a "conventional" jet airliner after the end of the prop fan program

So was the 7J7 going to use a side stick or am i just seeing the cockpit concept art wrong and was any attempt made to convert the 7J7 into a "conventional" jet airliner after the end of the prop fan program

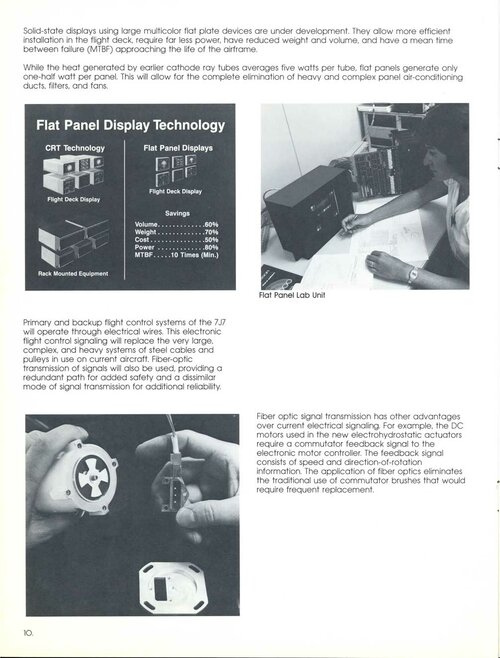

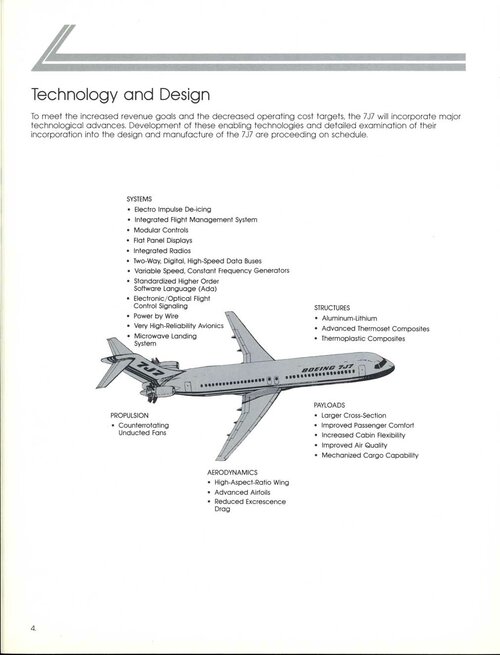

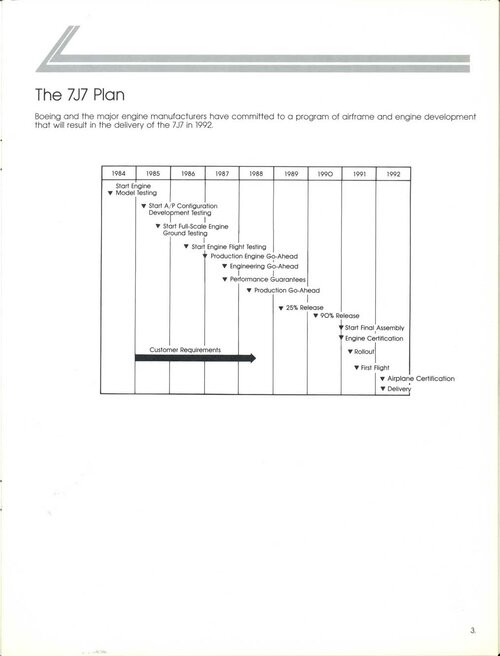

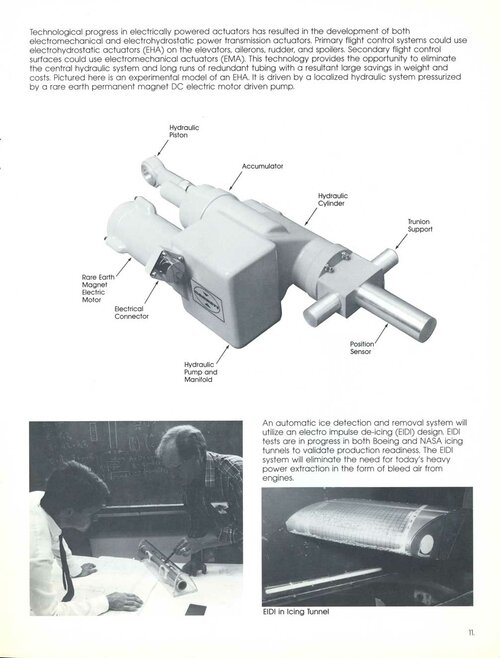

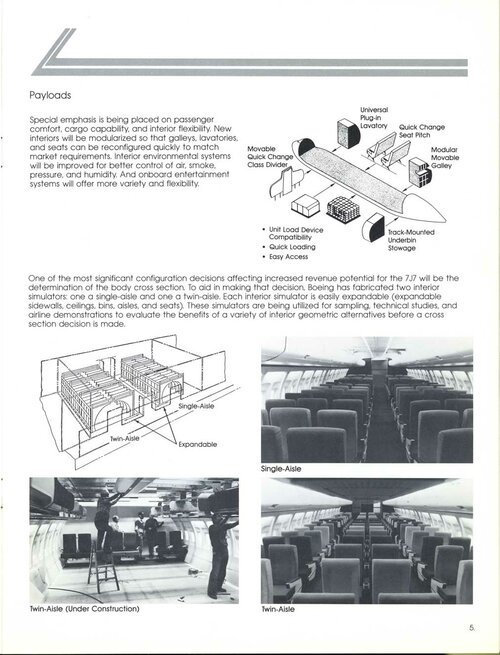

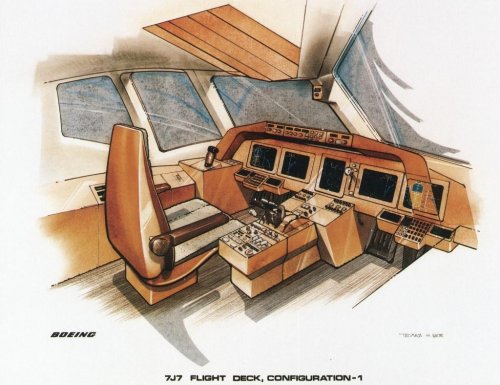

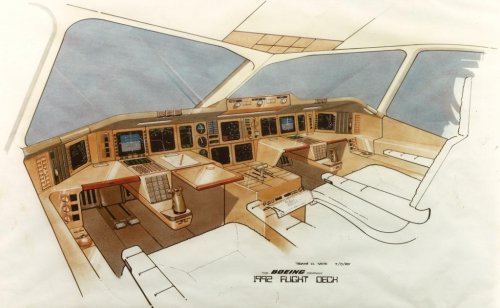

One of the proposed configurations was sidestick


Attachments

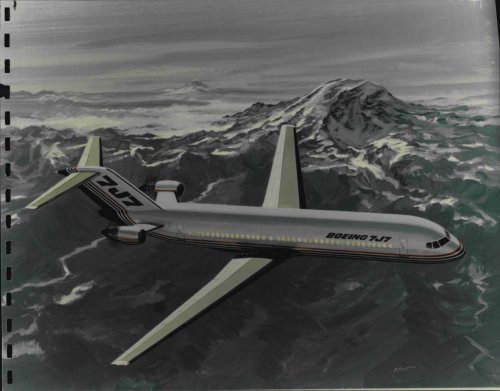

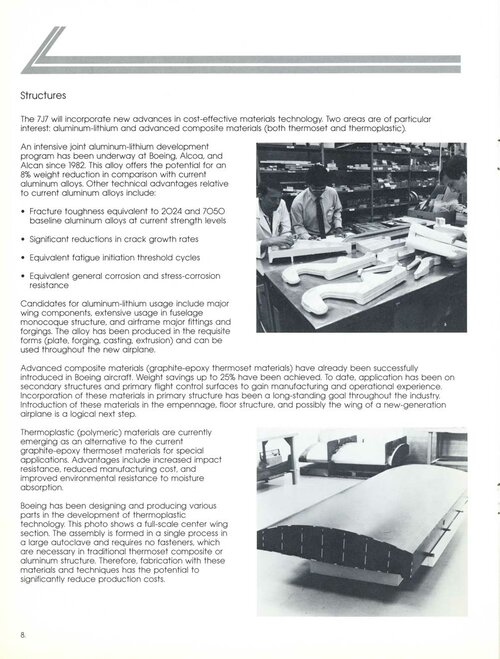

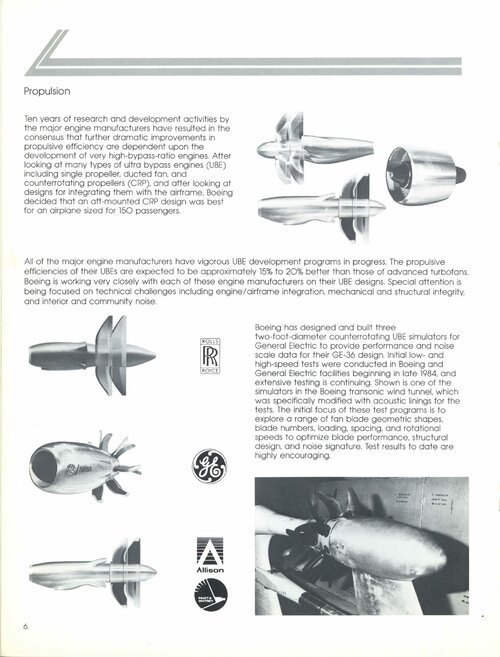

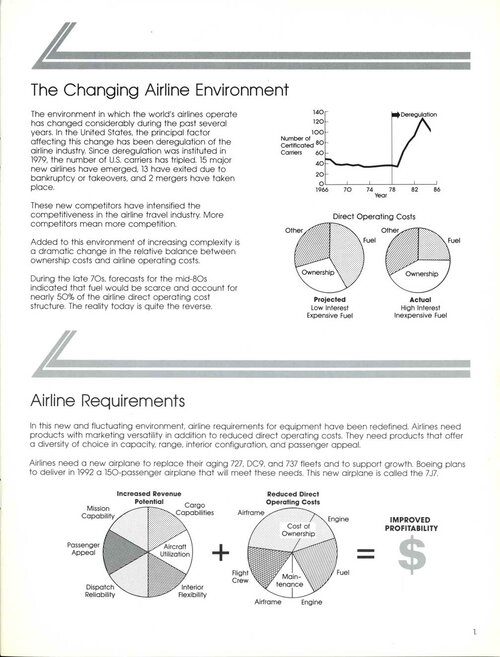

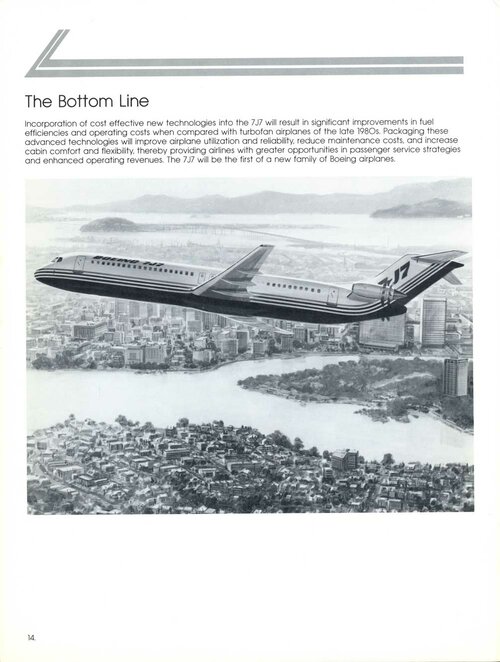

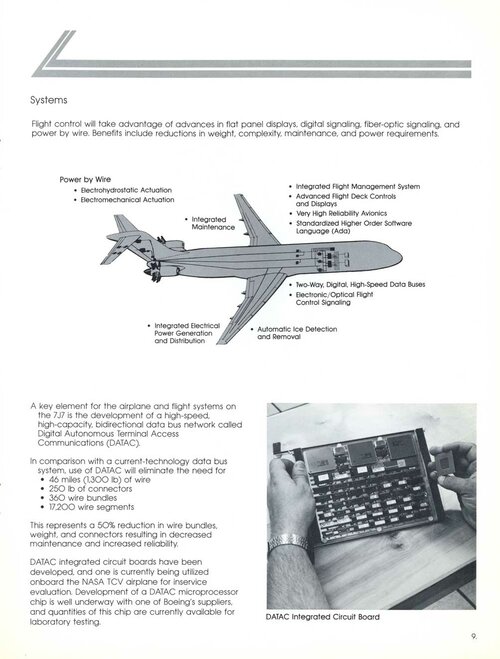

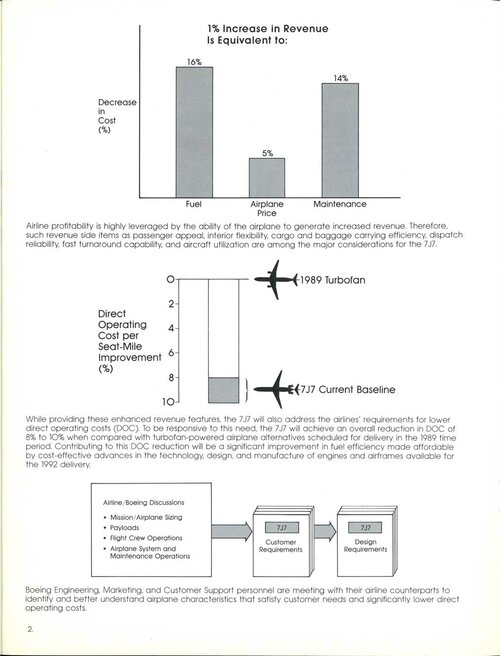

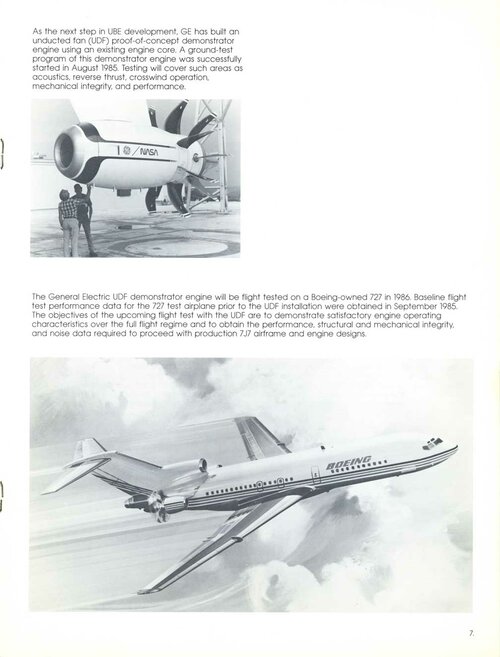

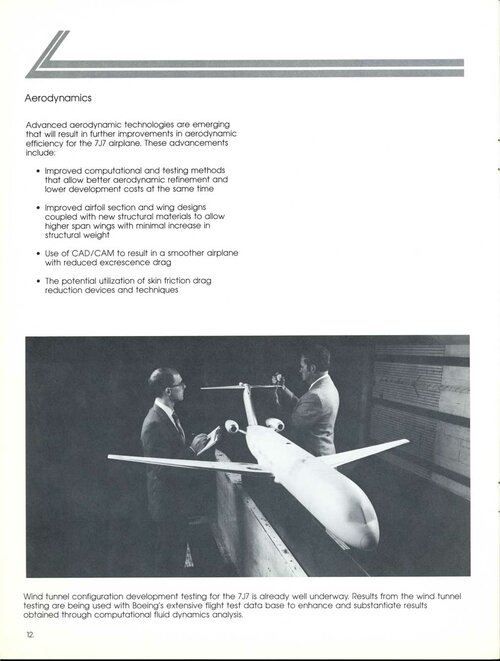

  • Boeing-The-7J7-Program-Brochure-May-1986-P4.jpg
    98.5 KB · Views: 43
  • Boeing-The-7J7-Program-Brochure-May-1986-P5.jpg
    52.9 KB · Views: 45
  • Boeing-The-7J7-Program-Brochure-May-1986-P6.jpg
    77.7 KB · Views: 48
  • Boeing-The-7J7-Program-Brochure-May-1986-P7.jpg
    140.8 KB · Views: 46
  • Boeing-The-7J7-Program-Brochure-May-1986-P8.jpg
    508.6 KB · Views: 48
  • Boeing-The-7J7-Program-Brochure-May-1986-P9.jpg
    86.3 KB · Views: 43
  • Boeing-The-7J7-Program-Brochure-May-1986-P10.jpg
    157 KB · Views: 49
  • Boeing-The-7J7-Program-Brochure-May-1986-P11.jpg
    116.2 KB · Views: 46
  • Boeing-The-7J7-Program-Brochure-May-1986-P12.jpg
    119.4 KB · Views: 47
  • Boeing-The-7J7-Program-Brochure-May-1986-P13.jpg
    100.1 KB · Views: 41
  • Boeing-The-7J7-Program-Brochure-May-1986-P14.jpg
    91.7 KB · Views: 43
  • Boeing-The-7J7-Program-Brochure-May-1986-P15.jpg
    91.6 KB · Views: 43
  • Boeing-The-7J7-Program-Brochure-May-1986-P16.jpg
    109.4 KB · Views: 42
  • Boeing-The-7J7-Program-Brochure-May-1986-P3.jpg
    137.8 KB · Views: 79
7J7 lapsed not solely because the Day for UDF was distant.

Boeing was, as Convair, Douglas, Lockheed had been, entirely capable of solo-design/development...in engineering terms. Not in financial.
Douglas had put DC-9 wings into Canada...as make-to-print: fabrication to Prime Contractor's design, Quality Assurance...Japan won such work. In 1976/77 Boeing was trying to launch (to be) 757,767 concurrently...but could not afford to do so. MDC was exploring replacements for DC-9, DC-10. They both explored teaming with Europe and/or Japan. Both proposed to retain Design Authority and Prime Contractorship, while expecting (say, UK, say Japan) to build-to-parents' prints, at parent-imposed price, and to contribute cash, but not brains, to the non-recurring upfront investment.

Everyone declined. UK rejoined Airbus Industrie. Italy and Japan accepted part of those deals: to make-to-print at parents' imposed price. Italy does so today. Japan does so today but is reputed to have lost vast sums. What they both have enjoyed is the business/employment benefit of leeching off Boeing sales success, without Prime's liability pain. 787 delay, then 737 MAX: good to read about, but not be involved.
