Blended Wing Bodies

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,363
Reaction score
2,220
Website
www.aerospaceprojectsreview.com

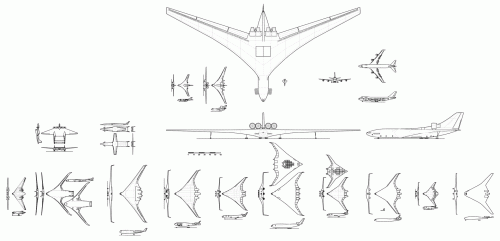

A preview of issue V1N3 of Aerospace Projects Review. The original version had an article on a single one of these BWB designs... the revised issue describes the lot of 'em.

And yes, they are to scale. One of these design is obviously... kinda big.

http://www.up-ship.com


Attachments

  • BWB collect-Model2.gif
    BWB collect-Model2.gif
    103.7 KB · Views: 2,427

BAROBA

3D artist
Joined
Jul 6, 2007
Messages
339
Reaction score
20
Website
www.baroba.be
Orionblamblam said:
Yup! VTOL, as well. Lockheed sometimes thinks big and nutty.

VTOL? Like take-off in a day? :p
A 747 weights about 60 metric tons, this would be like a 1000-2000 metric tons (if not more)
The runway would be gigantic in length ( and width)
They could make a runway on top of this thing for other planes to take-off from :p
Nice to have such ideas :D


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,198
Reaction score
2,737
BAROBA said:
Orionblamblam said:
Yup! VTOL, as well. Lockheed sometimes thinks big and nutty.

VTOL? Like take-off in a day? :p
A 747 weights about 60 metric tons, this would be like a 1000-2000 metric tons (if not more)
The runway would be gigantic in length ( and width)
They could make a runway on top of this thing for other planes to take-off from :p
Nice to have such ideas :D

Version I saw was a seaplane as I recall. As for using runways all you need is enough wheels to get the ground pressure down (see the Pelikan for example) and a wingloading to make the takeoff distance reasonable. It's not rocket science.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,363
Reaction score
2,220
Website
www.aerospaceprojectsreview.com
BAROBA said:
A 747 weights about 60 metric tons, this would be like a 1000-2000 metric tons (if not more)

5386 metric tons, actually.

The runway would be gigantic in length ( and width)

And hense the hundred and fifty or so lift jets for VTOL operations.

They could make a runway on top of this thing for other planes to take-off from

Interesting you should say that. See the little fighter-sized craft near the port side of the nose? Well... guess where it and 23 of its closest friends were meant to operate from...


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,198
Reaction score
2,737
There's a picture around on this site of one in flight with four KC-135s DOCKED to the trailing edge. :eek:


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,363
Reaction score
2,220
Website
www.aerospaceprojectsreview.com
sferrin said:
Version I saw was a seaplane as I recall.

The great little book "Future Fighters" has a Lockheed painting of this critter. The books author speculates that it was to be a seaplane, but it was strictly land-based.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
http://www.secretprojects.co.uk/forum/index.php/topic,387.0.html


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,198
Reaction score
2,737
Orionblamblam said:
sferrin said:
Version I saw was a seaplane as I recall.

The great little book "Future Fighters" has a Lockheed painting of this critter. The books author speculates that it was to be a seaplane, but it was strictly land-based.

First place I saw it back in grade school. ;)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,363
Reaction score
2,220
Website
www.aerospaceprojectsreview.com
sferrin said:
First place I saw it back in grade school. ;)

Jr. High for me. While the '40's and '50's were the Golden Age of "projects," I think the '80s was the Godlen Age of Current Projects Publications. The books published back then were jam-packed with quality artists impressions of what was on the planning boards. Today there are *far* more bits of art available... but most of it is computer generated crap.

Something I've noticed is that as PowerPoint and similar desktop publishing programs became available, the quality of presentations has gone *down.* In the 1960s, if you had a presentation for the USAF on, say, your neato new fighter design, you had the art department put together a package of drawings and paintings. Today you cobble together some MS Paint sketches yourself. Bah.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,198
Reaction score
2,737
The 80s were the years you could go down to Waldenbook almost every weekend and pickup a new book or two by Salamander Publishing and others. :'(


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,199
Reaction score
6,370
I'd say "Project Cancelled" from my school library and then Salamander's "Warplanes of the Future" from my local bookshop were the beginnings of this site :)


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
Orionblamblam said:
sferrin said:
First place I saw it back in grade school. ;)

Jr. High for me. While the '40's and '50's were the Golden Age of "projects," I think the '80s was the Godlen Age of Current Projects Publications. The books published back then were jam-packed with quality artists impressions of what was on the planning boards. Today there are *far* more bits of art available... but most of it is computer generated crap.

Something I've noticed is that as PowerPoint and similar desktop publishing programs became available, the quality of presentations has gone *down.* In the 1960s, if you had a presentation for the USAF on, say, your neato new fighter design, you had the art department put together a package of drawings and paintings. Today you cobble together some MS Paint sketches yourself. Bah.

*snicker* I've seen at least one humorous piece floating around work that purportedly describes a MSPE (Masters of Science Degree in Powerpoint Engineering) program. Given all the presentations we required to produc on occassion, it sometimes feels all too true.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386
"VTOL? Like take-off in a day? "

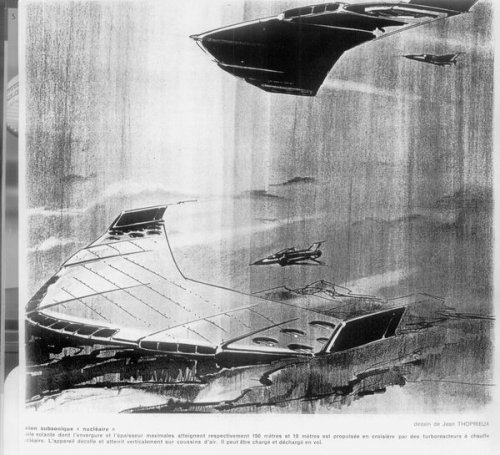

Found this tiny little concept in Icare from 1971 :
Nuclear powered and 150m span ... ;D


Attachments

  • Avion_ADAV_nucleaire.JPG
    72.2 KB · Views: 1,103

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,198
Reaction score
2,737
elmayerle said:
Orionblamblam said:
sferrin said:
First place I saw it back in grade school. ;)

Jr. High for me. While the '40's and '50's were the Golden Age of "projects," I think the '80s was the Godlen Age of Current Projects Publications. The books published back then were jam-packed with quality artists impressions of what was on the planning boards. Today there are *far* more bits of art available... but most of it is computer generated crap.

Something I've noticed is that as PowerPoint and similar desktop publishing programs became available, the quality of presentations has gone *down.* In the 1960s, if you had a presentation for the USAF on, say, your neato new fighter design, you had the art department put together a package of drawings and paintings. Today you cobble together some MS Paint sketches yourself. Bah.

*snicker* I've seen at least one humorous piece floating around work that purportedly describes a MSPE (Masters of Science Degree in Powerpoint Engineering) program. Given all the presentations we required to produc on occassion, it sometimes feels all too true.

I've heard some of the military folk referred to as "Powerpoint Warriors" :D


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,011
Reaction score
491
while googling for something else, i found this,

http://www.aoe.vt.edu/~mason/Mason_f/AIAA2003-6732.pdf

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

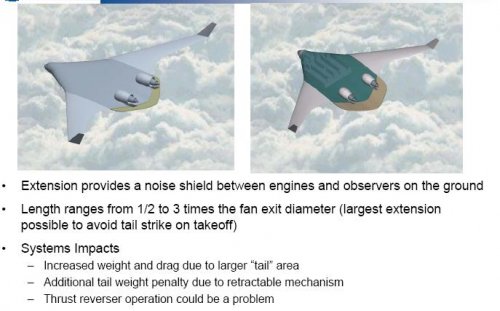

from NASA,the BWB extension for shielding.


Attachments

  • BWB.JPG
    45.9 KB · Views: 977

Jeb

ACCESS: Secret
Joined
Jul 2, 2007
Messages
297
Reaction score
55
sferrin said:
Orionblamblam said:
sferrin said:
Version I saw was a seaplane as I recall.

The great little book "Future Fighters" has a Lockheed painting of this critter. The books author speculates that it was to be a seaplane, but it was strictly land-based.

First place I saw it back in grade school. ;)

I've got it on my bedside table now. ;D Found a copy on Amazon and bought it for myself this past Christmas.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,351
Reaction score
321
Don't want to go too OT, but Bill Gunston's above mentioned 'Warplanes of the future' and the similar 'Future Fighters and Combat Aircraft' were outstanding references. That was almost 20 years ago (the X-29 hadn't flown yet!). Is it me or there hasn't been anything comparable since (quality-wise)?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20080021214_2008019933.pdf


Attachments

  • CESTOL BWB.JPG
    CESTOL BWB.JPG
    31 KB · Views: 1,011

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

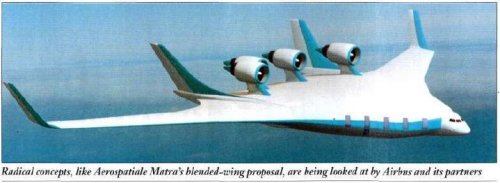

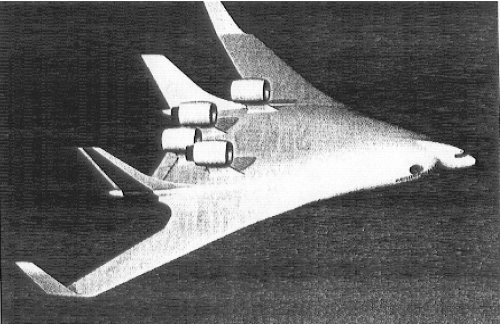

Airbus (Aerospatiale ) BWB;
http://aero.stanford.edu/bwbfiles/AerospatialeBWB.html


Attachments

  • Airbus BWB.JPG
    Airbus BWB.JPG
    103.1 KB · Views: 734

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
283
Some interesting patents with great images in relation to the McDonnell Douglas (now Boeing) blended wing body (BWB) airliner, military support aircraft. Great supplements to APR 1/3

Transformable Airplane, David Whelan et al
Boeing patent detailing a military combi version of the BWB (2-250G in the figures?) including bomber with rearward ejection chutes, ISR, IFR tanker and military strategic transport and modular combinations.
US Patent: 7093798
http://www.google.com/patents?id=uDp6AAAAEBAJ&dq=7093798

Variable Size Blended Wing Body Aircraft, Mark Page et al
Details of the modular body structure of the McDD/Boeing BWB commercial airliner concept.
US Patent: 6568632
http://www.google.com/patents?id=AiANAAAAEBAJ&dq=6568632

Separate Boundary Layer Engine, Gerhard Seidel
BWB buried engine intake design.
US Patent 6527224
http://www.google.com/patents?id=zhENAAAAEBAJ&dq=6527224

Method And System For Presenting Differing View To Passengers In A Moving Vehicle, Orin Humphries
Boeing application for ‘window seats’ for BWB, good images of internal layout.
US Patent: 7046259
http://www.google.com/patents?id=FPF3AAAAEBAJ&dq=0217978

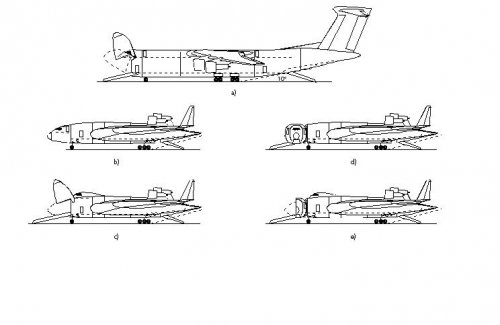

Landing Arrangement For An Aircraft, Kenneth Udall
Rolls-Royce designto lower the BWB’s nose on landing to engage thrust reversers.
US Patent: 7143975
http://www.google.com/patents?id=nRF9AAAAEBAJ&dq=7143975

Engine Arrangement, Karim El Hamel, et al
Rolls-Royce plan for engine pod/nacelles for BWB.
US Patent: 7107755
http://www.google.com/patents?id=cjV6AAAAEBAJ&dq=7107755

The attached image is just a teaser the real interesting stuff is in the patents...


Edit: Add some more patent picturesincluding the bomb bay modules configuration and the R-R thrust reverser friendly landing alignment: going to want rear facing seats for that one.


Attachments

  • bwb_landing.gif
    20.2 KB · Views: 203
  • bwb_bomber.gif
    37.4 KB · Views: 149
  • bwb.gif
    4.8 KB · Views: 332

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
283
Another great BWB resource is this Power Point from Boeing Phantom Works:

Technologies For Subsonic Transport by R.H. Leibeck

www.asme.org/gric/AeroWkshop/presentations/RobertLiebeck.pdf

Includes data on a range of BWB commercial and military proposals including BWB 450G comparision to the A380.

Update: Looks like this link has been deactivated.


Attachments

  • bwb_vs_a380.gif
    24.7 KB · Views: 236

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

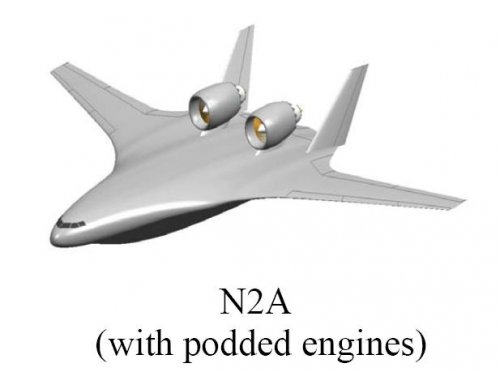

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20080005538_2008003855.pdf


Attachments

  • NASA.JPG
    13 KB · Views: 347

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
283

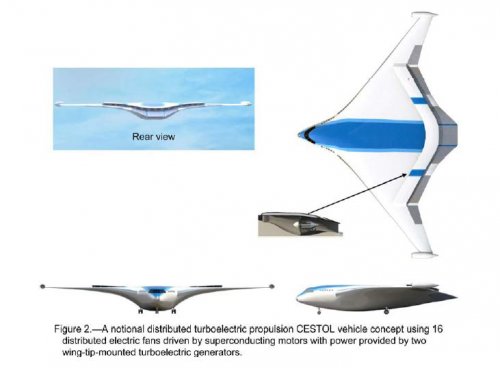

The Cruise Efficient Short Take-Off and Landing (CESTOL) Power Point:

http://mdao.grc.nasa.gov/presentations/CESTOL.ppt

and the paper (cited in APR 1/3):

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20070010603_2007007182.pdf


Attachments

  • cestol.jpg
    223.5 KB · Views: 348

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,011
Reaction score
491
Technologies For Subsonic Transport by R.H. Leibeck

i can't get the link to this to work, i get redirected to the homepage, tried searching on the site but no joy, :'(

cheers,
Robin.


Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
105
Reaction score
0

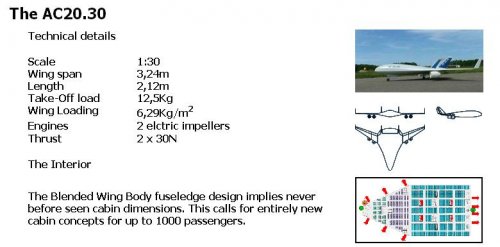

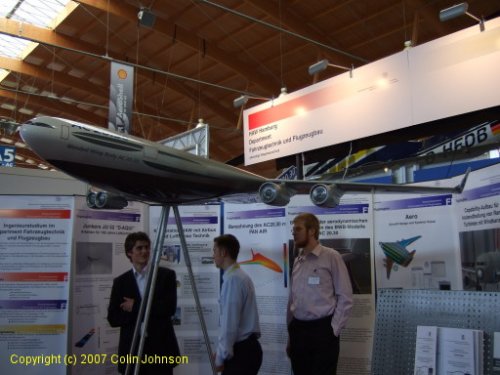

Anyone got more info on this kind of hybrid design?



http://fseg.gre.ac.uk/NACRE/details.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

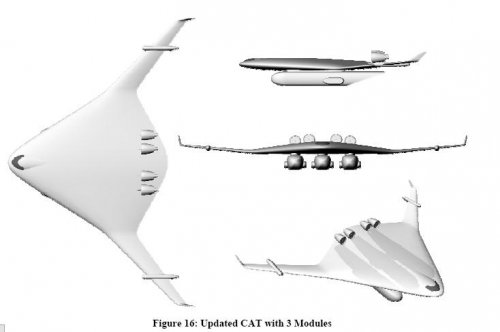

http://mikesnead.net/resources/cat/tech_paper_configurable_air_transport.pdf


Attachments

  • BWB.JPG
    22.7 KB · Views: 629

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

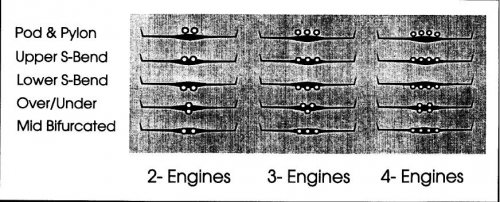

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19960023625_1996039480.pdf


Attachments

  • blended 1.JPG
    blended 1.JPG
    26.9 KB · Views: 454
  • blended 2.JPG
    blended 2.JPG
    21.1 KB · Views: 438

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
101
http://www.aiaa.org/aerospace/images/articleimages/pdf/AA_Oct06_WIL.pdf

Enjoy!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,

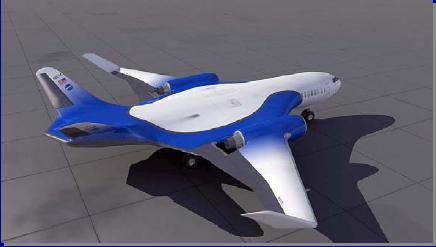

the Boeing 747 XL.
http://members.cox.net/rebid/bldwing.htm


Attachments

  • 747 XL.jpg
    747 XL.jpg
    14.8 KB · Views: 561

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
45
Jemiba,

That 150 meter span VTOL vehicle is impressive. It actually reminds me a little bit of this airplane in this videogame... I think it was one of the Ace Combat (I saw vids on Youtube awhile ago IIRC) series. That vehicle however took off of water though in the regular old fashioned horizontal mode.


KJ


Demon Lord Razgriz

ACCESS: Confidential
Joined
Nov 1, 2008
Messages
189
Reaction score
2
KJ_Lesnick said:
Jemiba,

That 150 meter span VTOL vehicle is impressive. It actually reminds me a little bit of this airplane in this videogame... I think it was one of the Ace Combat (I saw vids on Youtube awhile ago IIRC) series. That vehicle however took off of water though in the regular old fashioned horizontal mode.


KJ

Was it Ace Combat 6 with the Estovakian Aerial Fleet consisting of the P-1112 Aigaion Flying Aircraft Carrier, & the escorts P-1113 & P-1114? Or was it Ace Combat Zero with the Belkan XB-0?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
Please, no videogames here, OK?


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
425
Was it Ace Combat 6 with the Estovakian Aerial Fleet consisting of the P-1112 Aigaion Flying Aircraft Carrier, & the escorts P-1113 & P-1114? Or was it Ace Combat Zero with the Belkan XB-0?

Estovakian?, those names are really ridiculous. Who is the creator? :mad:


Similar threads

Top
