Sorry if I'm duplicating the subject, but I gotta mention what I just saw! At the Evergreen Air and Space museum, they have a M1 really big rocket motor (though suprisingly, no F1 to compare it with) and it IS really big.


sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1

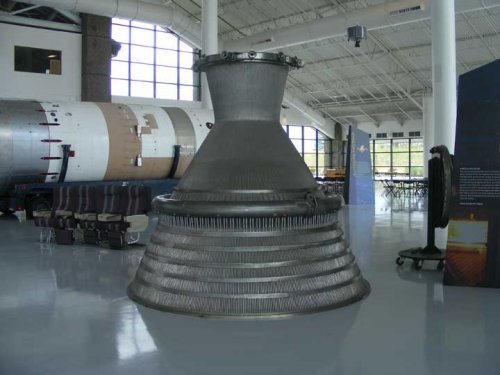

Okay a snap. That's a Titan in back for scale.


Attachments

  • M1 motor.jpg
    M1 motor.jpg
    77.6 KB · Views: 80

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
193
The M1 was second stage engine for the second generation for the Saturn 5 the first stage engine was to be the F1 b or C .Out put of them was 1.75 million IB's and 2 million IB's


Howedar

ACCESS: Confidential
Joined
Sep 24, 2008
Messages
58
Reaction score
1

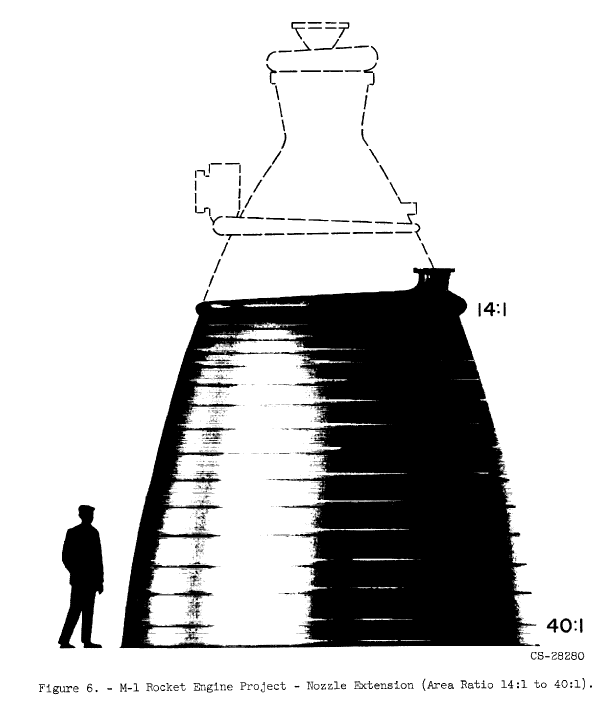

Mark Wade's drawing on astronautix.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,982
Reaction score
1,356
nice picture sagallacci

sad its only the top of Engine, no nozzle or Turbopumps

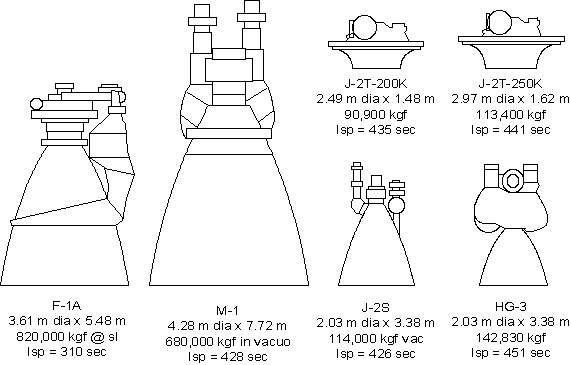

that how it look like (source wiki)

the white part is that piece in the museum

here the Turbopump from in M-1 (source Wiki)


http://en.wikipedia.org/wiki/M-1_(rocket_engine)
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730065121_1973065121.pdf
around 2.56 Mb big


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,156
Reaction score
1,303
Spark, please look for damn overquoting!
Posting 250 lines of previous post and adding three lines of yours not a good habit.
