Beriev Be-112

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246
Recently I bought is Red Star Volume 28: Beriev's Jet Flying Boats. Chapter 4 "Little Brother" is devoted to the Be-200 (A-200 for the manufacturer) and it starts with the description of the A-100.
The A-100 was developed to be the A-40's little civilian brother. The A-40 was too big to succeed into the civil market

A-100 description:

Role: fire fighting, passenger/cargo transportation, SAR, patrol.
All up weight: 21-22 tonnes
Configuration: shoulder-mounted unswept wing and two underwing outrigger floats.
Powerplant: 2x Izotov TV7-117S turboprop rated at 2500 shp driving 6 bladed propellers

The program was cancelled because it was so similar to the CL-215T/415 that it was a redundancy for the market. They returned to the drawing board and the A-200 was born.

Yesterday, Scorp show me an unknown design in one of Beriev's stand posters from Aero India 2007 It seems an A-100 concept rebirth but I can't identify it?. Could anybody help me?.

Many Thanks!


Attachments

  • Unknown Beriev 2.jpg
    Unknown Beriev 2.jpg
    100 KB · Views: 340
  • unknown Beriev 1.jpg
    unknown Beriev 1.jpg
    68.7 KB · Views: 297

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
56
When Air International did an article on the A-200, a small side profile of the smaller turboprop powered amphibian appeared. Perhaps there were a few details, but the article gave the impression that it was a live program, not a long dead predecessor of the 200.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246
BTW, if anybody can post drawings of the A-100 it will be very welcome too ;D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,021

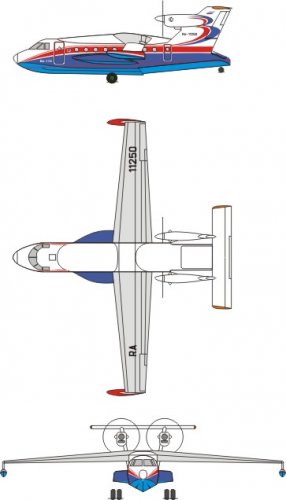

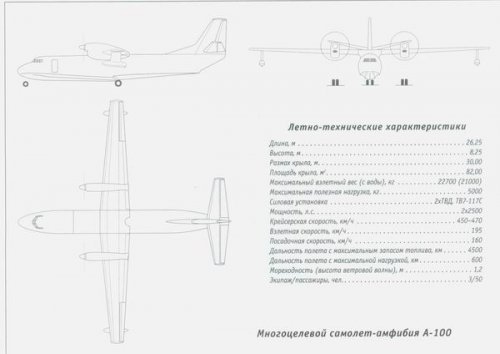

In §Beriev Aircraft 1968 - 2002" I've found a drawing of, I think ,
the A-100, but it doesn't seem to be , what you are looking for.
(Although maybe the cyrillic letters are playing a trick to me .. ::) )
But the Be-112, with the typical engine arrangement shows much
more similarities.
Perhaps we should wait, until boxkite is around again. He can easily
browse through this book (It's his book, I've just a scan of several
pages), he can read it and he has much more knowledge of soviet/
russian aviation than me ...


Attachments

  • Beriev_A-100.JPG
    25.8 KB · Views: 471
  • Beriev_Be-112.JPG
    27.7 KB · Views: 460

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,041
Reaction score
314
It should be the Be-112, Ken Duffey took photos of a flightworthy model that looked just like this thing at Gelendzhik last year and captioned it as a Be-112. Unfortunately the pictures seem to have vanished from the thread: http://forum.keypublishing.co.uk/showthread.php?t=63548


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,986
Reaction score
346
Hi,

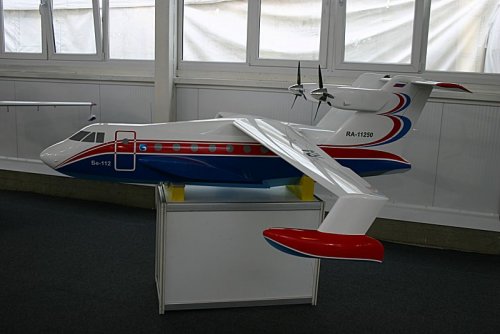

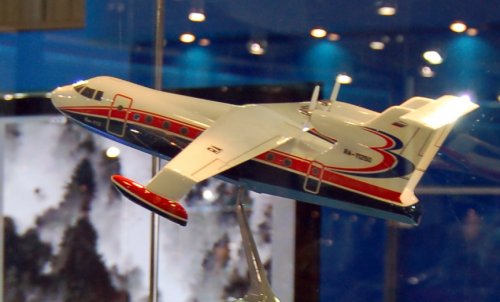

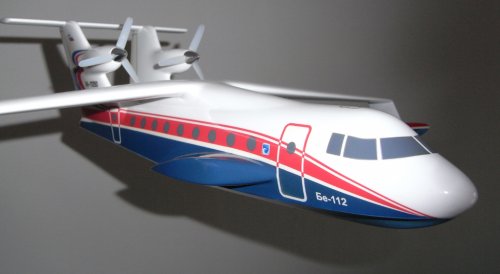

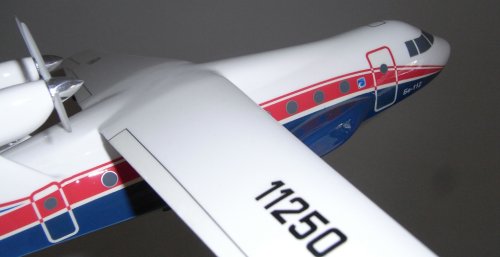

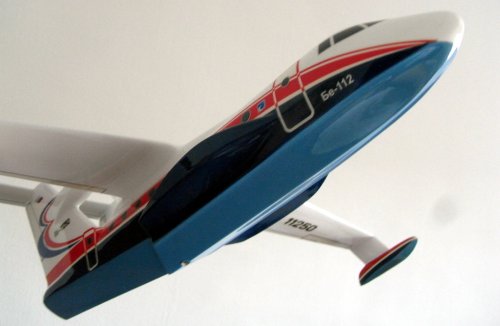

yes, this is Be.112, seen on ILA Berlin 2006.

Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,077
Reaction score
3,755
Hi Pometablava,

please see this;
http://www.beriev.com/eng/Be-112_e/be-112_e.html


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246
Many Thanks Folks!
People in this forum rocks again 8)

Well just a little question before closing this topic. In the pic I have attached there is also another drawing in blue ink. The aircraft in the drawing is similar to the main subject of the poster (the Be-112 now we know its identity) but it is not the same. Main difference is it has the engines in the wings.

Jemiba posted the same drawing in full colour here:

http://www.secretprojects.co.uk/forum/index.php/topic,1267.0.html

Jemiba identified it from the Russian Beriev Book as the Be-112.

Questions:

a) are both drawings two different studies under the same design number?.

b) the concept in the blue drawing could be the older from two?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,021

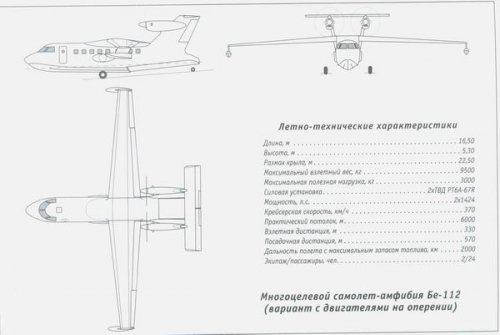

Yes, it seems, both were just different configurations proposed under the same
design number.
Here's the other 3-view, probably someone can tell us, what the inscription says .. ???


Attachments

  • Beriev_Be-112-2.JPG
    31.3 KB · Views: 383
  • Beriev_Be-112-1.JPG
    34.6 KB · Views: 198

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
133
Website
www.hitechweb.genezis.eu

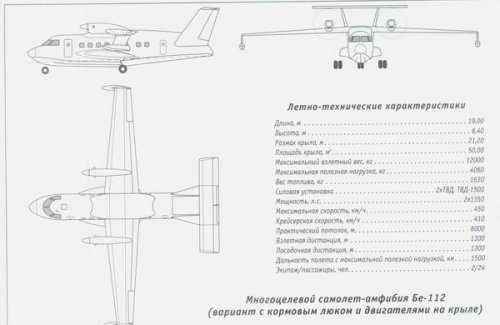

With my limited knowledge (limited to recognize pictures/letters in the dictionary :D ) it means:

Multifunctional plane - amphibia Be-112
(version with the ramp at the aft fuselage and wing mounted engines)


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,041
Reaction score
314

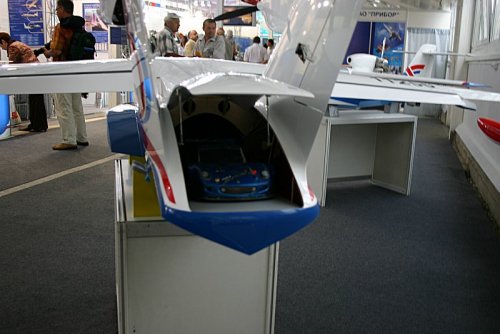

Ken Duffey's pictures of the scale model can now be found here (nice view of the rear ramp in the first link!):

http://mysite.wanadoo-members.co.uk/flankers_pages/mos2006_day04.html

http://mysite.wanadoo-members.co.uk/flankers_pages/mos2006_day07_8.html


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,396
Reaction score
733
The other Be-112 with the wing mounted engines is now the Be-114.
It is larger than the Be-112, e.g 44 passengers vers 27 passengers .
See sources for comparison.
Sources:
http://www.beriev.com/eng/Be-112_e/be-112_e.html
http://www.beriev.com/eng/Be-114_e/be-114_e.html


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

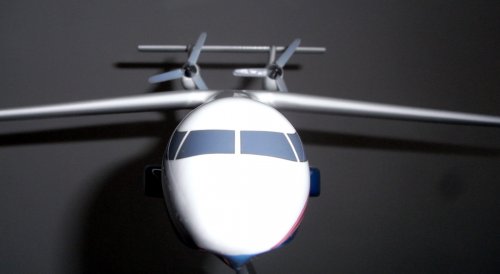

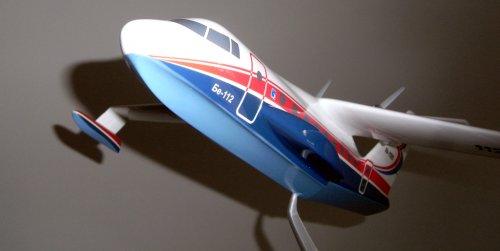

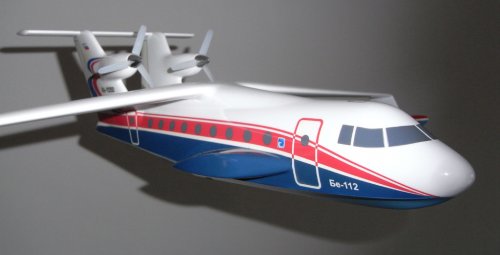

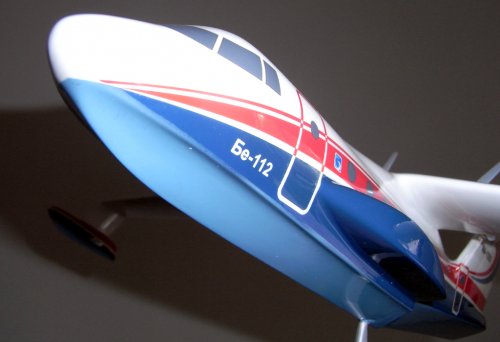

Attachments

  • be-112_30.jpg
    295.7 KB · Views: 25
  • be-112_34.jpg
    326.9 KB · Views: 21
  • be-112_36.jpg
    315 KB · Views: 21
  • be-112_32.jpg
    319.1 KB · Views: 21
  • be-112_37.jpg
    280.4 KB · Views: 20
  • be-112_41.jpg
    373.2 KB · Views: 177
  • be-112_42.jpg
    465.2 KB · Views: 207
  • be-112_27.jpg
    329.8 KB · Views: 226

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,940
Reaction score
2,083
Is it possible we may be seeing this design flying in the near future?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

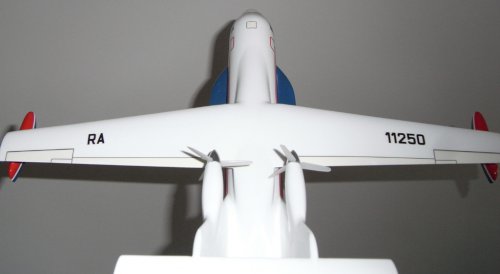

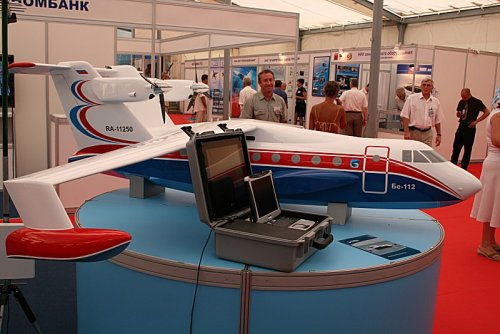

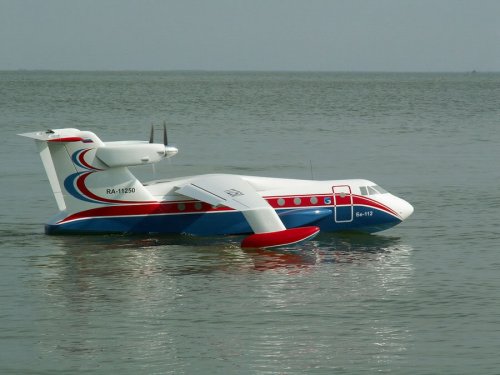

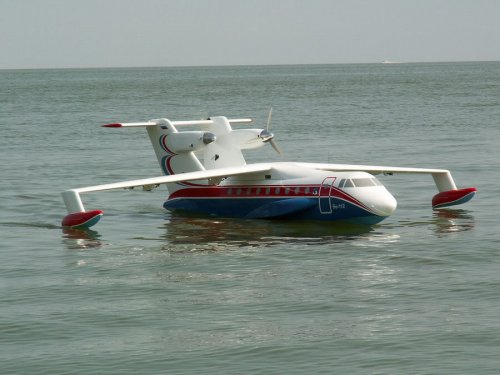

Flying model of Beriev Be-112 on display at Hydroaviation Show, Gelendzhik, Black Sea September 2006

Source:
http://www.flankers-site.co.uk/mos2006_day04.html


Attachments

  • day_01_065.jpg
    76.4 KB · Views: 27
  • day_01_064.jpg
    64.7 KB · Views: 23

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

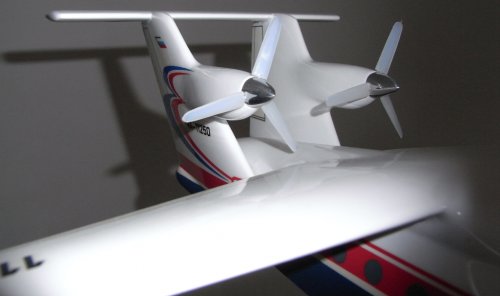

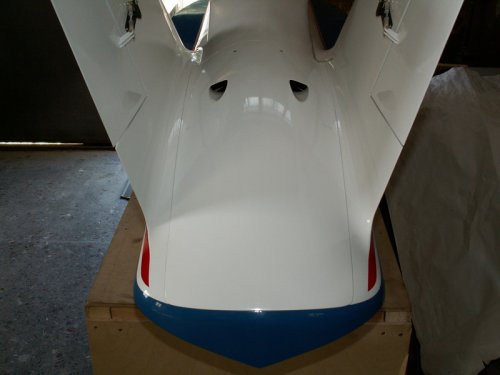

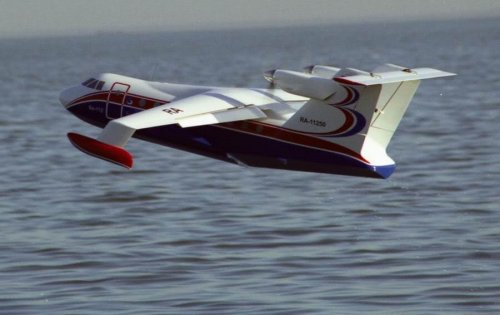

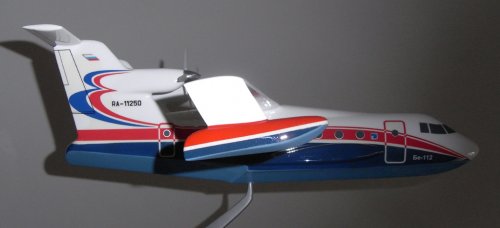

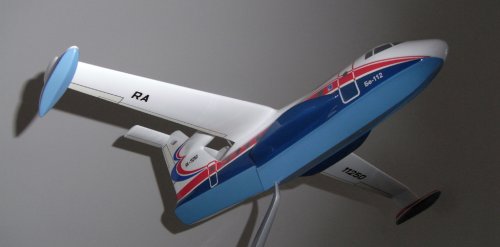

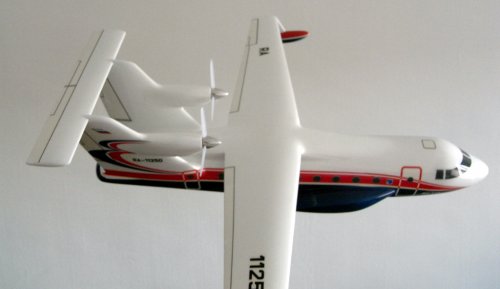

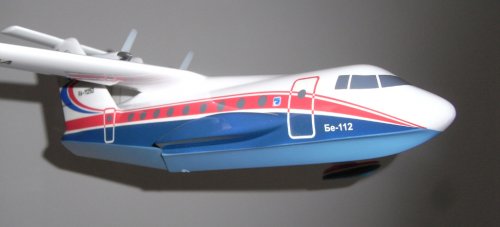

Flying model of Beriev Be-112

Source:
http://theflyingboatforum.hostingdelivered.com/viewtopic.php?f=16&t=790


Attachments

  • Be-112_002.jpg
    82.7 KB · Views: 24
  • Be-112_003.jpg
    80.7 KB · Views: 29
  • Flight_Be112-1.jpg
    53.4 KB · Views: 23
  • Be-112_009.jpg
    83.3 KB · Views: 18
  • Be-112_010.jpg
    107.5 KB · Views: 18

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

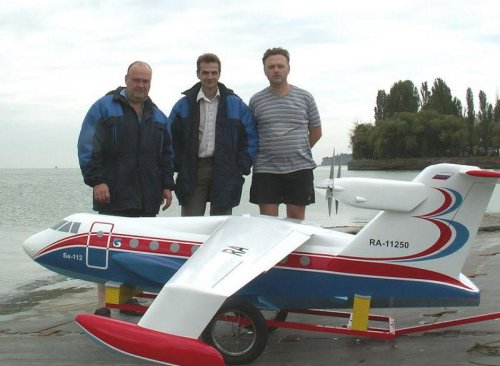

Photograph of Nikolay A. Lavro chief designer for Beriev. He is believed to be in the center with the flying model of the Beriev Be-112.

Source:
http://theflyingboatforum.hostingdelivered.com/viewtopic.php?f=16&t=790&start=10#p4117


Attachments

  • Lavro.jpg
    36.5 KB · Views: 16
  • Be-112_001.jpg
    60 KB · Views: 23

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,940
Reaction score
2,083
The current situation mentioned here may give renewed impetus to the program.
