Beriev Be-32 VTOL and STOL projects

[hesham]

Hi,

There was a lot of projects to Beriev Be-32 as VTOL aircraft
during the period 1965 to 1970,here two projects of 1965,
one look like Dornier-231 and the other had tilt wing.

[images removed as they already appear further below]



[hesham]

Hi,

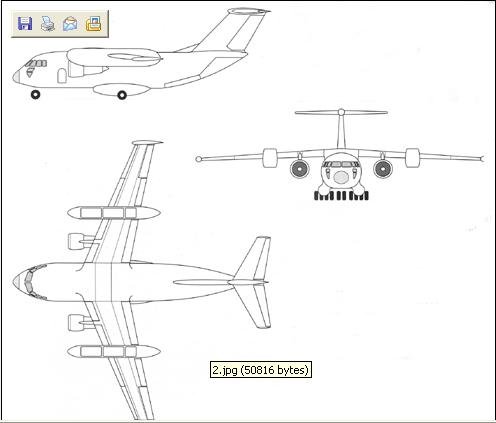

Anther two Beriev Be-32 as a Vtol aircraft,it was from 1968.



[hesham]

Hi,

Another Beriev Be-32 of 1965 [image remove as it already appears further below] and Be-32 of 1969 as VTOL aircraft.



[hesham]

Hi,

And the last Be-32 of 1969 and Be-32 of 1970 as VTOL aircraft.

[images removed as they already appear below]



[luedo34]

Great stuff, thanks!

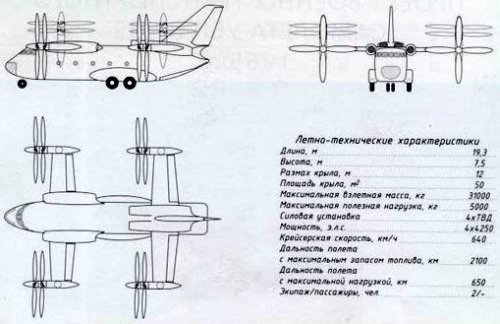

Anyboy who could translate the technical data on the Be-32 pic for me? Unfortunately Russian and Kyrillic letters are beyond my grasp...Thanks a lot!



[borovik]

lenght.м. -19.3
high.м. -7,5
span.м. -12
area wing, м2 -50
weight loaded, kg -31000
cruise speed,km/h - 640
range max. -2100km
with max.payload - 650km
max.payload weight - 5000kg
crew - 2/-



[luedo34]

That was quick, thanks a lot!



[Triton]

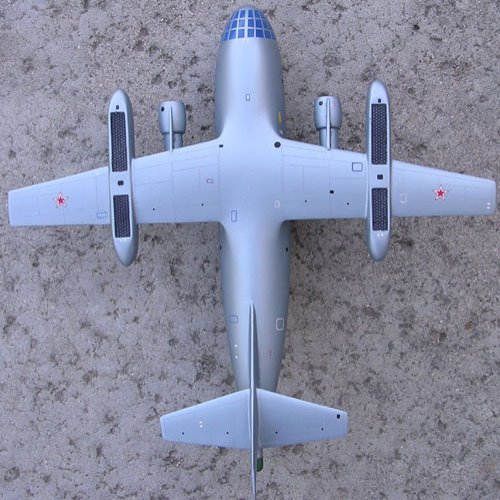

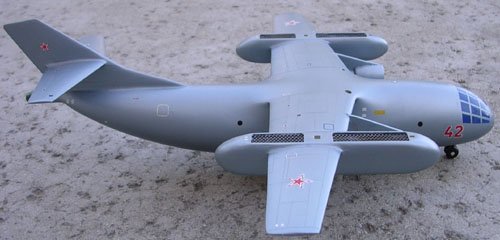

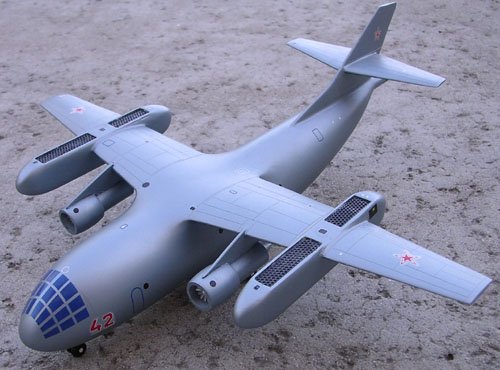

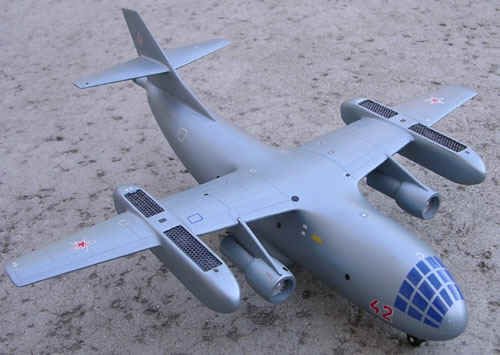

Model of Beriev Be-32 VTOL transport aircraft from 1968 from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:

12- inches length hand-made model of 1968 Beriev Design Bureau project of vertical take off and landing transport aircraft Be-32.

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=1855



[Triton]

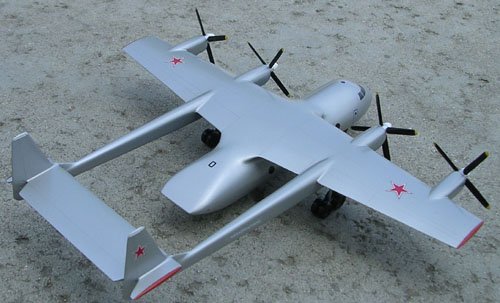

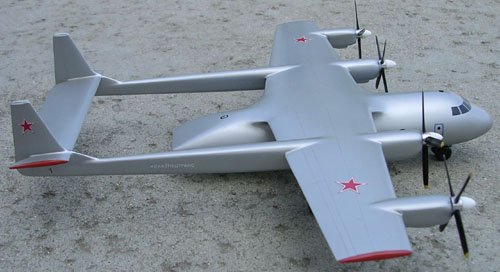

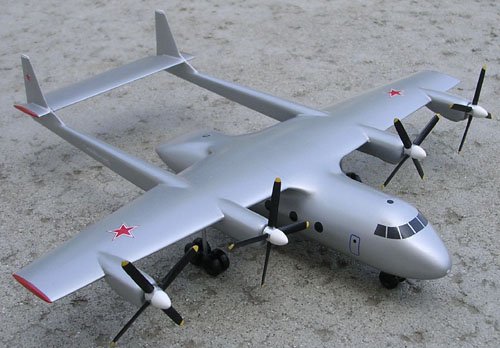

Model of Beriev Be-32 STOL transport from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:

28 cm (11 inches) wing span hand made model of 1965 Beriev Design Bureau project of short take off and landing military transport aircraft Be-32.

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=2244



[Triton]

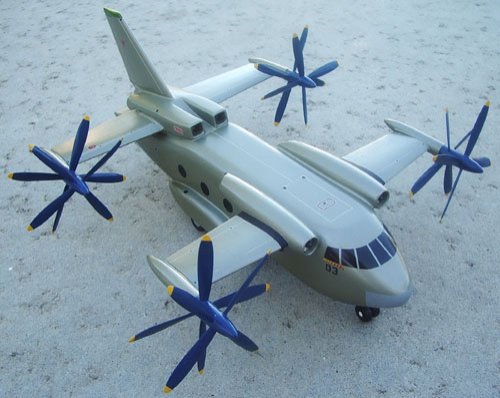

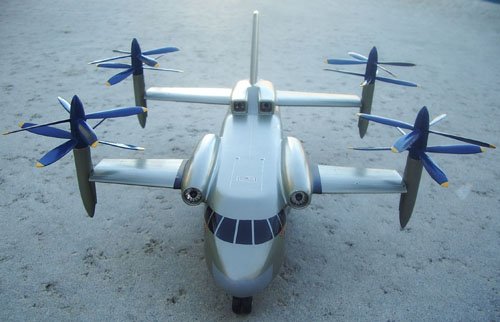

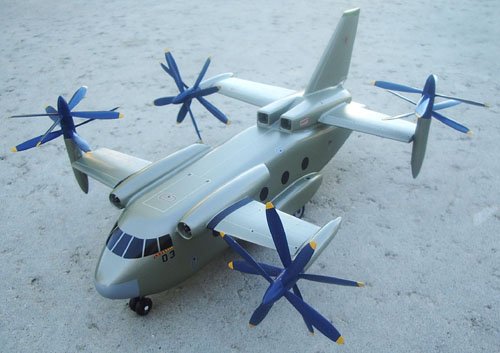

Model of Beriev Be-32 quad tilt-rotor from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:

1965 Beriev Design Bureau project of military transport vertical take off and landing aircraft with rotating props. Actual aircraft never built, but only a model for factory researches. Size of model 13 x 111 inches.Displayed on rubber made wheels.Props can be turned (as on pictures).

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=2394



[hesham]

Hi,

http://www.vtol.boom.ru/rus/Be-3270/index.html

1-1965 military VTOL transport.
2-1965 military tilt-rotor VTOL transport.
3-1968 military VTOL transport.
4-1968 anther military VTOL transport.
5-1965 military transport SUVP.
6-1969 military VTOL transport.
7-1969 anther military VTOL transport.
8-1970 military VTOL transport.



[Tophe]

Including a twin-boomer for rear door cargo access, this is the best, yes.



[robunos]

1,3,4,6,7,and 8 look very Do-31 ish, particularly 4.....


cheers,
Robin.



[McColm]

And you wonder why it never went into production.



[dannydale]

Holy gearboxes and driveshafts, Batman! That thing's complicated!



[McColm]

That's what they said about the moon.
Fly-by-wire, could control it. Yes you're right, but they could have tried.



[Stargazer]

Topic updated.



[hesham]

Hi,

for Beriev Be.30 & Be.32 VTOL and STOL,in my files there was a 14 different
configurations.
