Bell XP-83 (Model 40)

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Wow. This is a first! Thanks for this treasure trove! Now from the looks of it I can see no big difference with aircraft #1.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,861
Reaction score
320
Thanks for all of the pics, I always liked this plane. It sort of reminds me of an early jet era Thunderbolt. I find it funny how it was dismissed since it's performance was the same as the P-80's, except it had range. Yet in the early jet era, one of the biggest problems was always a lack of range. Though I do understand that the technology was advancing so rapidly back then, that by the time this would have went into production they probably would have been ready for the F-86.

Does anyone know if engineering drawings of it still exist?


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
55

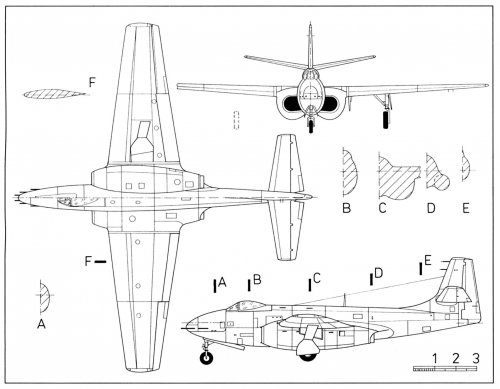

From L+K No.6/1996 (drawing by Martin Salajka):


Attachments

  • L_K_1996-06_XP-83 resize.jpg
    L_K_1996-06_XP-83 resize.jpg
    186.1 KB · Views: 573

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,600
Reaction score
2,831
Website
www.amazon.com

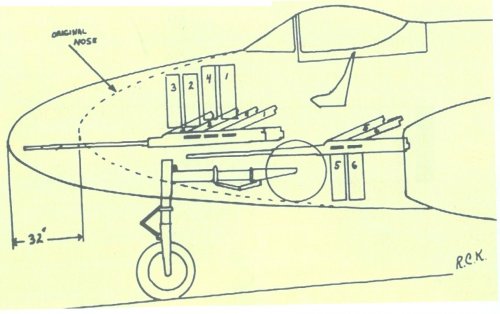

"The second prototype (44-84991) flew on October 19, 1945. It had a slightly different bubble canopy and a somewhat longer nose to accommodate a heavier armament of six 0.60-inch T17E3 machine guns. This aircraft was used in gunnery tests at Wright Field in Ohio."


Attachments

  • ñ.jpg
    129.7 KB · Views: 472

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
649
Greetings All -

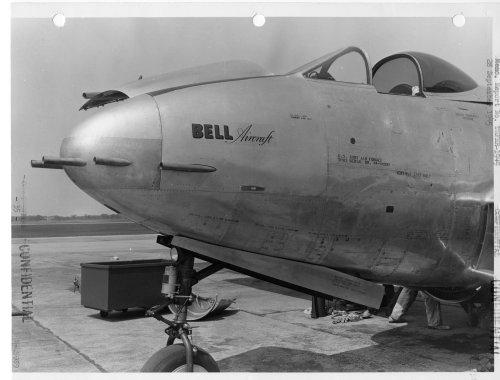

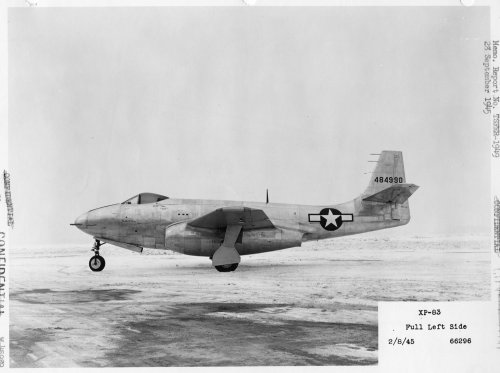

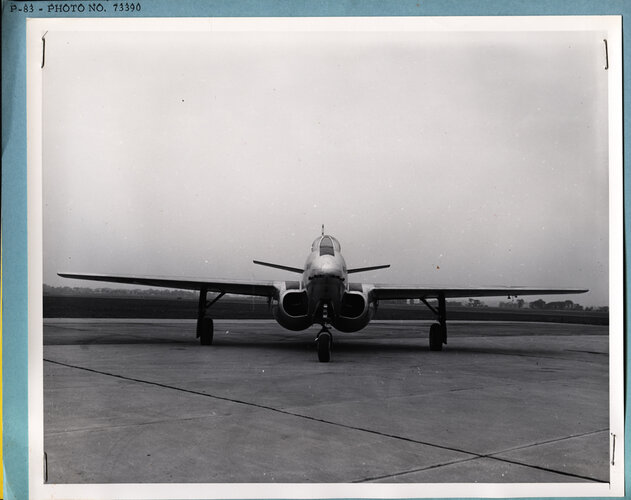

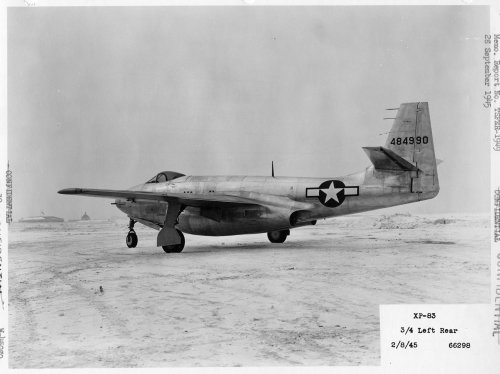

Here are three photos from the Gerald Balzer Collection of Ship #1. Good detail shot of the nose section. Note the dates on the photos....

Enjoy the Day! Mark


Attachments

  • xXP-83 Ship 1 Left Side 01.jpg
    xXP-83 Ship 1 Left Side 01.jpg
    147.7 KB · Views: 178
  • xXP-83 Ship 1 Rear Left 01.jpg
    xXP-83 Ship 1 Rear Left 01.jpg
    157.3 KB · Views: 172
  • xXP-83 Ship 1 Nose 01.jpg
    xXP-83 Ship 1 Nose 01.jpg
    159.4 KB · Views: 211

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
45
Herbert L. Bowers designed the XP-83 as shown here in this patent. -SP


Attachments

  • Herbert L. Bowers Patent-XP-83.pdf
    84.3 KB · Views: 38

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
550

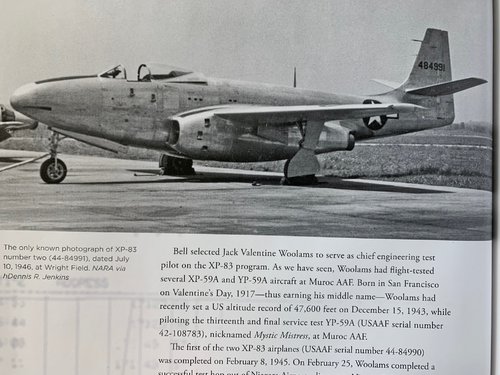

Steve Pace had me proof read his last book “The Big Book of X Bombers and X Fighters” in which he published the photo of the second prototype thanks to Jenkins passing it to Tailspin Turtle as shown above in 2011. I wrote the 1981 Airpower article and the original color cutaway was returned to the owner back in the ‘80s’ so we only have access to what was published. Second prototype armed with two .60 cal mg.


Attachments

  • IMG_1321.jpg
    963.2 KB · Views: 137

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
355
Reaction score
618

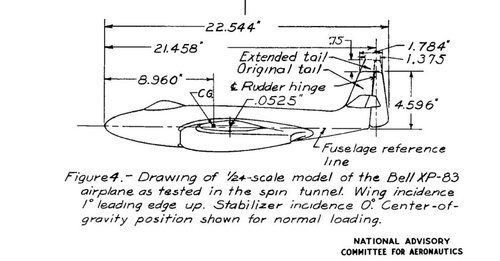

While doing a bit of research on the Bell XP-83 I came across this NACA report on spin trials carried out in a wind tunnel, which may be of interest to forum members; https://digital.library.unt.edu/ark:/67531/metadc61570/m1/1/. Of particular note to me was the drawing showing an original short tail fin and also an extended tail fin, something that I had not been aware of before.
XP83 tech drawing.jpg


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
683
Dear VictorXL188,
Apparently the first prototype suffered directional instability (yawing).
The taller fin was an attempt to solve that stability problem.


KHambsch

ACCESS: Restricted
Joined
May 11, 2020
Messages
13
Reaction score
13
sagallacci: are you sure that those aren't the Marquardt 20" diameter ramjets?

Marquardt Aircraft used 44-84990 as a ramjet testbed (complete with a rear fuselage engineer’s station -- visible in the photo above).
They look like Marquardt RJ twenties to me also


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
I have just started an Anigrand Bell XP-83 and found an error. In the engine nacelle there is a part representing the compressor face. There is no such thing in the a/c as it has a centifrugal compressor. Pictures of the J-33 show a mass of pipes and equipment before the intake. When installed in the a/c was this protected by some sort of bullet fairing or was it left out in the breeze? A cutaway drawing in Steve Pace's 'X Fighters' book suggests the latter.
Can anyone please enlighten me?
John


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
683
I have just started an Anigrand Bell XP-83 and found an error. In the engine nacelle there is a part representing the compressor face. There is no such thing in the a/c as it has a centifrugal compressor. Pictures of the J-33 show a mass of pipes and equipment before the intake. When installed in the a/c was this protected by some sort of bullet fairing or was it left out in the breeze? A cutaway drawing in Steve Pace's 'X Fighters' book suggests the latter.
Can anyone please enlighten me?
John
Most photos of XJ-33 GE-5 just show a mass of pumps and tubes on the front of the engine. Most early centrifugal compressor engines had few internal fairings. Air flow was so turbulent by the time it reached the compressor face, that fairings would make little difference.

That matches my experience working on Rolls-Royce engines in CF-133s flown by the Canadian Air Forces. T-33 might have had gracefully sloped inlets along the fuselage, but they just opened into a huge plenum chamber (most of the fuselage cross-section) lined with cables, pumps, etc. This allowed mechanics to quickly access to pumps, generators, cables, hoses, etc. A couple of blow-in doors, on top, admitted extra air during ground running.


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
Thank you. I was not concerned about the quality of the air going into the intake, only about the effect of all that air blowing on the ancillary equipment.
When I looked at centrifugal flow engines there was so much of that equipment at the forward end that I often found it difficult to work out where the air went in.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
683
Air enters the engine through conical screens that lay between the accessory case and burner cans. If the engine has two centrifugal compressors, then it gets two conical wire mesh screens, back to back.


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
430
Reaction score
52
Thank you for clarifying fuzzy memories of seeing such a beast in museum. Though I was a fairly well read kid, its workings were rather less than obvious compared to the 'thru' variety...
"But Yet They Flew !!"


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
Air enters the engine through conical screens that lay between the accessory case and burner cans. If the engine has two centrifugal compressors, then it gets two conical wire mesh screens, back to back.
Yes, but sometimes the screens are painted black or they are not present when the unit is photographed or displayed. Also on those early units the intake area was fairly small. It is easier to see them once you know where to look.


TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
I've been doing a lot of research on the XP-83s so that I can correct the Anigrand 1/72 resin model.
Regarding the intakes, it appears that you would not be able to see any of the engine (without sticking your head in the inlet, anyway) because it looks like they had an intake "cone" that was very similar to the P-59.
Find pictures of the P-59 intake - it has a sort of flattened cone that results in a horizontal line when viewed from the front. Think of a cheese wedge laying on its side, sort of. There are several pictures of the XP-83 that reveal a horizontal line in this location, so I think it's a pretty good bet that the XP-83 inlet cone is very similar (maybe identical) to that on the P-59.

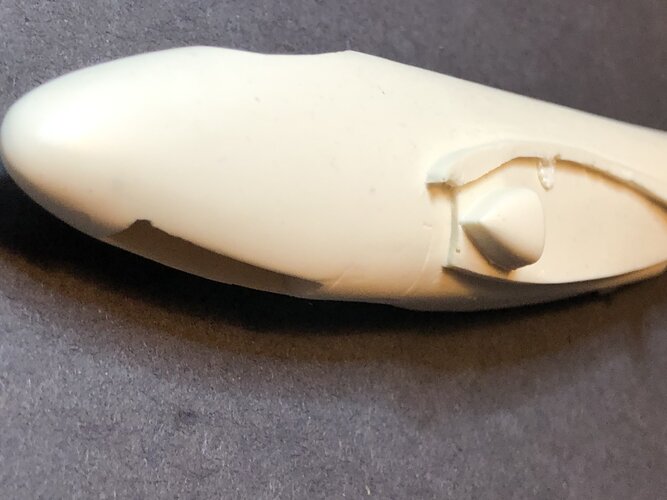

I used a casting of a P-59 inlet cone in my XP-83 model and it fits very nicely (see photo).
There is also a bleed inlet at the front of the intake, like on most jets.
The Anigrand intakes are too short and squared-off. The real thing was a bit longer and was rounder on the top corner and extended just slightly over the leading edge of the wing.
I got hold of a factory blueprint on-line (I'll dig around for the website) and it was very revealing. More to come...


Attachments

  • IMG_1072.JPG
    1.1 MB · Views: 34
Last edited:

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
Regarding the vertical tail of the XP-83, every written source that I have found claims that the second prototype had an 18 inch extension to the tail. As you can see in the drawing earlier in this thread, the XP-83 originally had a rather short tail, like a P-59A. That is also what is depicted in the factory blueprint that I found.
As mentioned above, spin tests at NACA showed the need for increased vertical fin area. I suspect that the 18 inch extension was a revision to the original design and that the tail shown in photos of the XP-83 #1 and #2 both already had this extension when they were built. In other words, the spin tests referred to above were performed on models in the wind tunnel before the first flight of XP-83 #1.
So there is probably the original short tail, as seen in drawings only, and the extended tail, as seen in every available photograph of both XP-83s

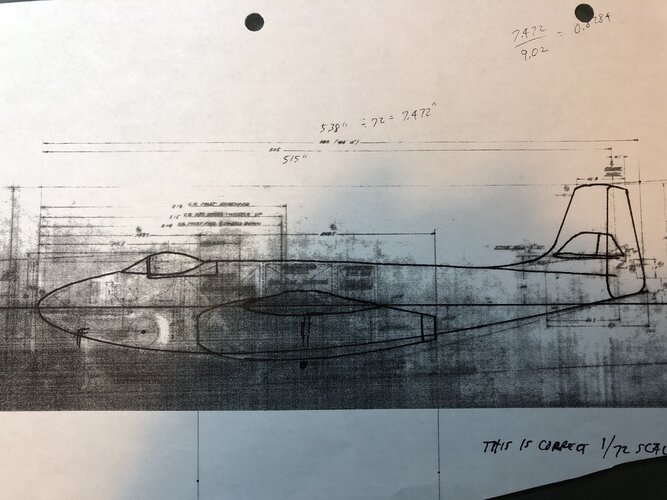

Here is an outline of the original design over the blueprint (which is kind of faint):


Attachments

  • IMG_0776.JPG
    2.5 MB · Views: 35

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
As for the 1/72 Anigrand XP-83 model, it has some good features - the wing planform is mostly right (wingtips are just a bit too round) and the parts fit nicely. The fuselage never looked right, to me, however.

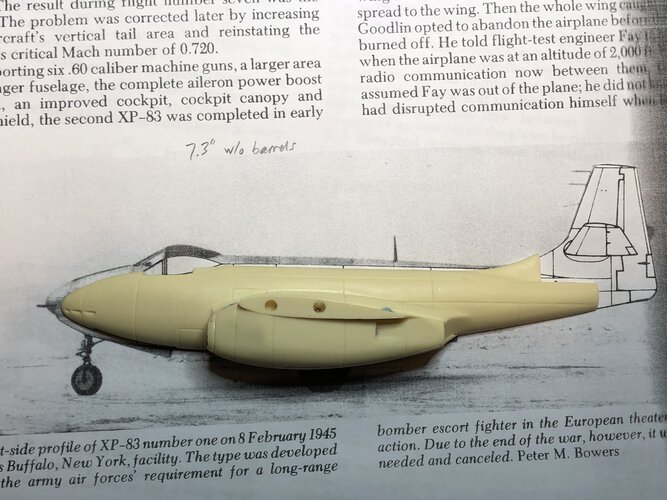

Here is an overlay of the Anigrand resin fuselage over a very nice side view of the XP-83. It clearly shows that the Anigrand fuselage is not deep enough in the keel (it's not "tall" enough). The reason is that there is not enough height above the wings - the spine needs to be extended upward.
The Anigrand model does match the 3-view drawing from Lloyd Jones' U.S. Fighters book pretty well - I suspect that was their primary source. It's a great book which I often refer to, but some of the drawings are not very accurate. Another potential problem may be that when quoting the length of an aircraft, it is not always obvious whether the stated length includes pitot tubes, probes, antennae or gun barrels. The blueprint makes it clear that the length of the XP-83 does NOT include the gun barrels. Again, I suspect that Anigrand underestimated the length of the XP-83 by including the gun barrels in their length.
What the overlay shows is that in order to correct the Anigrand model, the fuselage needs to be extended and the spine needs to be raised. The lower fuselage/wing/nacelle relationship is just fine, which is great as it would otherwise be a lost cause.
You may note that in the overlay drawing I showed an additional 18 inch extension to the tail. This was before I found the factory blueprint or saw a photo of XP-83 #2. I'm now convinced that extra 18 inch extension is a red herring.


Attachments

  • IMG_0775.JPG
    2.5 MB · Views: 40

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4

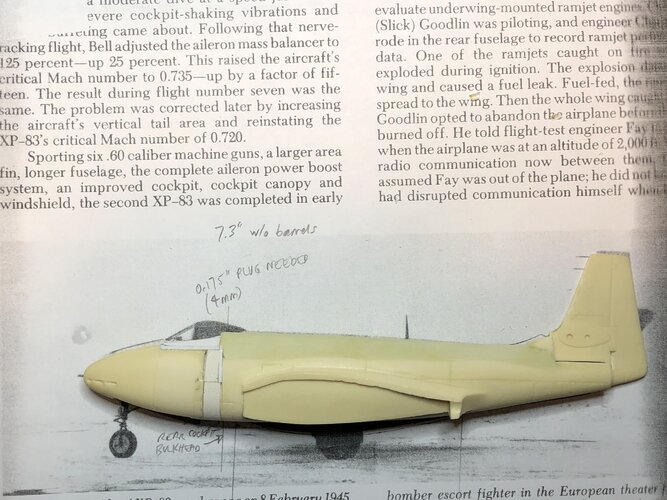

Here's a photo to show the relationship between a photo of XP-83 #1, Lloyd Jones' profile drawing, and the Anigrand resin model. You can see that the model needs to "grow" a bit.


Attachments

  • IMG_0658.JPG
    2.1 MB · Views: 35

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4

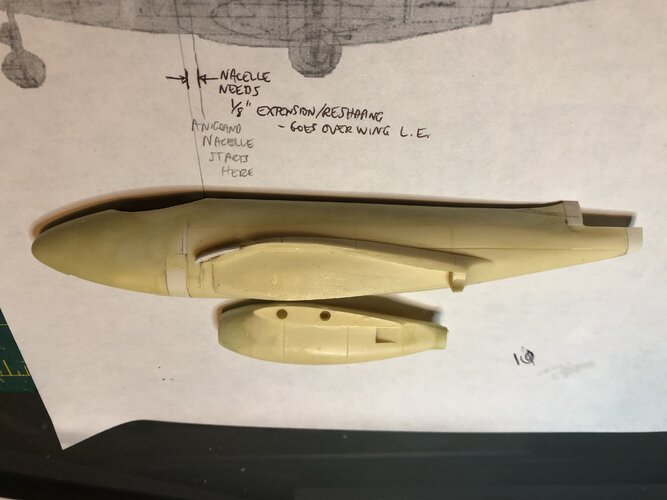

Here's what it took to grow it out to fit a properly-scaled photograph.
The second photo shows the resulting master mold and the port nacelle with an extended intake to match both the photos and the blueprint.


Attachments

  • IMG_0673.JPG
    1.7 MB · Views: 33
  • IMG_0748.JPG
    1.4 MB · Views: 53

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
One more thing on the XP-83 intakes. The boundary layer control inlets were not flat the way they are depicted in the Anigrand model. They should follow the curve of the fuselage. Note that none of my model photos include this - I haven't added that detail yet!


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
Thank you, but I am not sure that I wished to know about all of that! Being interested in experimentals and prototypes, information on which is usually sparse, most of my models involve quite a bit of scratch building or modification and having several projects 'stalled' I thought that just to get something finished I would build the XP-83 'from the box'. Fat chance! Once the engine face caught my attention I noticed the problem with the boundary layer bleeds and have corrected this.


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
Anigrand models are not renowned for their accuracy but at first sight the XP-83 looked like one of the better ones.
The references I have found give the length as 44ft 10" which agrees with your figure of 538"
That's an interesting comment about the cone in the intake. I had wondered about that 'line' in the intake and now I look at my P-59 I see something similar.

Last edited:

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
rieleyj, yes, that was also my intent when I pulled my XP-83 model from the cabinet - I thought "this should be easy enough"!
But photos of built models just didn't look right, so I started down the rabbit hole.
If you want to save some time, I made a cast of the revised fuselage which is available on ebay.
I also made a revised canopy that looks a lot more like the real thing.
I also made a XP-83 #2 extended fuselage and longer canopy as an option.


TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
The XP-83 canopy was kind of interesting. Those were the early days of pressurized cockpits and the XP-83 was one of those "evolutionary dead-ends". The bubble canopy was fixed to a section of the upper fuselage skin and the whole assembly raised and slid back as one unit. So if you want to model an XP-83 with the bubble canopy open, you have to include part of the upper fuselage with it.
The windscreen, meanwhile, was also blown out such that it was pinched in at the bottom when viewed from the front.
So the whole canopy bulged out a bit from the fuselage, which can be clearly seen in this photo:
The Anigrand injection-molded canopy isn't too bad, but it is undersized and doesn't bulge out like the real thing.
The XP -83 #2 canopy was a bit longer and extended to the aft edge of the "pop-up" section of the fuselage. See the picture from the March 2020 posting.


Attachments

  • bell_xp-83_ground.jpg
    481 KB · Views: 56

TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4

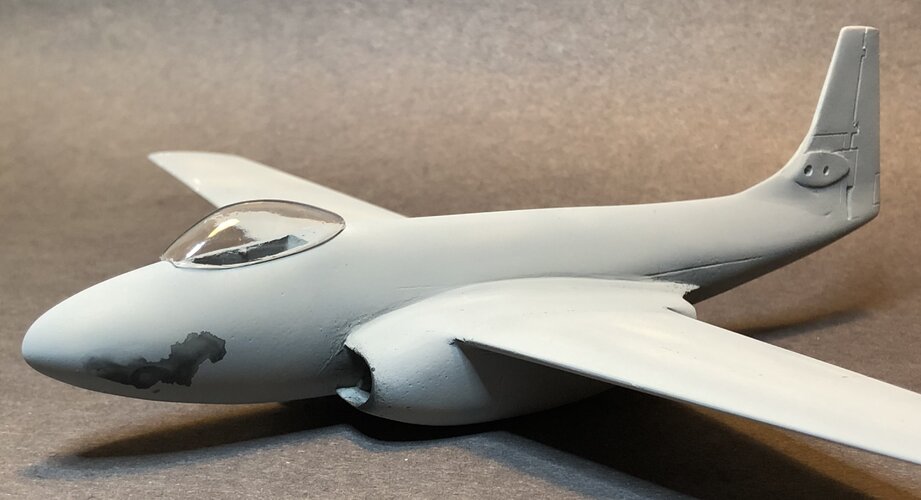

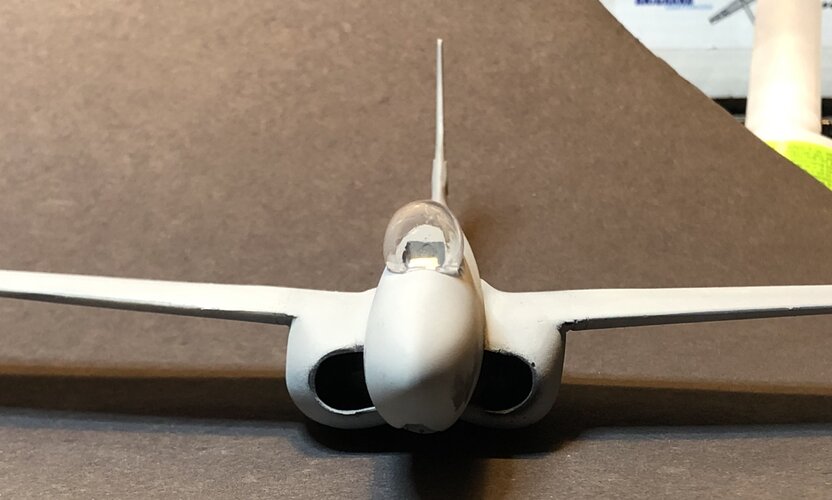

Here's what I did to represent the XP-83 #1 canopy.


Attachments

  • IMG_1077.JPG
    940.3 KB · Views: 56
  • IMG_1079.JPG
    652.7 KB · Views: 37

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
366
Reaction score
118
The windscreen, meanwhile, was also blown out such that it was pinched in at the bottom when viewed from the front.
So the whole canopy bulged out a bit from the fuselage, which can be clearly seen in this photo:

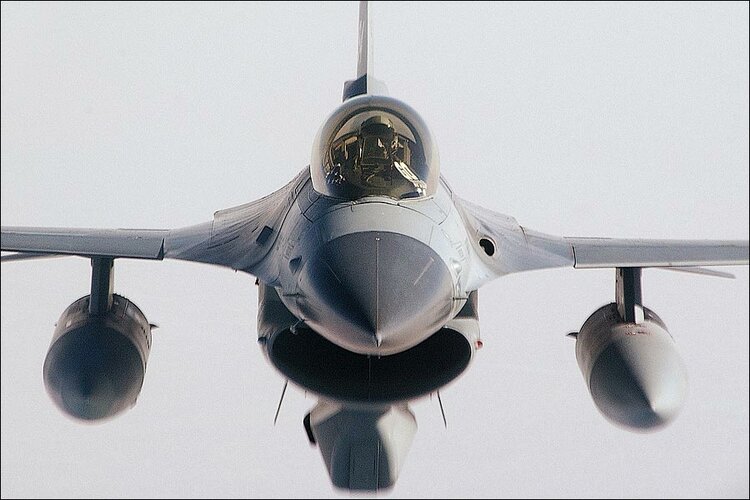

That looks very similar to the modern F-16 canopy in shape. Was the P-83 a one piece or two piece canopy? The F-16's of course is one piece.


Attachments

  • f-16-fighting-falcon-head-on-view-photo-print-14.jpg
    75.3 KB · Views: 47

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
683
The windscreen, meanwhile, was also blown out such that it was pinched in at the bottom when viewed from the front.
So the whole canopy bulged out a bit from the fuselage, which can be clearly seen in this photo:
That looks very similar to the modern F-16 canopy in shape. Was the P-83 a one piece or two piece canopy? The F-16's of course is one piece.
2-piece.
The picture posted in March 2020 shows a fixed windshield and a separate main canopy. The main canopy is bolted to an aluminum "skirt" that retracts parallel to the aft fuselage in flight configuration ... similar to many of the modern RV-series of kitplanes.


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4
Here is a picture of the intake which has been 'dodged' in Photoshop. It appears to show some sort of fairing which does not seem to be the same as that of the XP-59


Attachments

  • XP-83 view of intake close up.jpg
    XP-83 view of intake close up.jpg
    28.9 KB · Views: 69

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,433
Website
www.aerospaceprojectsreview.com
Here is an outline of the original design over the blueprint (which is kind of faint):

Feh:



TbirdsRGo

ACCESS: Restricted
Joined
Jan 17, 2021
Messages
12
Reaction score
4
Regarding the canopy, there are photos posted on the first page of this discussion that show what the opened canopy looked like on the first XP-83. There is a photo of the longer canopy of the second prototype earlier in this page.

There is an easy alternative to modeling the inside of the intakes - some photos show a "remove before flight" FOD cover blocking the intake! Probably red in color...


rieleyj

ACCESS: Restricted
Joined
Aug 25, 2019
Messages
13
Reaction score
4

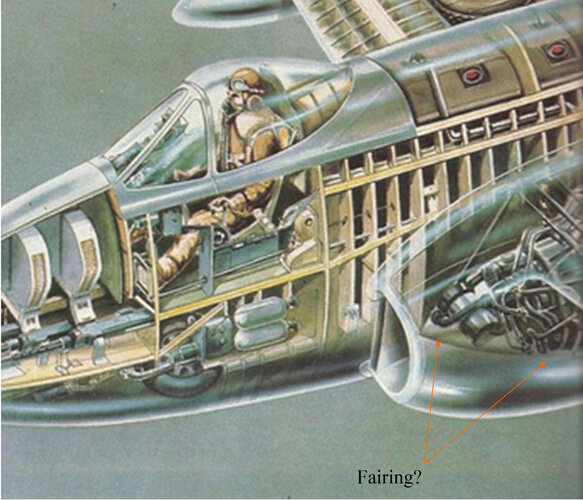

If you look closely at this cutaway there are some faint lines which seem to show the presence of a fairing
John


Attachments

  • XP-83 cutaway.jpg
    XP-83 cutaway.jpg
    1.3 MB · Views: 52
