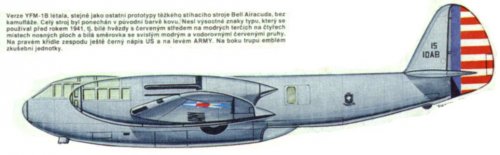

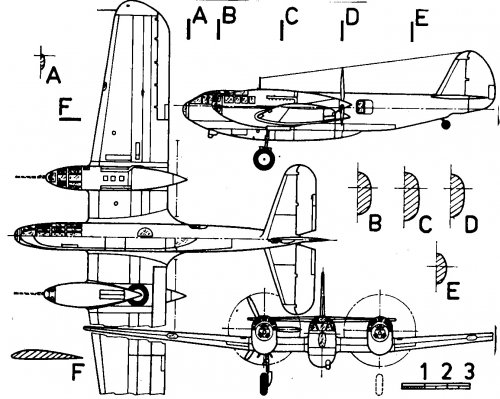

From old good Letectvi+Kosmonautika


Attachments

  • Bell YFM-1B Airacuda.jpg
    Bell YFM-1B Airacuda.jpg
    48.4 KB · Views: 2,143
  • Bell YFM-1 Airacuda.jpg
    Bell YFM-1 Airacuda.jpg
    253.9 KB · Views: 1,856

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com
Re: Bell YFM-1 Airacuda

1939 newsreel that includes Bell YFM-1 Airacuda from the Niagara Aerospace Museum.

http://youtu.be/tDs0SANU3lM


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com
Re: Bell YFM-1 Airacuda

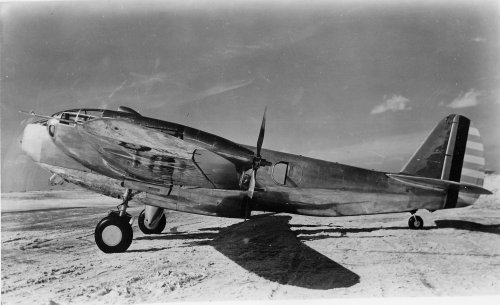

Bell YFM-1 Airacuda at Edmonton from the Rhonda Hageman Family Photo Album.

Source:
http://home.mindspring.com/~slip.stick/id17.html


Attachments

  • airacuda.jpg
    184.9 KB · Views: 719

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com
Re: Bell YFM-1 Airacuda

Source:
http://img.photobucket.com/albums/v475/Coridano/70c1d216.jpg?t=1304237668


Attachments

  • 70c1d216.jpg
    399.6 KB · Views: 667

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,169
Reaction score
109
Re: Bell YFM-1 Airacuda

I had put the link to an article on the Airacuda a while back.

http://www.secretprojects.co.uk/forum/index.php/topic,443.msg139793.html#msg139793


Bgray

I really should change my personal text
Joined
Feb 2, 2012
Messages
74
Reaction score
13
Bell V-280 Valor Gunship variant

I know that Bell intends to have a gunship varient of the V280, or at least is pitching the idea, but so far I've not been able to find much more than a few publicity illos that really don't give a good view of it. Has anyone found any detailed (text or illo) information about the concept?


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Bell YFM-1 Airacuda

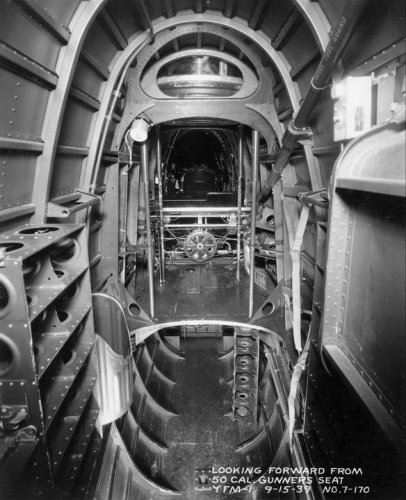

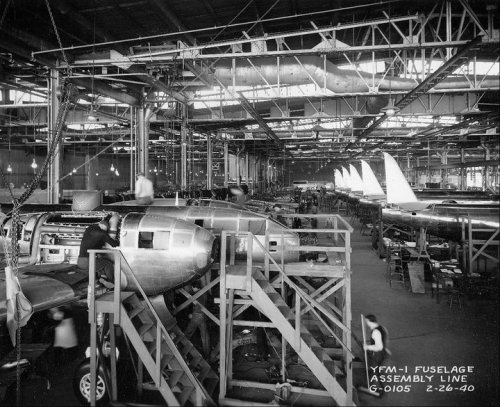

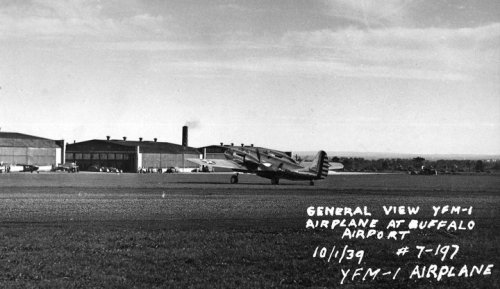

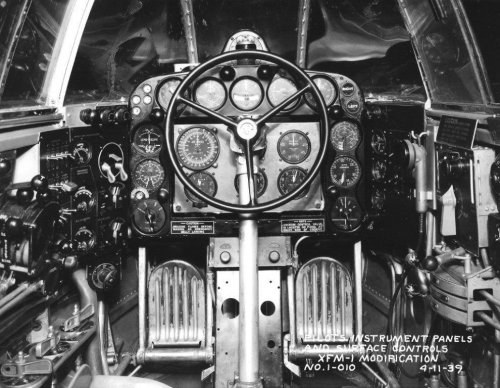

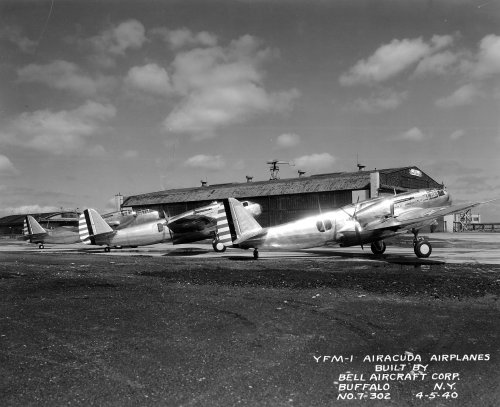

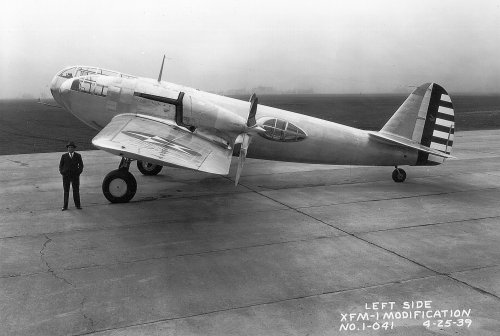

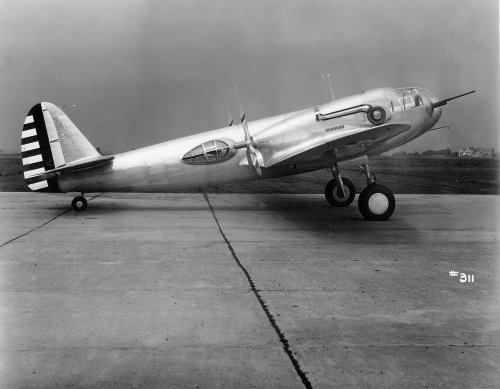

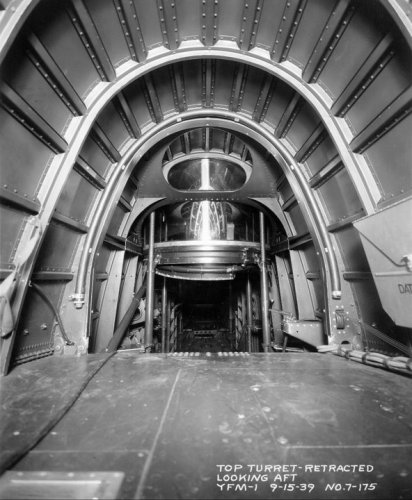

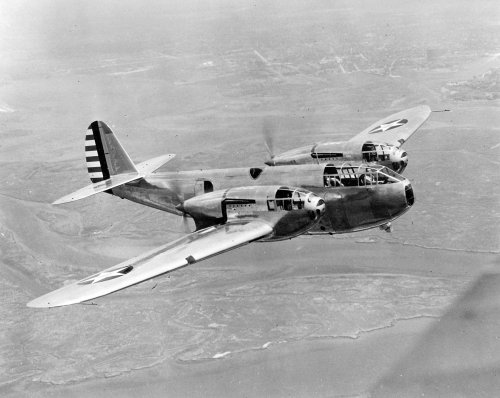

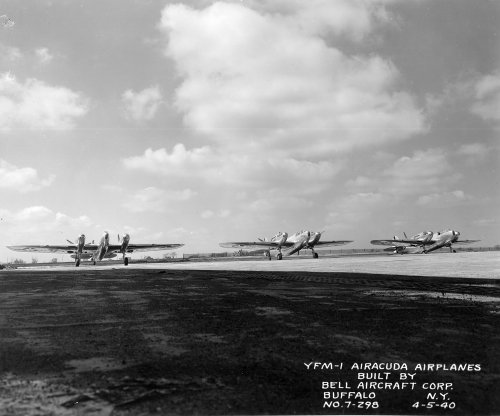

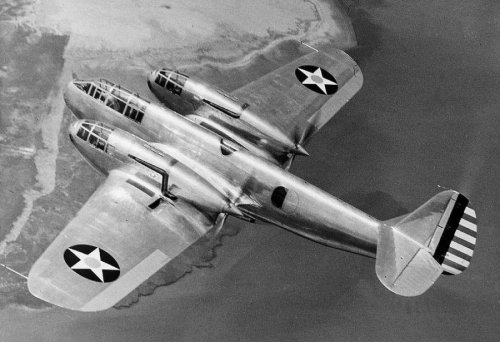

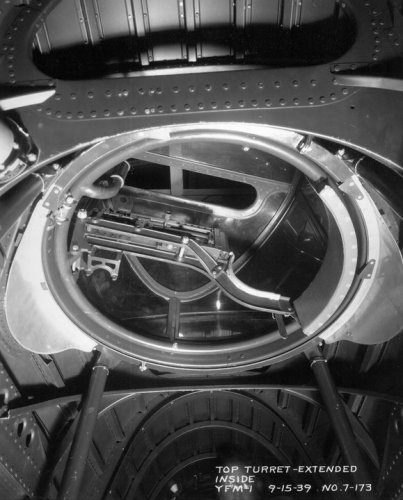

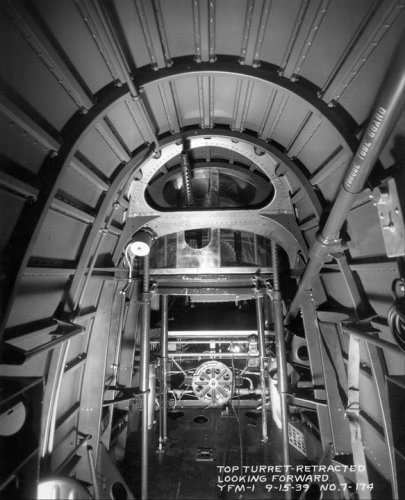

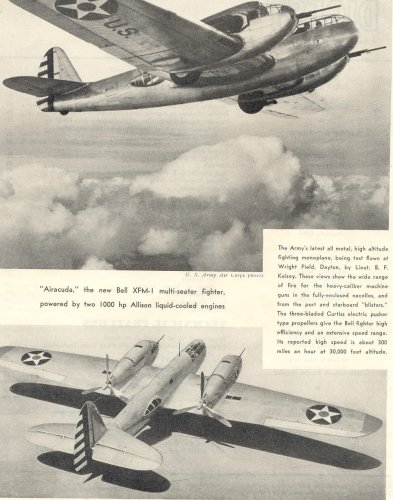

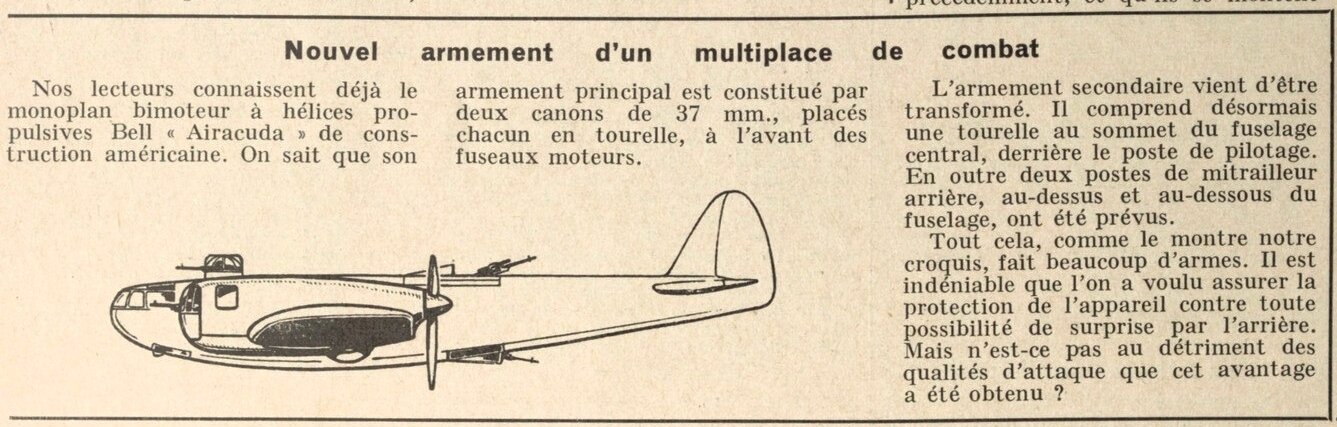

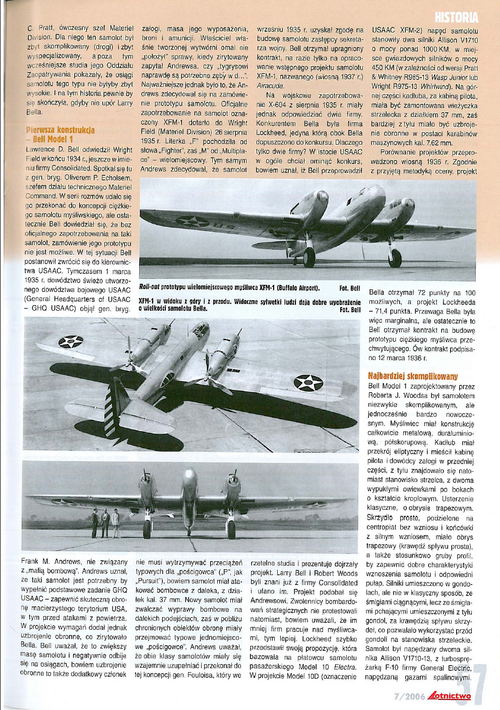

Some nice photos. You can see the various improvements tried in this set.


From Niagara Aerospace Museum


Attachments

  • 11143517_10152692937820997_501819154745934770_o.jpg
    584.2 KB · Views: 142
  • 11154719_10152692937790997_6061279164448216601_o (1).jpg
    11154719_10152692937790997_6061279164448216601_o (1).jpg
    579.8 KB · Views: 108
  • 11059534_10152692937595997_4288537689134524139_o (1).jpg
    11059534_10152692937595997_4288537689134524139_o (1).jpg
    357.6 KB · Views: 108
  • 11058426_10152692934225997_5535200050948799069_o (1).jpg
    11058426_10152692934225997_5535200050948799069_o (1).jpg
    880.8 KB · Views: 121
  • 11082166_10152692934105997_8130424471167909016_o (1).jpg
    11082166_10152692934105997_8130424471167909016_o (1).jpg
    645.5 KB · Views: 131
  • 10845648_10152692931505997_3068608171083800958_o (1).jpg
    10845648_10152692931505997_3068608171083800958_o (1).jpg
    462.6 KB · Views: 143
  • 10574487_10152145661385997_698484901907367691_n.jpg
    87.9 KB · Views: 140

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Bell YFM-1 Airacuda

pt 2


Attachments

  • 228951_10150260180330997_1079482_n.jpg
    70.8 KB · Views: 127
  • 297286_10150260180445997_4987604_n.jpg
    141.4 KB · Views: 110
  • 298668_10150260180550997_129337_n.jpg
    104.8 KB · Views: 102
  • 301441_10150260180660997_2510557_n.jpg
    98 KB · Views: 105
  • 294490_10150260180750997_5806210_n.jpg
    97.4 KB · Views: 109
  • 205958_10150260180845997_1797528_n.jpg
    87.9 KB · Views: 112
  • 903654_10151306293475997_60131880_o.jpg
    149 KB · Views: 109

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,046
Reaction score
45
Bell XFM-1 Airacuda

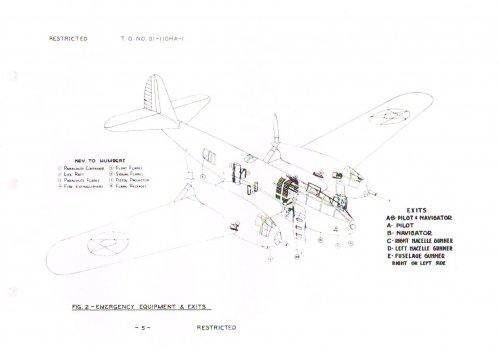

Does anybody have any diagrams of the XFM-1 Airacuda that include a diagram of where the fuel tanks are located?


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,169
Reaction score
109
Re: Bell XFM-1 Airacuda

No cutaway but this thread seems packed with a lot of interesting images of the Airacuda.

http://www.rcgroups.com/forums/showthread.php?t=792309&page=5
At the mods, could we merge with the existing Airacuda stuff?


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
209

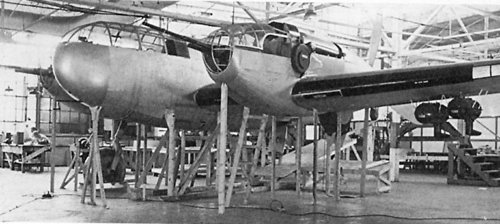

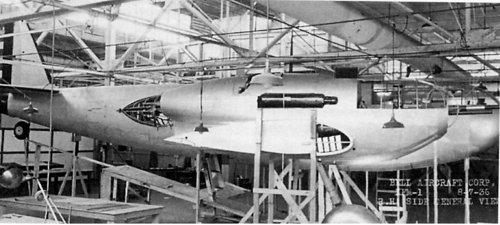

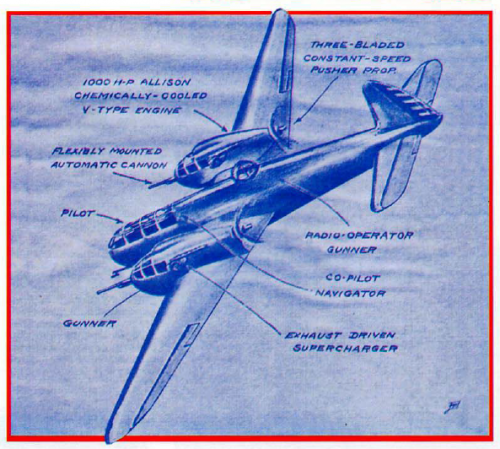

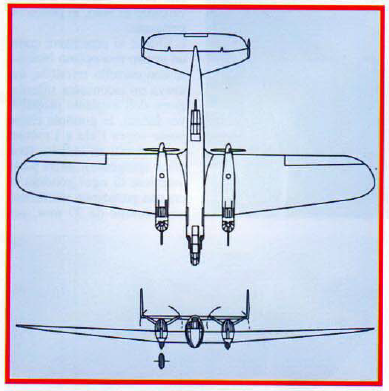

;D Mock up

Embodying many innovatory features and designed by Robert J Woods, the FM-1 Airacuda was a five-seat long-range bomber destroyer. Powered by two engines mounted as pushers, the Airacuda accommodated two gunners in forward extensions of the engine nacelles, these crew members being provided with wing crawlways enabling them to gain the fuselage in the event that it proved necessary to evacuate the nacelle gun positions. The prototype, the XFM-1 powered by two 1150hp Allison V-1710-13 12-cylinder liquid-cooled engines driving three-blade propellers via 1.62m extension shafts, was flown on 1 September 1937. Twelve evaluation models were subsequently ordered, nine as YFM-1s and three as YFM-1As which differed in having tricycle undercarriages. Power was provided by 1,150hp Allison V-1710-23s, but three YFM-!s were completed with V-1710-41s of 1,090hp as YFM-1Bs. The 12 YFMs were delivered to the USAAC between February and October 1940, and their armament comprised one 37mm T-9 cannon with 110 rounds in each engine nacelle, one 7.62mm M-2 machine gun with 500 rounds in each of the retractable dorsal turret and ventral tunnel positions, and one 12.7mm M-2 gun firing from each of the port and starboard beam positions. Twenty 13.6kg bombs could be accommodated internally.
FACTS AND FIGURES

© The highly complicated electrical system required a full-time auxiliary petrol motor running inside the fuselage to keep it energized. If it failed (and it did) the pilot lost flaps, gear, fuel pumps and engines.

© The crew in the nacelles were more loaders than gunners. Although they could fire the 27mm cannon, this was normally done by the fire-control officer in the fuselage.

© A periscope under the nose gave the fire-control officer a view behind and below to search for enemy fighters.

Specification
MODEL YFM-1B
CREW 5
WEIGHTS
Take-off weight 8618 kg 19000 lb
DIMENSIONS
Wingspan 21.33 m 70 ft 0 in
Length 14.00 m 46 ft 11 in
Height 3.78 m 12 ft 5 in
Wing area 55.74 m2 599.98 sq ft
PERFORMANCE
Max. speed 431 km/h 268 mph
Range 2687 km 1670 miles


Attachments

  • XFM_1.jpg
    119.6 KB · Views: 94
  • XFM-1.jpg
    121.3 KB · Views: 107

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
209
A Bell FM-1 Airacuda mockup at the Langley Aeronautical Laboratory wind tunnel at Hampton, Virginia (USA). Not a "real" aircraft, this full-size mockup of the Bell FM-1 Airacuda was tested in Langley's 30 x 60 Full Scale Tunnel in 1937.


Attachments

  • 9.jpg
    126.3 KB · Views: 129
  • Bell_YFM-1_Airacuda_eme.jpg
    100.5 KB · Views: 138

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,169
Reaction score
109
Here's a nice little article on the Airacuda in War Eagles Air Museum newsletter.

http://www.war-eagles-air-museum.com/newsletters/weam_newsletter_2011-4.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006

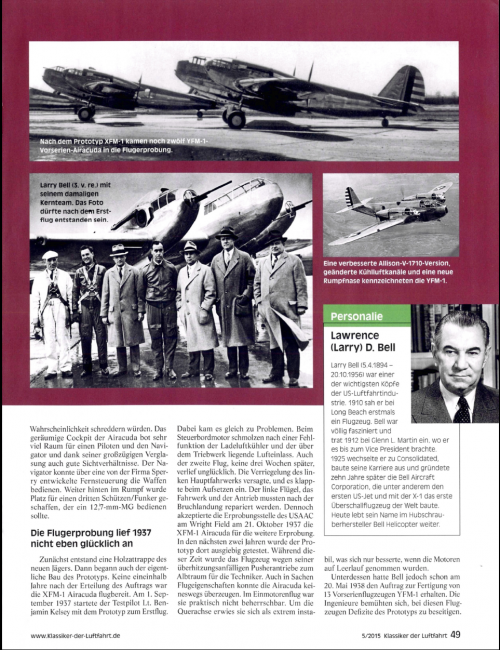

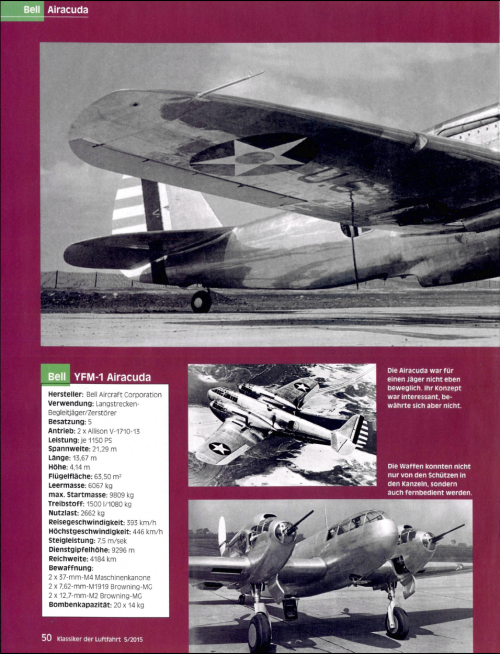

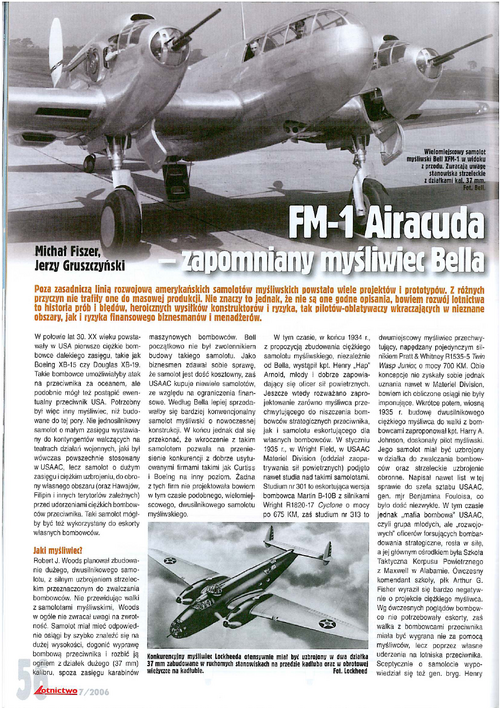

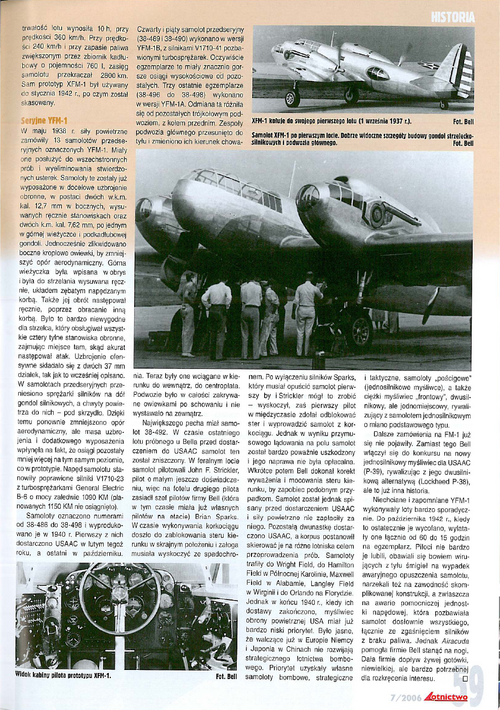

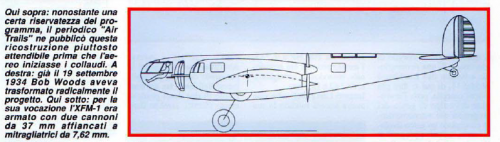

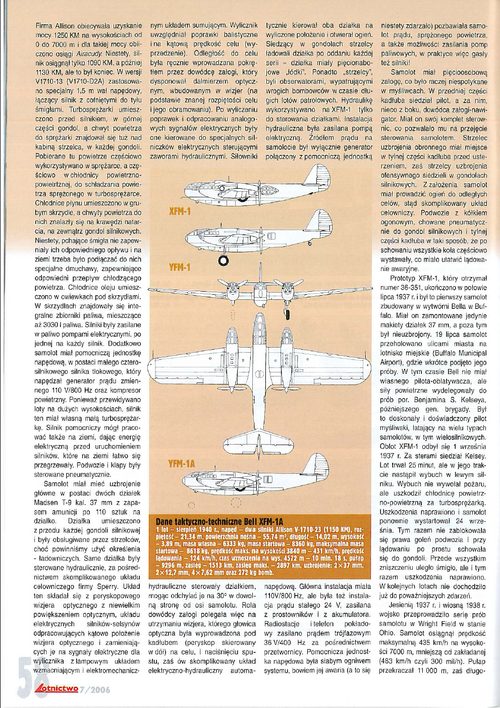

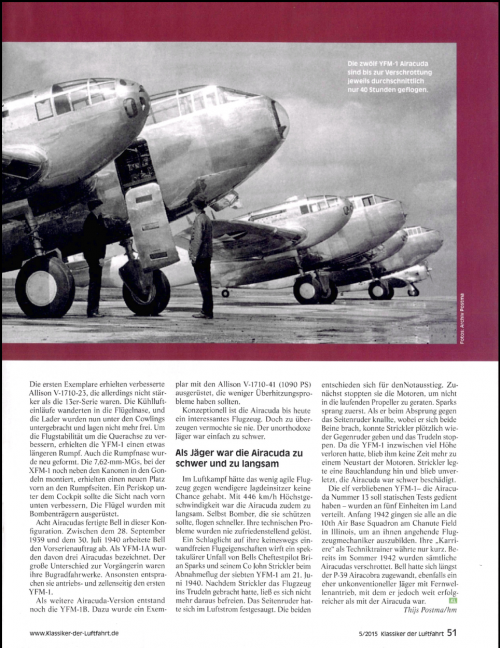

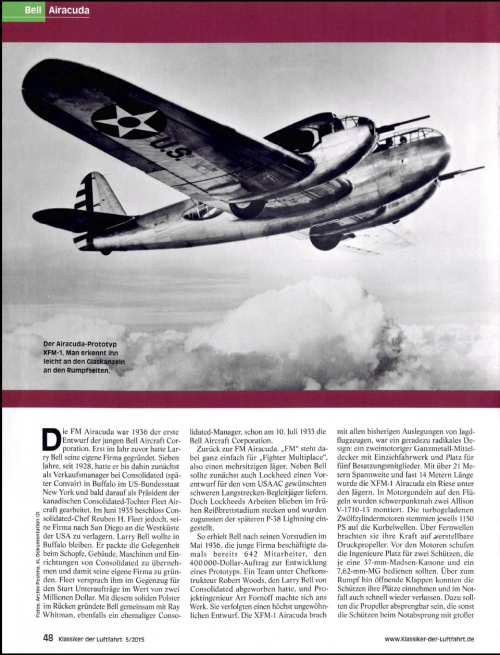

From Aerei Nella Story 4-5/2009.


Attachments

  • 2.png
    297.2 KB · Views: 201
  • 3.png
    737.6 KB · Views: 188
  • 4.png
    310.3 KB · Views: 173
  • 5.png
    225.3 KB · Views: 192

fortrena

ACCESS: Confidential
Joined
Dec 15, 2020
Messages
158
Reaction score
313
The following may perhaps be of interest.

In 1935, the Royal Canadian Air force (RCAF) had launched a modest modernisation and rearmament program. Understandably enough, the emphasis was on coastal defence (coastal patrol, general reconnaissance / maritime reconnaissance and torpedo bombing). Even though fighter planes were not a priority, its senior officers saw the need to create a balanced air force. As a result, the RCAF seemingly gave some thought to the idea of acquiring modern fighter planes as early as 1936. Given the RCAF’s close links with the United Kingdom's Royal Air Force (RAF), a consequence of Canada’s membership in the Commonwealth, these new machines would likely be British.

Over the following months, a consensus gradually formed in Ottawa. Given Canada’s geography, a long range fighter plane, preferably a two seat twin engine machine, would be preferable to a short range, British style bomber interceptor like the Hurricane or Spitfire. At some point (February 1938?), the RCAF issued a specification for a fast two seat twin engine long range fighter plane that could be fitted with skis or floats. The heavy armament of this all metal machine would include machine guns mounted in the nose and wings, as well as a mid upper turret.

In the past, given the United Kingdom’s geography, the Air Ministry and British aircraft industry had not seen the need to develop and put in service such an airplane. Making things worse, now that the RAF was in the midst of a massive rearmament scheme, the Air Ministry pointed out that it would be some years before British airplanes makers could fulfil the needs of the RCAF, presumably by offering the single seat single engine fighter planes the RCAF was not necessarily all that interested in.

The Air Ministry may or may not have mentioned that, in answer to Specification F.34/35, Gloster Aircraft Company, a member of a member of Hawker Siddeley Group Limited, had prepared the plans of a two seat twin engine fighter plane fitted with a mid upper turret in 1936. This design did not find favour with the Air Ministry, which chose the Boulton Paul P.82 in April 1937. This two seat single engine fighter plane, later known as the Defiant, proved to be a total and, for its crew, quite lethal failure in its intended daytime bomber interception role.

Given the absence of available British designed two seat twin engine fighter planes, a Canadian delegation thus travelled to Washington, in April 1938 to see if the American aircraft industry could be of help. Discussions took place with representatives of the United States Army Air Corps (USAAC). Single engined single seat fighter planes like the Seversky P-35 and the Curtiss P-36, whose delivery to fighter units had begun, in July 1937, and was beginning, in April 1938 incidentally, did not really fit the bill. The Curtiss A-18, a two seat twin engine attack plane delivered in very small numbers in 1937, was not satisfactory either. Whether or not a privately-developed two seat version of the P-35, known as the Seversky 2PA, or Convoy Fighter, was considered is unclear.

The Canadian delegation was, however, quite interested in the Bell FM-1 Airacuda, a long range multi seat twin engine bomber destroyer first flown in September 1937 and still under development. Their American hosts pointed out that their country’s Neutrality Act, a piece of legislation adopted in 1935 and amended in 1936 and 1937, stipulated that airplane makers could release their latest airplane to foreign air forces only six months after delivering the second production machine ordered by the USAAC. The granting of a production licence for such airplanes faced the same restrictions. In any event, the administration headed by president Franklin Delano Roosevelt did not particularly want to allow foreign airplane makers to build the most modern combat machines designed in the United States.

The Canadian delegation might have been a tad annoyed by their hosts’ behaviour had they known what was taking place elsewhere in the USA. In early March 1938, two well-known French pilots, Michel Détroyat and Henri Guillaumet, had set sail for the United States. The two men visited factories and looked at the progress made by American commercial aviation. As well, they talked to people involved in the development of transatlantic air routes. Given the increasing levels of tension in Europe, the possibility that Détroyat had gone to the United States because the French government was considering the possibility of acquiring American combat airplanes was mentioned more than once in France. These suspicions proved well founded. On March 20th, at the Wright Field testing establishment of the USAAC, near Dayton, Ohio, Détroyat test flew, amid the greatest secrecy, a pre-production example of the brand new Curtiss P-36 fighter plane, but back to our story.

Acknowledging that Roosevelt did not particularly want to allow foreign airplane makers to build the most modern combat machines designed in the United States, RCAF representatives in the delegation nonetheless asked if they could obtain detailed information on the Airacuda. The answer they received in July 1938 might have been a polite yes, even though some (isolationist?) USAAC officers wondered if the RAF was not using the RCAF to get information about their new airplane. By then, however, Canada’s Department of National Defence (DND) had concluded that the Airacuda was too expensive. It decided to look for another long range fighter plane option around June.

That same month, DND seemingly contacted Fairchild Aircraft of Longueuil, Quebec, to see if the Bristol Bolingbroke, a British twin-engined coast reconnaissance airplane ordered for the RCAF in Novembre 1937 and very similar to the Bristol Blenheim light bomber, could be used as a long range fighter plane. The company soon pointed out that a new nose containing several machine guns could easily be designed. This being said, the resulting airplane would be no faster than the typical bomber of the time. Installing more powerful engines was a possibility but this would result in a serious weight increase. Performance of such a fighter plane would still not be all that impressive. Fairchild Aircraft also looked at the possibility of designing a long range fighter plane using as many elements of the Bolingbroke as humanly possible. Although theoretically feasible, such a process would take a great deal of time. DND officials thanked Fairchild Aircraft for its efforts but decided to drop the idea of using the Bolingbroke as a fighter plane in October 1938.
