Bell V-247 armed Tiltrotor drone for the Marines

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,160
Reaction score
143

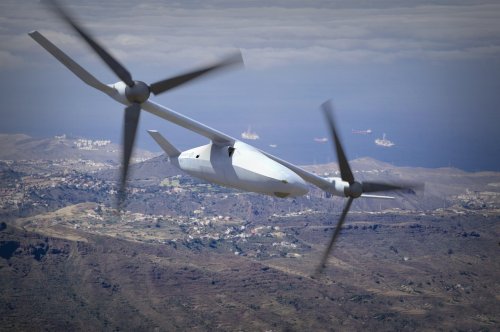

Bell V-247 (or X-247), a new armed tiltrotor drone proposal for the USMC.
[...]For now, Bell is calling this previously unrevealed tiltrotor the V-247, the numbers standing for the duration the Marines want one or more to be able to stay on station – 24/7. Bell plans to officially reveal the new concept at a Washington news event next month. Larger models of the V-247 are likely to appear at the Sept. 27-30 Modern Day Marine exposition at Quantico Marine Base, Va., and at the Association of the United States Army’s annual conference that begins Oct. 3 in Washington.[...]
Source: http://breakingdefense.com/2016/08/meet-bells-x-247-armed-tiltoror-drone-for-marines/


Attachments

Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,451
Reaction score
347

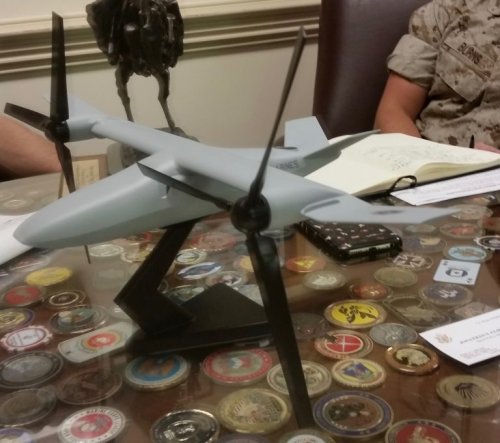

PENTAGON: A sleek little model sits on the desk of Lt. Gen. Jon “Dog” Davis, Marine deputy commandant for aviation. What is that, we asked? The next tiltrotor Bell Helicopter Textron hopes the Marine Corps will buy. But it’s not the V-280 Valor, the new manned tiltrotor Bell plans to fly next year. It’s an unmanned tiltrotor designed to give the Marines a drone that can do everything the Air Force’s armed MQ-9 Reaper does – and more. Especially taking off and landing from ships or from land where there’s no runway.

“I think there is a big need for a UAS that can go aboard the sea base,” Davis told me in an interview last week. “General Neller says he doesn’t need a Reaper, but he needs a Reaper-like capability that can go from the sea base.” Gen. Robert Neller is the Marine Corps commandant.

“This is what Bell is proposing,” Davis says, placing the model of Bell’s new concept on the table. “Single engine. It looks a lot like a V-280, doesn’t it?”
http://breakingdefense.com/2016/08/meet-bells-x-247-armed-tiltoror-drone-for-marines/


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,160
Reaction score
143
Posted before! ;)
Link: http://www.secretprojects.co.uk/forum/index.php/topic,1885.msg288842.html#msg288842


... and merged ;)


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,062
Reaction score
45
So a centrally mounted turbine and electric motors in the rotor pods, or a mechanical drivetrain out to the pods? Either way, Interesting


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,009
Reaction score
95
Moose said:
So a centrally mounted turbine and electric motors in the rotor pods, or a mechanical drivetrain out to the pods? Either way, Interesting
I would suspect that Bell is sticking to mechanical linkages as they appear to be a relatively conservative design outfit. Would be exciting to see them take a step on the wild side.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,160
Reaction score
143

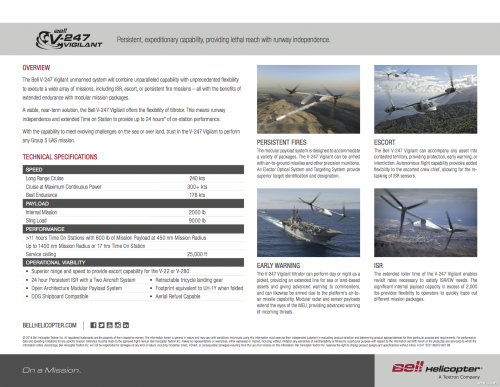

The Bell V-247 Vigilant tiltrotor UAS has been unveiled today. B) :)
Links:
https://twitter.com/YasminTadjdeh/
https://twitter.com/PressClubDC/status/778943171178983424?s=09
https://twitter.com/TheWoracle/status/778942243424133120?s=09
Edit:
More info and attached pictures here:
https://www.flightglobal.com/news/articles/bell-unveils-v-247-vigilant-unmanned-tiltrotor-429616/
http://www.verticalmag.com/press-releases/bell-helicopter-introduces-bell-v-247-vigilant-tiltrotor/


Attachments

CammNut

CLEARANCE: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
4
The V-247 has the same proprotor design as the V-22 and V-280 - gimbaled head with swashplate control

The big difference from the V-280 is the single engine is in the fuselage and drives the rotors via a main gearbox in the center of the wing and shafts that run through the wing to the nacelles. The outer wing sections tilt with the nacelles.

In the V-280, the engines are in fixed nacelles at the tips of the wings and only the gearboxes and proprotors tilt. But both avoid the V-22's problem of tilting the entire drive train. Like the V-22's proprotors, the V-280's are cross-shafted.


CammNut

CLEARANCE: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
4
Also, re "armed" - it is, as you would expect, billed as multirole. The V-247 has two side bays and one underfuselage. The side bays can carry fuel, sonobuoys, lidar sensor, or two Hellfire or JAGM missiles. The underfuselage bay can carry a Mk50 torpedo, AIM-9X missile, 360-deg-scan surveillance radar or more fuel.

With a gross weight of 29,500lb, the V-247 can carry 13,000lb of fuel, sensors and/or weapons. It is a big aircraft - 65ft wingspan and 30ft-diameter rotors. The V-280 is not that much heavier at 35,000lb. Bell's proposal for the Army's FVL Capability Set 1 armed scout is also an unmanned tiltrotor, it turns out.


VTOLicious

CLEARANCE: Secret
Joined
Nov 24, 2008
Messages
489
Reaction score
49
"The big difference from the V-280 is the single engine is in the fuselage and drives the rotors via a main gearbox in the center of the wing and shafts that run through the wing to the nacelles. The outer wing sections tilt with the nacelles."

...folding wing with mid-mounted engine? :eek:


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,255
Reaction score
146
Bell says "blade fold, wing stow." Judging from the illustrations, I suspect the wing rotates to lie parallel with the fuselage like the V-22. The dihedral wing segments outboard of the rotor nacelles probably would fold up and in to reduce length overall. To fit in a DDG-51 hangar, it has to get down to roughly 41 feet length folded.

Edit: Confirmed.

http://breakingdefense.com/2016/09/month-after-us-bell-unveils-v-247-vigilant-tiltrotor-drone/

The V-247 will be sized to fit on the deck of a guided missile destroyer, Tobin said. By folding its rotor blades and stowing its wing by swiveling it across the top of the fuselage lengthwise, it could fit inside a DDG’s helicopter hangar. On a stand to Tobin’s left as he spoke stood a big 1/8th scale model of the V-247 – far larger than the one we saw on Lt. Gen. Davis’s desk last month – automated to fold its rotor blades and stow its wing to demonstrate shipboard storage. Bell is expected to display the model at the Sept. 27-30 Modern Day Marine exposition at Quantico Marine Base, and at the Association of the United States Army’s annual meetings Oct. 3-5 in Washington.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,160
Reaction score
143

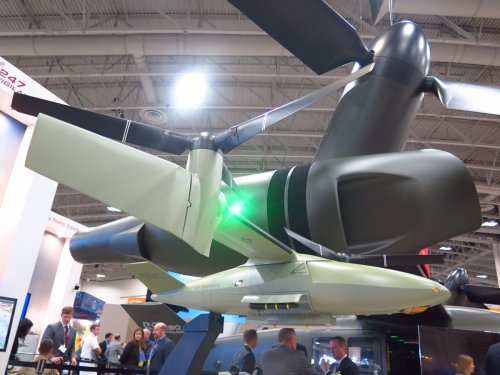

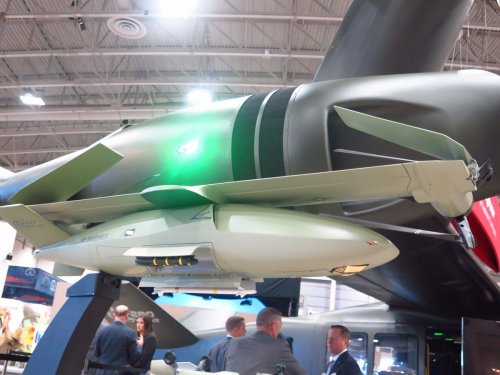

The model of the Bell Helicopter V-247 shows how the wing rotates and folds its rotor blades.
Link: https://twitter.com/YasminTadjdeh/status/778944178071937025


CammNut

CLEARANCE: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
4
According to Tobin, the engine output drive goes up though the wing pivot to the main gearbox in the center wing. Obviously, therefore, the gearbox and drive shafts pivot with the wing while the engine stays fixed


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393
CammNut said:
Also, re "armed" - it is, as you would expect, billed as multirole. The V-247 has two side bays and one underfuselage. The side bays can carry fuel, sonobuoys, lidar sensor, or two Hellfire or JAGM missiles. The underfuselage bay can carry a Mk50 torpedo, AIM-9X missile, 360-deg-scan surveillance radar or more fuel.
Seems pretty light for a 30,000lb aircraft. You'd think it could carry at least a pair of torpedoes.


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,451
Reaction score
347
Bell Helicopter has unveiled a unmanned tiltrotor aircraft, the V-247 Vigilant, as it looks towards a future requirement from the US Marine Corps for a large, armed platform capable of operating from ships.
https://www.flightglobal.com/news/articles/bell-unveils-v-247-vigilant-unmanned-tiltrotor-429616/


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,255
Reaction score
146
Big thread on this in Postwar Aircraft Projects.

http://www.secretprojects.co.uk/forum/index.php/topic,27830.msg290557.html#new


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,330
Reaction score
77
TomS said:
Bell says "blade fold, wing stow." Judging from the illustrations, I suspect the wing rotates to lie parallel with the fuselage like the V-22. The dihedral wing segments outboard of the rotor nacelles probably would fold up and in to reduce length overall. To fit in a DDG-51 hangar, it has to get down to roughly 41 feet length folded.

Edit: Confirmed.

http://breakingdefense.com/2016/09/month-after-us-bell-unveils-v-247-vigilant-tiltrotor-drone/

The V-247 will be sized to fit on the deck of a guided missile destroyer, Tobin said. By folding its rotor blades and stowing its wing by swiveling it across the top of the fuselage lengthwise, it could fit inside a DDG’s helicopter hangar. On a stand to Tobin’s left as he spoke stood a big 1/8th scale model of the V-247 – far larger than the one we saw on Lt. Gen. Davis’s desk last month – automated to fold its rotor blades and stow its wing to demonstrate shipboard storage. Bell is expected to display the model at the Sept. 27-30 Modern Day Marine exposition at Quantico Marine Base, and at the Association of the United States Army’s annual meetings Oct. 3-5 in Washington.
So was the V-247 Bell's DARPA TERN entry?


Flyaway

CLEARANCE: Top Secret
Joined
Jan 21, 2015
Messages
2,451
Reaction score
347
TomS said:
Big thread on this in Postwar Aircraft Projects.

http://www.secretprojects.co.uk/forum/index.php/topic,27830.msg290557.html#new
Could you explain why the thread is there?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,011
Reaction score
199
marauder2048 said:
TomS said:
Bell says "blade fold, wing stow." Judging from the illustrations, I suspect the wing rotates to lie parallel with the fuselage like the V-22. The dihedral wing segments outboard of the rotor nacelles probably would fold up and in to reduce length overall. To fit in a DDG-51 hangar, it has to get down to roughly 41 feet length folded.

Edit: Confirmed.

http://breakingdefense.com/2016/09/month-after-us-bell-unveils-v-247-vigilant-tiltrotor-drone/

The V-247 will be sized to fit on the deck of a guided missile destroyer, Tobin said. By folding its rotor blades and stowing its wing by swiveling it across the top of the fuselage lengthwise, it could fit inside a DDG’s helicopter hangar. On a stand to Tobin’s left as he spoke stood a big 1/8th scale model of the V-247 – far larger than the one we saw on Lt. Gen. Davis’s desk last month – automated to fold its rotor blades and stow its wing to demonstrate shipboard storage. Bell is expected to display the model at the Sept. 27-30 Modern Day Marine exposition at Quantico Marine Base, and at the Association of the United States Army’s annual meetings Oct. 3-5 in Washington.
So was the V-247 Bell's DARPA TERN entry?
I would think that there is likely to be a very close connection, at the very least.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,255
Reaction score
146
Folks stated two threads last time the topic came up and they got merged to the Postwar Projects subforum. You'd have to ask a moderator why.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,404
Reaction score
266
Website
www.aerospaceprojectsreview.com
Flyaway said:
TomS said:
Big thread on this in Postwar Aircraft Projects.

http://www.secretprojects.co.uk/forum/index.php/topic,27830.msg290557.html#new
Could you explain why the thread is there?
Well, the V-247 is currently a "project," and "now" is currently "post-war." So, "post-war projects" sure sounds like the right place for it.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,009
Reaction score
95
Well I think this new aerospace project that was developed post WW2 should be put in the hypotheticals since it is nothing more than engineering programs and pretty picture.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,801
Reaction score
250
Flyaway said:
Could you explain why the thread is there?
Basically, "Aerospace - Aerospace discussion on any topics you like - not unbuilt projects"
When project will move to prototype stage, will gain funding - it will probably be moved to Aerospace. It all depends, though.


CammNut

CLEARANCE: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
4
So was the V-247 Bell's DARPA TERN entry?
Bell says it did not bid for Tern. Also, Tobin says the V-247 is bigger than Tern. But the US Marine Corps aviation master plan uses Northrop's coaxial-rotor tailsitter Tern to illustrate the MUX - MAGTF Unmanned Expeditionary - capability that Bell is aiming at, so it represents the competition.


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,532
Reaction score
87
https://www.youtube.com/watch?v=WQiLFDzbbD8


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,034
Reaction score
205
http://breakingdefense.com/2016/12/marines-want-drone-mux-faster-for-v-22-escort/


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,062
Reaction score
45
Well these are the compromises you have to make to fit on a warship. Or you go the TERN route.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,034
Reaction score
205
http://www.naval-technology.com/projects/bell-v-247-vigilant-tilt-rotor-unmanned-aircraft-system


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393

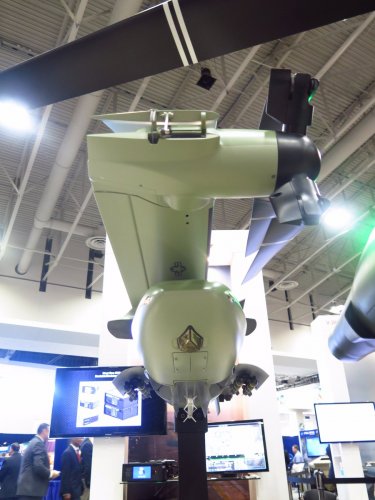

What are the smaller missiles on there? ???


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,062
Reaction score
45

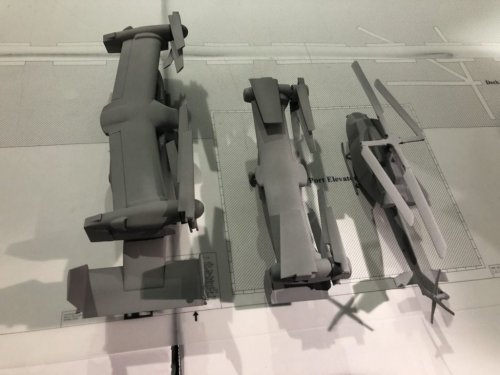

Amazing to see it fitting in essentially the same space as an -8C Fire Scout.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,255
Reaction score
146
Moose said:
Amazing to see it fitting in essentially the same space as an -8C Fire Scout.
The righthand aircraft is a UH-1Y. A fair bit bigger than a Fire Scout -8C

Edit: The target for MUX is to fit in the same footprint as a folded UH-1Y, which this seems to do, more or less. The folded dimensions for a UH-1Y are roughly 4m x 17.8m. For comparison, an MQ-8C with blades folded is 2.4m ×10.6m.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
948
Reaction score
56

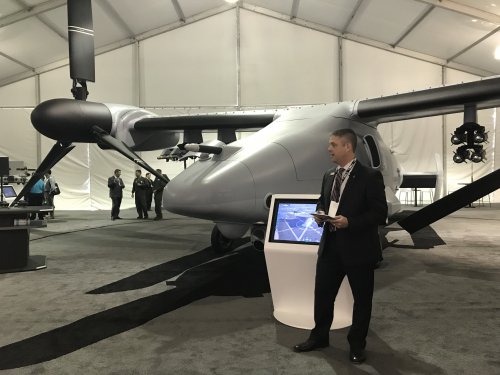

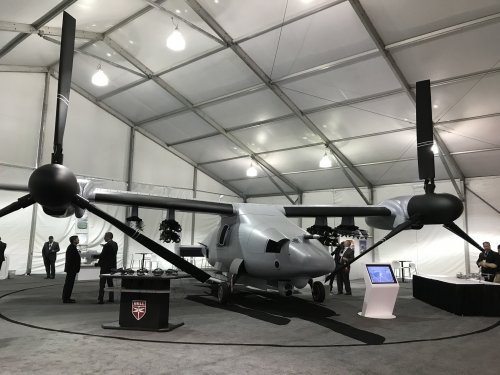

Walk-around and close-up views: https://www.defensenews.com/928c09a1-9b87-4c08-944b-4cbb72ebf27d
