Bell/NACA early studies for X-1

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981
Hi,


from the book; Bell X-1 Variants, by Ben Guenther and Jay Miller;

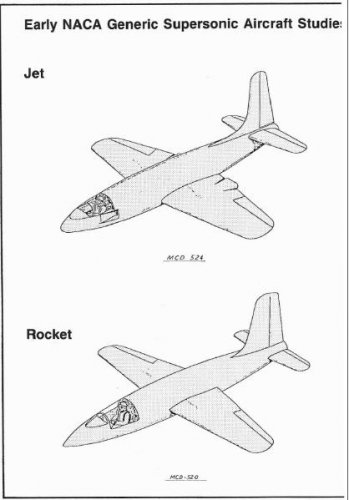

NACA MCD 524 jet-powered proposal
NACA MCD 520 rocket-powered proposal

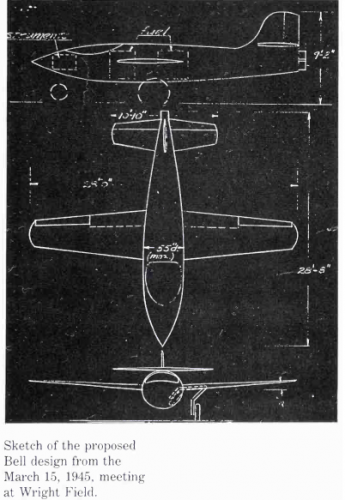

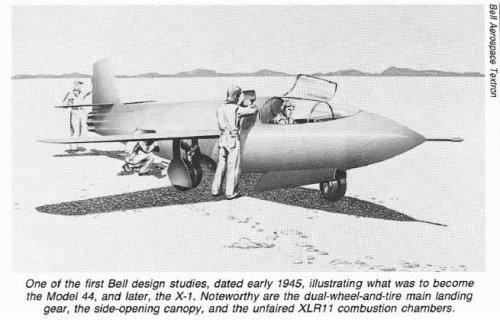

Bell early studied to Model 44


Attachments

  • MCD 524 & MCD 520.JPG
    MCD 524 & MCD 520.JPG
    29.1 KB · Views: 1,487
  • Model 44.JPG
    Model 44.JPG
    56 KB · Views: 1,477

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
293
I saw this illustration in Jay Miller's "X-Planes: X-1 to X-45" and I'm curious to find out why Bell opted to power the X-1 with a rocket engine rather than a jet engine. If Douglas decided to equip the D-558 with a jet engine and not a rocket, why didn't Bell use a jet engine for the X-1?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
666
Perhaps it was a case of the government saying: "Let's not put all our eggs in only one basket. Let's have the Air Force and Bell test the rocket engine, while the Navy and Douglas test the jet engine... and we'll decide eventually what's best based on their results." Just a thought...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981

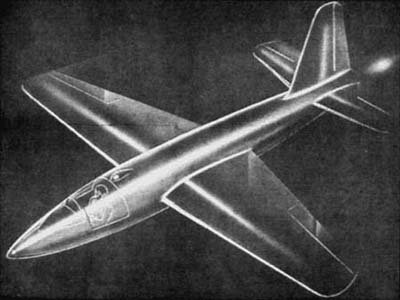

a Tremulis early concept;

http://www.coachbuilt.com/des/t/tremulis/tremulis.htm


Attachments

  • tremX1.jpg
    21.6 KB · Views: 949

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981
By the way,

the early concept to XS-1 was very close to German aircraft concept of WWII,specially
the cockpit.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981
hesham said:
By the way,

the early concept to XS-1 was very close to German aircraft concept of WWII,specially
the cockpit.

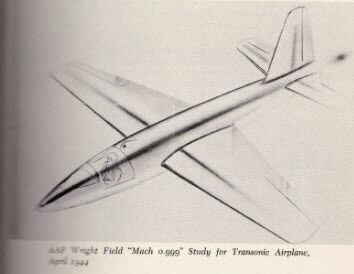

Here it's,from ; Into the Unknown The X-1 Story


Attachments

  • 1.png
    194.1 KB · Views: 640

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
3,591
Reaction score
2,569
Nothing linked with nazi German sciences but all to do with the shape of an US bullet. Up to you to draw the right conclusion.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
415
Reaction score
259
hesham said:
Are you sure ?,I think not.

I don't have a source to hand at the moment, but I believe that the fuselage design of the X-1 was indeed derived from the US .50-cal (12.7-mm) bullet, which was one of the few tested supersonic shapes in service.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,694
Reaction score
1,911
hesham said:
Are you sure ?,I think not.

Given that XS-1 design work began in 1944 and the first mockup was complete in November 1945, the amount of German input would seem to be limited.

The shape was indeed related to the .50-caliber boattail bullet, which was known to be stable at supersonic speeds.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,196
Reaction score
1,931
I thought everyone knew the basic outline was based a 0.50 calibre boattail bullet? Surely that's one basic fact every account has mentioned hundreds of times.

The real myth is that the 'secrets' of the Miles M.52 were incorporated, something very unlikely given the different timelines of both aircraft.
We don't need more myths to add. The Germans might have had more wind tunnels than everybody else, but that doesn't mean no-one else was capable of looking at and understanding aerodynamics or drawing curved lines on paper.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
690
Reaction score
355

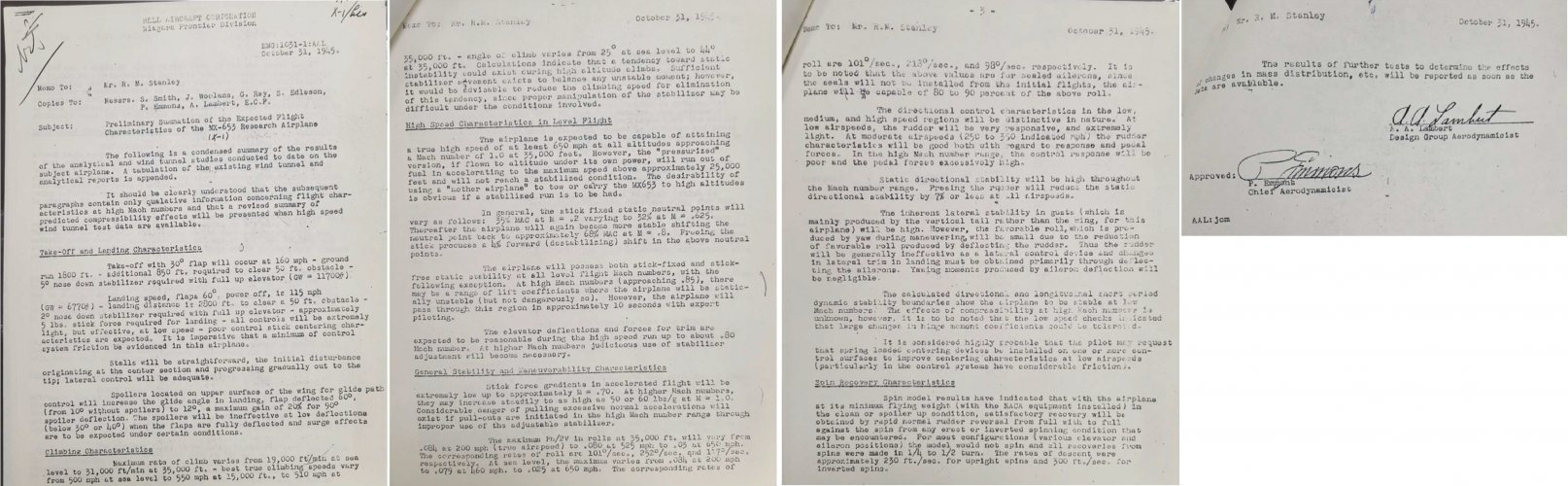

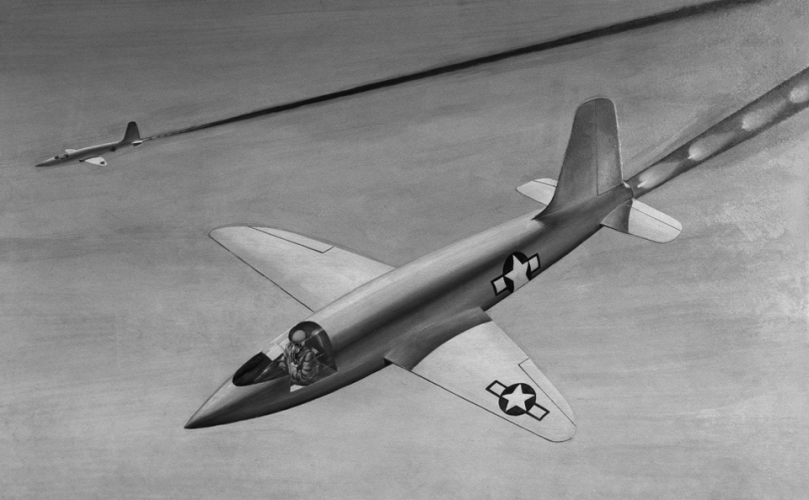

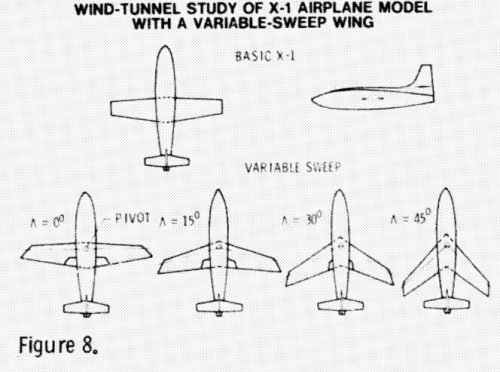

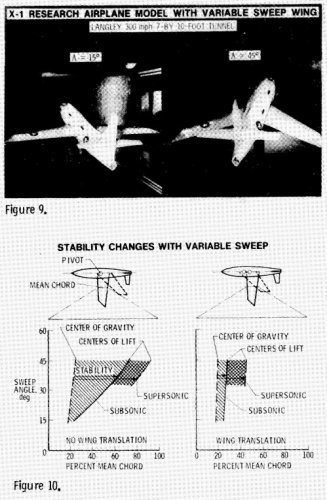

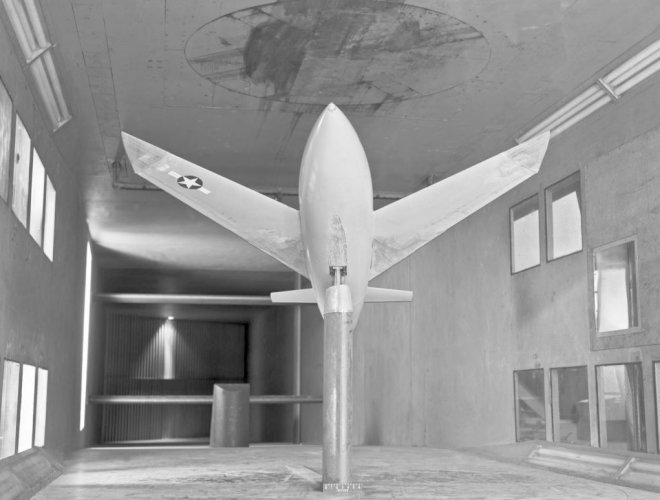

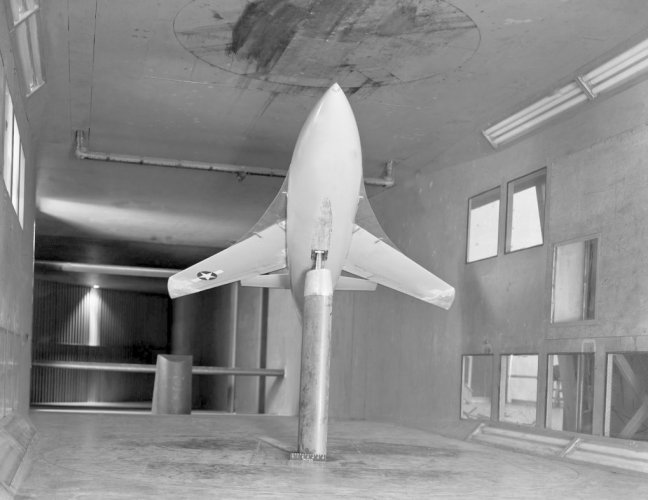

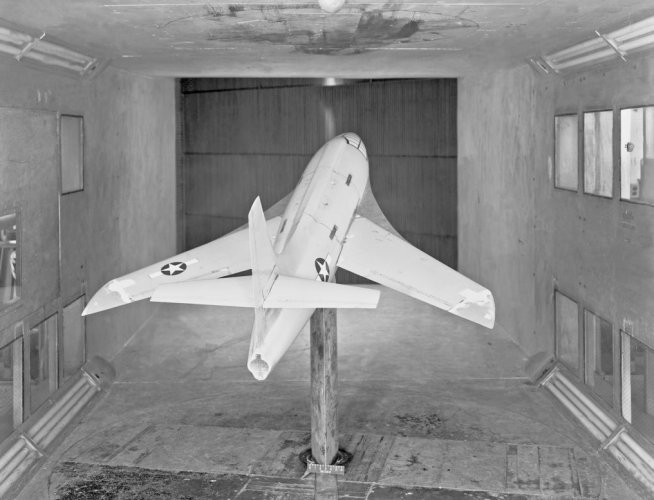

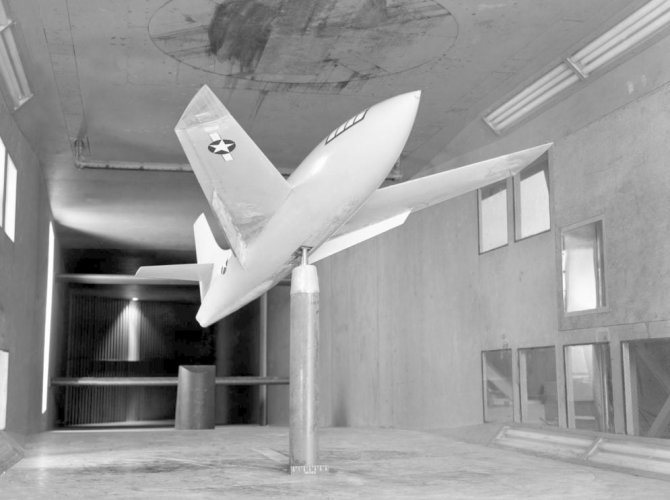

The briefly studied swing wing x-1


Attachments

  • IMG_20171213_000127.jpg
    126.8 KB · Views: 364
  • IMG_20171213_000140.jpg
    135 KB · Views: 81

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,210
Reaction score
174
Just for the sake of interweaving the threads here...

https://www.secretprojects.co.uk/forum/index.php/topic,14311.0.html

In almost 40 years since I first started finding traces of M.52 ancestry in the X-1 (and as alertken has said, nothing was stolen and much was shared freely) nobody has found a U.S. design that looks like the X-1 (extremely thin mid wing, bullet-shaped body, all-moving tail) that antedates the transfer of Spitfire-test and M.52-related data from RAE to NACA, and that would demonstrate independent evolution.

To reiterate: there was nothing shady about the original transfer. What was shady was the insistence of at least one very senior official historian that the X-1 owed nothing to the British.


jcf

ACCESS: Restricted
Joined
Jun 26, 2017
Messages
38
Reaction score
41
For the umpteenth time the XS-1/X-1 did not have an all-moving tail, it had a conventional
horizontal stabilizer and elevator setup that could be trimmed in flight for pitch control, a different animal
from the slab tailplane and something that had been around since well before WWII.

Anyhow the N.A.C.A. had been testing an all-moving tailplane on the modified XP-42 before they received
the M.52 data.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,997
Reaction score
877
A slightly (at least) isolationist view of a historic event that will never be agreed on. Sadly.


hermankeil

ACCESS: Restricted
Joined
Sep 21, 2006
Messages
33
Reaction score
13
In the late 60's or early 70's, I attended a talk by Chuck Yeager at Norton AFB in which he certainly said that the X-1 had an all moving tailplane. I know I'm old but my memory is still good.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981
hermankeil said:
In the late 60's or early 70's, I attended a talk by Chuck Yeager at Norton AFB in which he certainly said that the X-1 had an all moving tailplane. I know I'm old but my memory is still good.

Nice Info Hermankeil.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,828
Reaction score
712
jcf said:
For the umpteenth time the XS-1/X-1 did not have an all-moving tail, it had a conventional
horizontal stabilizer and elevator setup that could be trimmed in flight for pitch control, a different animal
from the slab tailplane and something that had been around since well before WWII.
That depends on how you look at it.

I've looked up the bit about the X-1's stabilizer in 'Yeager' by Chuck Yeager and Leo Janos. In the chapter 'Against the wall', Yeager describes how in early October 1947, on his seventh (?) powered flight in the X-1, flying at M 0.94 at 40,000ft, the elevator became wholly ineffective. After landing, flight data analysis showed a shock wave forming at the elevator's hinge point at just that speed. Jack Ridley then proposed, and I quote:
"Well, maybe Chuck can fly without using the elevator. Maybe he can get by using only the horizontal stabilizer."
The stabilizer was the winglike structure on the tail that stabilized pitch control. Bell's engineers had purposely built into them an extra control authority because they had anticipated elevator ineffectiveness caused by shock waves. This extra authority was a trim switch in the cockpit that would allow a small air motor to pivot the stabilizer up or down, creating a moving tail that could act as an auxiliary elevator by lowering or raising the airplane's nose. We were leery about trying it while flying at high speeds; instead, we set the trim on the ground and left it alone.
After thoroughly ground testing Ridley's idea, Albert Boyd agreed to trying it out in the air. Using the trim switch alone cured the control problem. The X-1 may have had a stabilizer and elevator setup, but its use as a de facto flying tail - something Bell's engineers had foreseen - enabled the X-1 to exceed M 0.94 in controlled flight.

So: intended to be used as a stablizer-elevator setup - found wanting - then used as an all-flying tail.


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
327
Reaction score
207
In almost 40 years since I first started finding traces of M.52 ancestry in the X-1 (and as alertken has said, nothing was stolen and much was shared freely) nobody has found a U.S. design that looks like the X-1 (extremely thin mid wing, bullet-shaped body, all-moving tail) that antedates the transfer of Spitfire-test and M.52-related data from RAE to NACA, and that would demonstrate independent evolution.

I don't think that any of the above demonstrates British influence. The point about the all-moving tail has been disproven elsewhere. The other features would part of any late 40s speed-optimized research aircraft


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,210
Reaction score
174
The other features would part of any late 40s speed-optimized research aircraft.

Not the Skystreak (low 10% wing, cylindrical body). Or the DFS 346 (swept wing, blunt nose, oval body with max cross-section level with wings). Or the X-3, or...

Added later: Guys - I know the evidence is somewhat circumstantial and correlation ain't causation. But as Thoreau said, "some circumstantial evidence is very strong, as when you find a trout in the milk."


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,981

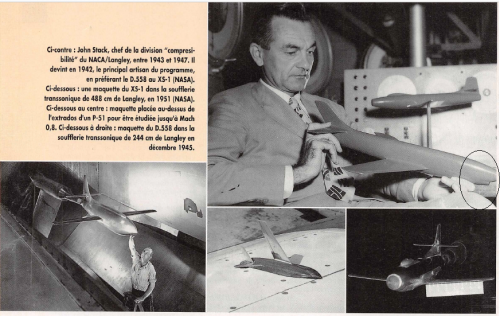

From Le Fana 281,

what was that which under the fuselage ?. intake,impossible ?.


Attachments

  • 3.png
    791.3 KB · Views: 171
