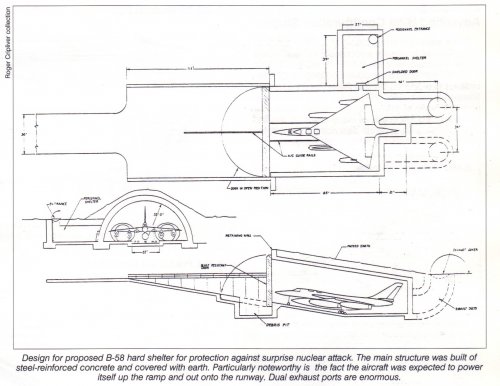

Convair B-58 "Hustler" Design Evolution

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128

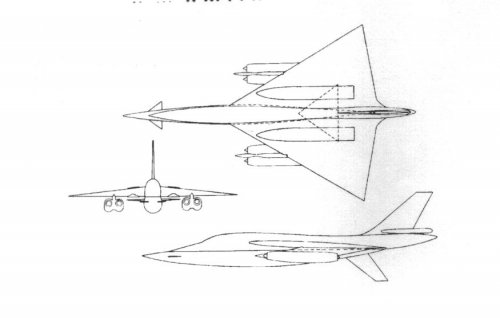

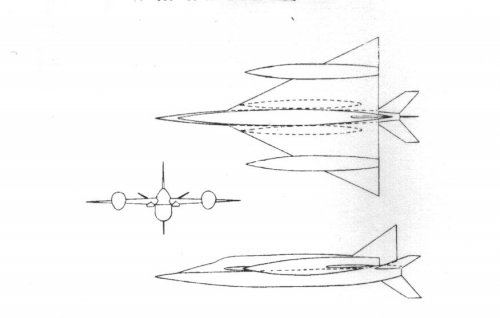

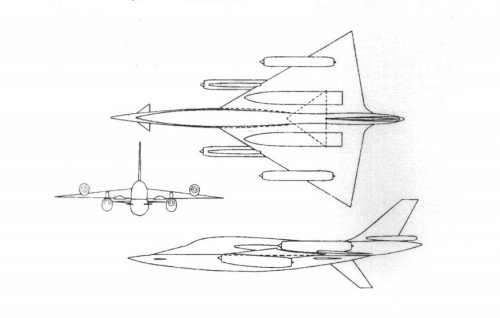

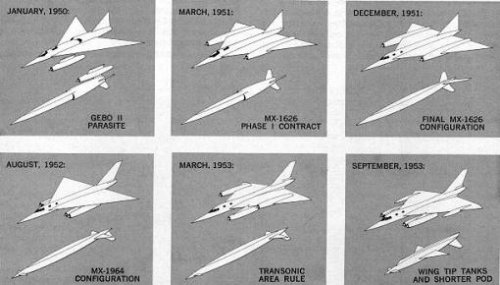

Found in a NACA report a good number of configurations leading to the B-58. Judging from the drawings and model photos published by Jay Miller in his "B-58", the six 3-views I post go from the MX-1626 (number 1) to the definitive proposal. In particular, number 5 seems the configuration mock-upped (twin engine nacelles). Enjoy.. Relevant NACA report is RM SL53K04.


Attachments

  • B-58_early_1.jpg
    36 KB · Views: 1,514
  • B-58_early_6.jpg
    38.1 KB · Views: 518
  • B-58_early_5.jpg
    38 KB · Views: 1,266
  • B-58_early_4.jpg
    39.6 KB · Views: 1,232
  • B-58_early_3.jpg
    38.6 KB · Views: 1,243
  • B-58_early_2.jpg
    33.1 KB · Views: 1,305

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

By the way,the NACA was studied more about 2000 shapes to creat B-58.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Good find !

Second drawing shown no indication of a cockpit.
Maybe flush with the fuselage contours ?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
lark said:
Second drawing shown no indication of a cockpit.
Maybe flush with the fuselage contours ?

My guess would be that it was similar to the XF-103's cockpit.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Air Pictorial of April 1953 reports that the Convair XB-58
should have eight J-57 engines , in pairs , mounted in the wings...

Any confirmation of this very early concept ?
According to the magazine , some artist impressions should
have been released.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
lark said:
Air Pictorial of April 1953 reports that the Convair XB-58
should have eight J-57 engines , in pairs , mounted in the wings...

Any confirmation of this very early concept ?
According to the magazine , some artist impressions should
have been released.

Eight J57s is the engine fit of an early B-52, at least without afterburners. That seems rather a bit of overkill for the XB-58 with or without afterburners. I could see four afterburning J57s, at least until the J79 presented a smaller and lighter alternative with the same power.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128
Just disinformation? Cold War was rampant... ::)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
In those days , designers needed a lot of engines to push their
designs high and fast.
For exemple , the initial desing for the McDonnell FH-1 Phantom used six (6)
Westinhouse engines in the wings.

source : Rene J.Francillon in 'Mc Donnell-Douglas Aircraft since 1920' - Putnam-London
illustraton in Flight : April 10th 1947 , page 315


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

I know we speak about B-58 design evolution,but we can
also speak about its variants and projects;
the B-58B had range-extension and it had nose mounted
canards and more powerful J79-GE-19 engines,the B-58C
was stretched version and one variant of it had only twin
engined,the B-58D was interceptor and the B-58E multi-
mission bomber projects.
the must interesting the project of the 1955 whih had
folding wing tips and supersonic wing camber.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

In 1956 the Convair prepared the B-58 as a project used as nuclear
propulsion system testbed with General Electric engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

In 1958 Convair and Lockheed proposed to the AF a joint venture
project calling for development of a special air-launch ballistic
missile (ALBM),Lockheed project 199C.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
lark said:
In those days , designers needed a lot of engines to push their
designs high and fast.
For exemple , the initial desing for the McDonnell FH-1 Phantom used six (6)
Westinhouse engines in the wings.

source : Rene J.Francillon in 'Mc Donnell-Douglas Aircraft since 1920' - Putnam-London
illustraton in Flight : April 10th 1947 , page 315

The more stranger my dear lark,

thay want to use six 300 1b thrust turbojets,subsequently increased Eight,to Ten
and then changed to two 1165 1b Westinghouse turbojets.


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
I wonder if there are any reports on the Mach 3 - Mach 4 B-58 designs that
later evolved into the Super Hustler parasite configuration. In Miller a number
of smaller top views show an evolution. The configurations seem laden with
lots of turbojets and ramjets and possibly long fuel tanks for exotic fuels.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Thanks to shockonlip for this link. Go here and scroll down. There is a photo of the B-58's MX-1964 configuration with only two engine nacelles.

Moonbat


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Woops! Sorry! :D here's the link:

http://www.strange-mecha.com/aircraft/Prototype/USAF-PB1.htm


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,439
Reaction score
3,455

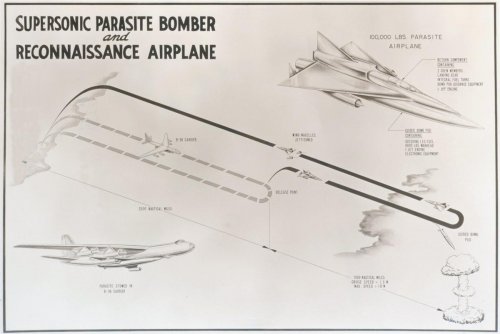

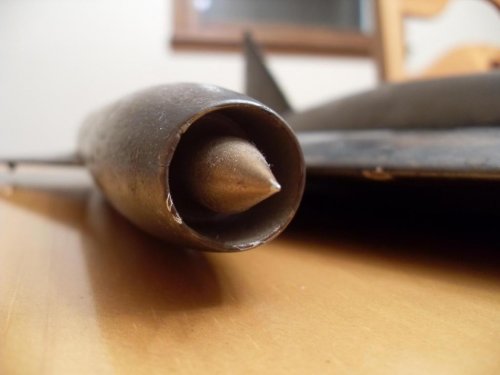

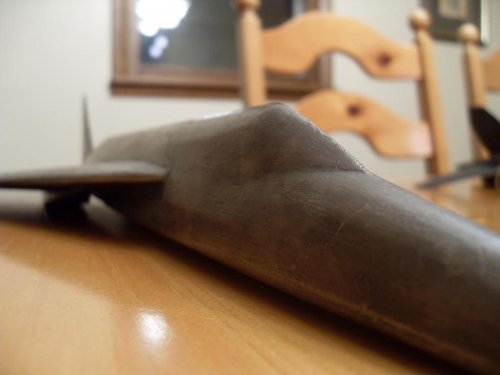

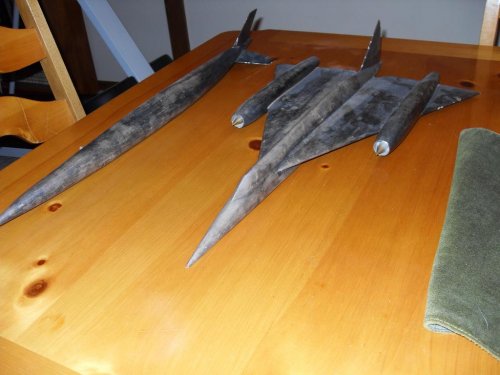

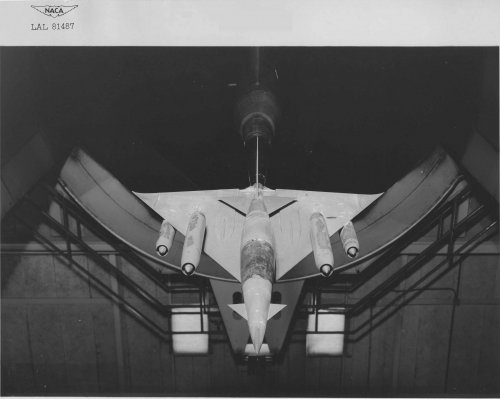

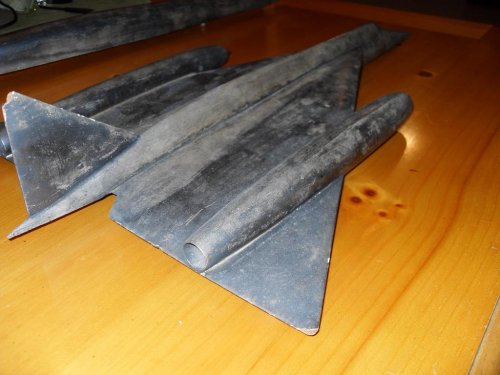

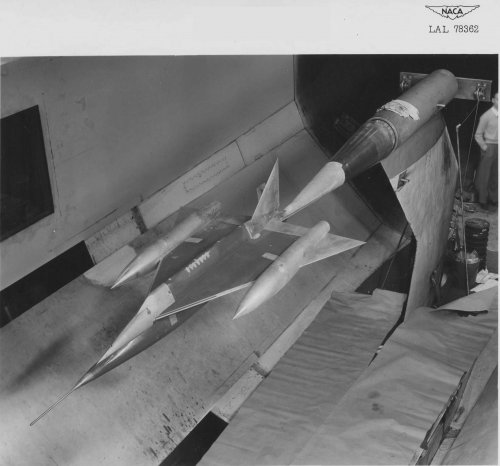

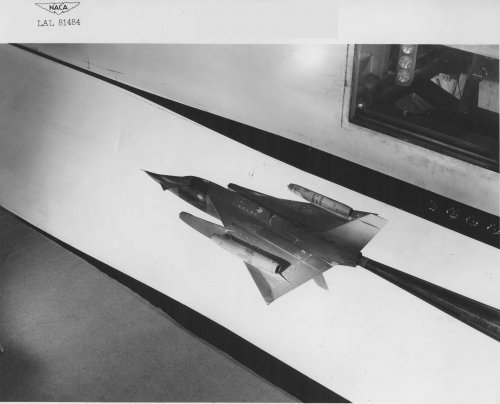

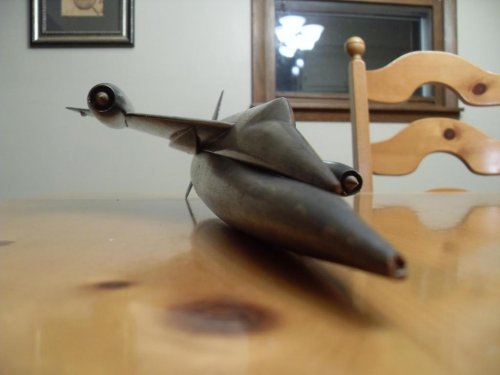

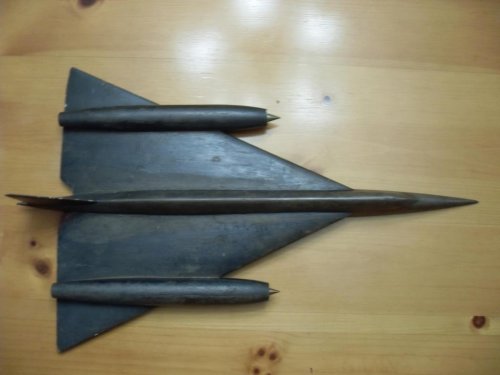

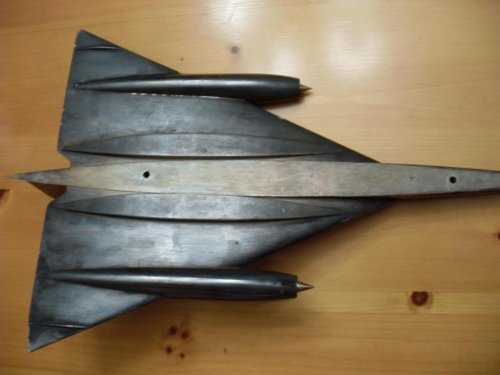

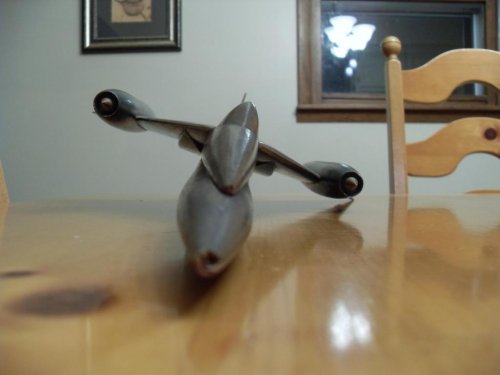

MX-1626 model photos posted at ATS forum by Subscorpion1


Attachments

  • SDC12949.jpg
    117.4 KB · Views: 213
  • SDC12946.jpg
    85.6 KB · Views: 2,602
  • SDC12941.jpg
    73.2 KB · Views: 391
  • SDC12940.jpg
    71.2 KB · Views: 402
  • SDC12938.jpg
    77.1 KB · Views: 422
  • SDC12937.jpg
    70.2 KB · Views: 439
  • SDC12935.jpg
    71.4 KB · Views: 510
  • SDC12952.jpg
    109.1 KB · Views: 2,629

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

here is some pictures to MX-1964 in as a wind tunnel model.

[Removed - no scans from Ian Allan publications. Besides, we have basically the same pics above from NASA in high quality - Admin]


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
689
hesham said:
Hi,
here is some pictures to MX-1964 in as a wind tunnel model.
Source: Page 25 & 26, Convair B-58 Hustler, Jay N. Miller, Aerofax and Midland Publishing, 1985 and 1997.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35

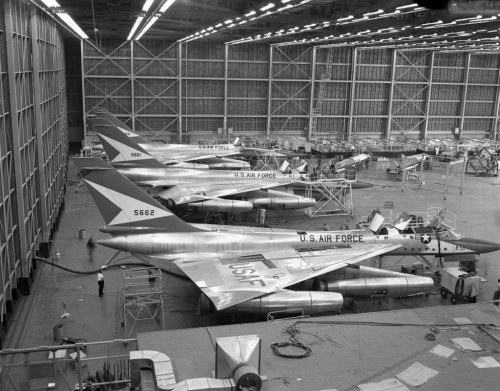

A fine looking trio of B-58s from Life magazine. -SP


Attachments

  • 55-660 55-661 and 55-662-sm.jpg
    55-660 55-661 and 55-662-sm.jpg
    190.2 KB · Views: 382

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
528
Reaction score
146
overscan said:
MX-1626 model photos posted at ATS forum by Subscorpion1

Is that the fuel tank (!) or is it mating with something?


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,849
Reaction score
812
XB-70 Guy said:
A fine looking trio of B-58s from Life magazine. -SP

A truly gorgeous aircraft, shame about the huge pod it had to carry.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,722
Reaction score
499
Raises the question of whether the rest of the plane was smaller, or if those two engines were significantly larger than the four that the Hustler wound up with?

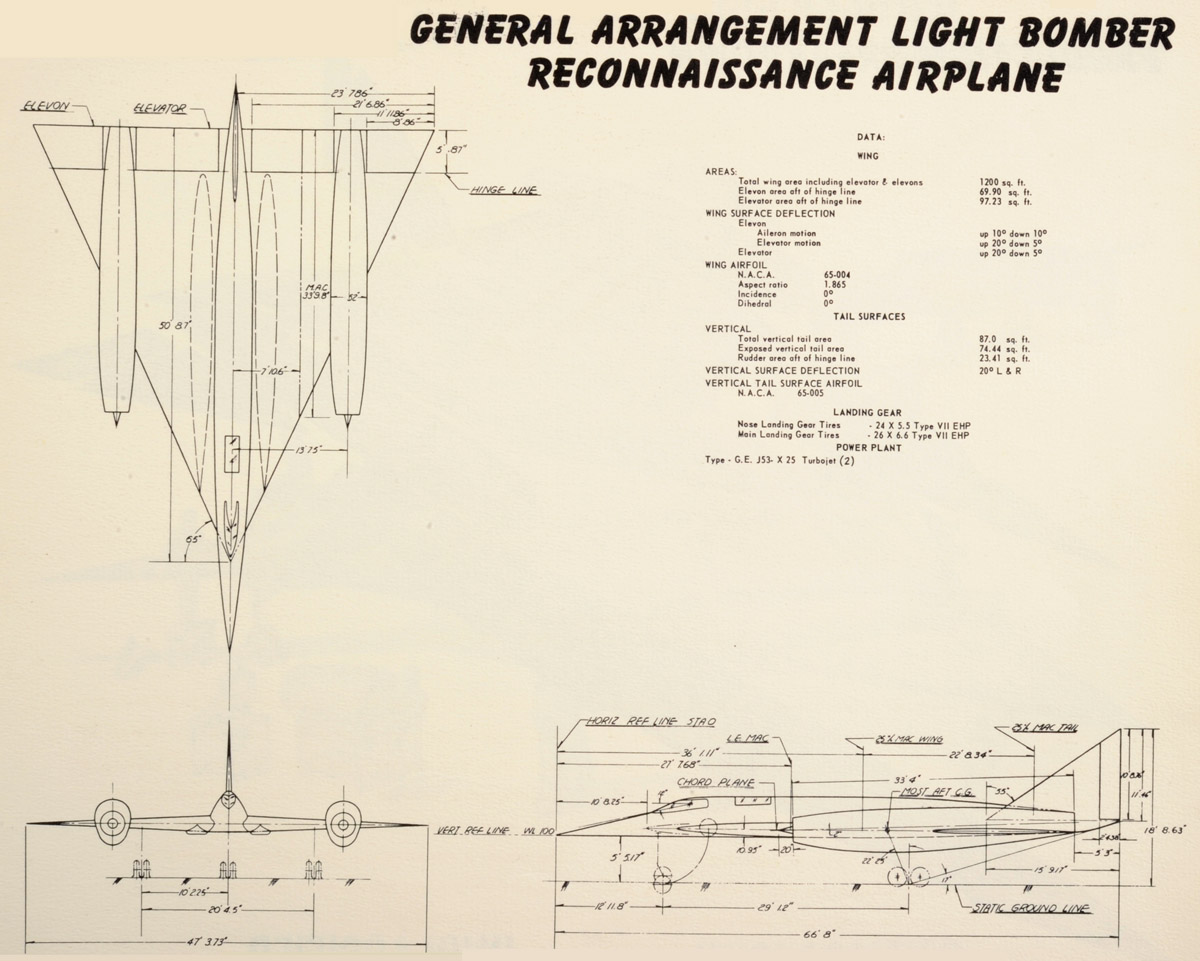

"Convair Deltas" by Bill Yenne, Speciality Press, 2009 has a 3-view drawing of the MX-1626 on page 160. According to that drawing, its length, without pod, is 66ft 8in (20.32m). Span 47ft 6in (14.48m). Nothing about which engines were planned for it, other than a general statement that the B-58 was to have J-79s.

B-58 as built:
# Length: 96 ft 10 in (29.5 m)
# Wingspan: 56 ft 9 in (17.3 m)
http://en.wikipedia.org/wiki/B-58_Hustler#Specifications_.28B-58A.29

The drawing matches the model in overscan's pictures.


codeone

ACCESS: Confidential
Joined
Oct 7, 2010
Messages
56
Reaction score
4
This might be MX-1626, though it is not referred to as such in the document.

http://www.codeonemagazine.com/gallery_slideshow.html?item_id=1178



Attachments

  • 2011_LRSB_01_1267828237_1117.jpg
    117.6 KB · Views: 1,545

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
391

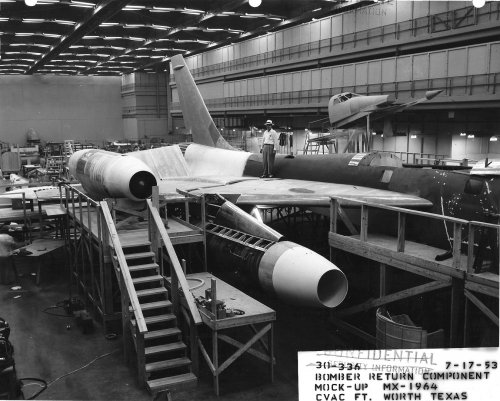

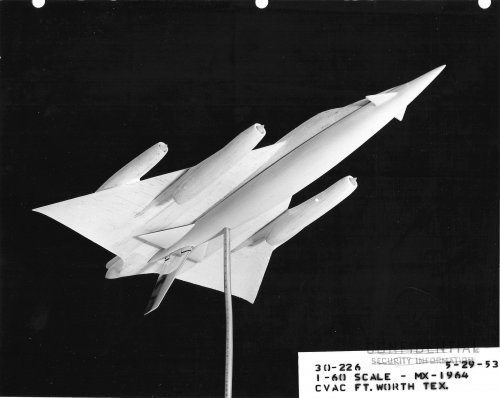

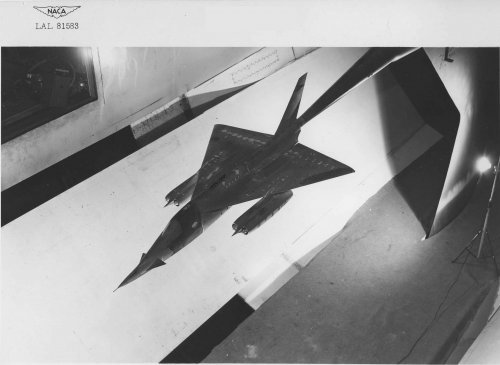

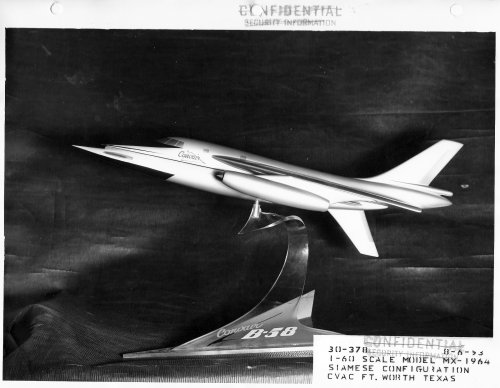

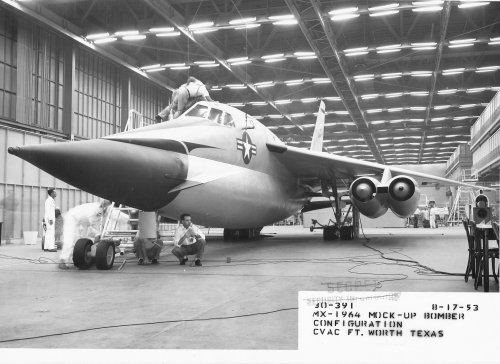

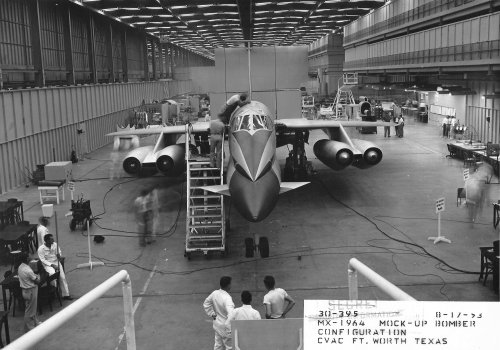

Mockup and a couple models of different designs for B-58.


Attachments

  • scan0003.jpg
    965.3 KB · Views: 394
  • scan0002.jpg
    703.1 KB · Views: 1,433
  • scan0001.jpg
    1 MB · Views: 1,542

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
391
Few more model and mockup photos.


Attachments

  • scan0001.jpg
    938.5 KB · Views: 338
  • scan0002.jpg
    315.6 KB · Views: 340
  • scan0003.jpg
    930.7 KB · Views: 362

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

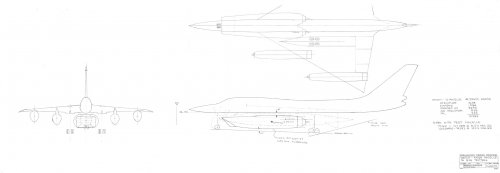

Engineers at General Dynamics in Fort Worth planned to use the B-58 Hustler to test the nacelle design for the advanced manned strategic aircraft, or AMSA. The AMSA program was a precursor to what became the B-1 bomber. Drawing is dated 11 April 1969


Attachments

  • 9e2c01d2cb50.jpg
    150.2 KB · Views: 482

JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8
Take a look at the object in the upper right center of RAP's scan0003 image. Is that the first indication that Convair Fort Worth was investigating a separable crew cabin for crew ejection? Ten years after this image such a solution for emergency egress was incorporated in their TFX proposal that became the F-111. A small conical nose and delta lifting surfaces seem to project ahead of the crew capsule.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

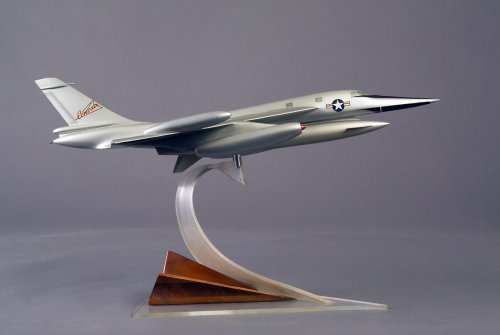

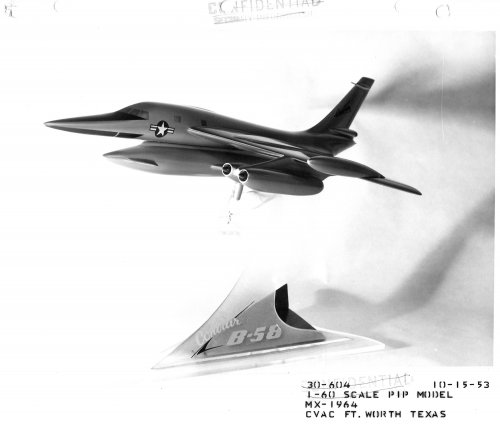

Convair factory model of MX-1964, in its October 1953 configuration. This update came after the siamese version. It was characterized by twin engine nacelles, overwing drop tanks and the early, MB-3 mission-configurable weapons pod with its own delta wings, canards and rudder. The koa wedge in the base is a carving of the logo on the vertical.

The small hole at the very tip of the plexiglas curl was to hang a "Confidential" medallion. This is the only time I've seen someone anticipate a classification change with a removable tag. Usually the word "Secret" was engraved forever and had to be taped over, which always looks cheesy.


Attachments

  • Convair MX-1964 Oct.1953.jpg
    Convair MX-1964 Oct.1953.jpg
    49.4 KB · Views: 308
