Convair Super Hustler, Fish and Kingfish

styx

ACCESS: Restricted
Joined
Oct 5, 2006
Messages
7
Reaction score
0
I woul like to know something about the kinfish proposal for a strategic recon aircraft (in the competition won by the lockheed a-12) and about the super hustler design.
Unfortunately the only information i foud are in Russian (quite strange for united states secret projects)

http://www.testpilot.ru/usa/convair/b/58/super/super.htm


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
The simple truth is that the Russian site copied and translated the extensive info found in Jay Miler's "B-58 Hustler"second edition book from a score of years ago... Best action is go and buy that book (one of the best ever in Cold War aviation history, BTW). It is an easy find. on Amazon, for one.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,198
Reaction score
31
For more info on the Kingfish, check out the Aerofax title on the Blackbird family.

http://www.aerospaceweb.org/question/planes/q0011c.shtml
http://www.blackbirds.net/sr71/oxcart/successortou2.html
http://home.att.net/~jbaugher2/b58_13.html

Also, do an FOIA search on the CIA FOIA site for OXCART. There's a CIA-published A-12 history in there that has some information on Kingfish as well.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Besides the Aerofax book with its excellent chapter 2 about the Kingfish and Co
there's also the revised edition of Warbird vol 10 : Lockheed Blackbirds
by Tony R.Landis and Dennis R.Jenkins (pages 6 to 9)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Dear lark,

I have a book about B-58, but it is not explained that,the Convair Model-16
was the Super Hustler or not.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,267
Reaction score
1,781

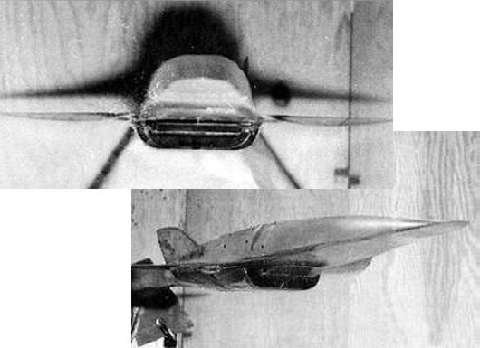

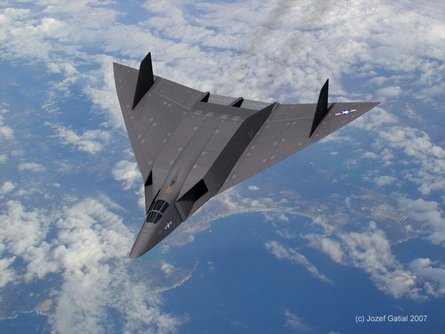

Good website (in french) with pics of the Fish and kingfish.
http://jpcolliat.free.fr/f12/f12-14.htm


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,478
Reaction score
207
Lockheed's SR-71 "Blackbird" Family by James Goodall and Jay Miller. Aerofax. Chapter Two. Pages 11 to 14.
3 view drawings from GD Fish and GD Kingfish


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Hesham ,
Not a single trail of Convair designations found.Only codenames
and names.(Super Hustler/Fish/Kingfish)


dickie

ACCESS: Restricted
Joined
May 3, 2007
Messages
46
Reaction score
1
does The Blackbird Family go into any depth about the engine placement and intake/exhaust performance of the KINGFISH? reading about the (then) complex nature of the a-12's inlet spikes and controlling airflow into the j-58 seems to put the design aspects of the convair design into question.

this is underlined by kelly johnson's apparent comments on the matter; he stated that the designers of the rival firm gave little thought to inlet and afterburner performance at all, opting instead to focus on the RCS of the design. convair claimed that the performance of the plane matched the lockheed design in speed and very nearly in altitude, but is that even possible given the nature of the blackbird's engine characteristics in comparison?

W

Wingknut

Guest
Hello,

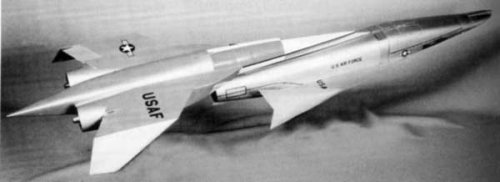

Hope this isn't too far off-topic but I'm puzzled by the caption on one image at: http://www.testpilot.ru/usa/convair/b/58/super/super.htm.

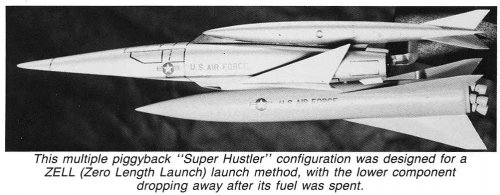

The image apparently shows a model Super Hustler equipped for ZELL, (zero length launch). I'd thought ZELL was for vertical (or near-vertical) ground launches but that the Super Hustler was purely for parasite launching. So, was there a proposed ground-launched Super Hustler or have I got ZELL all wrong?
Many thanks,
'Wingknut'


Attachments

  • Super Hustler (ZELL).JPG
    Super Hustler (ZELL).JPG
    181.2 KB · Views: 1,816

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com
Wingknut said:
the Super Hustler was purely for parasite launching.

No, it was possible to launch it from fixed ground emplacements (maybe also mobile ground platforms, but I'm just speculating). In effect it was a manned, multi-stage cruise missile. Carrying under a B-58 would allow deeper penetration into enemy territory since the B-58 could get it closer.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
My dear Orion,

we can put them here.


Attachments

  • kingfish_small.jpg
    94.7 KB · Views: 1,649
  • Convair 2.JPG
    Convair 2.JPG
    10.9 KB · Views: 1,449
  • fish3.jpg
    17.7 KB · Views: 1,384
  • kingfish1.jpg
    13.3 KB · Views: 1,417

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
No, Hesham, we will not put stuff from Jay Miller/Midland Counties books HERE.


fossil

ACCESS: Restricted
Joined
Mar 1, 2009
Messages
7
Reaction score
0
What's the name/designation of the "small" parasite craft at the rear, under the B-52 Hustler? Also any other links to that design or 3-views and details.

www.testpilot.ru/usa/convair/b/58/super/super.htm


Attachments

  • hustler-fullstack-01.jpg
    11.6 KB · Views: 331

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com
fossil said:
What's the name/designation of the "small" parasite craft at the rear, under the B-52 Hustler? Also any other links to that design or 3-views and details.

www.testpilot.ru/usa/convair/b/58/super/super.htm

As the website says, that's the "Super Hustler." Type "Super Hustler" in the search engine above to find more threads on it.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
12
Website
www.io.com
Orionblamblam said:
fossil said:
What's the name/designation of the "small" parasite craft at the rear, under the B-52 Hustler? Also any other links to that design or 3-views and details.

www.testpilot.ru/usa/convair/b/58/super/super.htm

As the website says, that's the "Super Hustler." Type "Super Hustler" in the search engine above to find more threads on it.

...Wasn't this one of the "Kingfish" proposal designs that was batted about?


fossil

ACCESS: Restricted
Joined
Mar 1, 2009
Messages
7
Reaction score
0

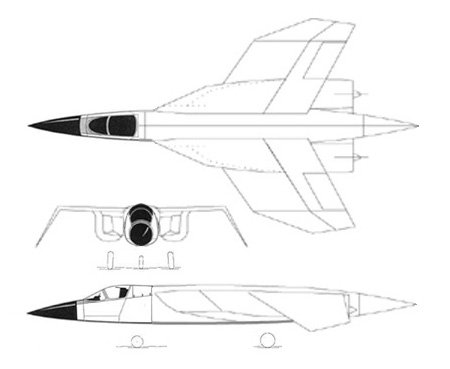

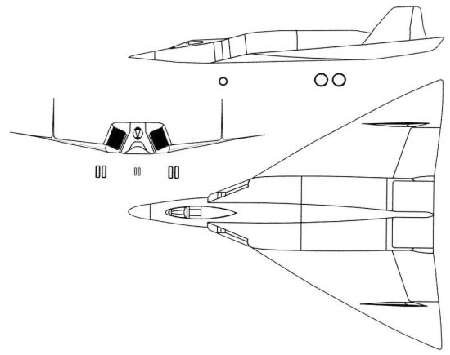

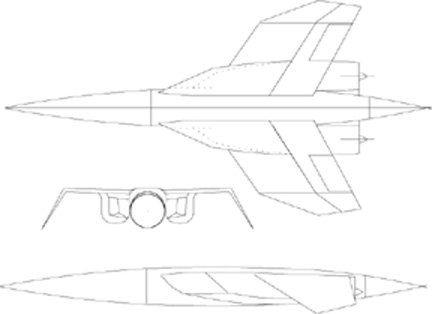

This is a 3-view of the parasite I'm looking for a designation. Would like to build a scale model with a wingspan about 48 inches x 96 inches long


Attachments

  • Hustler line.jpg
    Hustler line.jpg
    20.5 KB · Views: 251
  • Hustler line.jpg
    Hustler line.jpg
    20.5 KB · Views: 206

fossil

ACCESS: Restricted
Joined
Mar 1, 2009
Messages
7
Reaction score
0
Fun Fake

Had some fun comming up with this. Think it will fly?


Attachments

  • Hustler Fun Fake.jpg
    Hustler Fun Fake.jpg
    25.2 KB · Views: 226

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu
fossil: It will be usefull to add somewhere to your drawing a note, that it is the imagination or a few weeks later we will find at Abovetopsecret or somewhere else the thread that the new supersecret black hypersonic aircraft was revealed :D Nice idea indeed.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com
fossil said:
This is a 3-view of the parasite I'm looking for a designation.

That's not actually the parasite... that's the *booster.* The parasite was the manned vehicle ahead of/below the booster.

Also: the nosecone of the booster, the part ahead of the line, was actually the bomb.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com
Re: Fun Fake

fossil said:
Had some fun comming up with this. Think it will fly?

Not on its own. The expendable booster stage was ramjet powered, with no means of getting to ramjet speed. It would need to be carried by another aircraft, or given rocket boosters.


fossil

ACCESS: Restricted
Joined
Mar 1, 2009
Messages
7
Reaction score
0
Upgraded engines

A little more work brought it up to date.


Attachments

  • Hustler Fun Fake.jpg
    Hustler Fun Fake.jpg
    28.3 KB · Views: 226

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
please no more fanart in this thread


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
12
Website
www.io.com
Orionblamblam said:
OM said:
...Wasn't this one of the "Kingfish" proposal designs that was batted about?

No, but it was an ancestor design.

...That's why I thought I'd seen it before. Came across it one time during my OXCART research back in the late 90's, albeit in a "napkin sketch" form. A "Fish" proposal, then?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com

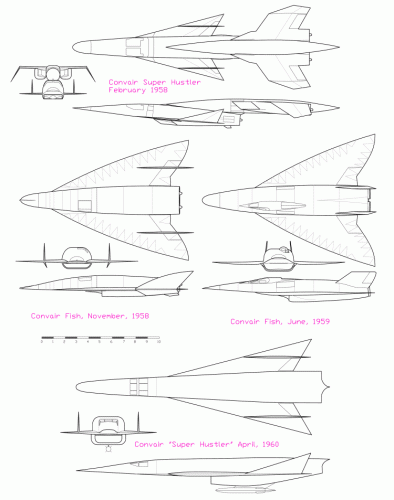

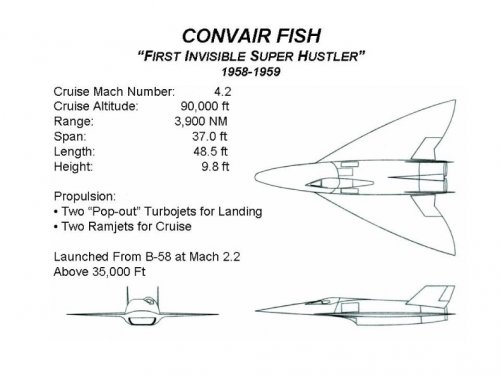

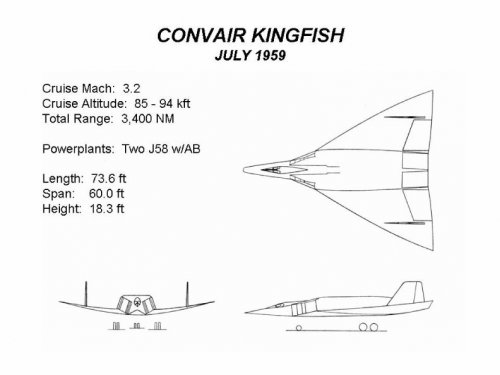

The Convair Super Hustler, two iterations of the Convair "Fish," and the SDR-17 "Super Hustler" tactical bomber.

The SH was a recon/strategic bomber meant to be carried aloft by an unmodified B-58; the earlier "Fish" was a pure recon plane meant to be carried aloft by an unmodified B-58; the second "Fish" was also a recon bird, meant to be carried aloft by a stretched B-58; the SDR-17 "Super Hustler" was a conventional tactical bomber in the mold of the F-111, but equipped with only a single bomb.

This is for the RoBo article in the V2N4 issue of APR. These play only a small role in the RoBo story, so get only a few pages of treatment; a future article may cover the Super Hustle and/or Fish in greater depth.


Attachments

  • superhustlerfish.gif
    52.4 KB · Views: 707

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,660
Reaction score
691
This is for the RoBo article in the V2N4 issue of APR.
it about ZELL version of the Super Hustler ?

intressthing page (with Picture) on Super Hustler
http://www.testpilot.ru/usa/convair/b/58/super/super.htm
http://www.secretprojects.co.uk/forum/index.php/topic,4450.0.html
http://www.secretprojects.co.uk/forum/index.php/topic,1129.0.html

please not confuse Convair Fish with Convair Kingfish,
that aircraft was for CIA


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
eh, eh, eh, guys, and wait to see which kind of insignia a SuperHustler was expected to sport....


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
906
Reaction score
262
I've read that the Fish was supposed to have two J-85 turbojets that retract from the aircraft to support the approach and go-around operations. Does any one have a drawing or picture that indicates the location of the retractable engines?

There are panel lines for what might be retractable engine bays behind the cockpit area, but I'm not sure.


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
Skybolt said:
eh, eh, eh, guys, and wait to see which kind of insignia a SuperHustler was expected to sport....

I have a copy of Scott's excellent V2N4, and I don't recall an Super Hustler "insignia".

Or is this somewhere else, and you're toying with us!


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
I am not trying to come across as upset.

I wanted to add a smiley, but hit the button too soon!

Regards,

Larry


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
Dynoman said:
I've read that the Fish was supposed to have two J-85 turbojets that retract from the aircraft to support the approach and go-around operations. Does any one have a drawing or picture that indicates the location of the retractable engines?

There are panel lines for what might be retractable engine bays behind the cockpit area, but I'm not sure.

Scott has some excellent stuff on Super Hustler.

I'll let him respond.

If he doesn't I can take a whack at it.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com

Attachments

  • ch1_8.jpg
    53.3 KB · Views: 486
  • ch1_12.jpg
    41.7 KB · Views: 536

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
Nice renderings, Bagera, although had Convair won the competition surely the deignation wouldn't be of the A-something type.... That derived by the Archangel designation that Lockheed used internally.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com

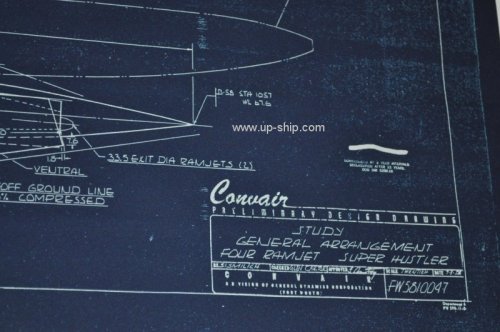

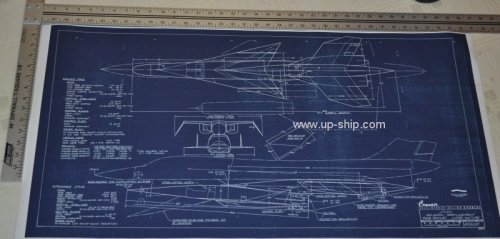

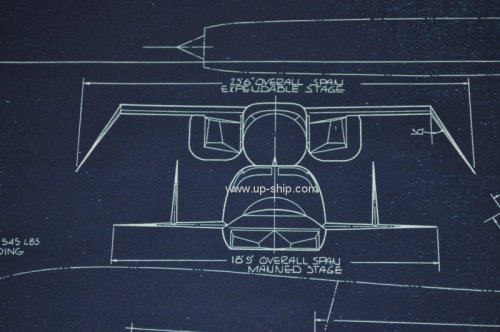

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=250595429473


Attachments

  • DSC_4497.jpg
    71.4 KB · Views: 223
  • DSC_4498.jpg
    90.4 KB · Views: 215
  • DSC_4499.jpg
    78.6 KB · Views: 99

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

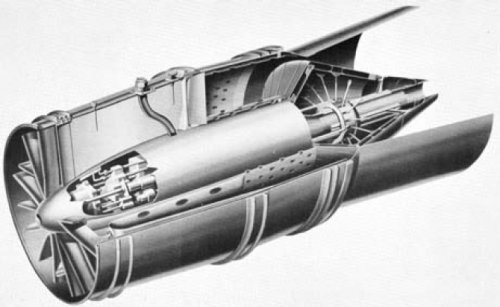

Marquardt MA-24XEA
This variable geometry ramjet, configured for internal mounting with a vehicle-provided inlet system, was designed for extended cruise at Mach 4 and 90,000 ft. The engine accelerated the vehicle from a Mach 2, 40,000 ft. takeover condition. The ramjet was 33.5-in. in diameter, 89-in. long and weighed 585 lbs. The engine’s hydraulic-pneumatic fuel system and air turbine driven fuel pump were installed in the ramjet center-body.
The variable convergent-divergent exit nozzle, providing variations from 0.12 to 0.65%, was designed with a nonprotuberant aft-end geometry for a low radar signature during cruise flight. The operational development activity for the MA24-XEA was suspended when the launch aircraft program was abruptly terminated.


Attachments

  • MA-24XEA.jpg
    122.6 KB · Views: 351
