Hi,

I displayed this project before but I get an info,that it was an early
Bell 52 tunnel model and patent drawing,it shows an X-2 fuselage
with a large ventral fin nd a shoulder mounted high wing.


Attachments

  • X-2.jpg
    11.2 KB · Views: 506
Last edited:
Certainly a very streamlined design and visually pleasing. I've seen many X-2 tail and sweep wing prototypes including forward sweep and V-tail. and V-tail.

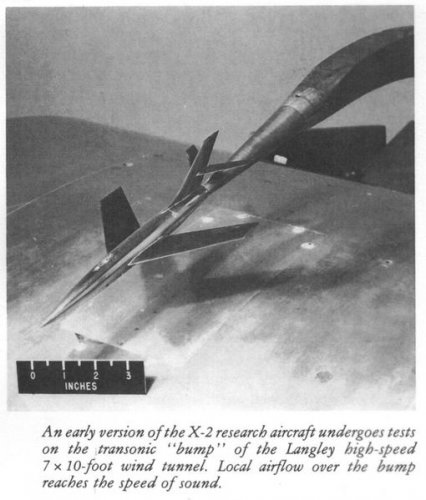

From NASA Photos;

http://crgis.ndc.nasa.gov/historic/File:1951_Transonic_bump_-_X-2.jpg


Attachments

  • 510px-1951_Transonic_bump_-_X-2.jpg
    45.6 KB · Views: 141

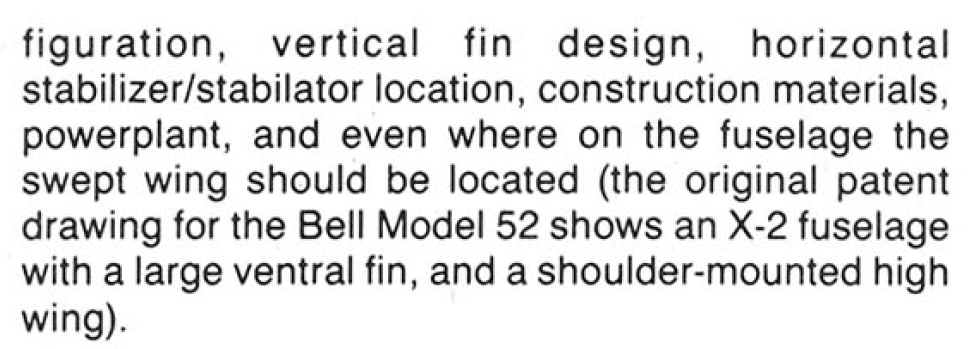

Unfortunately,there is no mention in details at any source ?,except this one.


Attachments

  • 1.png
    286.8 KB · Views: 36
  • 2.png
    255.8 KB · Views: 24
  • 0.png
    849.6 KB · Views: 43
