Bell Model 525 « Relentless »

fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
Official Bell video:






Not much to see for now.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,123
Reaction score
101
Did not exactly leap off the ground, would have been nice to see a bit more.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,182
Reaction score
221
Like with the S-97 Raider, we should say or report "first take-off" instead of "first flight"! ;)


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
Well it did do a bit more. Considering the level of complexity they are putting into the FBW software it isn't too surprising they are being cautious.




yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,075
Reaction score
170
Not to mention that the winds were not ideal for conducting a first flight. Given the gusting wind component, I thought the aircraft looked darn stable.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,123
Reaction score
101
yasotay said:
Not to mention that the winds were not ideal for conducting a first flight. Given the gusting wind component, I thought the aircraft looked darn stable.
If I had seen the second video before posting I would not have written something that sounded so critical. Seeing more of the flight and now knowing the conditions, I agree it looked quite solid.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,075
Reaction score
170
Skyblazer said:

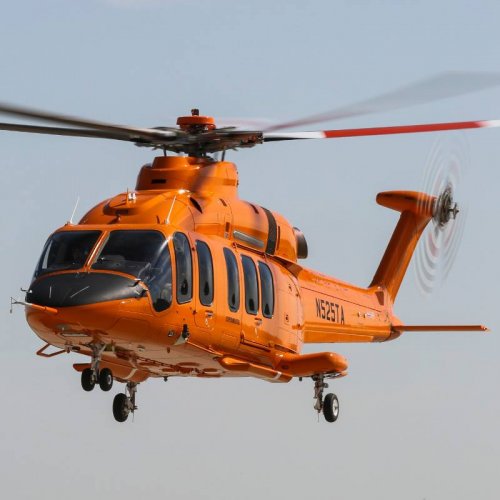

Still find it an incredibly ugly machine, but I thought the photo was cool and I like the unusual color too.
Practicality overcomes style, when designing a bus. Doubt the folks with the checkbook wanted to drop an extra $100K or more for style.

Besides sexy aero is for the Europeans. B)


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
A little end of year reminder from Bell that they are still working on the 525.

https://www.youtube.com/watch?v=3G0TIjyOwuA


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
A new video with aerial shots this time. Seems like they are moving along fast enough for customer deliveries in 2017 (assuming software doesn't bite them).



RavenOne

CLEARANCE: Secret
Joined
Jun 18, 2008
Messages
204
Reaction score
87

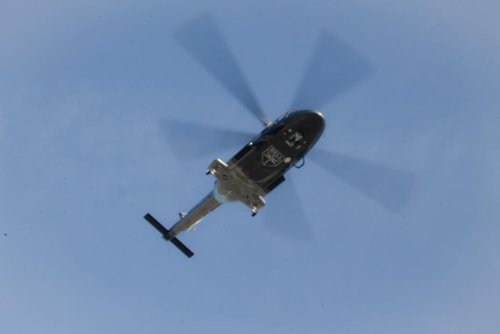

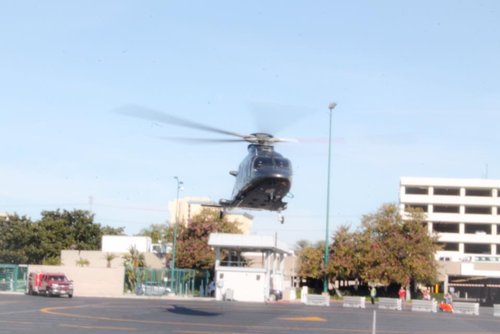

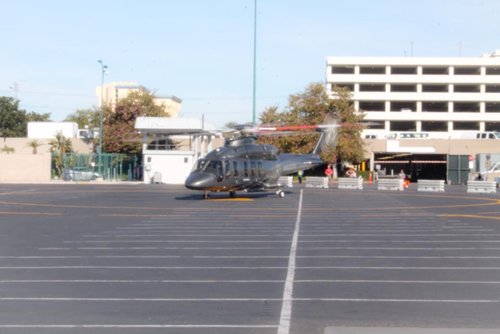

Here are my photos of Flight Test Vehicle 2 from HAI 2016 a month ago in Louisville,

cheers
















Last edited:

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,841
Reaction score
351
Tragic news...
https://aviation-safety.net/wikibase/wiki.php?id=188544


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,712
Reaction score
506
flateric said:
Tragic news...
https://aviation-safety.net/wikibase/wiki.php?id=188544
Rest In Peace.

This is likely to severely affect the program.


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
The article at the link says the helicopter was traveling at 199kts. Is it normal for a conventional helicopter to be flown this fast even in a dive?

"Flightradar24 records show the helicopter departing Arlington at 10:39 LT (15:39 UTC). It proceeded to the south were it flew pattern at altitudes between 2000 and 3000 feet. Last data point is at 1975 feet, at a speed of 199 kts at 11:47 hours."


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,349
Reaction score
213
Flightradar24 data isn't gospel. It's just looking at Extended Mode S transponder data and trying to interpolate; sometimes it makes very wrong guesses, especially in unusual cases like accidents. I wouldn't read too much into it.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,075
Reaction score
170
So like the 609 incident in Italy, I suspect software issues at "extreme" points in the flight envelope. Those areas where the computational work might not be as solid as the middle of the envelope. Of course it is easy for me to say that because they tout 525 as the first fly by wire. Some will recall that the UH-60 had fly by wire issues (stabilator) early in its life.

Ultimately, what matters is that there are families who have had the world pulled from under them. Prayers for them.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,332
Reaction score
79
Bell 525 Resumes Flight Testing
by Mark Huber - July 7, 2017, 2:17 PM

Having resumed flight testing, the Bell 525 Relentless program will see two more ships join the flight test fleet this year.

Today, a year and a day after the fatal crash of its first prototype, Bell Helicopter resumed the flight test program of its model 525 Relentless super-medium twin after receiving experimental certificate renewal from the FAA.

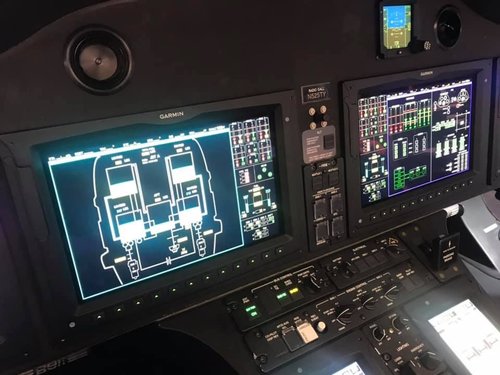

“Today we have resumed a key element of the Bell 525 program,” said Bell CEO Mitch Snyder. “Bell Helicopter has worked with the National Transportation Safety Board and FAA since the accident and we are confident in the resumption of flight test activity.” Snyder said Bell remains on track to certify the 525 in 2018. The 525 features fly-by-wire flight controls and the Garmin G5000H touchscreen-controlled avionics system. The flight test program had been stood down since the fatal crash of 525 flight test vehicle 1 (FTV-1) last July 6th.

Neither of the remaining two test aircraft had engaged in ground runs during the standdown. Two more test aircraft are being built at Bell's plant in Amarillo, Texas. One of those new aircraft is expected to fly this year and the other early next year.

The NTSB has yet to issue its final report on the FTV-1 accident. That aircraft was conducting tests near Vne speeds when the main rotor rpm dropped off and the main rotors departed the normal rotation plane and struck both the tailboom and the nose during the in-flight break-up sequence that destroyed the helicopter, according to the NTSB. A Bell executive told AIN last year that the company was making unspecified modifications to the remaining test aircraft in the wake of the accident.


https://www.ainonline.com/aviation-news/general-aviation/2017-07-07/bell-525-resumes-flight-testing


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,123
Reaction score
101

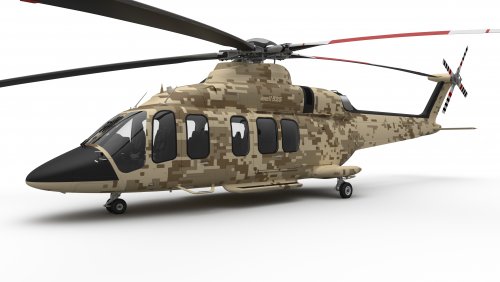

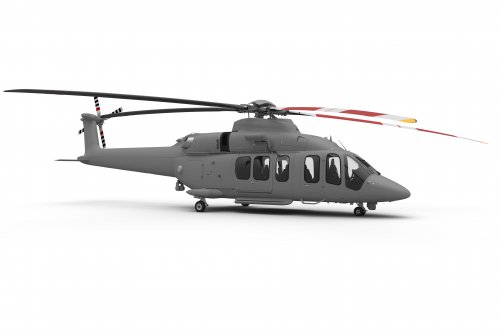

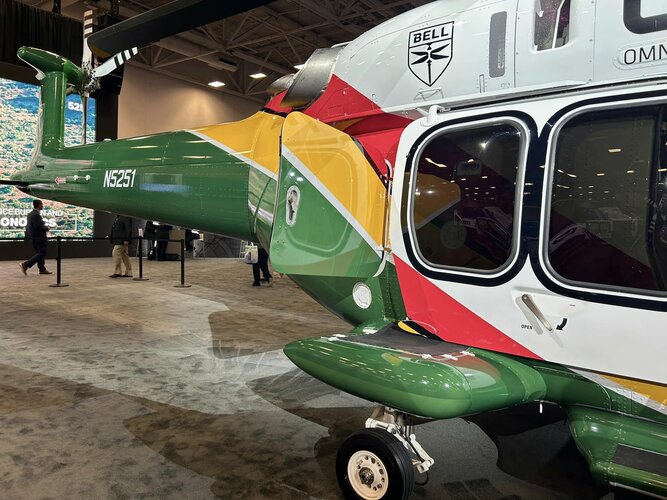

Wears the colors well. Though I have no idea how interested military buyers would be, other "super mediums" like AW189 and H175 haven't really cracked that market much.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,152
Reaction score
136
Might be Crew rotation.

With an industry contract to support and sustain a contracted number of rotations worldwide.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,075
Reaction score
170
Always good to hedge your bets when dealing with the U.S. Army on new aircraft.

Then there is the "Can't afford a swoopy high-speed rotorcraft? Well we got you covered."

Given that Bell had their civil partners work with them on criticality of reduced maintenance cost, as already mentioned it might provide a good financial proposition.


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223

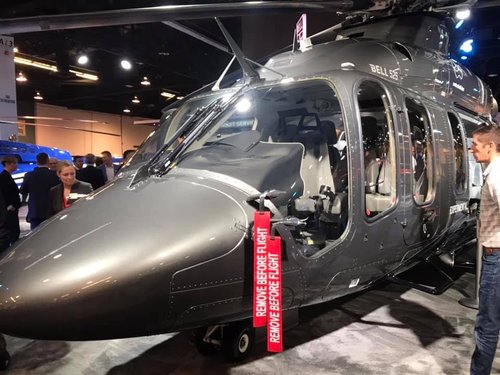

Final test vehicle intended for customer demos.



yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,075
Reaction score
170
They have several flying now. Think the FBW final testing is what is dragging the program. FAA is likely a bit skiddissh on that these days.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,123
Reaction score
101
Fascinating. Not the sexiest tailboom ever, but a lot of potential. I wonder if it's just a testbed for a new design with electric propulsors, or if they're thinking about making it an upgrade/update for their existing types.


VTOLicious

CLEARANCE: Top Secret
Joined
Nov 24, 2008
Messages
552
Reaction score
104
It might serve as an inspiration for the certifying authority to start thinking about associated airworthiness standards as well ;)


VTOLicious

CLEARANCE: Top Secret
Joined
Nov 24, 2008
Messages
552
Reaction score
104
...and I may add: Replacing the mechanical drivetrain with an electric propulsion system may appear simple on the first look. But one should not underestimate the complexity of a system designed to be "single fault tolerant" - And that's the whole point of it.


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,735
Reaction score
223
Regarding the "EDAT" (electric distributed anti torque) system, it does seem to have some production potential.

https://www.verticalmag.com/news/bell-electrically-distributed-anti-torque-edat/

Bell is not ready to share any performance figures, but Sinusas said the feedback from the customers that have seen the system in action has been positive....

“We were looking at what are the customers demanding for aircraft? . . . And safety is obviously always at the top of the list,” he said. “This [system] certainly meets those [requirements] and it has some interesting features that conventional rotors don’t with redundancy, and when the aircraft on the ground, the electric fans are not rotating at all.”


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,152
Reaction score
136
Notice also that by having four widely spaced rotor position, they can govern the anti torque vector direction, improving stability in a range of speed (instead of a single speed value - usually cruise) and decreasing losses of power in trim.
