Axis Powers post-WWII airliner projects

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
I have found some Axis Powers post-WWII airliner projects while waiting for Skybolt's superb research on this fascinating topic.

1st class artwork coming from:

Jet Planes of the Third Reich. The secret projects. Volume 2. Manfred Griehl. Monogram. ISBN 0-914144-37-


Attachments

  • Junkers EF-100.jpg
    Junkers EF-100.jpg
    222.7 KB · Views: 324
  • Focke Wulf FW-300.jpg
    Focke Wulf FW-300.jpg
    235.7 KB · Views: 308
  • Blohm und Voss BV 226.jpg
    Blohm und Voss BV 226.jpg
    299 KB · Views: 404

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
To give comparison I have taken a contemporary US design, not an airliner but a military transport, the Convair Model 36 Transport derivative. I find that its configuration its very similar to the EF-100 transatlantic airliner


Attachments

  • Model 36 Transport.jpg
    Model 36 Transport.jpg
    55.6 KB · Views: 307

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,433
Reaction score
292
pometablava said:
To give comparison I have taken a contemporary US design, not an airliner but a military transport, the Convair Model 36 Transport derivative. I find that its configuration its very similar to the EF-100 transatlantic airliner

Indeed. And at least this design, in much evolved form, saw daylight as the XC-99.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
572
Reaction score
217
Is there any more info on the BV 226?

The engines look a bit like turboprops?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
The engine is BMW803
120 seat + 15 crew
Dimensions (m): 85 span x 70 lenght

I'll try to find more info ;)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
BV-226 = BV P-200 the magnificient... I have a lot of inside renderings of it. Designer was Hamtmann.
FW-300 in reality was a derivative of the FW TOP (Trans-Ozean Project), tendered to the same competion of the EF-100. This night, folks..


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,326
Reaction score
1,425

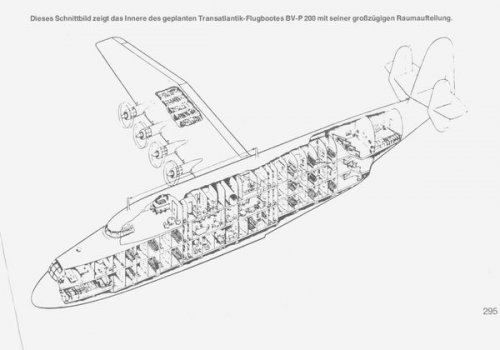

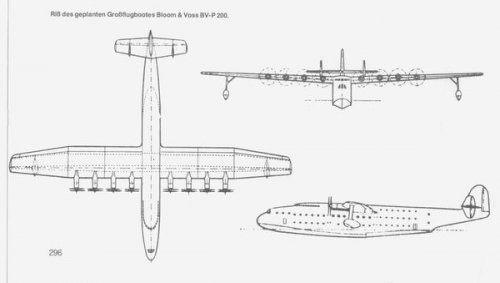

Here are the drawings from the above mentioned book


Attachments

  • Bv200_01.JPG
    18.2 KB · Views: 344
  • Bv200_02.JPG
    27.3 KB · Views: 277

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Or Blohm & Voss BV-726 (P-200)

in : Flugzeuge von HFB (Blohm & Voss)
Walter Zuerl-Steinebach-Wörthsee.

engines : as mentioned before (8X BMW-803 of 400PS)
span:85.00m lenght:70.04m height:10m
empty weight: 115.000kg startweight:210.000kg
max. speed 440km/h service ceiling:600m


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
Junkers EF-230 airliner?

It is unknown for me...can you add more info and a pic if it is possible :)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
You forget Junkers EF-230 airliner.

UUUUUHHH, please please don't start another querelle on the project numeration of Junkers' .... Numbers above EF-130 are VERY dubious at the best...
EF-131, 132, 140 and 150 were all Ju-287 developments done in URSS after the war. Sometimes the Baade 152 is called EF-152.
If the EF-230 is supposed to be the civilian version of the late war (February 1945) flying wing with a frontal intake for the jets.... ok, but the designation 230 is pure fantasy (at least for what is known)


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
459
Boxkite,

I was looking at "Der Passagier-Jet 152" from Holger Lorenz and I was thinking if could the 152 be considered a representative early jet airliner of a what-if WW2 victorious III Reich or not?
(I love the film based in the book Fatherland, the autobahn Berlin-Madrid it is one of the infinite details to show this 1964 Reich)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
The Baade-152 seems dimnutive if you think what were the post war plans and visions of the Axis powers.. The Baade was an interesting aircraft but so "DDR" .... ;)


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
387
Reaction score
58
Website
www.aviationart.aero
Let me add my Ju EF 100 images to this thread. Indeed it was commissioned for the Monogram book mentioned.









Also see:
http://digitalaviationart.com/skyraider3d/juef100_1.htm
http://skyraider3d.cgsociety.org/gallery/238671/
http://skyraider3d.cgsociety.org/gallery/263487/
Prints available ;)
