ATF- concept definition studies

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
80

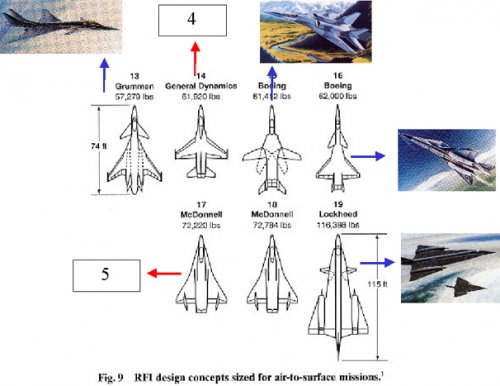

Attached jpg trying to put artists impressions against drawings from Aronstein, Hirschberg and Piccirillo book F-22 Raptor. Anyone help out with the missing impressions?


Attachments

  • US- ATF Early concepts-2.jpg
    US- ATF Early concepts-2.jpg
    168.5 KB · Views: 1,127

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
80

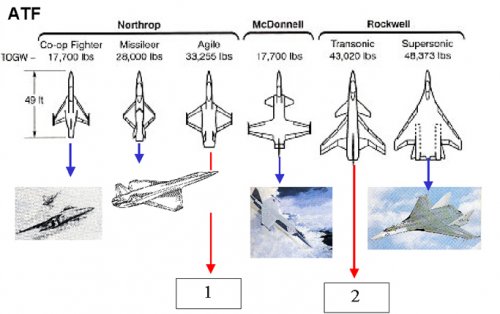

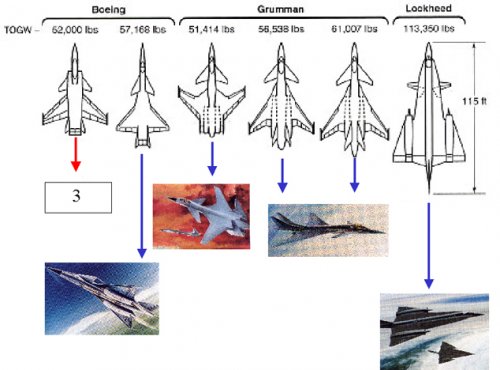

More


Attachments

  • US- ATF Early concepts-1.jpg
    US- ATF Early concepts-1.jpg
    140.3 KB · Views: 1,006
  • US- ATF Early concepts-3.jpg
    US- ATF Early concepts-3.jpg
    152.7 KB · Views: 1,027

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
469

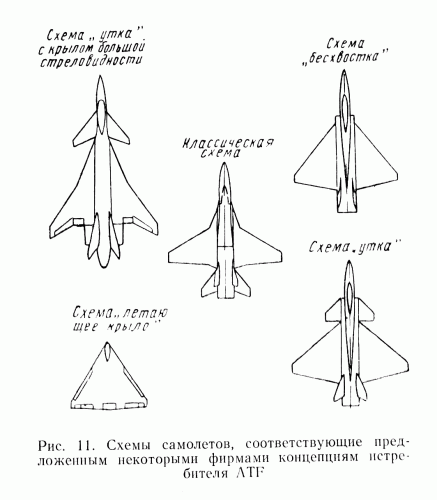

Variety of pre-ATF schemes from TsAGI's Tekhnichevskaya Informatsiya (No.13, 1984):


Attachments

  • ATF schemes.gif
    ATF schemes.gif
    80.6 KB · Views: 271
