Hawker Siddeley HS 1187

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
561
Reaction score
197
Also found in the Wallpaper Books at Brooklands.

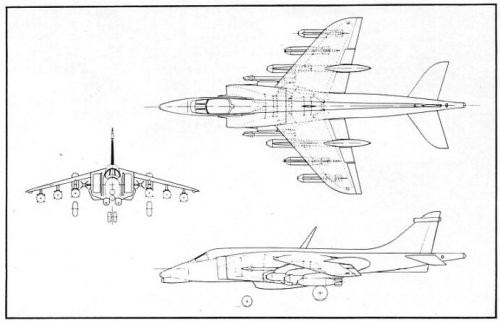

The fairly conventional 1187-5

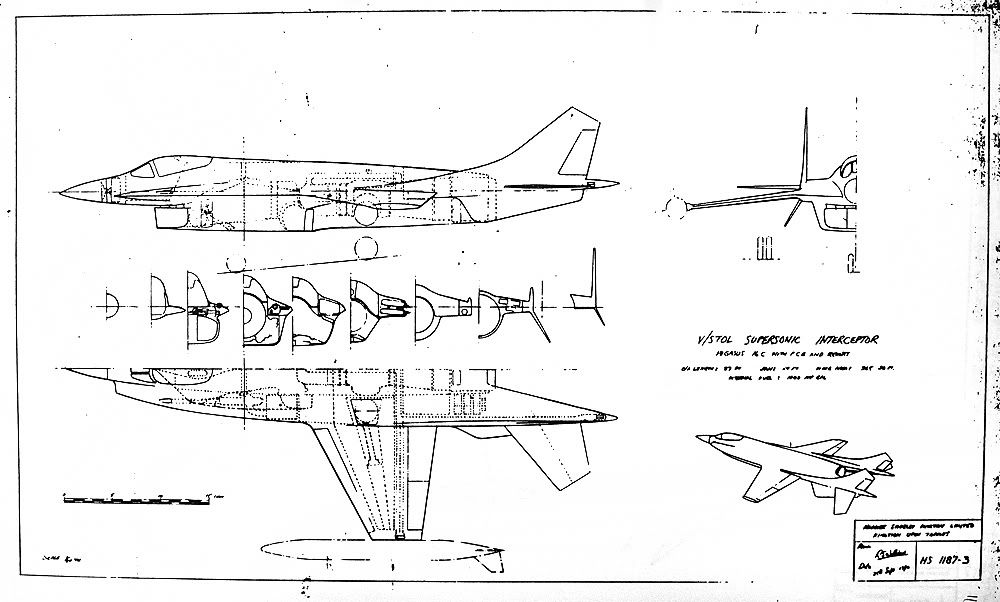

The more radical 1187-3



The enormous 1187-9 (that appears to be a Harrier to the same scale!)



All I've been able to find out about them is from harrier.org which dates the HS 1187 project at 1970 and describes the studies as having '1 or 2 Pegasus 16C with PCB or 1 x PCB and reheat'.

Interesting to note that the drawing for the -5 variant is dated 29th Sept 1971, the -3 is hard to read but looks like 23rd Sept 1970, -9 looks like 2nd March 1972.

If anyone knows more about these or the -1, -2, -4, -6, -7, -8, or any other variants it would be great to learn more.


Attachments

  • WB-10.jpg
    348.2 KB · Views: 692
  • WB-12.jpg
    337.4 KB · Views: 675
  • WB-13.jpg
    306.7 KB · Views: 154

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,889
Reaction score
378
Thanks for the pics. The -9 is massive!!


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,068
Reaction score
191

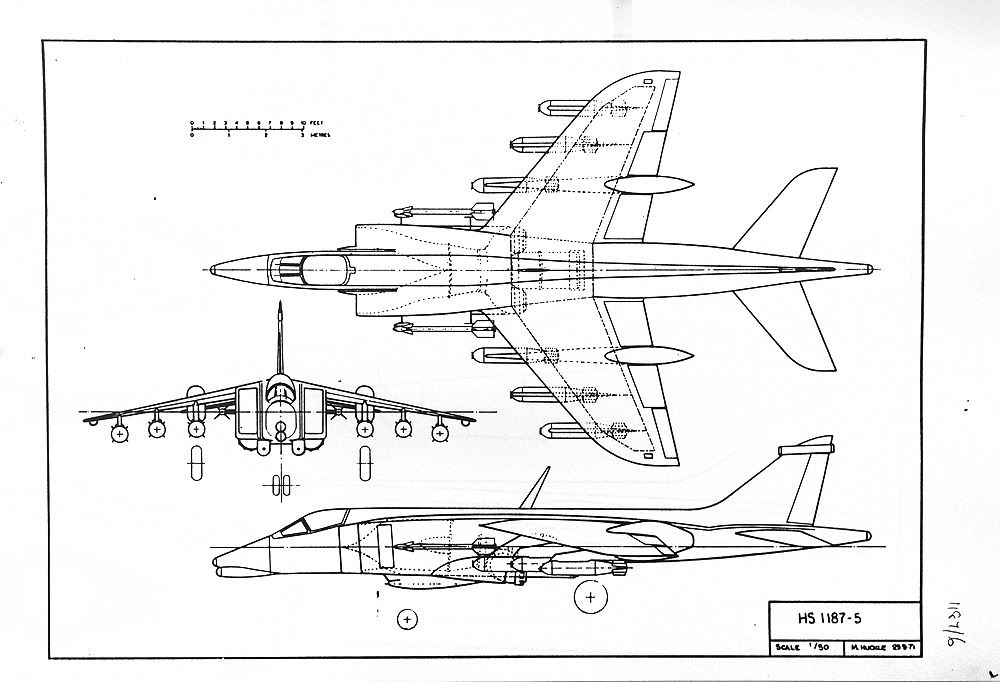

The 1187-5 was essentially a scaled up P.1185-9 (pic attached), Kingston's preferred supersonic design to AST.396 powered by the 34,850 lb. thrust Pegasus 15 with PCB. The P.1187-5 was used to illustrate how meeting the AST in full would produce a ridiculously large aircraft. The RAF re-drafted the AST! The P.1187-5 used the much more powerful Pegasus 16 which offered c. 35,000 lb. thrust without PCB, and 46,650 lb with PCB.

The 1187-9 was designed to fully meet all the demands of AST.396 while using the Pegasus 15. Two were needed instead of a single Pegasus 16.

The 1187-3 (and some other variants) were design exercises around the Pegasus 16, which in this instance had a 'clang box' and afterburner, so even more thrust than above!


Attachments

  • 1185-9.jpg
    53.7 KB · Views: 275

pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,007
Reaction score
293
The 1187-3 looks like a twin-fin Harrier that's been shoved up the backside of a P.1121!
