That seems unlikely, because that would mean downward facing vertical fins. I would imagine the bottom would be extremely flat in a few facets, given the high altitude mission.


Spring

ACCESS: Confidential
Joined
Jun 4, 2008
Messages
92
Reaction score
0
LowObservable said:
Are we sure that this puppy is Senior Peg?
ATB had a ferocious RCS spec, so I'd be very surprised to see edge alignments all over the place, let alone a leading-edge kink. Remember that the RCS group at Northrop wanted a continuous, straight, razor-sharp leading edge, and the onluy concession to aerodynamics on the B-2 was the "toothpick" LE, sharp at the nose and tips and blunter at midspan.

My understanding of the evolution from Have Blue to ATA-B and then to Senior Peg was that ATA-A (F-117) was minimum change, ATA-B incorporated some curvature and some rounding of the facet boundaries, and that Senior Peg represented a broadened-out at larger version of ATA-B. The infamous Gene Salvay interview in Wings seems to describe an interim design, but with a sweptforward tail like the Goodall picture.

Some aspects are more critical than other, the leading edge angle for the B-2 is poor for a stealthy concept (30º), so is clear that the Lockheed team wanted a greater leading edge, the problem there is the aerodynamic balance, specially for a subsonic aircraft..., on flying wings the problem is even more critical, since all the mass is pretty forwared, with your wings are sweept back, moving the centre of lift way behind, and this is not just an UAV...we are talking about a big aircraft here.

So at the end, you must use a leading edge of 30º, if you want to fly it.

The lockheed proposal looks like the northrop x-47, guess even them had issues with the original diamond shaped X47


andyl

ACCESS: Restricted
Joined
Jan 22, 2008
Messages
5
Reaction score
0

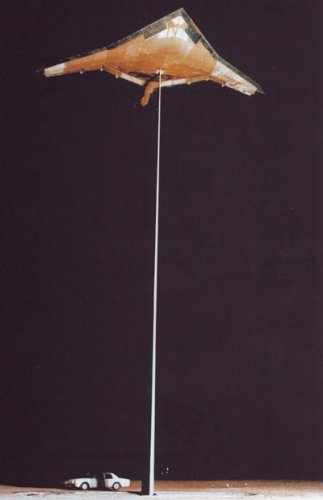

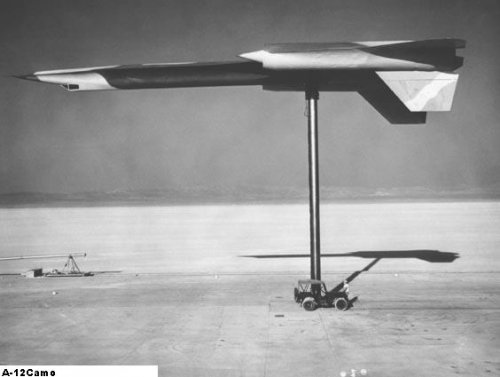

i agree that the outer wings looked canted up a bit having studied the initial image for a bit. As to RCS models upside down see image. - i think they get tested from all angles. Plus you need to get a low rcs in certain directions. Approaching from medium altitude the front and underside are important so you need to test from these directions and as the models are huge it's probably easier to mount the radar high and look down than put the model up on a giant pole simply for structual reasons plus a pole on the underside would interfere with results from the more important side for radar returns - the bottom.


Attachments

  • rcs_3.jpg
    23.6 KB · Views: 1,042

andyl

ACCESS: Restricted
Joined
Jan 22, 2008
Messages
5
Reaction score
0
doing a bit more digging this looks like the original image. Using the car to create a bit of scale gives a wingspan of around 60ft for the model. Searching for b2 rcs model reveals this page http://www.scaled.com/projects/b2model.html about contractor work for the rcs model of the northrop b2. They state a 4/10 scale model was chosen as the best compromise between rcs measurement and structural limitations giving there model a wingspan of 'around 70ft'. Knowing that the Lockheed entry was a bit smaller a wingspan of around 60ft for theirs seems reasonable built to the same scale. From what i have read of Ben Rich's autobiography they competed against northrop on rcs. It would seem a fairly sensible thing to build both models to the same scale to eliminate any testing error and therefore give a direct comparison.


Attachments

  • ats36762_SENIOR_PEG.jpg
    35.2 KB · Views: 1,066

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502
Did you ask yourself how many B-2 RCS models were built and did you note the date Scaled was approached to built that one? 1989. So the scale choosen for this one doesn't mean exactly that much earlier ATB models had the same 4/10 scale...


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
11
As far as the scale of the Goodall aircraft is concerned, has anybody looked at what it scales out to based on the width of the cocpit? I think it's safe to assume it had two-abreast seating. Perhaps the A-6 cockpit is a good reference, but the B-2 cockpit is equally valid.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,493
Reaction score
413
Very nice. Does this collection of information include the various configuration studied in 1983 when the low-altitude role was added? There were several evaluated, some more radical changes from the high-altitude version than others, with concepts submitted by both major airframe subcontractors (*grin* I should know, I was there at the time).


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502
Evan is back! Holy bananas!


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,493
Reaction score
413
As I said over on the shif forum, "For some values of 'back'!" Don't have near the time I used to, so....


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,768
Reaction score
5,149
Website
www.aerospaceprojectsreview.com
elmayerle said:
Does this collection of information include the various configuration studied in 1983 when the low-altitude role was added?

Just what you see, pal.



My sources on the B-2 program are largely what's in the open press, with a few tiny bits from elsewhere. If you have anything you'd care to share...


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,493
Reaction score
413
Unfortunately, no, I don't have any saved data and Pico had fairly good security on checking outgoing briefcase, attache cases, etc. I do remember one alternate configuration which had the engine inlets in the lower leading edge of the wing, just outboard of the radar units; there was quite an S-duct going back to the engines.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,768
Reaction score
5,149
Website
www.aerospaceprojectsreview.com
elmayerle said:
Unfortunately, no, I don't have any saved data and Pico had fairly good security on checking outgoing briefcase, attache cases, etc. I do remember one alternate configuration which had the engine inlets in the lower leading edge of the wing, just outboard of the radar units; there was quite an S-duct going back to the engines.

A reconstruction drawing could be made, though it would be nothign more than "hearsay." What was the planform like? ANy other notable differences?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,493
Reaction score
413
Orionblamblam said:
elmayerle said:
Unfortunately, no, I don't have any saved data and Pico had fairly good security on checking outgoing briefcase, attache cases, etc. I do remember one alternate configuration which had the engine inlets in the lower leading edge of the wing, just outboard of the radar units; there was quite an S-duct going back to the engines.

A reconstruction drawing could be made, though it would be nothign more than "hearsay." What was the planform like? ANy other notable differences?

The overall planform was pretty close to what was actually built but the inlets were outboard of the radar units and curved considerably. Naturally, without the inlets, the bulges over the engines were smoothly faired into teh upper surface. The auxiliary intakes and the APU exhaust doors were still on the upper surface, though.


*chuckle* What I really wished I'd saved, though, is a humorous bit one of my co-workers came up with, a course syllabus for a "Masters in Viewgraph Engineering". It was hilarious, given the briefings we sometimes ha prepare for managementd . These days it would be in "Powerpoint Engineering".


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
91
A late 3-star general once told me that the Lockheed/Rockwell Senior Peg was nothing more than a two-place B-58 sized F-117. That line drawing pretty much proves that. SP


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
Hi,

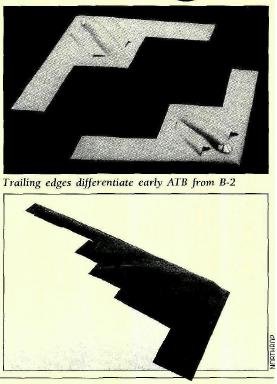

http://www.flightglobal.com/pdfarchive/view/1991/1991%20-%201428.html


Attachments

  • Northrop ATB.JPG
    Northrop ATB.JPG
    18.6 KB · Views: 1,756

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
Early B-2 artist drawing;



Attachments

  • B-2.JPG
    44.2 KB · Views: 1,726

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,609
Reaction score
250
Website
www.hitechweb.genezis.eu

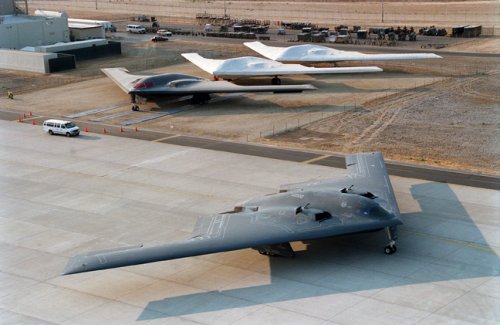

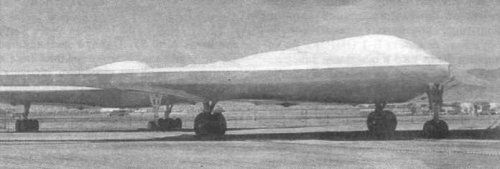

I think it was not posted before - two special airframes for B-2 static tests.


Attachments

  • two_static_tests_vehicles.jpg
    36.2 KB · Views: 1,461

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Matej said:
I think it was not posted before - two special airframes for B-2 static tests.

Brilliant! Now if we could get a few quality pics of the RCS pole model (which Scaled Composites worked on) that would be great!


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,239
Reaction score
136
Matej said:
I think it was not posted before - two special airframes for B-2 static tests.

One of those was cleaned up and put on display in the USAF Museum. I've always wondered where the other one got off to.


shadeone

I really should change my personal text
Joined
Oct 6, 2011
Messages
4
Reaction score
0
1994 satellite image of the two "iron birds" sitting at palmdale:
showimage.php


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
38
Website
www.io.com
shadeone said:
1994 satellite image of the two "iron birds" sitting at palmdale:
showimage.php

...There use to be a bigger version of this online, but my Google-Fu is failing me on the image searching today :mad: :eek: :-\ :'( ???


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502
means of economy. it just didn't need 'real' MLG to be towed forth and back between shop and test facility


shadeone

I really should change my personal text
Joined
Oct 6, 2011
Messages
4
Reaction score
0
damn.... invisible-defenders b2 page had a ton of pics of the iron birds but even going through archive.org doesnt bring the pictures back. They were taken from a number of books... ill dig through my library soon here.

A

AAAdrone

Guest
I saw that back in 2009 with a JDAM mockup next to it. It's good to know the significance of that mockup considering I used to think it was just a mockup made specifically for the museum.


shadeone

I really should change my personal text
Joined
Oct 6, 2011
Messages
4
Reaction score
0

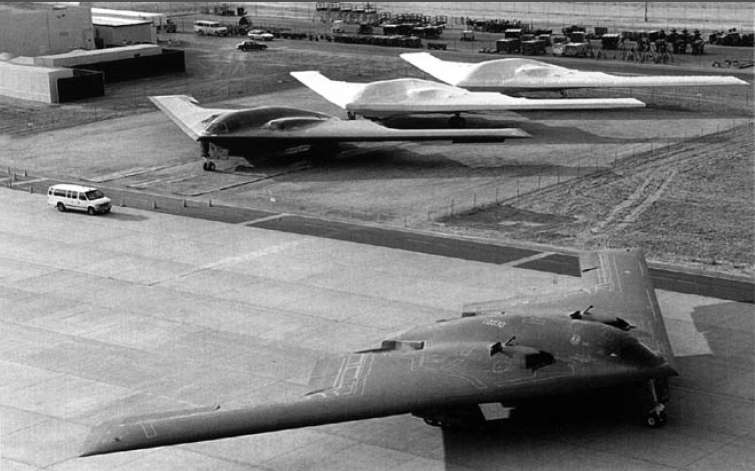

another shot of the two birds from a James Goodall book:



anyone got any more?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502

Attachments

  • lgm_94025735.jpg
    132.8 KB · Views: 2,357

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013

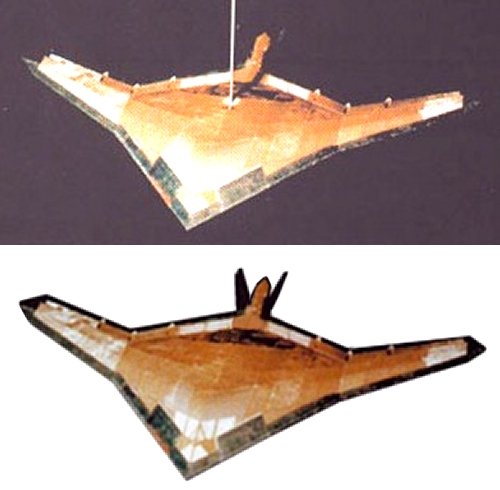

Don't know if this has been addressed in the latest versions of Scott's ATB drawings, but when blowing up the Senior Peg image and after reworking it a bit (contrast, light, erasing the pole's shadow...) it seems clear to me that the wing tips look nowhere near like the (otherwise beautiful) drawing that he presented two pages ago.

Any ideas, anyone?


Attachments

  • Senior Peg.jpg
    Senior Peg.jpg
    93 KB · Views: 2,016

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
370
Reaction score
31
It was also in an early 1983 issue of Popular Science or Popular Mechanics, the latter I think. I think it's also been in one of Bill Gunston's books.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502

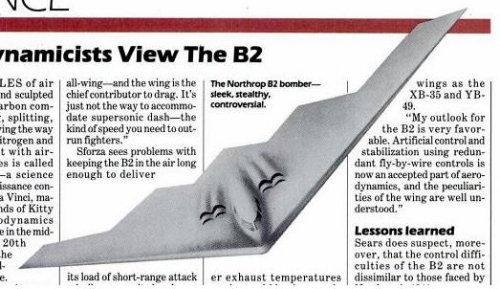

PopSci, Feb 1983
Soviet magazines never were humble while grabbing stuff from Western editions
literally, 'Krilya Rodiny' picture caption in Russian clearly says that 'This is how stealth bomber is imagined by Popular Science magazine'


Attachments

  • PopSci Feb 1983 ATB.jpg
    PopSci Feb 1983 ATB.jpg
    381.8 KB · Views: 1,611

Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
20
Orionblamblam said:

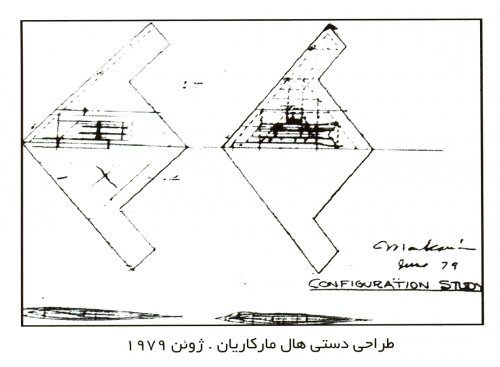

This came fromt he rect Av Week article. However, I *know* i've seen this drawing before. I'm looking for a higher resolution version of it... if anyone can point me towrds it, I'd much appreciate it.

Anyway, this was apparently the first sketch of what became the B-2.

Hello,

Will this one help you sir?!

AK


Attachments

  • scan0009.jpg
    239.8 KB · Views: 457

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
295

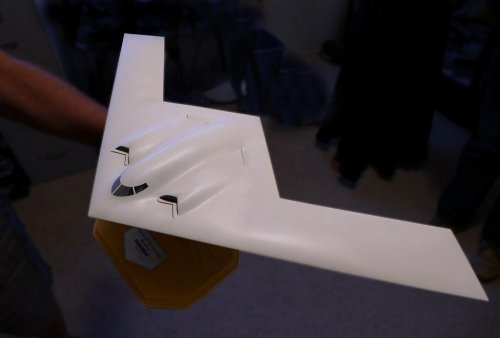

Northrop manufacturer's model of the ATB concept, prior to the B-2 configuration and designation.


Attachments

  • Northrop ATB Concept.jpg
    Northrop ATB Concept.jpg
    40.4 KB · Views: 394

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,502
glimpse on Lockheed's SENIOR PEG performance data according to Northrop's Jim Kinnu:"...it was basically meeting the minimum requirements, a range/payload of 6,000 pounds internal payload, low altitude, 3,000-mile range, refueled for the 6,000-mile mission."
