Bensen B-19 and B-20

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
102

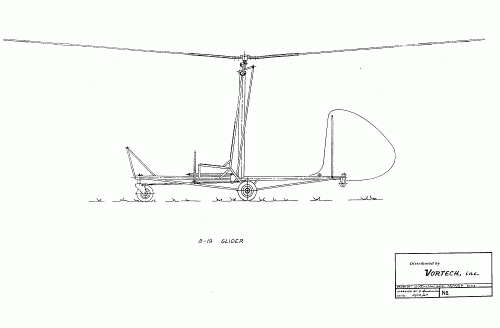

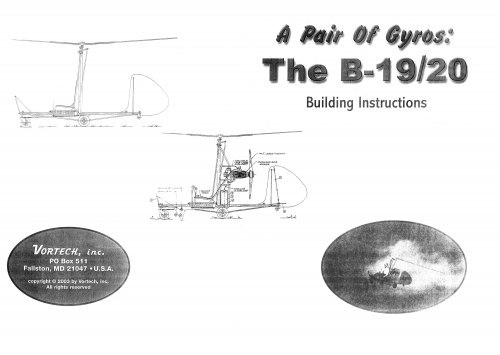

The plans of what I think was Bensen's final Gyro-Glider/Gyro-Copter design, the B-19/B-20 are offered for free download on the Ultraligero.net website.

Does anyone know if the B-19 and its powered B-20 variant ever resulted in a built aircraft? I have never seen any picture of either. Any help on this matter would be appreciated.

The plans are authored by a company called Vortech, which owns the rights to these plans. They have an important disclaimer on their page, which explains why there will not be newly-built Bensen Gyros ever again:

Please note: Although Vortech has available reproductions of the manuals and prints for the Bensen Gyros, these materials are not sold for the construction from scratch of one of these aircraft since Bensen Aircraft is no longer in business and the technical support for safe operation is not available. The manuals and prints are only sold to individuals that own one of these aircraft and need these reference materials. (The listings for Bensen materials are at Vortech Books.)
More on Vortech on their official site and their Bensen page.

Also see my topic on Bensen models and designations on this forum.


Attachments

Yeager

CLEARANCE: Restricted
Joined
Nov 15, 2019
Messages
30
Reaction score
13
Specs and images for the B-19 and B-20 are provided at these links:



riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
405
Reaction score
44
No plans-built Bensens has that fancy curved fin. Instead, they had rectangular fins with corners cut off.
