Hi there all,

I would like some help with the Ar 234C/V-1 Huckepack!.

If anyone can help me with any type of info on this aircraft it would be great, I have seen the Dragon model kit in 1/72 scale and would love to make one in 1/48 so if anyone has any drawings or info ANYTHING please let me know.

Thanks,

Lockon.




AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
0
Hello

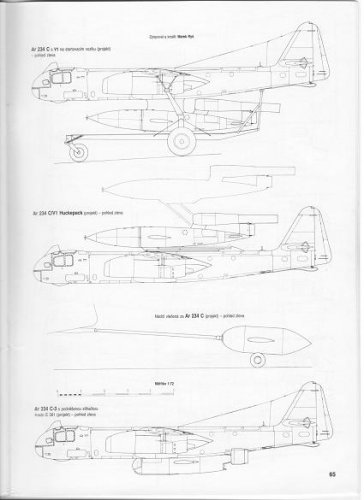

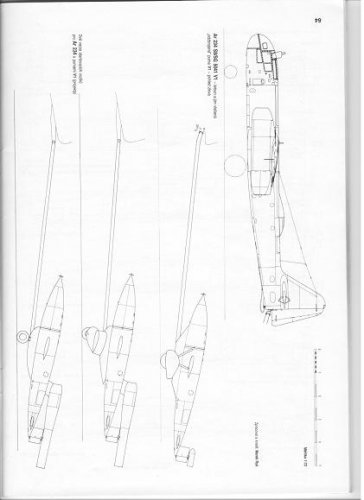

I have this draws - on ar234-1 are Huckepack combinations of Ar 234C and V 1 and at ar234-2 is draw of tested combination and draws of alternate projects of V - 1 undercarriage


Attachments

  • Ar234-1.jpg
    30.2 KB · Views: 395
  • ar234-2.jpg
    24.5 KB · Views: 319
  • source.jpg
    38.6 KB · Views: 199

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Thanks for that AF! :) A big help.

Please anyone send what you have.

Lockon.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
Please read the rules of the site and resize your posted images accordingly. These images are too large.


AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
0
overscan said:
Please read the rules of the site and resize your posted images accordingly. These images are too large.

Sorry, now I hope I fixed it - i do not want resize images so a used link to external site - if it is problem then mail me and I will resize it.

Regards

AF


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
We have a number of authors on the site, and the rule is there to protect their work. If you need a high res copy of these images, you should buy the book.


AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
0
overscan said:
We have a number of authors on the site, and the rule is there to protect their work. If you need a high res copy of these images, you should buy the book.


Ok - now i understand - it is fixed now.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,908
Reaction score
1,140
Website
www.aerospaceprojectsreview.com
overscan said:
We have a number of authors on the site, and the rule is there to protect their work.

Picky Note: the rule should remain even if the authors *weren't* on this site. If the author in question happens to be *dead,* that might make things different, dunno.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
Of course you are correct Scott. I didn't mean to imply this was the reason for the rule, but to emphasise that breaking the rules could have consequences beyond my censure.


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Hi all,

Does anyone know if any other aircraft? where to be carried like the V-1 Huckepack on the Ar 234 or any of the early German missiles.

All help and views would be great!.

Lockon


AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
0
Lockon said:
Hi all,

Does anyone know if any other aircraft? where to be carried like the V-1 Huckepack on the Ar 234 or any of the early German missiles.

All help and views would be great!.

Lockon


(Mistels and) Fw 190 + Fi 103 project

http://www.albentley-drawings.com/mistel.htm


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Thanks for that AF,

That Fw 190 with the V-1 looks really cool!, do you know if it was ever tested or was it just a a drawing board subject?

Lockon.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,233
Reaction score
1,881

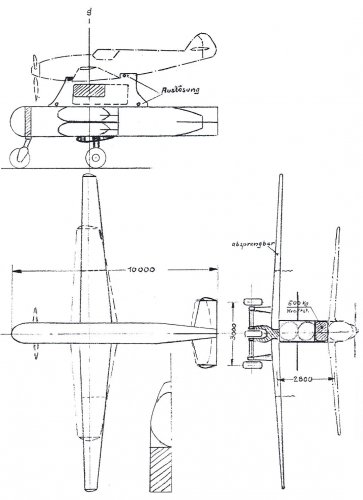

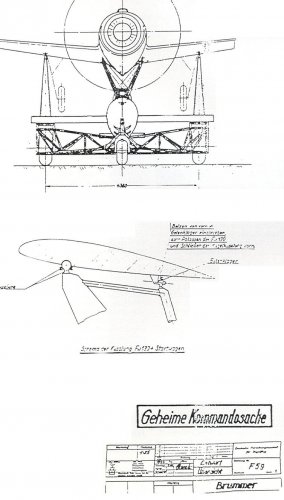

This was just a project of the DFS named Projektzeichung F59 "Brummer". It was published by Professor A. Rudolph to use the V-1 with tactical purposes in March 1945.
It does not seem as if the Fw 190 was powerful enough so that the assembly could achieve the required speed of 360 ft/sec to start the pulsejet.

The design did not admit the installation of the takeoff Schmidding rockets. Therefore it would be reasonable to assume that the pulsejet was started with compressed air before takeoff. Perhaps that was the function of the oval tank fitted to the trolley as shown in the attached drawing.

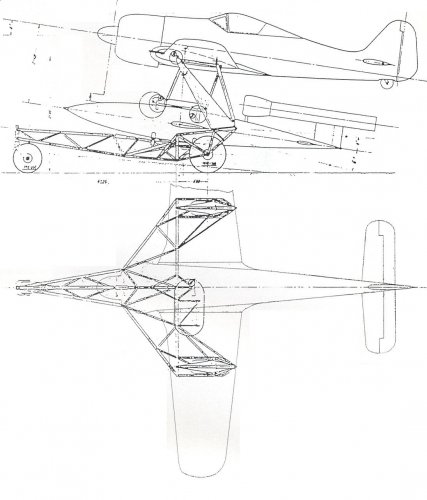

There was another Hirt project to launch the V-1 from a Bf 109 G-6 (please see attached drawing of a similar device) but it required to make at least 31 modifications to cure the displacement of the C.G.
The "Loon" American version could also be launched from the B-17, B-24 and B-29 bombers.

http://www.stelzriede.com/ms/photos/planes/b1748.jpg

http://www.stelzriede.com/ms/photos/planes/b1741.jpg

http://www.ctie.monash.edu.au/hargrave/images/loon_load_500.JPG

The Soviet versions Chelomei 10Ch and 14Ch were launched from the Tu-2, Il-4, Yer-2 and Pe-8 bombers.
The "Huckepack" system was exclusively designed for the Ar 234. I have seen similar devices in the Martin Baker and H. L. Bowers "Swinging Arm" ejector seats projects only, but not in any missiles.


Attachments

  • Escanear0001.jpg
    130.6 KB · Views: 213
  • Escanear0002.jpg
    116.2 KB · Views: 199
  • Escanear0003.jpg
    121.4 KB · Views: 152

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
Some more Mistel combinations from "Der Flugzeugschlepp von den Anfängen bis
zur Heute", E.Peter, 1981, Motorbuchverlag, AFAIK only available second-hand
today.

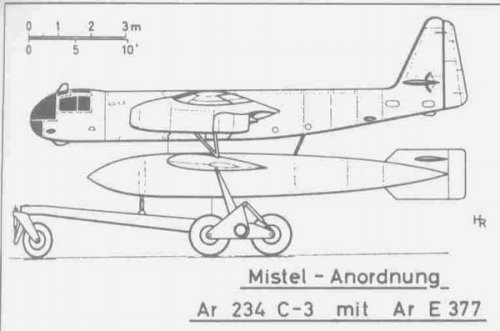

- Ar 234C-3 with the Ar E 377 glide bomb

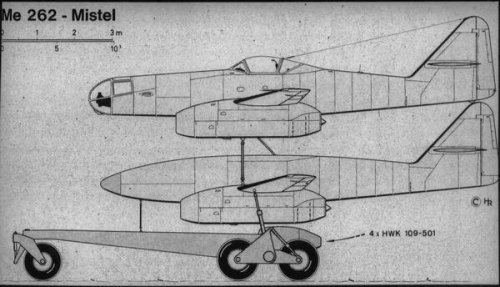

- Me 262 with an unmanned Me 262 ,

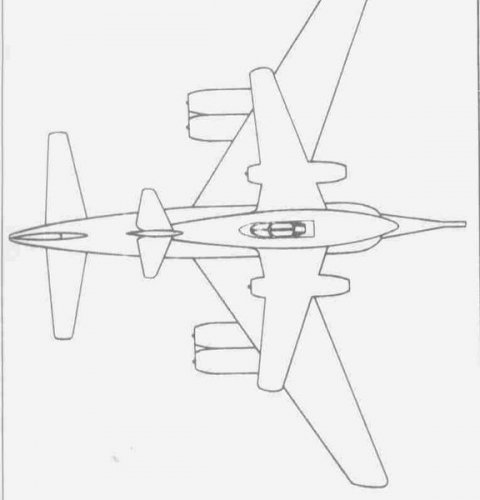

- Ju 287 with a Me 262 as lead a/c
these were pure projects, and

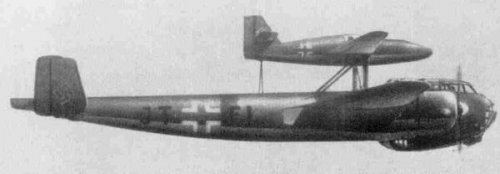

- Do 217 with Me 328
a combination for flight testing.


Attachments

  • Do-217_Me-328.JPG
    15.9 KB · Views: 85
  • Ju-287_Me-262.JPG
    19.1 KB · Views: 89
  • Me-262_Mistel.JPG
    46.5 KB · Views: 85
  • Ar-234_E377.JPG
    25.8 KB · Views: 81

AF

ACCESS: Restricted
Joined
Oct 21, 2007
Messages
44
Reaction score
0
Good info about E 377 is here

http://www.luft46.com/armament/are377.html

Some nice models javascript:void(0);
Smiley (include Mistel 4) are here http://www.48specialmodels.com/e-seiten/e03prod-index.html (for Me 262/Me 262it is include draws :) )


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Hi there,

Would like to say a big thankyou to all who have posted stuff!

This will be a big help!

If anyone has anything at all please add it.

Thanks,

Lockon


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,233
Reaction score
1,881

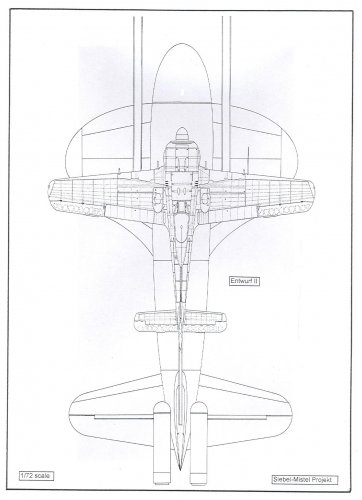

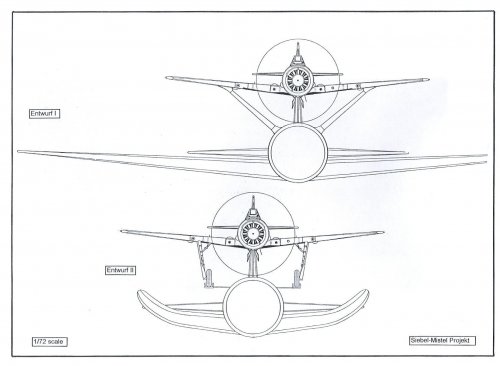

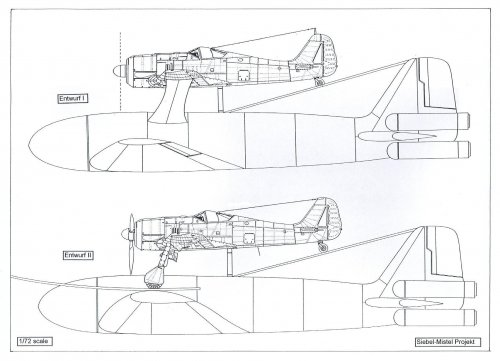

From Reichdreams "Packfile 2"


Attachments

  • Escanear0001.jpg
    166.8 KB · Views: 121
  • Escanear0002.jpg
    184.4 KB · Views: 144
  • Escanear0003.jpg
    137.4 KB · Views: 112

Bodmas

ACCESS: Confidential
Joined
Feb 19, 2009
Messages
71
Reaction score
0
Lockon said:
Hi there,

Would like to say a big thankyou to all who have posted stuff!

This will be a big help!

If anyone has anything at all please add it.

Thanks,

Lockon

How about this


From:
Kenneth Munson (1978)
German Aircraft Of World War 2
In Colour
Blandford Press, UK
[ISBN 0-7137-0860-3] (ibid, p.73)

Hope it is of interest (apologies for the poor picture quality)
