Does anyone have any 3 view drawings or photos any info of this take off trolley? That Matej posted on June 11/06 (McDonnell-Douglas F-15 projects).

Any help would be great!

Thanks,

Lockon.


Attachments

  • index[3].jpg
    220.3 KB · Views: 369

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,642
Reaction score
650

Attachments

  • avzel_1.jpg
    23.2 KB · Views: 235

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Re: F-15 STOL Takeoff Trolley

Why is the rocket exhaust brown? ;D


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Re: F-15 STOL Takeoff Trolley

It depends on chemicals that you are using.

Back to trolley - it is pure concept, nothing that was actualy built. But in general, it resembles me some proposals from Piasecki.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

Matej said:
It depends on chemicals that you are using.

Back to trolley - it is pure concept, nothing that was actualy built. But in general, it resembles me some proposals from Piasecki.


Are you sure nothing was built? For some reason I've got it stuck in my head that they actually tried it out with an F-101 Voodoo.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Re: F-15 STOL Takeoff Trolley

I am sure that in relatinon with this picture - it means with F-15, not any real hardware was built. And with other planes - I assume that howercraft trolley was never tested. But I will be happy corrected with some evidence.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

Matej said:
I am sure that in relatinon with this picture - it means with F-15, not any real hardware was built. And with other planes - I assume that howercraft trolley was never tested. But I will be happy corrected with some evidence.

I know the F-15 was never tested. What I'm saying is that I think it made it to a hardware stage but they used the F-101 instead of the F-15 (cheaper if they wrecked it I'm assuming). Don't know if it was just a mockup, just did tow testing, or what but I'm pretty sure they didn't accomplish any takeoffs. Wracking my brains trying to remember where I'd seen it. Might have been an old Airforce magazine. Ah well. Next time I'm digging around in my shed I'll look for it. :-[


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Re: F-15 STOL Takeoff Trolley

Someone was using chemicals, that's for damn sure.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

LowObservable said:
Someone was using chemicals, that's for damn sure.

Meh. I can't find anything online. I did find this wind tunnel model of an F-4 being tested on one though.


Attachments

  • f4.jpg
    33.5 KB · Views: 227

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

Hi all,

Thanks for your info so far.

Sferrin thanks heaps for the wind tunnel test photo!........whats the web link?

If anyone has any more ideas or info then add it.

Lockon.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

Lockon said:
Hi all,

Thanks for your info so far.

Sferrin thanks heaps for the wind tunnel test photo!........whats the web link?

If anyone has any more ideas or info then add it.

Lockon.

It was from an AIAA paper on the topic.


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

Hi all,

sferrin are you able to post the AIAA paper would be nice to have a read.

Thanks,

Lockon.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Re: F-15 STOL Takeoff Trolley

No requests to post articles, magazines or books please.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

Lockon said:
Hi all,

sferrin are you able to post the AIAA paper would be nice to have a read.

Thanks,

Lockon.


No thanks. It's available at the AIAA's site.


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

Very sorry Overscan did not know that we could not post articles...........Sorry.


Sorry about that sferrin!

Lockon.


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

Sferrin, are you able to post the web link to where you found the info and photo of the trolley,
have been all over the AIAA's web page cant find it?

Thanks,

Lockon


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

This is the abstract to the article:

http://pdf.aiaa.org/preview/1984/PV1984_2130.pdf


The official name of the program was Advanced Alternate Takeoff System (AATS)


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

Thanks sferrin,

Will have a read, if you ever find anything more........please let me know.

Thanks,

Lockon


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
Re: F-15 STOL Takeoff Trolley

LowObservable said:
Someone was using chemicals, that's for damn sure.

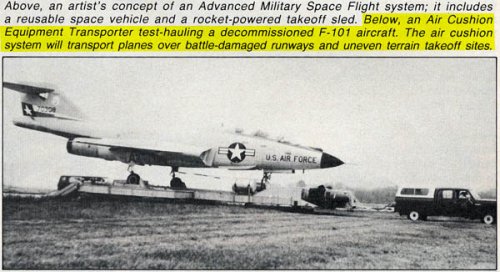

I wasn't completely delusional. Going through an old magazine there was the picture of the two F-15s taking off on the ACV sleds and on the very next page was this picture: (Explains how they got linked in my head over 20 years. :-[ )


Attachments

  • F-101.jpg
    76.2 KB · Views: 263

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Re: F-15 STOL Takeoff Trolley

I must say VERY NICE FIND! sferrin.


I'm guessing those drums are for fuel?

Lockon.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
The idea of the Alternative Aircraft Takeoff System (AATS) originated at the Flight Dynamics Laboratory at Wright-Patterson Air Force Base in Dayton, OH. AATS called for the development of a ground-effect vehicle to serve as a support platform enabling combat aircraft to take off from bombed or otherwise damaged runways.

The unmanned hover platform would use its own power for ground effect ascension only; the aircraft's jet engine or engines would accelerated both the plane and the AATS to takeoff speeds. On actual take-off, the aircraft's wheels would leave the wells built into the hover platform and drogue parachutes would deploy automatically to slow and eventually halt the AATS for retrieval.

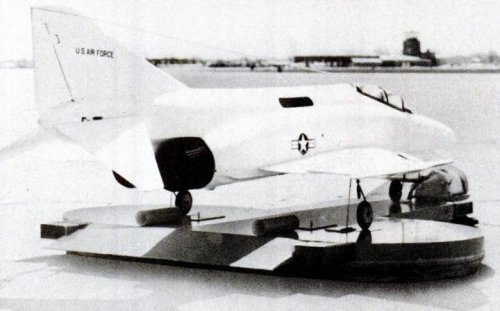

Photograph of 1/10-scale F-4 mockup, borrowed from the Navy, and AATS used by Bell Aerospace for wind tunnel testing.

"Airborne from the Ground Up" Popular Mechanics September 1981


Attachments

  • AATSmockup.JPG
    55.1 KB · Views: 906

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Wyen, Gerald R. USAF Testing in Support of Air Cushion Equipment Transporter (ACET) Technology.
Wright Lab Wright-Patterson Air Force Base OH May 1987

Abstract:
The Air Cushion Equipment Transporter (ACET) is designed as an air base survivability item, to transport vital heavy equipment (especially aircraft) across battle damaged terrain. This report presents the results of the first ACET program which consisted of the design, construction, and testing of a prototype vehicle. Based upon the design concept evolved for the AATS program, the ACET is essentially a lower performance derivative of the vehicle proposed for that program. Its construction follows closely the methods used in producing the LACV-30 and its cushion lift air system employs almost exclusively the hardware previously installed on the XC-8A aircraft used in the ACLS program. This report summarizes the evolution of the prototype vehicle and presents the results of the test program with the ACET equipped with a full-fingered skirt carrying on F101B aircraft to simulate realistic payloads.

Handle / proxy Url: http://handle.dtic.mil/100.2/ADA240188

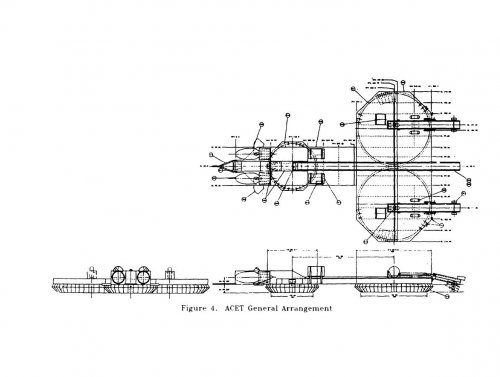

Three-view drawing of Air Cushion Equipment Transporter (ACET).


Attachments

  • ACETGeneralArrangement.jpg
    93.2 KB · Views: 143

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,759
Reaction score
1,906
Direct link for report mentioned in previous post: http://www.dtic.mil/dtic/tr/fulltext/u2/a240188.pdf (handle no longer working.)
