I have just discovered a tank I did not know existed. It is the AMX ELC, a light tank intended for airborne forces. It is very small but well armed, I can not find much information about it. I can't see where the drivers seat is-in the turret? If you know any more then please let me know. I wonder why it failed?


Attachments

  • amx elc 2.jpg
    amx elc 2.jpg
    49.9 KB · Views: 1,421

goose

ACCESS: Restricted
Joined
Jul 14, 2010
Messages
29
Reaction score
0
Thanks for the link, some really nice pics of an interesting little tank. Double hatting the driver as the gunner to save crew and therfore weight may have been attactive to the designer but it could lead to disaster in combat. The tank cannot move and fight at the same time and so it becomes a static gun platform in combat. If engaged while moving there will be a delay before it returns fire. I realise these points also apply to assault guns so it comes down to how it was to be used, unfortunatly if it looks like a tank it will be used as a tank. An assault gun layout might have been a better solution and lighter.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,925
Reaction score
299
Hey I never knew about this design, up until a couple of months ago!
I think it is a great design!!

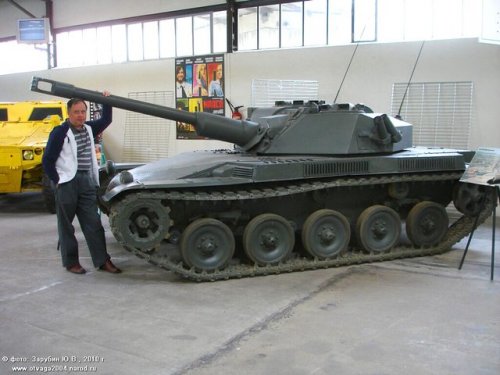

I found this photo, which clearly depicts the designs real compactness = light weight!!

Regards
Pioneer


Attachments

  • AMX ELC light tank size comparison.jpg
    AMX ELC light tank size comparison.jpg
    57.5 KB · Views: 1,035

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
goose said:
Thanks for the link, some really nice pics of an interesting little tank. Double hatting the driver as the gunner to save crew and therfore weight may have been attactive to the designer but it could lead to disaster in combat. The tank cannot move and fight at the same time and so it becomes a static gun platform in combat. If engaged while moving there will be a delay before it returns fire. I realise these points also apply to assault guns so it comes down to how it was to be used, unfortunatly if it looks like a tank it will be used as a tank. An assault gun layout might have been a better solution and lighter.

I think that you may have missed the point of this vehicle. The French text in the link above describes it like so:

1955 ELC AMX
Chasseur de char de 6 tonnes. Le conducteur et le canonnier sont placés de part et d'autre du canon de 90 mm dans une tourelle casemate. A l'arrêt, on disposait d'un champ de tir de 360°. En marche, le champ était celui d'un canon d'assaut classique.
Longueur : 4,97m largeur : 2,24 m hauteur : 1,58 m poids : 6,7 t
Armement : 1 canon de 90 mm D 914 (Vo 780 m/s) 36 coups

In short, the ELC AMX was intended as a tank destroyer--a mobile anti-tank gun--with a 360° field of fire when stationary but functioning a bit like a Swedish S-Tank (aim the whole tank with the gun fixed) when on the move. Seen that way, and considering the kind of asymmetrical conflict in which it would have likely participated, it could have been a very handy tool. Not something to go up against Russian armor head to head, but it would have been a very handy vehicle nonetheless.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,493
Reaction score
1,535
I was curious about this tank, and a google search turned up something that has me confused.

In this article about the Future MBT program (originally in Armor), there's a picture that is captioned as "The French AMX-ELC of the 1960s." However, it's clearly not the same tank. Anyone know what this vehicle really is?



TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,493
Reaction score
1,535
Thanks. It's easy to see how the authors might have confused the two ELC candidates.

The Hotchkiss version is quite an odd-looking beast. Did it work the same way as the AMX contender (fixed gun while moving, traversable while stopped)?


goose

ACCESS: Restricted
Joined
Jul 14, 2010
Messages
29
Reaction score
0
Thanks for the link to the Hotchkis prototype, interesting little tank. I think that this version is a better vehicle than the AMX, the driver driving,gunner/commander OK with belt fed weapons. The cannon are a better solution to fire support than a large gun for light infantry-effective against most likly targets and lots of ammo. If the paras need a big anti-tank gun then they shouldn't be there. Perhaps back it up with a anti-tank missile version for those pesky MBTs if you are in the habbit of putting you light forces in front of them. If it is light enough to be picked up by a helecopter then it looks very useful indeed. But does it need two cannon? What ground target demands a high rate of fire?


Ranger6

ACCESS: Restricted
Joined
Feb 27, 2007
Messages
44
Reaction score
1
Goose,

I'm not sure what gives you the i9mpression that the Hotchkiss ELC had two guns. AFAIK it had only one and was designed around only one gun (Plus a co-ax MG, maybe that's the second gun?).
In any event, the French tested both and decided that neither fit their needs. Instead, they turned to armored cars as offering the best possibility of mounting a heavier gun on a light platform.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,493
Reaction score
1,535
Ranger6:

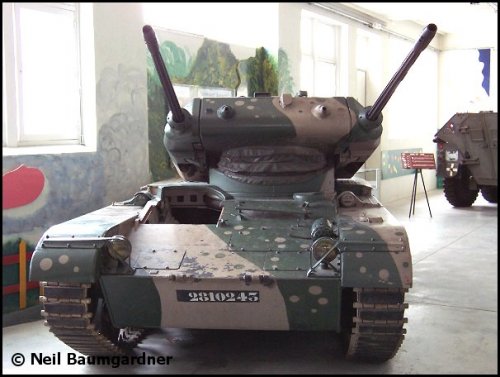

There were two versions of the Hotchkiss ELC. One had a single 90mm canon, the other had two 30mm cannon (as shown in the attached image). I believe Goose is questioning the need for two 30mm guns. I have to agree -- unless they hoped to use it as an anti-aircraft weapon, the extra RoF of the second gun is almost certainly unneeded.


Attachments

  • elc-even30_001.jpg
    57.2 KB · Views: 515
C

CostasTT

Guest

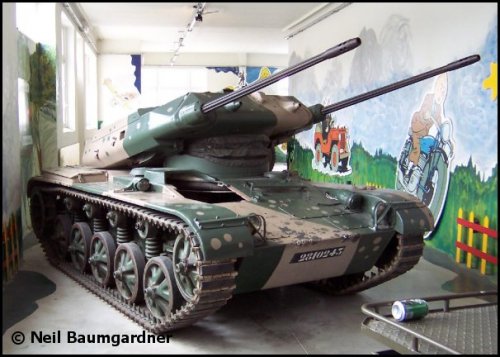

They are most certainly not antiaircraft guns. The oscillating turret does not allow for sufficient elevation.


Attachments

  • ELC-30_001.jpg
    59.6 KB · Views: 59
  • ELC-30_002.jpg
    65.9 KB · Views: 84

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,493
Reaction score
1,535
Of course you're right. So I'm at quite a loss for what they hoped to do with the second gun.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
680
Website
deeptowild.blogspot.com

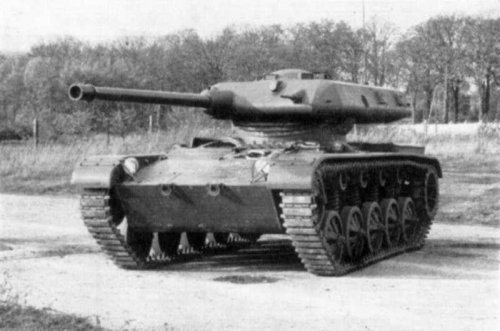

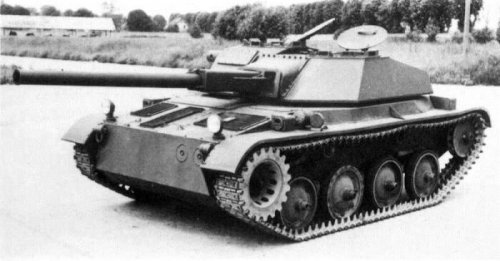

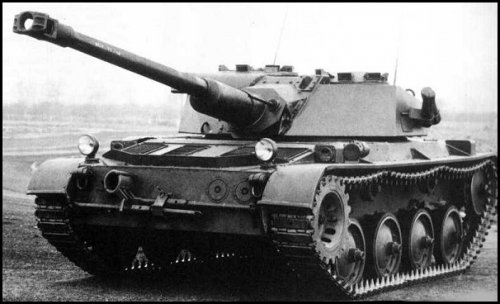

Photo of AMX ELC (Engin Leger de Combat).

Source:
http://www.friendsreunited.co.uk/the-french-amx-elc-light-tank/Memory/c275e5b3-1e15-405d-bef5-a0c40116bce3
http://forum.worldoftanks.com/index.php?/topic/95416-second-french-lightmedium-line/


Attachments

  • elc-even90_013.jpg
    33.8 KB · Views: 91
  • the-french-amx-elc-light-tank.jpg
    46.6 KB · Views: 84

Madurai

ACCESS: Confidential
Joined
Aug 17, 2009
Messages
97
Reaction score
7
TomS said:
Of course you're right. So I'm at quite a loss for what they hoped to do with the second gun.

There was a proposed variant of the Sheridan with twin 25mm, specifically dedicated to engaging ground, not air targets. Presumably, the French had similar enough experience using SPAAGs against infantry that there was a short fad for building a dedicated vehicle to do that.

C

CostasTT

Guest
According to Hunnicutt, the Sheridan twin 25mm rapid fire weapons system would have been effective against both air and ground targets - the guns had a maximum elevation of 90 degrees - but from the concept art illustrations it lacked any form of radar fire controls for the AA role, so it would have been a clear weather system when used as such.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
854
Reaction score
388
CostasTT said:
They are most certainly not antiaircraft guns. The oscillating turret does not allow for sufficient elevation.
The EVEN ELC was meant to ambush tanks at close range in urban or compartmentalized terrain. Asymmetric defense tactics against the hordes of Soviet tanks expected in 1955.


It had some very unusual features, like a 2-men-only crew, the driver on the right-hand side (in France), and a turret offset to the left. The cannon was fixed inside the turret, allowing for an automated loader, as was later used in the AMX 13.


In fact there are at least 3 versions of the EVEN ELC: 2x30mm, 1x 90mm+GPMG, SS-11 + SS-12 launcher.

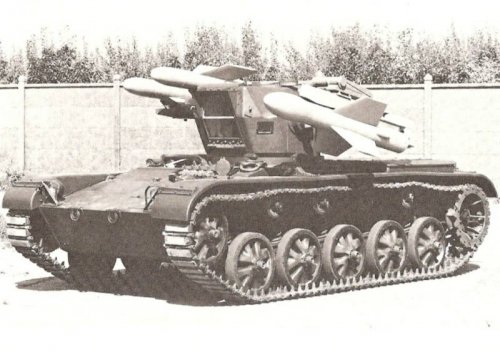

The attached photo is the missile version, with dual SS-11 and single SS-12.


Personally I can see such a contraption working reasonably well in the Normandie bocage, but not so well in cities, far less in the "west european great plains" (or whatever it's called in English) that said Soviet hordes would run through. In those plains, the tiny tin can would be in big trouble against T55s...


Attachments

  • Even ELC Engin Léger de Combat w SS-11 (right) and SS-12 (left).jpg
    Even ELC Engin Léger de Combat w SS-11 (right) and SS-12 (left).jpg
    65 KB · Views: 480

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,960
Reaction score
334

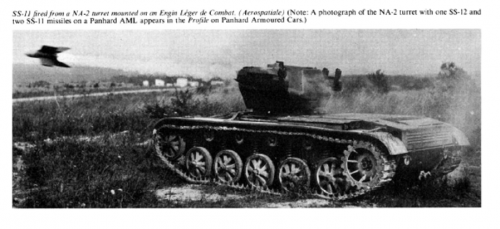

Image of an Even ELC firing an SS.11 missile from its NA.2 turret, source AFV Profile, Missile Armed Armoured Vehicles, page 14.

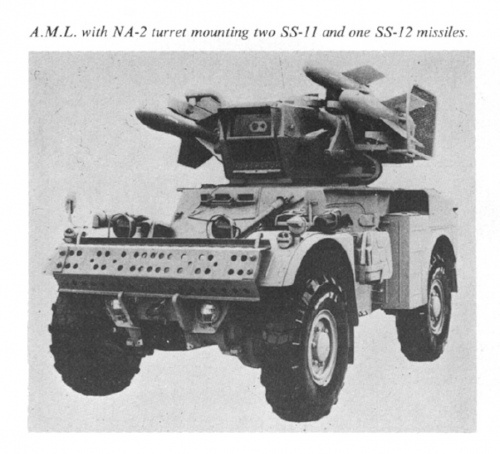

Image of an A.M.L. armoured car carrying the NA-2 turret, source AFV Profile, Missile Armed Armoured Vehicles, page 23.


cheers,
Robin.


Attachments

  • missile firing ELC.png
    missile firing ELC.png
    287.2 KB · Views: 344
  • AML.png
    479.6 KB · Views: 352

Blacktail

I really should change my personal text
Joined
Mar 29, 2013
Messages
26
Reaction score
1
I have some additional insight into why the ELC project failed.

The primary culprit was the use of an unmanned turret, or EGT ("External Gun Turret"). They erase an AFV's unrestricted top vision and accessibility to the vehicle's weapons from inside, require exceedingly complex internal workings, and they force the whole crew to sit in the front of the hull (the part most likely to be penetrated by tank fire and land mines) --- to name a few.

This was pointed-out to Armor Magazine by armor engineer Don Loughlin in the 1990s, at a time when the US Army was gonzo for EGT tanks. He never let them forget how badly every EGT vehicle had turned out, and why;
http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1996.jf/1xturret96.pdf

http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1996.ja/4letters96.pdf

http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1997.ma/2letters97.pdf

http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1997.mj/3tkplant97.pdf

http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1998.ja/4sayonara98.pdf

http://ciar.org/ttk/mbt/armor/armor-magazine/armor-mag.1999.mj/3ltrs99.pdf


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
89
Madurai said:
TomS said:
Of course you're right. So I'm at quite a loss for what they hoped to do with the second gun.

There was a proposed variant of the Sheridan with twin 25mm, specifically dedicated to engaging ground, not air targets. Presumably, the French had similar enough experience using SPAAGs against infantry that there was a short fad for building a dedicated vehicle to do that.

Possible uses for twin auto-cannons:
- Increase rate of fire (e.g. for engaging aircraft)
- Allow cooling one barrel at a time (e.g. New Ukranian/CIS AFVs and MBTs)
- Dual ammunition types with single feed guns
- Provide redundancy in case of failure or jams


The limited ammunition capacity would remove both cooling and increased rate of fire as reasons - so I'm guessing it was fear of one of the autocannons failing within an automatic and difficult to access turret. It would be interesting to have confirmation though.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,968
Reaction score
2,986
Madurai said:
There was a proposed variant of the Sheridan with twin 25mm, specifically dedicated to engaging ground, not air targets. Presumably, the French had similar enough experience using SPAAGs against infantry that there was a short fad for building a dedicated vehicle to do that.

Also, with regards to the Sheridan based proposal, the human wave attacks common in the Korean War would still have been fresh enough in the memory in the institutional memory of the Army.


biscuitsAB

Remember the Warren Hastings.
Joined
Apr 19, 2013
Messages
18
Reaction score
0
Hi,
I recall seeing what I think was an early version of this with a pair of 75 mm (?) RCL's mounted either side of a central cupola. It obviously had a two man crew which is a non-starter during the hours of darkness in my view; one man sleeping the other trying to maintain radio watch and act as sentry - who makes the tea?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,968
Reaction score
2,986
Grey Havoc said:
Madurai said:
There was a proposed variant of the Sheridan with twin 25mm, specifically dedicated to engaging ground, not air targets. Presumably, the French had similar enough experience using SPAAGs against infantry that there was a short fad for building a dedicated vehicle to do that.

Also, with regards to the Sheridan based proposal, the human wave attacks common in the Korean War would still have been fresh enough in the memory in the institutional memory of the Army.

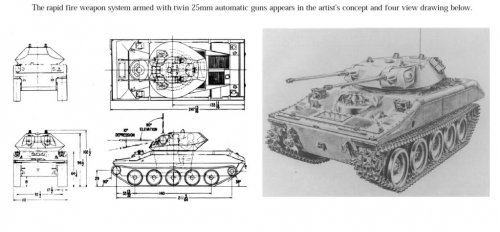

Found the below at Beyond the Sprues (h/t GTX):


Attachments

  • Sher4.jpg
    86.9 KB · Views: 226
