https://www.youtube.com/watch?feature=player_embedded&v=POEU0gchYIM





http://foxtrotalpha.jalopnik.com/panhards-crab-may-just-be-the-future-of-armored-scout-v-1581746120​

When it comes to firepower the Crab is not just a scout vehicle, it is a transformer. This buggy-like combat vehicle can be configured with different weaponry and sensors for different missions, from a remote controlled 7.62mm or 50 calibur machine gun up to a 30mm cannon or a 40mm grenade launcher, all housed inside of a fully articulating turret. The pictures seen here show the Crab equipped with the proven M242 25mm Bushmaster cannon. Depending on the ammo used, the M242 can knock out main battle tanks at relevant ranges (Bradley Fighting Vehicles equipped with same cannon were known to knock out T-72s during operations in Iraq). In this configuration the Crab could hold a total of 150 rounds of two types of ammo, which are usually armor piercing and high-explosive.

Along with the 25mm Bushmaster a coaxial 7.62mm machine gun can also be mounted inside the same turret, which offers a wide variety of weapons effects for such a small vehicle. Regardless of what is mounted in the weapons turret, it can be accessed via the Crab's cabin for maintenance and reloading.

Other configurations have the Crab outfitted with large high-power observation sensors, point defense surface to air missiles and anti-tank guided missiles. A command and control outfit is also in the works apparently.

For targeting, the Crab can pack a myriad of sensors, including infrared, electro-optical, and even a mast mounted radar similar to what is currently deployed on the AH-64D/E Apache attack helicopters. Such a system can be quickly raised to rapidly build a "picture" of the area around the vehicle, including classifying ground targets and providing engagement quality targeting for its own or other weapons platforms' to utilize.

As scout vehicle, the Crab could use its radar system to call in artillery or guided rocket strikes from dozens of miles away without ever even being seen. Additionally, such a modular milimetric wave radar system could also provide detection and cuing for surface to air missile systems against low flying aircraft and helicopters. Such a capability would give a crab outfitted with point defense surface-to-air missiles a potent "all in one" high-mobility air defense capability, which would not have to rely on external radar sources for situational awareness and initial targeting.

The whole concept of Panhard's Combat Recce Armored Buggy was to build a vehicle that is truly a scout-reconnaissance vehicle at heart, not an all too common over-grown caricature of one. Its designers, along with the French military, want something extremely mobile, reliable, highly adaptable and purpose built for scouting duties yet capable of many more missions by default, and the Crab concept, if executed properly in a production form, should deliver this. Furthermore, the Crab is highly deployable without being dismantled first. A single C-130J Super-Hercules can hold two Crabs and an A400M can hold three of these vehicles. Both these aircraft can land at forward operating locations with minimal support infrastructure and rough landing surfaces. This means the Crab can be flown directly into the area of operations and can roll off their transports ready to go to work.

In many ways the Crab is the F-16A of yesterday, it can do a lot of different missions, has fantastic crew interface, is extremely nimble and fast and can still pack a powerful punch when asked to. And it aims to do this without introducing such radically new technology that the unit cost will begin balloon or its reliability rate will be questionable from the get-go.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,217
Reaction score
971
Website
beyondthesprues.com
I saw this in person a few years ago at one of the European Trade Shows. It looks very much like the modern day re-incarnation of the FV721 Fox (see below):



cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,405
Reaction score
148
Website
cluttonfred.info
The resemblance is even more apparent in the graphics on the Panhard web site: http://www.panhard-defense.eu/Defense


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,405
Reaction score
148
Website
cluttonfred.info
They certainly seem related in concept if not in mechanical details. I am not so sure I understand the logic of the 40mm gun in the SPHINX. If you are going to carry along four anti-tank missiles, then you've got enemy armor covered, why not mount something more multiporpose like a gun-mortar in the turret for direct fire and indirect fire support? Maybe a 81mm little brother to the Patria NEMO with HEAT, HE and canister direct fire rounds as well as standard mortar rounds?


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,771
Reaction score
2,098
Well, the 40mm CT is a very versatile gun, potentially effective against light armor (APFSDS), infantry (General Purpose HE), and aircraft (Air-Bursting). And it's very compact. Each round is less than half the weight and around a third the volume of an 81mm mortar round. And the gun doesn't take up much space in the turret, either, which makes it easier to fit a two-man turret in a small vehicle. (It would also be interesting to see the unmanned Toutatis turret on something like CRAB.)


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
246
The Sphinx looks like a reincarnation of a Saladin!?!?!?!?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,178
Reaction score
4,903

Looks like it is still moving forward as part of the Scorpion (Synergie du Contact Renforcé par la Polyvalence et l’Infovalorisation) program.
I wouldn't surprised be if a few were already undergoing field testing with French forces in the unholy mess that is the Mali War.

Last edited:

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,178
Reaction score
4,903
Last edited:

H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
216
Reaction score
421
Looks like it is still moving forward as part of the Scorpion (Synergie du Contact Renforcé par la Polyvalence et l’Infovalorisation) program.

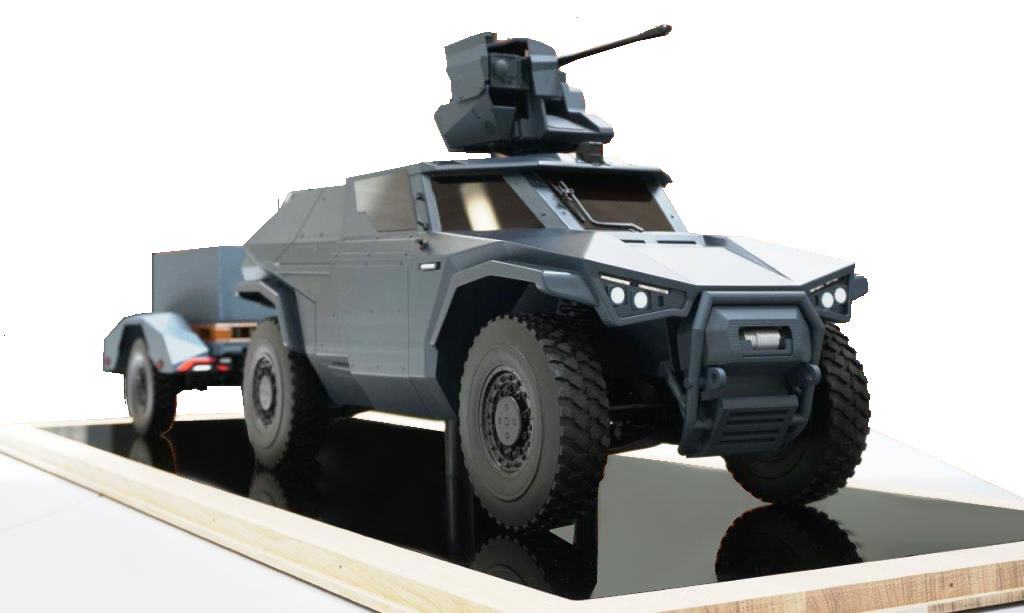

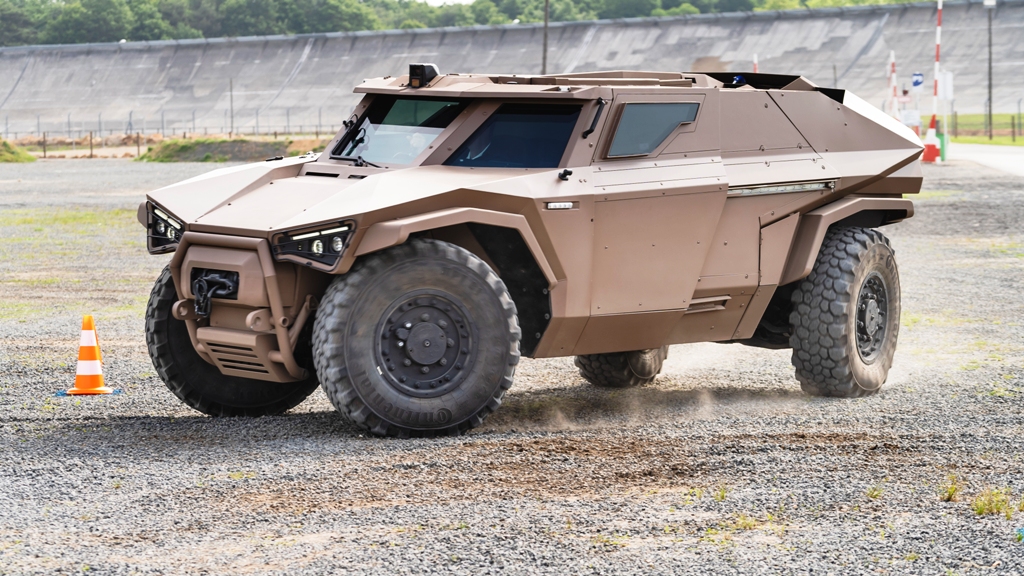

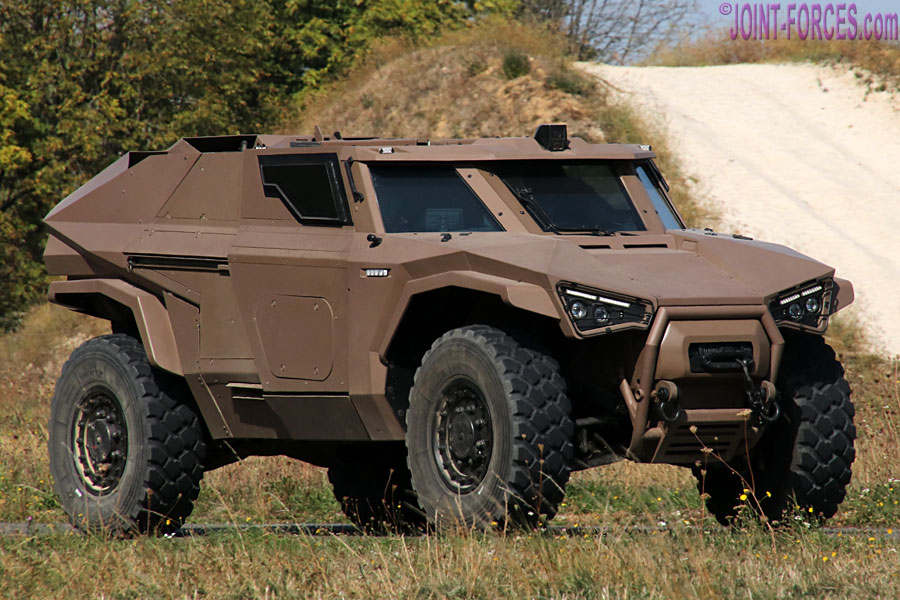

The Crab and Panhard are history. Arquus is now developing the 8-tonne Scarabée, which shares some similarities with the Crab but is a different vehicle, slightly smaller and lighter, tailored for the VBAE program (VBL replacement).


Other articles:




Last edited:

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,178
Reaction score
4,903
Thought the SCARABÉE was an internal rival to, rather than a substitute for, the Crab?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,178
Reaction score
4,903
Meant to post this earlier. It appears that post-merger, they have now decided to focus the SCARABÉE on the export market, though they seem to be still hopeful of a French Army order (for the forces deployed in Mali perhaps?).
